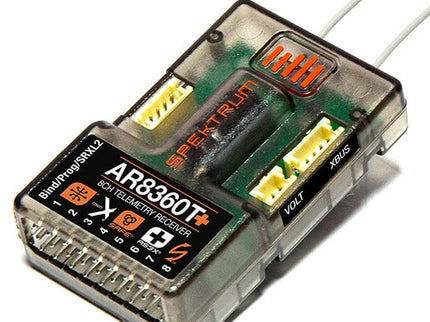

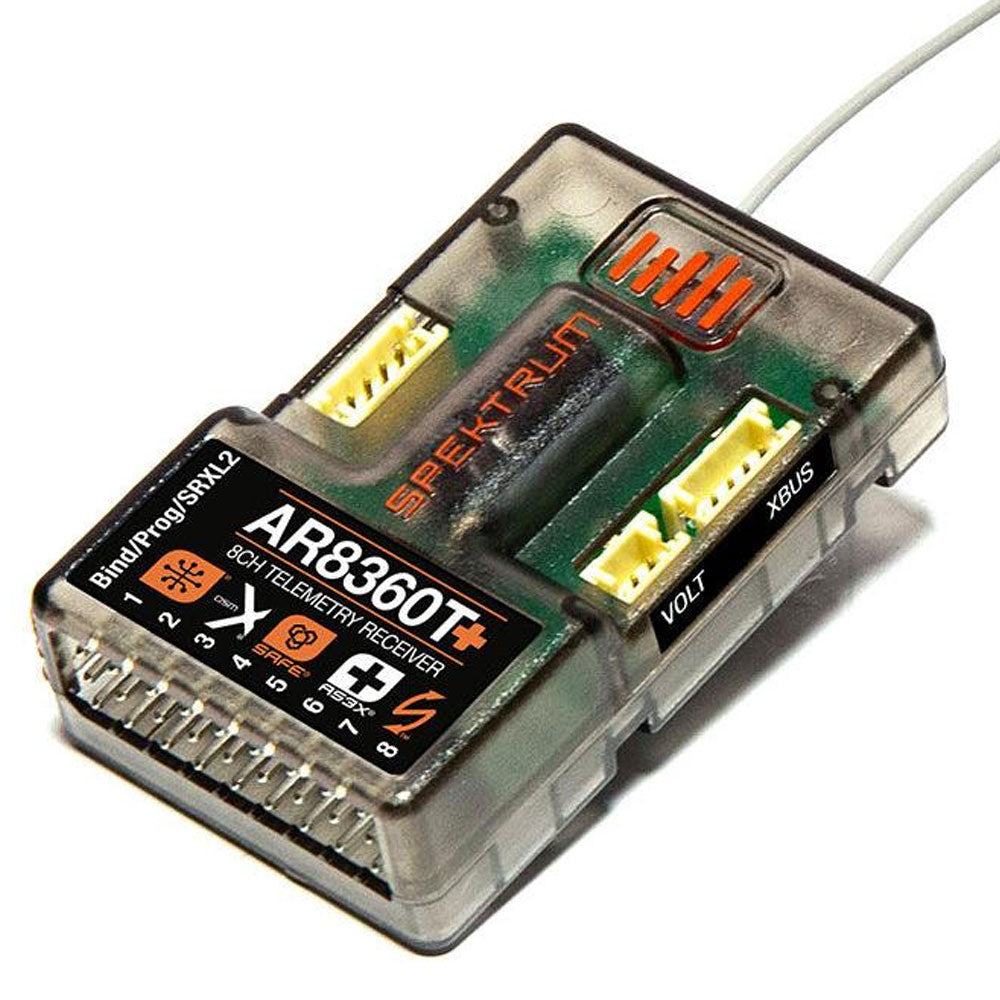

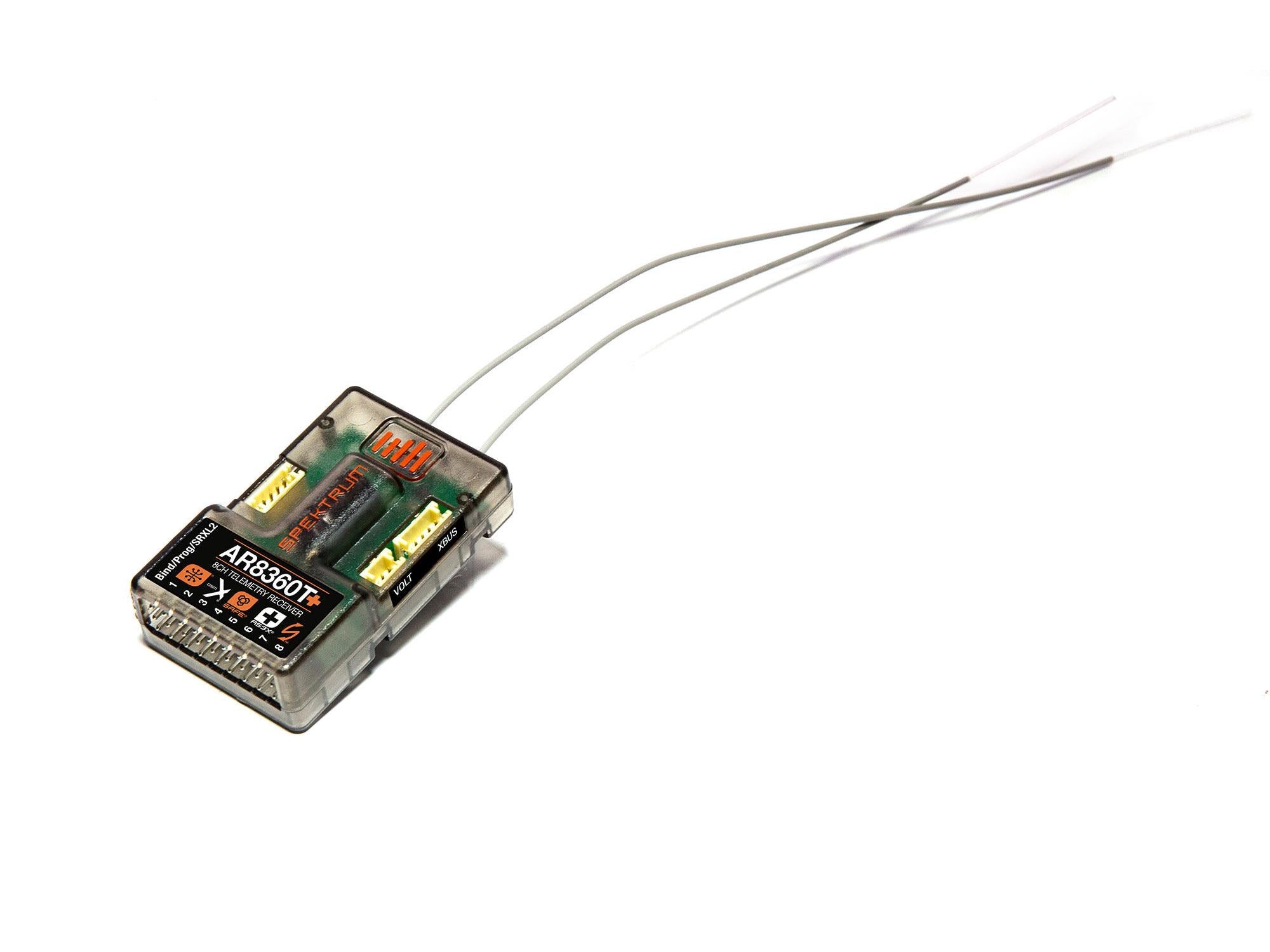

The Spektrum AR8360T+ Receiver is a full-range 8-channel DSMX receiver combining next-generation AS3X+ stabilisation, SAFE® flight envelope protection and advanced Smart Telemetry features. Designed for sport, scale and high-performance aircraft, it delivers powerful integration and simplified setup in a compact end-pin layout.

Featuring full-range telemetry and an integrated barometer, the AR8360T+ provides real-time altitude and variometer (vario) data without requiring additional sensor modules. XBUS and temperature ports allow expansion with optional telemetry sensors, while dual external antennas ensure secure RF coverage from multiple orientations.

An SRXL2 port supports optional remote receivers (SPM9747 or SPM4651T, sold separately) for additional RF path redundancy. A multi-function SRXL2/Bind/Program/Batt port enables Smart device connection, firmware updates, traditional bind plug use or direct battery connection.

Key Features

• 8-channel full-range DSMX receiver

• AS3X+ next-generation stabilisation system

• SAFE® flight envelope protection with Panic Recovery

• Integrated barometer (altitude & vario telemetry)

• Smart Telemetry & Smart ESC compatibility

• Smart Transmitter Model File support

• Forward Programming directly from compatible transmitters

• Dual external antennas for secure RF coverage

• SRXL2 port for optional remote receiver redundancy

• XBUS & temperature ports for additional telemetry sensors

• End-pin layout for compact installation

• Push-button bind (bind plug also supported)

AS3X+ – Next Generation Stabilisation

The upgraded AS3X+ algorithm delivers faster setup and superior tuning flexibility. Most aircraft can be configured in minutes, including first-flight tuning.

Key improvements include:

• Stop Lock and Release Rate parameters

• Enhanced Heading Hold

• Improved gyro filtering

• Canard and thrust vectoring support

SAFE® Technology & Panic Recovery

SAFE® (Sensor Assisted Flight Envelope) limits bank and pitch angles to help prevent extreme attitudes. Panic Recovery mode (typically assigned to a momentary switch) can instantly return the aircraft to level flight from almost any orientation.

Smart Telemetry & Smart ESC Integration

When paired with a Smart ESC and telemetry-capable Spektrum DSMX transmitter, the AR8360T+ transmits real-time data including:

• Voltage

• Current

• Temperature

• RPM

Smart Technology uses a single-wire connection through the throttle port for clean, simplified installation.

Integrated Barometer

The built-in pressure sensor provides accurate altitude and vario telemetry without additional modules ideal for gliders, scale aircraft and performance models.

Forward Programming

Configure AS3X+, SAFE and individual channel failsafe parameters wirelessly through the Forward Programming menu on compatible Spektrum transmitters no external devices required.

Forward Programming not supported on DX6i, DX6G2 (EU), DX7, DX7S, DX7SE, DX7G2 (EU), DX8 and non-computer transmitters.

Important Notes

• DX7S and DX8 Gen 1 transmitters will not display altitude or variometer telemetry

• Smart functionality requires a Smart ESC and telemetry-capable DSMX transmitter

• Not recommended for turbine-powered aircraft

Perfect For

• Sport and scale aircraft

• Gliders requiring altitude/vario telemetry

• Aerobatic and high-performance models

• Pilots wanting SAFE protection with advanced tuning

• Smart Technology-equipped aircraft builds

Product Summary

The Spektrum AR8360T+ is an advanced 8-channel DSMX receiver featuring AS3X+ stabilisation, SAFE® protection with Panic Recovery, integrated altitude and vario telemetry, Smart ESC compatibility and Forward Programming. With dual antennas, expansion ports and remote receiver capability, it offers premium performance for demanding RC aircraft applications.

Specifications

• Channels: 8

• Protocol: DSMX

• Stabilisation: AS3X+

• Flight Protection: SAFE® with Panic Recovery

• Telemetry: Full-range Smart Telemetry

• Integrated Sensor: Barometer (Altitude & Vario)

• Antennas: 2 external

• Remote Receiver Port: SRXL2 compatible

• Expansion Ports: XBUS, Temperature

• Bind Method: Push-button bind or bind plug

• Layout: End-pin design

• Compatibility: Spektrum DSMX transmitters (telemetry-capable for Smart features)
