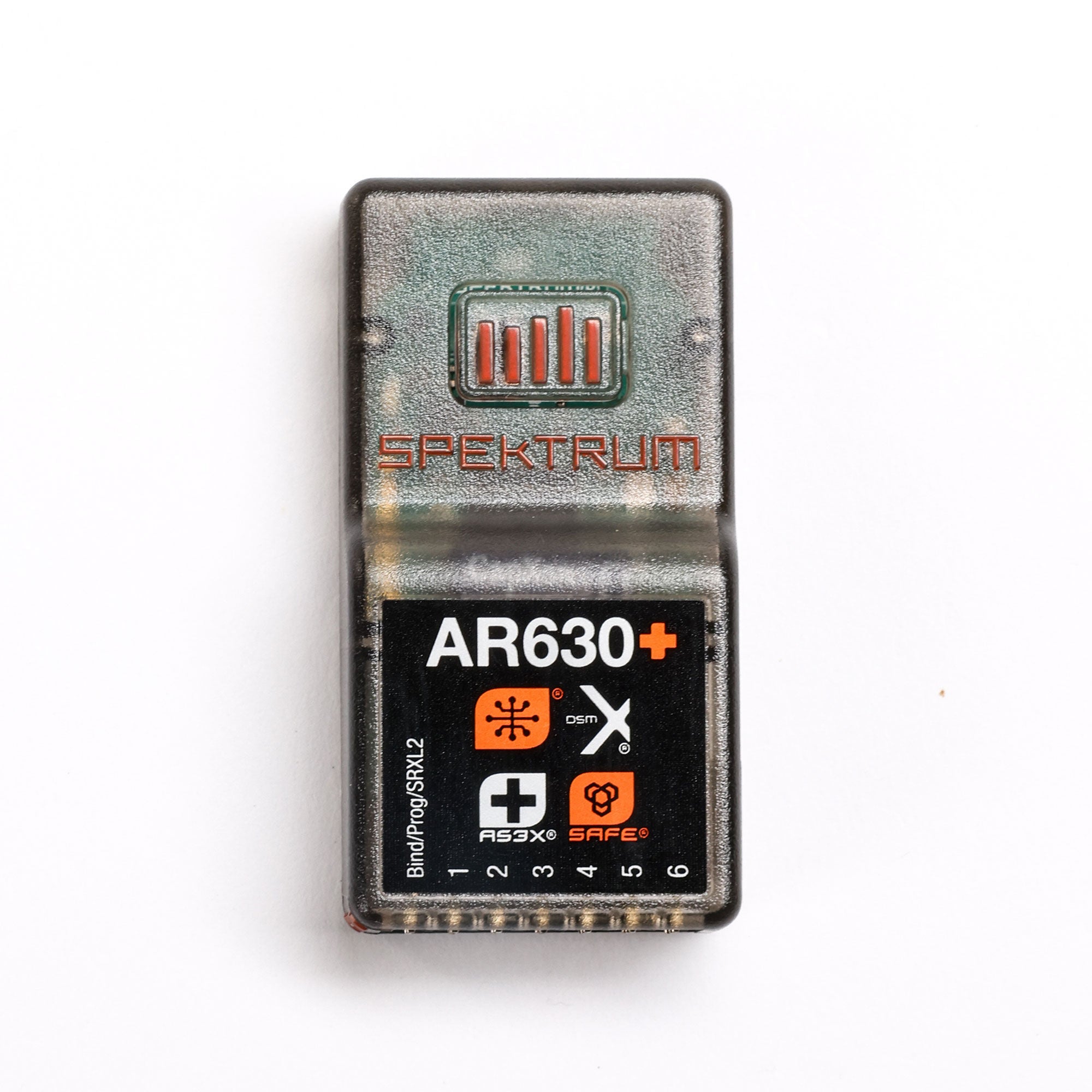

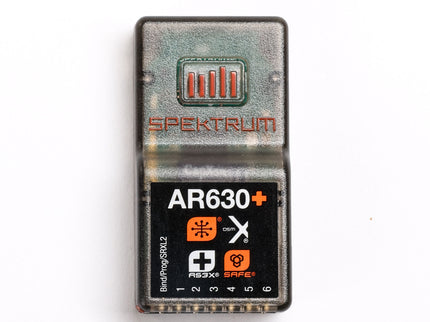

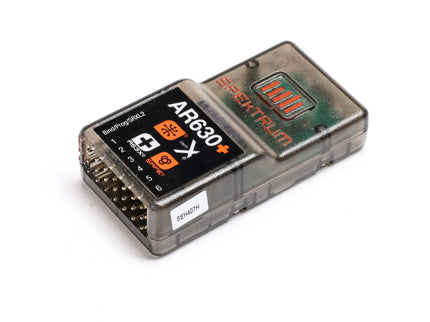

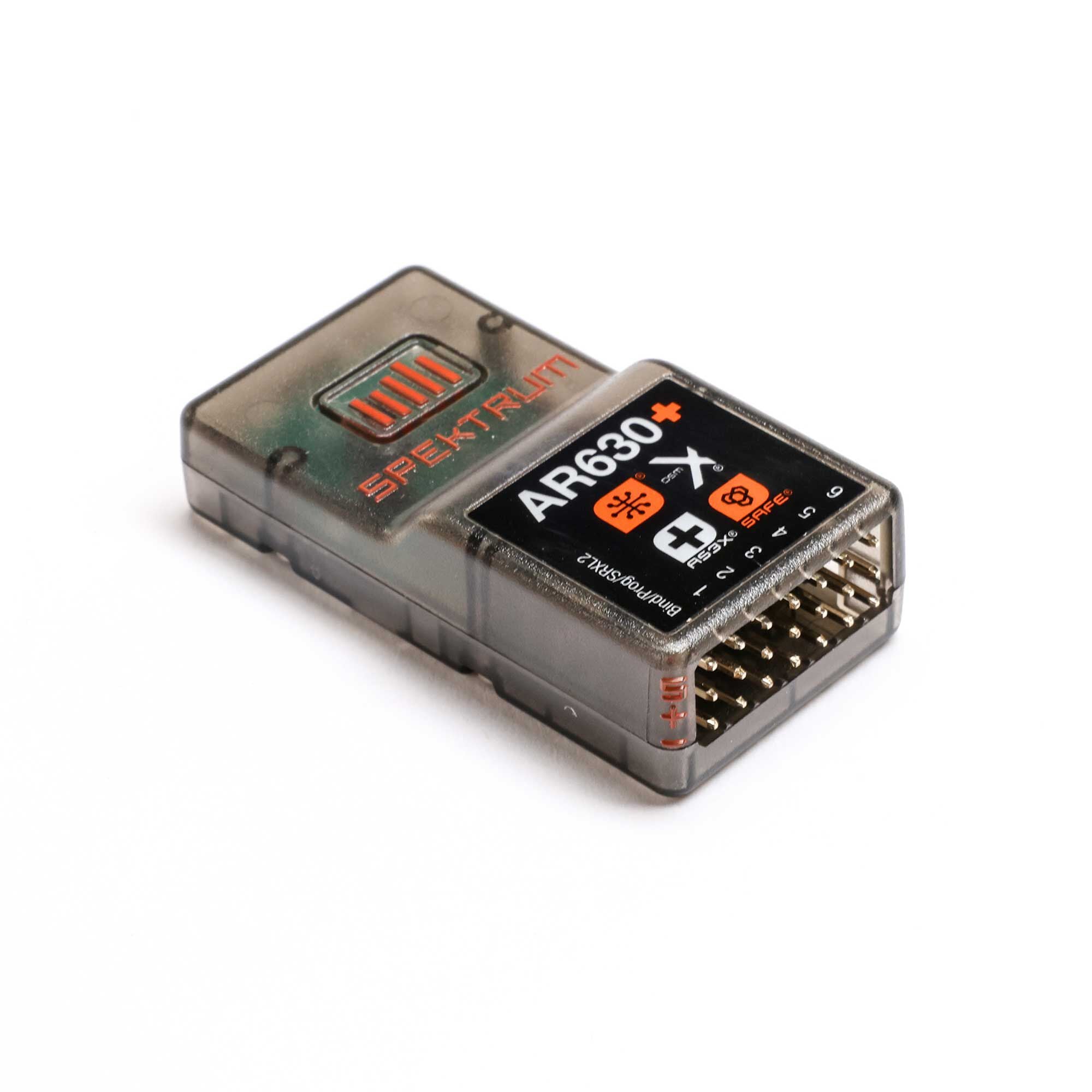

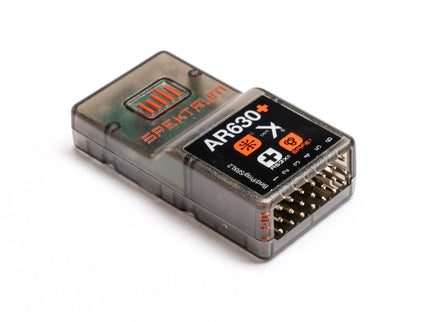

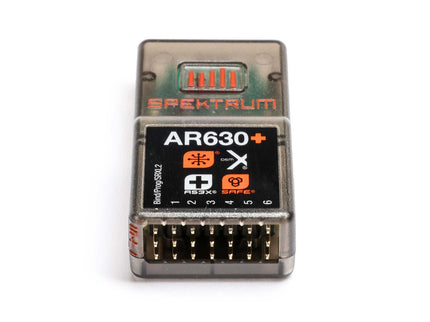

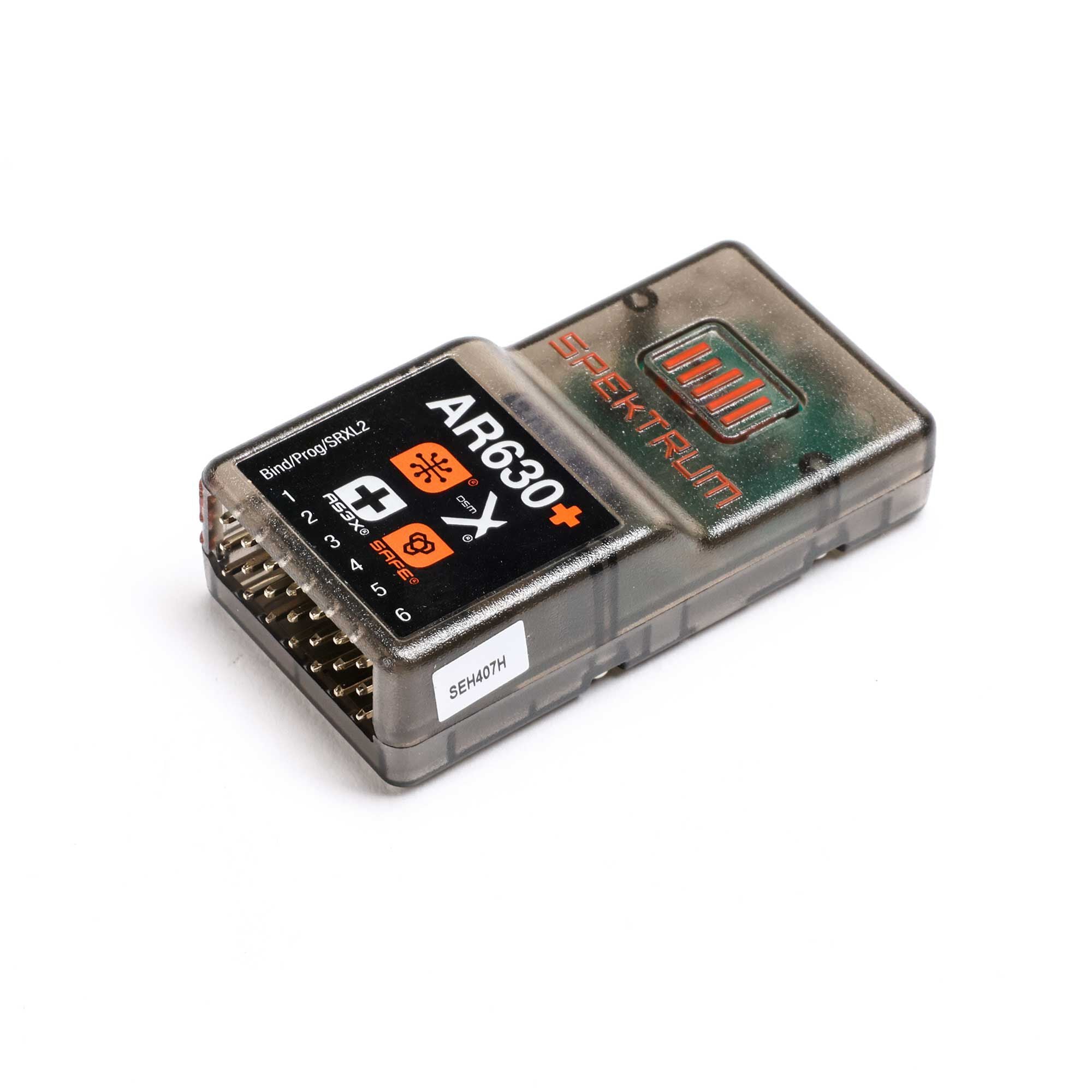

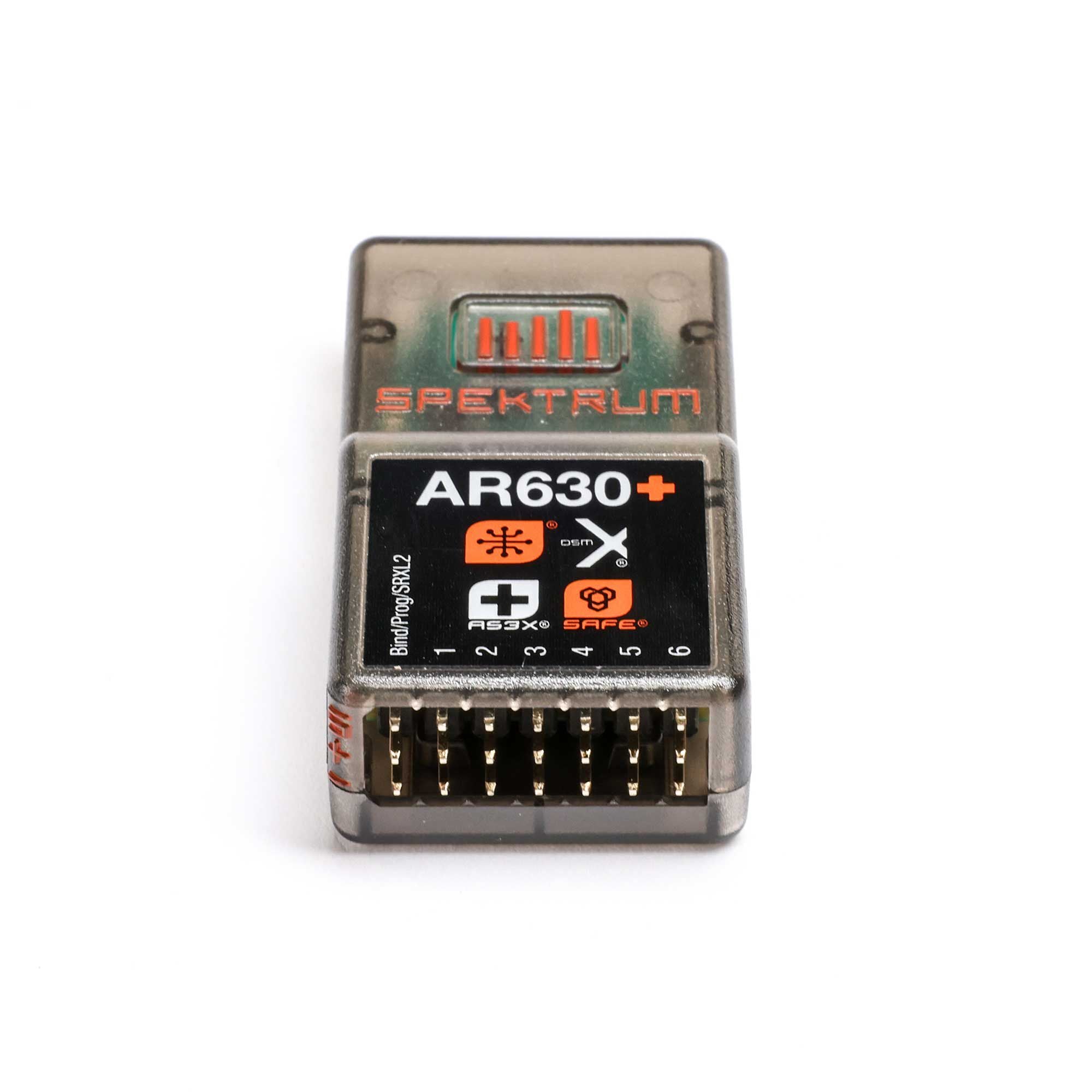

The Spektrum AR630+ Receiver is a powerful 6-channel DSMX receiver combining next-generation AS3X+ stabilisation, SAFE® flight envelope protection, and full Smart Technology integration in a compact, antenna-less design.

Designed for modern sport and BNF aircraft, the AR630+ features fly-by-range telemetry, SmartSafe technology, Hold Last and preset failsafe options configurable through Forward Programming (compatible transmitters required). A convenient top-mounted bind button eliminates the need for bind plugs, making installation and setup faster and cleaner.

With Smart Technology, the throttle port (Channel 1) automatically detects a Smart-compatible ESC. When paired with a Smart ESC and a telemetry-capable Spektrum DSMX transmitter, the system provides real-time telemetry data including voltage, current, temperature and RPM. ESCs fitted with Smart and IC series connectors can also transmit battery data from compatible Spektrum Smart batteries. Spektrum Avian ESCs are fully compatible with AR630+ Smart features.

If a standard ESC is connected, the throttle port operates as a normal PWM output, just like a conventional RC system.

Key Features

• 6-channel full-range DSMX receiver

• AS3X+ next-generation in-flight stabilisation

• SAFE® (Sensor Assisted Flight Envelope) technology

• Fly-by-range telemetry support

• Smart Telemetry & Smart Throttle compatibility

• Smart Model Files support for BNF aircraft

• Forward Programming compatibility (select transmitters only)

• SmartSafe, Hold Last & preset failsafe options

• Internal antenna design (no external aerials)

• Push-button bind no bind plug required

• Lightweight hard-case with streamlined end-pin layout

AS3X+ – Next Generation Stabilisation

The upgraded AS3X+ algorithm delivers easier tuning and improved performance across all aircraft types. Most models can be optimised in minutes, even during the first flight.

Key improvements include:

• Stop Lock and Release Rate parameters

• Enhanced Heading Hold

• Improved gyro filtering

• Canard and thrust vectoring support

SAFE® Technology

SAFE® uses AS3X+ to provide normal flight performance with bank and pitch limits to help prevent extreme attitudes. Ideal for added confidence without compromising control authority.

Smart Model Files

Smart Model Files allow transmitter configuration data to be stored directly on the receiver. When binding to supported transmitters (iX20, iX14 and NX series with latest firmware), users are prompted to download the stored model setup automatically simplifying BNF aircraft configuration.

Important Compatibility Notes

Forward Programming not supported on: DX6i, DX6G2 (EU), DX7, DX7S, DX7SE, DX7G2 (EU), DX8 and non-computer transmitters.

Smart functionality requires:

• Smart ESC

• Smart Telemetry receiver

• Spektrum DSMX transmitter with telemetry capability (firmware update may be required)

Not compatible with Spektrum telemetry sensors.

Perfect For

• BNF aircraft

• Sport and aerobatic models

• Pilots wanting built-in stabilisation

• Aircraft requiring SAFE flight modes

• Smart Technology-equipped builds

Product Summary

The Spektrum AR630+ is a 6-channel DSMX receiver featuring advanced AS3X+ stabilisation, SAFE® technology, Smart Telemetry integration and Smart Model File support. With internal antennas, push-button binding and Smart ESC compatibility, it delivers modern performance and simplified setup for today’s RC aircraft.

Specifications

• Channels: 6

• Protocol: DSMX

• Stabilisation: AS3X+

• Flight Protection: SAFE®

• Telemetry: Fly-by telemetry (voltage, current, temperature, RPM via Smart ESC)

• Antenna Type: Internal

• Bind Method: Push-button bind

• Smart Throttle: Channel 1 auto-detect

• Case Type: Lightweight hard case, end-pin design

• Compatibility: Spektrum DSMX transmitters (telemetry-capable for Smart features)
