Description
The Tribunus III 14-150A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.
Full Dimension
Specifications
| Max Continuous Current | 150 Amps |
| Peak Current | 200 Amps |
| Operating Voltage Range | 12 - 61.0 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.6mOhms * 2 |
| ESC Body Size | 40.0 x 77.1 x 29.9 mm (1.58 x 3.03 x 1.18 in) |
| Mounting Tab Dimensions | 16.0 (Battery Side) / 28.0 (Phase Side) x 86.0mm ( 0.63 / 1.10 x 3.38 in) / M3 Bolt |
| Weight (With wires) | 218g ( 7.69oz) |
| Weight (without wires) | 148g (5.22oz) |
| Drive frequency | 8kHz - 32kHz |

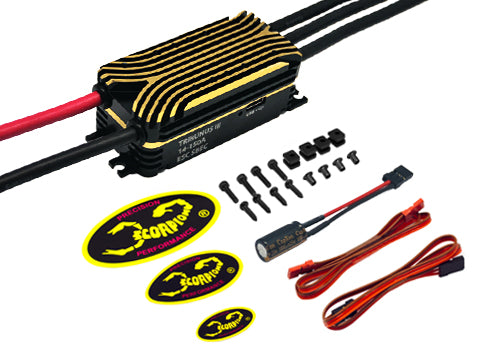

Included in the Box
1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
Weight including packaging
538G

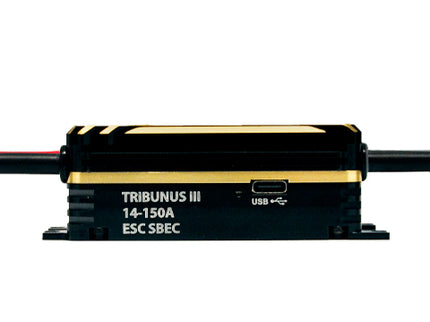

Scorpion Tribunus III 14-150A ESC SBEC
£400.00Incl. VAT
Description
The Tribunus III 14-150A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.
Full Dimension
Specifications
| Max Continuous Current | 150 Amps |
| Peak Current | 200 Amps |
| Operating Voltage Range | 12 - 61.0 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.6mOhms * 2 |
| ESC Body Size | 40.0 x 77.1 x 29.9 mm (1.58 x 3.03 x 1.18 in) |
| Mounting Tab Dimensions | 16.0 (Battery Side) / 28.0 (Phase Side) x 86.0mm ( 0.63 / 1.10 x 3.38 in) / M3 Bolt |
| Weight (With wires) | 218g ( 7.69oz) |
| Weight (without wires) | 148g (5.22oz) |
| Drive frequency | 8kHz - 32kHz |

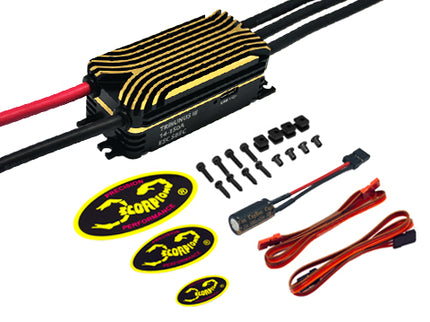

Included in the Box
1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
Weight including packaging
538G
