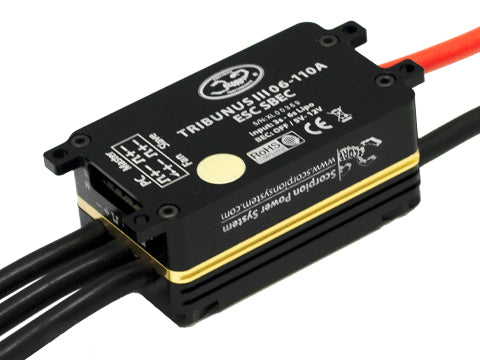

The Scorpion Tribunus III 06-110 ESC SBEC represents the next evolution of electronic speed controllers from Scorpion Power Systems. Built using premium Western components, this advanced ESC delivers exceptional reliability, smooth throttle response, and intelligent motor control for demanding RC aircraft and industrial UAV applications.

Engineered around Scorpion’s proprietary motor control algorithm and unique hardware design, the Tribunus III 06-110 provides improved efficiency, enhanced safety features, and superior power management compared to previous generations. Compact yet powerful, it is ideal for high-performance sport, scale, and aerobatic aircraft.

Key Features

• 110A max continuous current

• 150A peak current capability

• Wide operating voltage range: 11–26.1V (3–6S LiPo)

• Fully adjustable SBEC output: 5.1V–12.1V

• 10A continuous BEC output @ 8.1V

• 20A peak BEC output (1 second) @ 8.1V

• Ultra-low on-resistance: 0.45mΩ x2

• Dynamic drive frequency: 8kHz–32kHz

• Proprietary Scorpion motor control algorithm

• Premium Western components

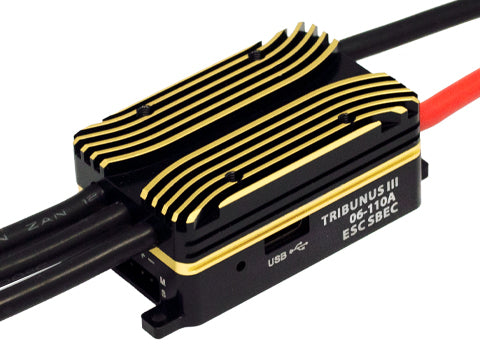

• Includes 30mm cooling fan for enhanced thermal management

Perfect For

• 3D aerobatic aircraft

• Sport and scale RC aeroplanes

• High-performance electric setups

• 3–6S LiPo powered models

• Industrial UAV platforms requiring intelligent ESC control

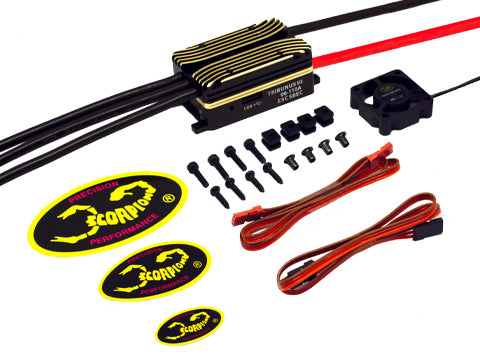

What’s Included

1 x Tribunus III 06-110 ESC
1 x 30mm Cooling Fan
2 x BEC Cables

Dimensions

• ESC Body Size: 32.0 x 52.5 x 23.1 mm (1.26 x 2.07 x 0.91 in)

• Mounting Tab Dimensions:

• 16.0mm (Battery Side)

• 24.0mm (Phase Side)

• 58.0mm length (0.63 / 0.94 x 2.28 in)

• M2.5 Bolt mounting

• Weight (Without Connectors): 105g (3.70oz)

Specifications

• Max Continuous Current: 110 Amps

• Peak Current: 150 Amps

• Operating Voltage Range: 11–26.1 Volts

• BEC Output Voltage: 5.1V to 12.1V adjustable
• Max Continuous BEC Output: 10 Amps @ 8.1V
• Peak BEC Output: 20 Amps/1s @ 8.1V
• On Resistance: 0.45mΩ x2
• Drive Frequency: 8kHz – 32kHz

Product Summary

The Scorpion Tribunus III 06-110 ESC SBEC is a compact, high-performance 110A electronic speed controller designed for 3–6S applications. Featuring an adjustable high-power SBEC, advanced motor algorithms, and premium component construction, it delivers smooth throttle response, intelligent protection, and dependable power for serious RC pilots and professional UAV users.
