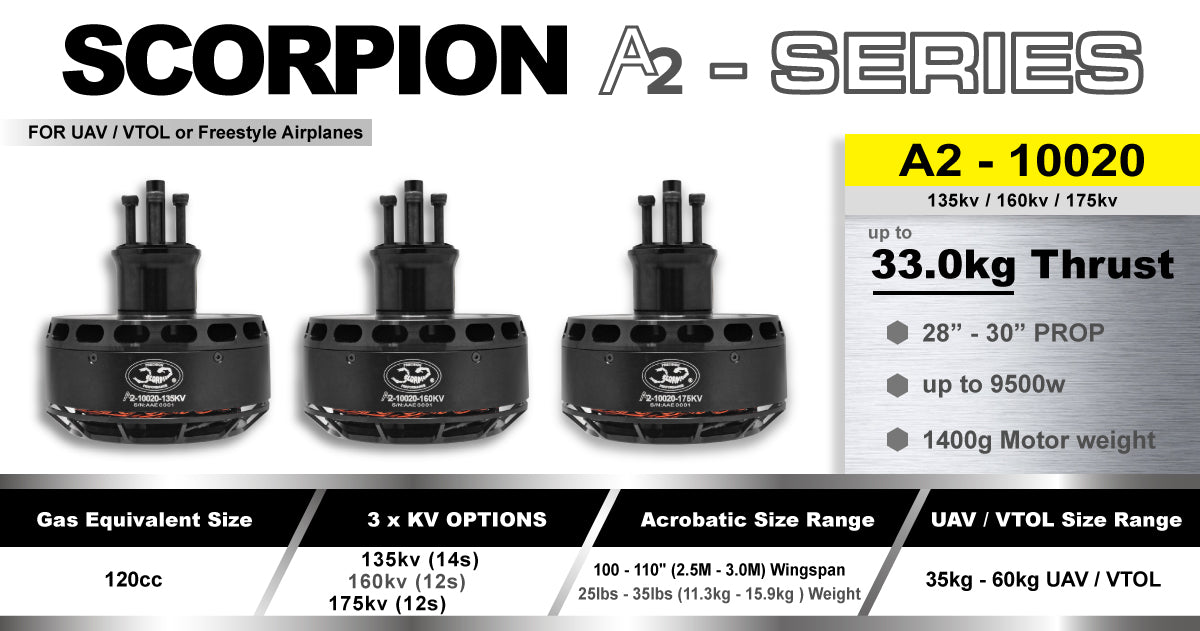

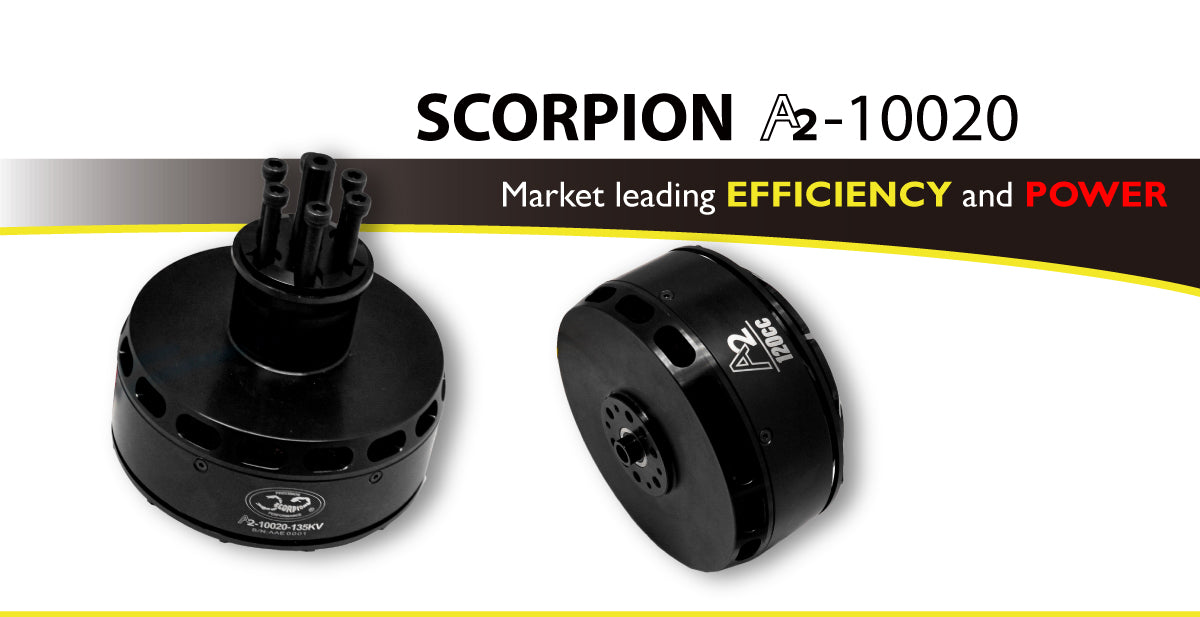

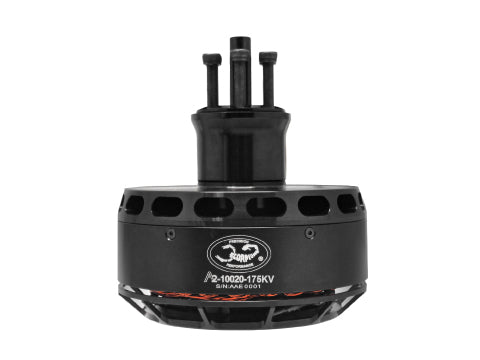

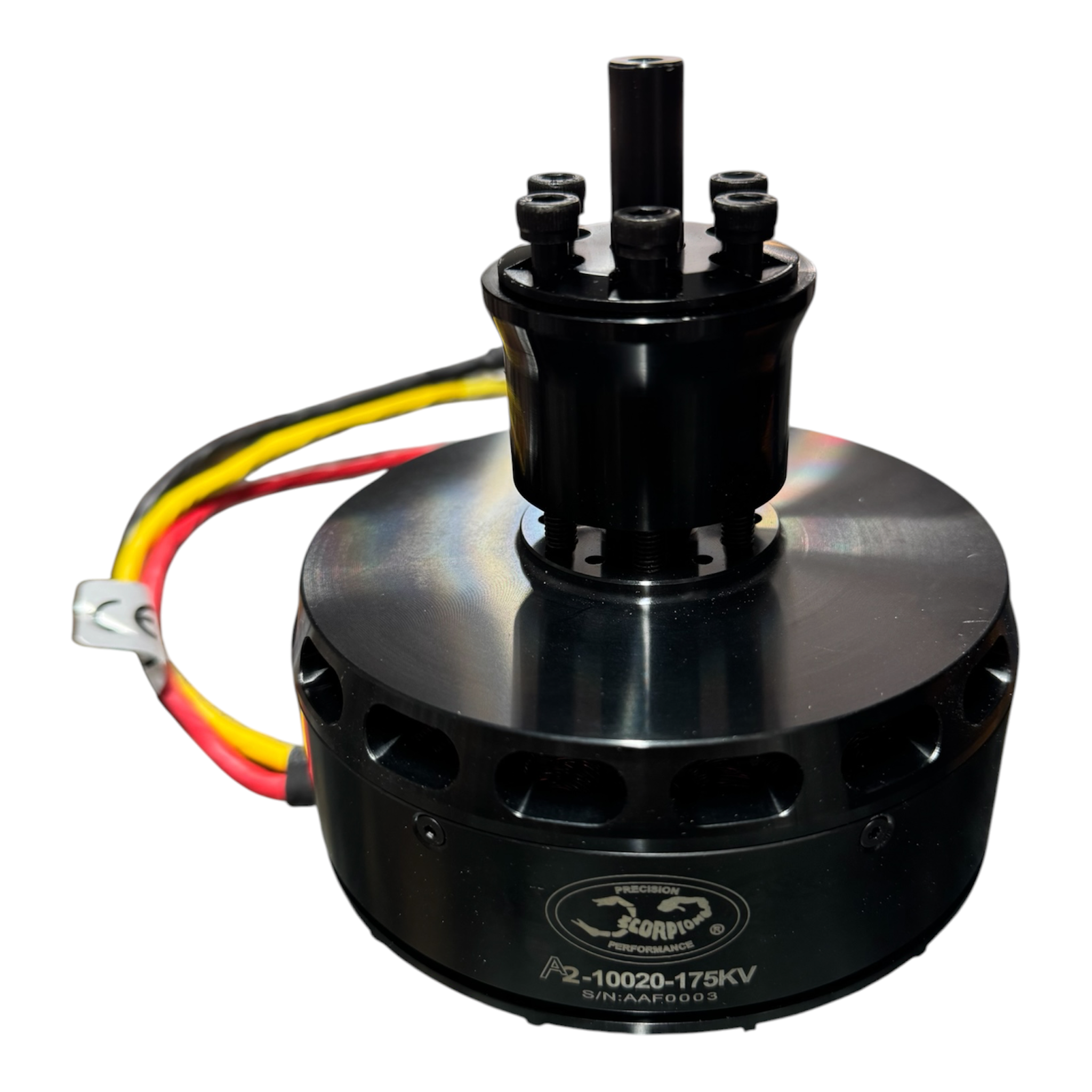

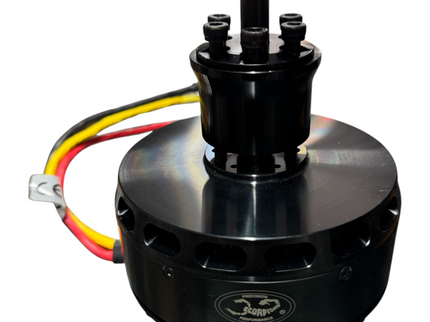

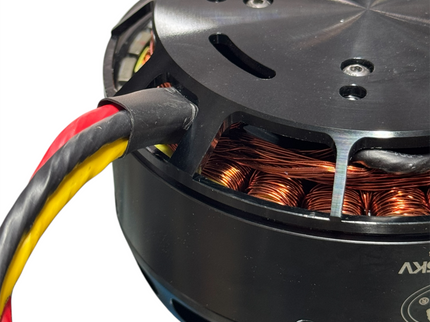

The Scorpion A2-10020 Brushless Outrunner Motor is part of Scorpion's flagship A2 Series, developed to provide the ultimate power system for giant-scale freestyle, aerobatic and UAV aircraft. Engineered using premium materials and advanced manufacturing techniques, the A2 Series delivers exceptional efficiency, reliability and power for the most demanding RC pilots.

Designed as an electric equivalent to a 120cc petrol engine, the A2-10020 produces up to 9,500 watts of peak power on a 12S LiPo system, making it ideal for giant-scale aerobatic models and UAV platforms requiring uncompromising performance.

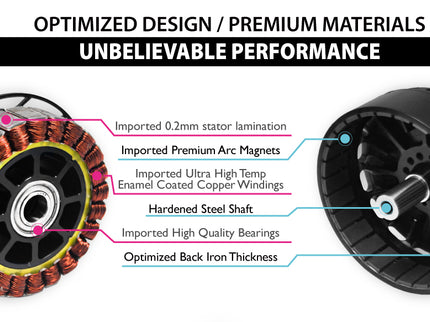

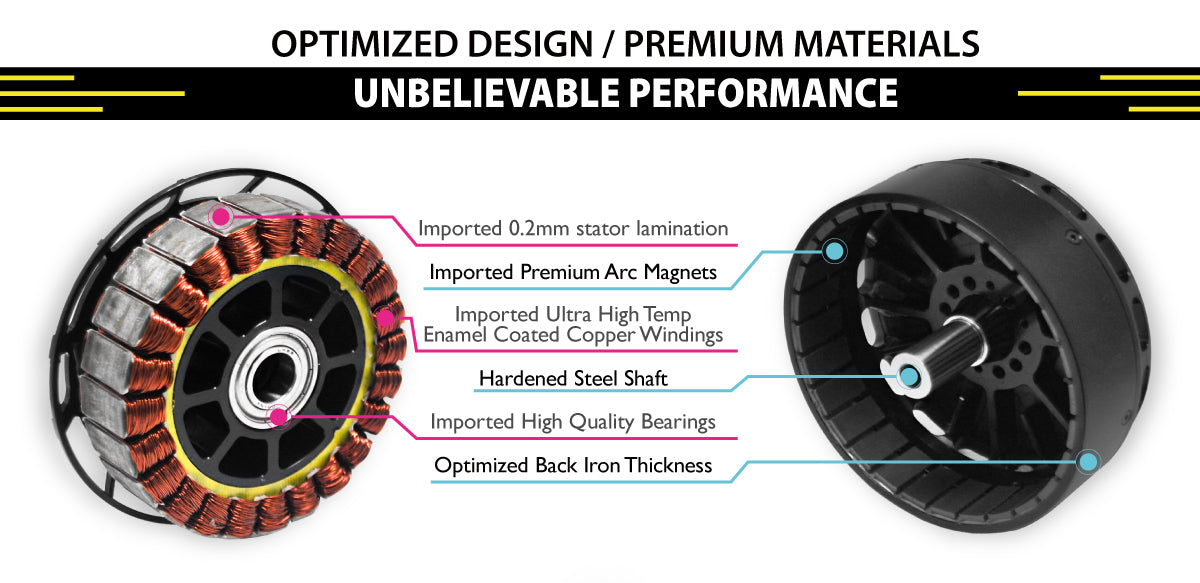

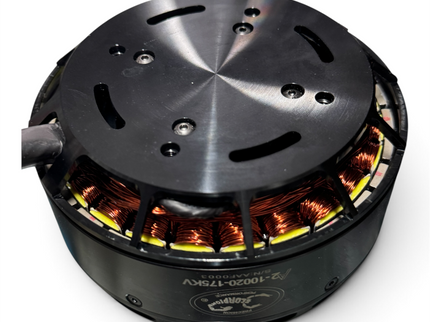

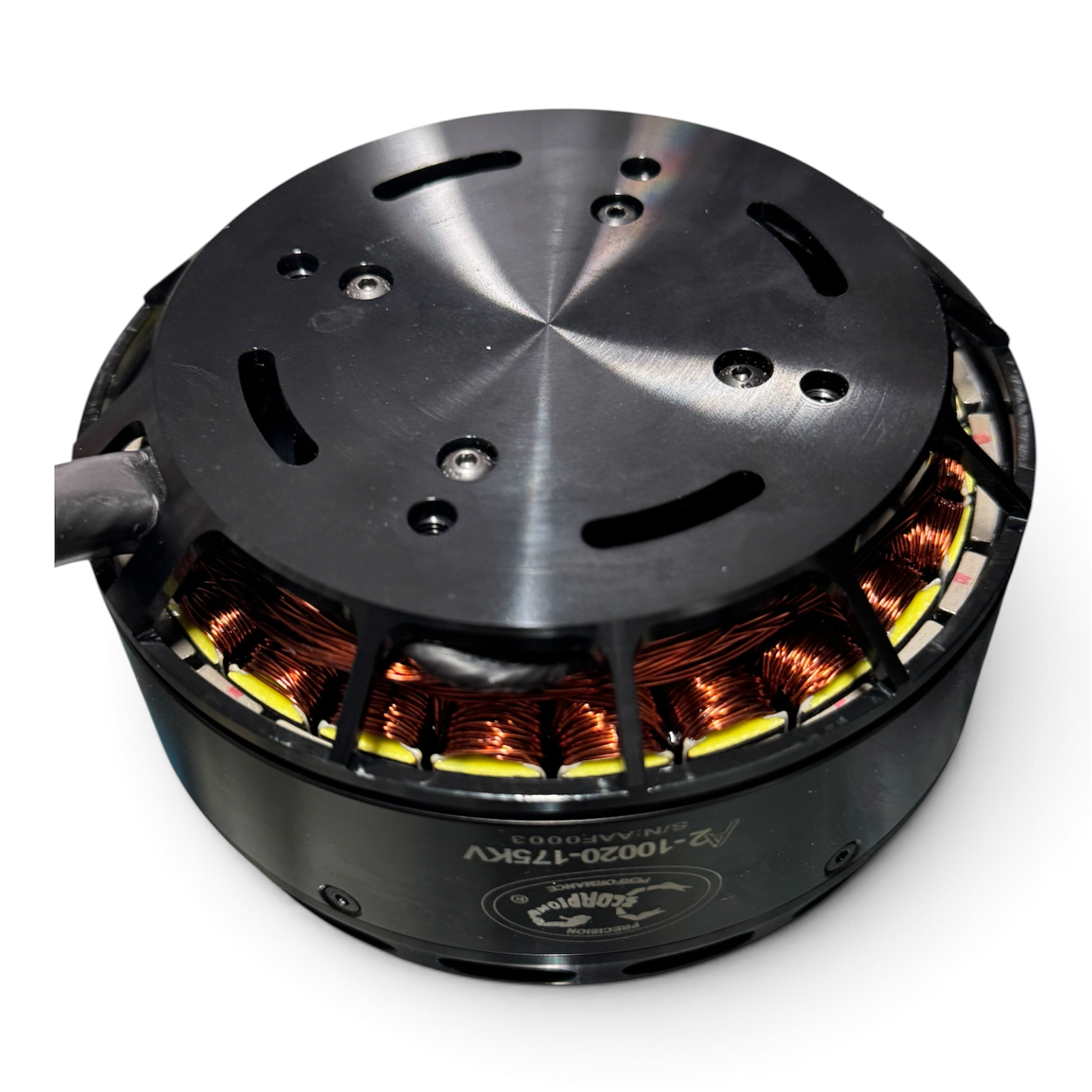

The A2 Series achieves its outstanding efficiency through optimised high-strength rotor magnets, premium 0.2mm silicon steel stator laminations, and 200°C+ high-temperature enamel-coated copper windings. Combined with a robust mechanical design extensively tested by Scorpion's world-class team pilots, the result is a motor that delivers smooth power, excellent cooling and long-term durability.

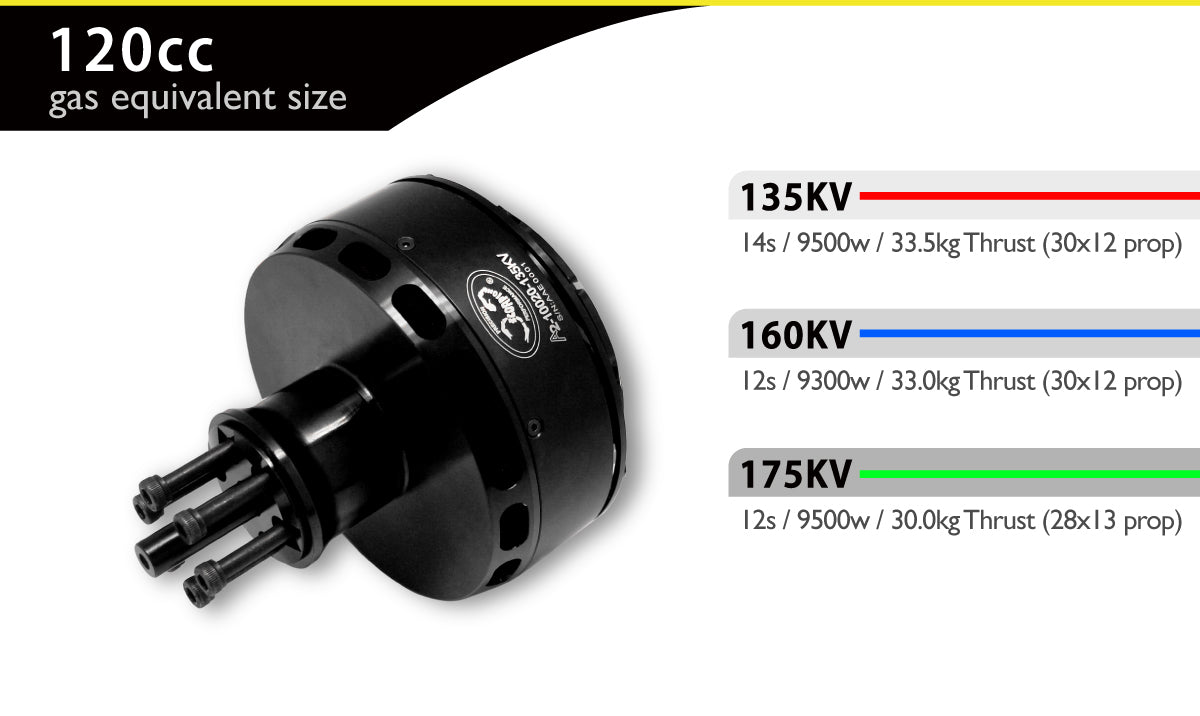

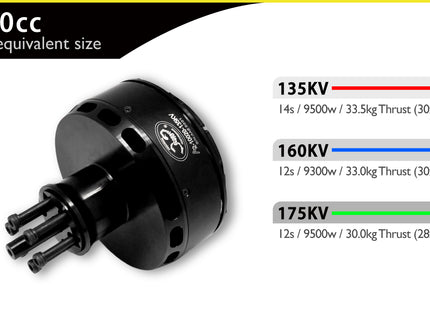

Available in three KV ratings to suit your aircraft setup:

• 135KV – Ideal for maximum torque and larger propeller combinations.

• 160KV – Excellent all-round performance with outstanding efficiency.

• 175KV – Perfect for high-performance setups including 120cc equivalent aircraft
• using a 28×13 propeller on 12S LiPo.

Key Features

• Premium Scorpion A2 Series brushless outrunner motor

• Available in 135KV, 160KV and 175KV

• Designed as an electric replacement for 120cc petrol engines

• Delivers up to 9,500W peak power

• High continuous output of 6,100W

• Optimised high-efficiency rotor magnets

• Premium 0.2mm silicon steel stator laminations

• High-temperature 200°C+ copper windings

• Outstanding efficiency and cooling performance

• Precision manufactured for smooth, reliable operation

• Designed and tested by Scorpion's professional team pilots

• Suitable for giant-scale aerobatic aircraft and UAV platforms

Perfect For

• Giant-scale RC aircraft

• 35–40% aerobatic aircraft

• IMAC competition aircraft

• 120cc equivalent electric conversions

• 3D aircraft

• Freestyle aircraft

• UAV platforms

• Large custom electric aircraft

Product Summary

The Scorpion A2-10020 is one of Scorpion's most powerful and efficient brushless outrunner motors, offering outstanding performance for giant-scale aircraft. With premium construction, exceptional efficiency and up to 9.5kW peak output, it's the ideal choice for serious pilots seeking maximum reliability and power. Available in 135KV, 160KV and 175KV versions to suit a variety of aircraft and propeller combinations.

Specifications

• Model: Scorpion A2-10020

• Motor Type: Brushless Outrunner

• Available KV Ratings: 135KV, 160KV, 175KV

• Recommended Battery: 12S-14S LiPo

• Continuous Current: 135A

• Peak Current*: 210A

• Continuous Power: 6,100W

• Peak Power*: 9,500W

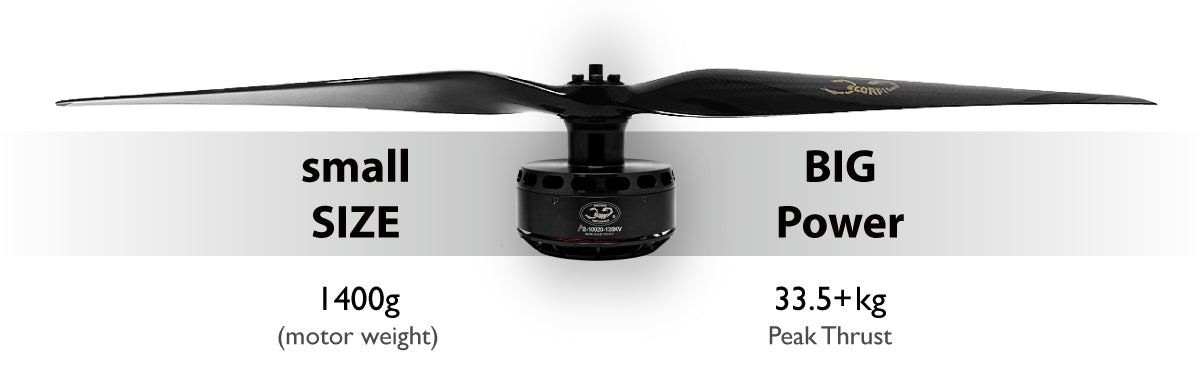

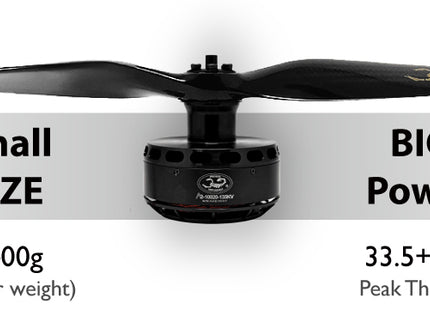

• Weight (Motor Only): 1,406.8g

• Weight (Including Mounts): 1,640.4g

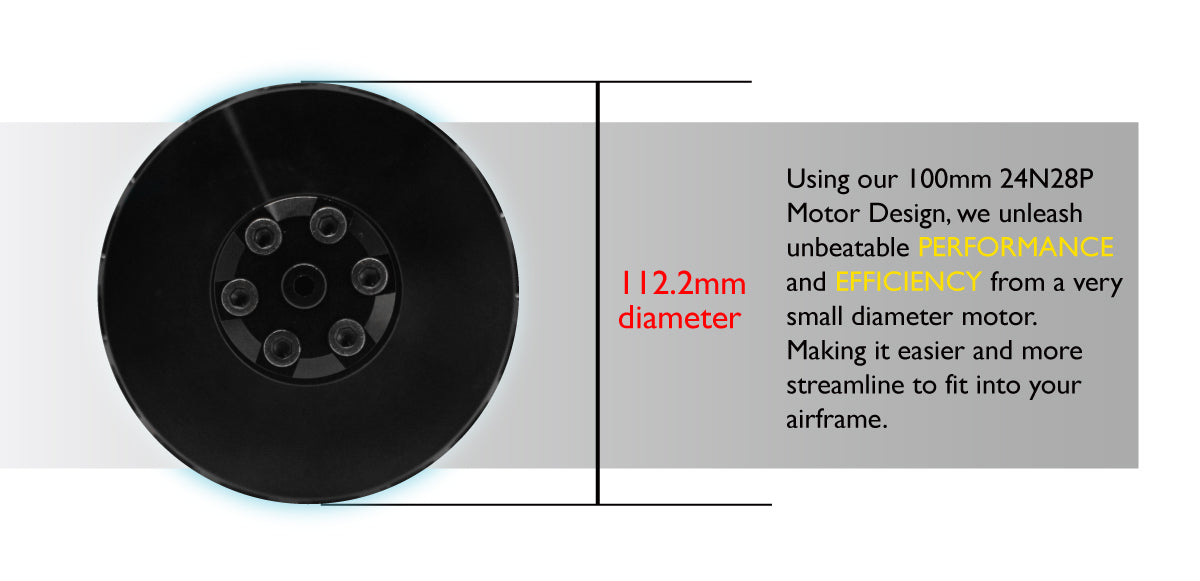

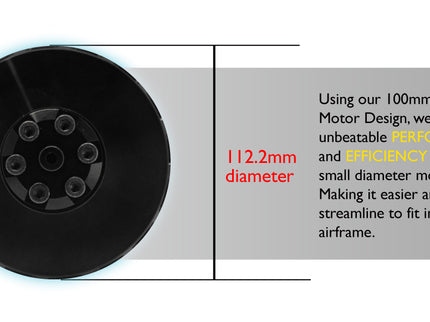

• Motor Dimensions: 112.2 × 59.25mm (+30mm Prop Spacer)

• Shaft Diameter: 10mm

• Stator Diameter: 100mm

• Stator Thickness: 20mm

• Number of Stator Arms: 24

• Magnet Poles: 28

• Motor Wind: 7T 4Y

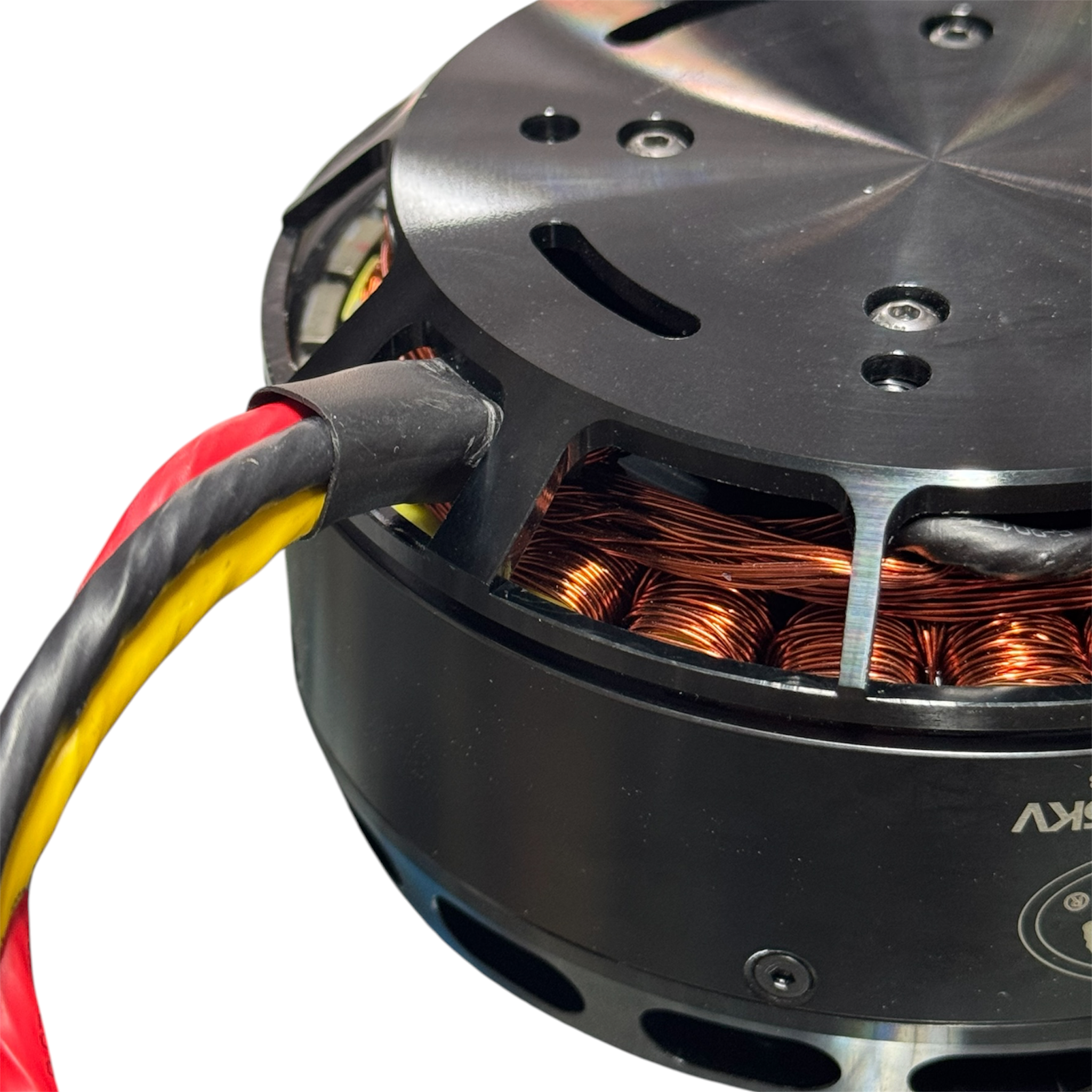

• Motor Wire: 12-Strand × 0.41mm

• No Load Current (15V): 2.75A

• Internal Resistance: 7.8mΩ

• Motor Inductance (1kHz): 12.2µH

*Peak current and power are intended for intermittent full-throttle operation (10–180 seconds depending on cooling and application).

Recommended Setup

• Battery: 12S-14S LiPo

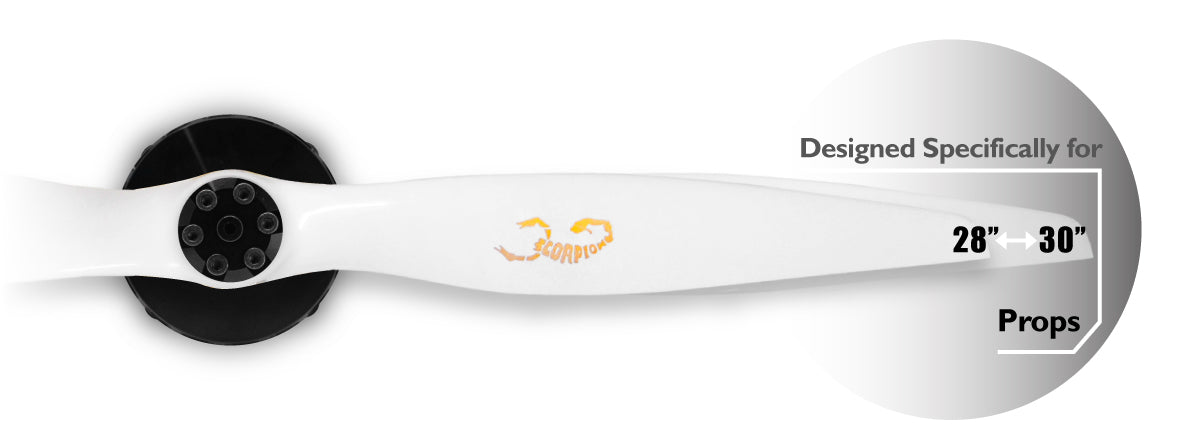

• Recommended Propeller (175KV): Scorpion 28×13 Carbon

• Recommended ESC: Scorpion Tribunus III 14-220A ESC SBEC

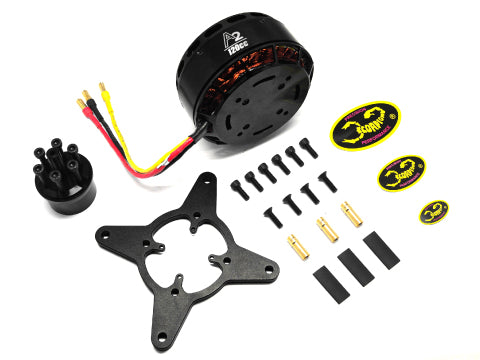

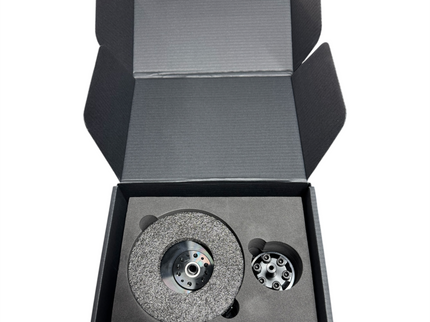

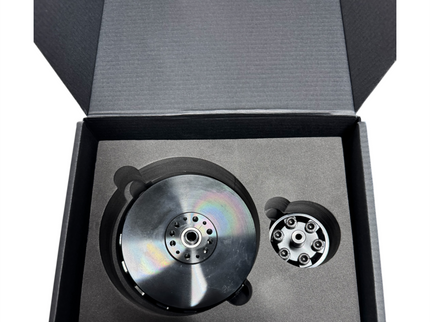

What's Included

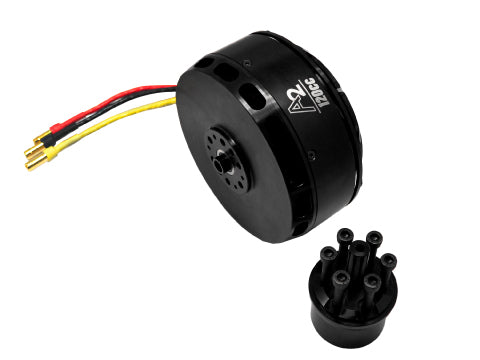

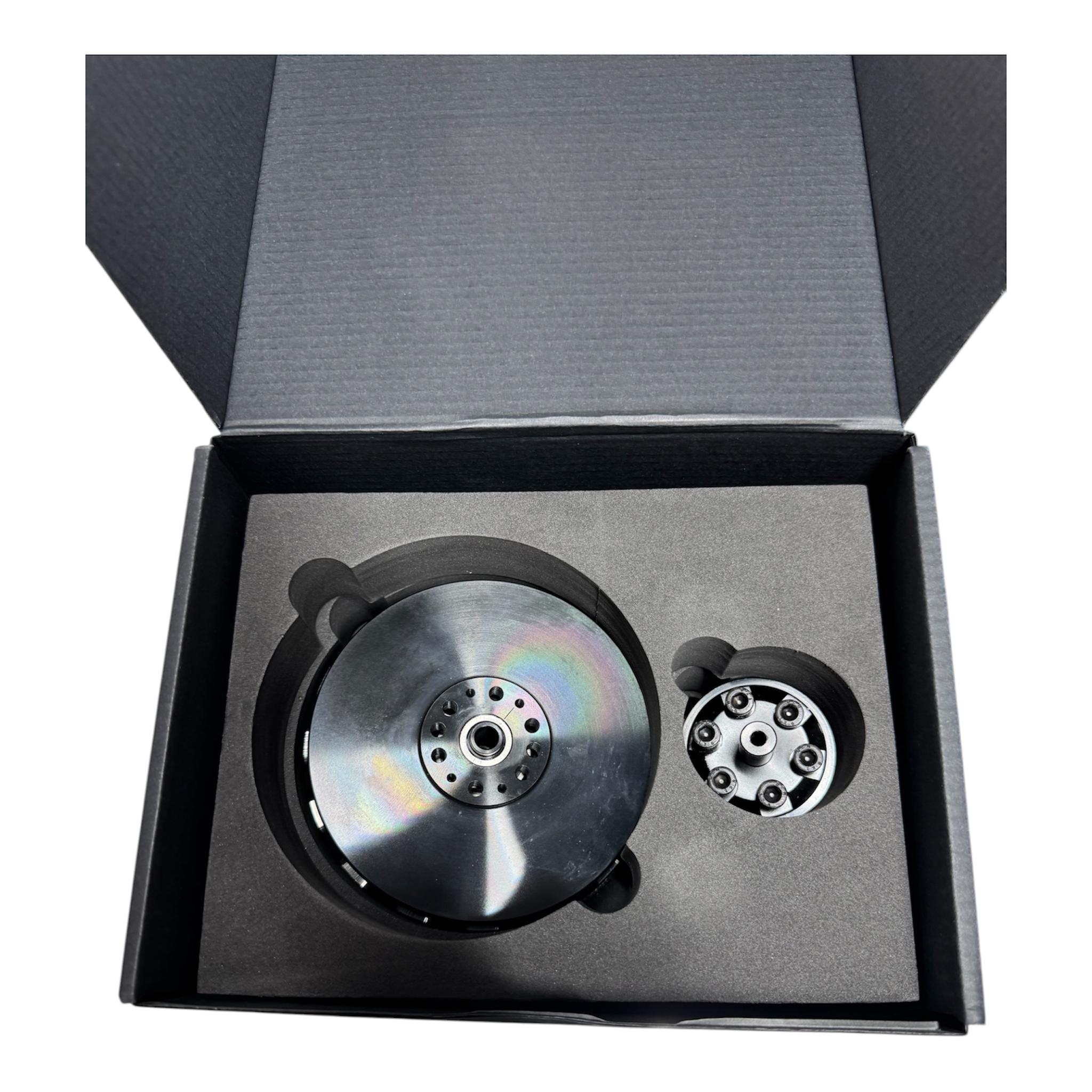

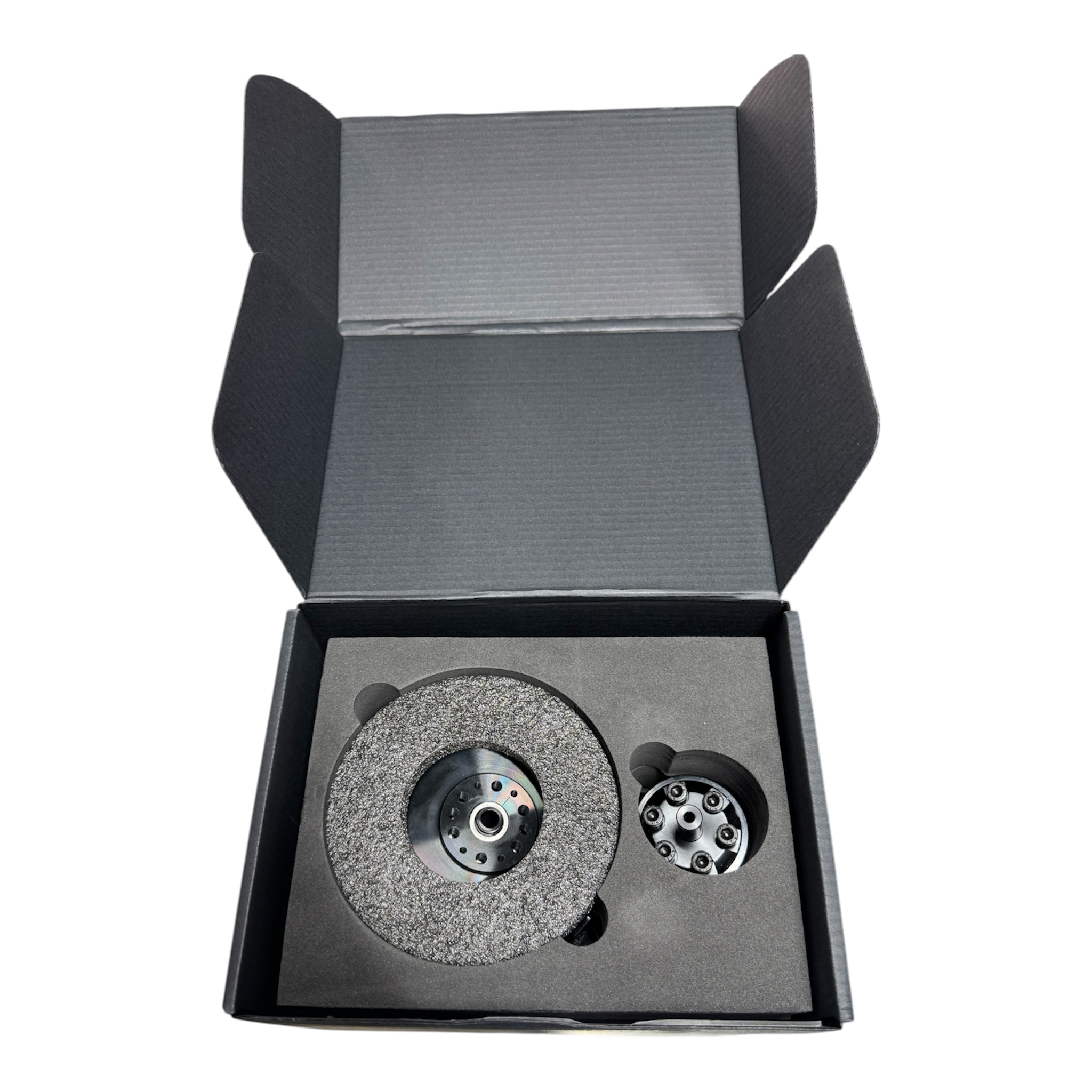

1 × Scorpion A2-10020 Brushless Outrunner Motor
1 × A2-100 Cross Mount (selected at checkout)

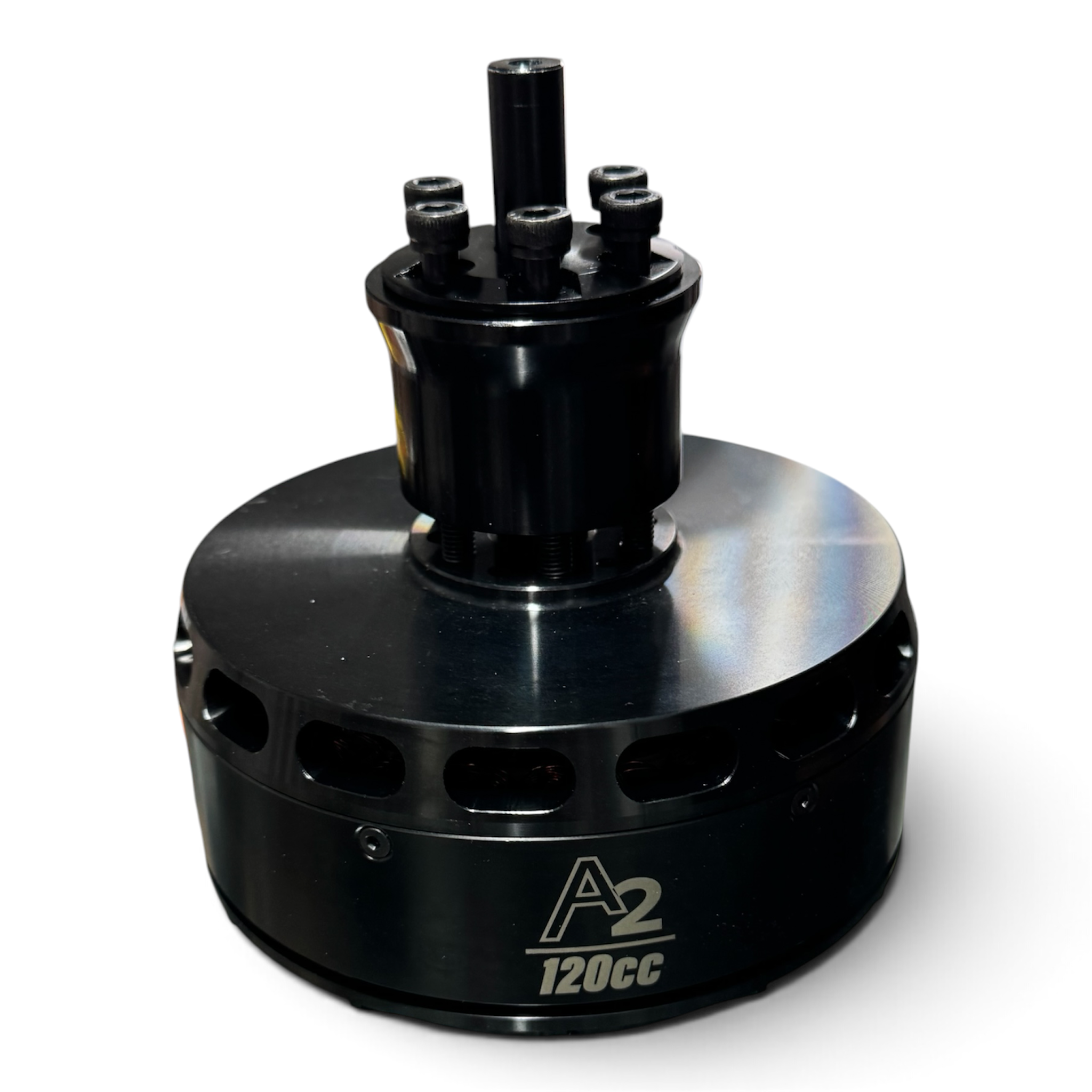

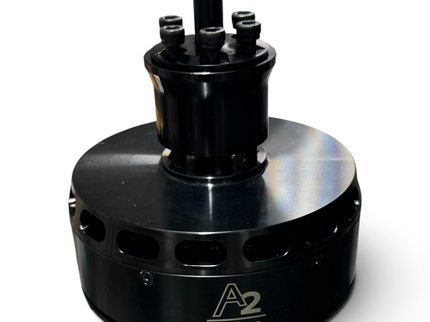

1 × A2-100 Prop Mount (6 × M5 @ 29mm)
3 × Female 6mm Bullet Connectors
3 × Scorpion Stickers

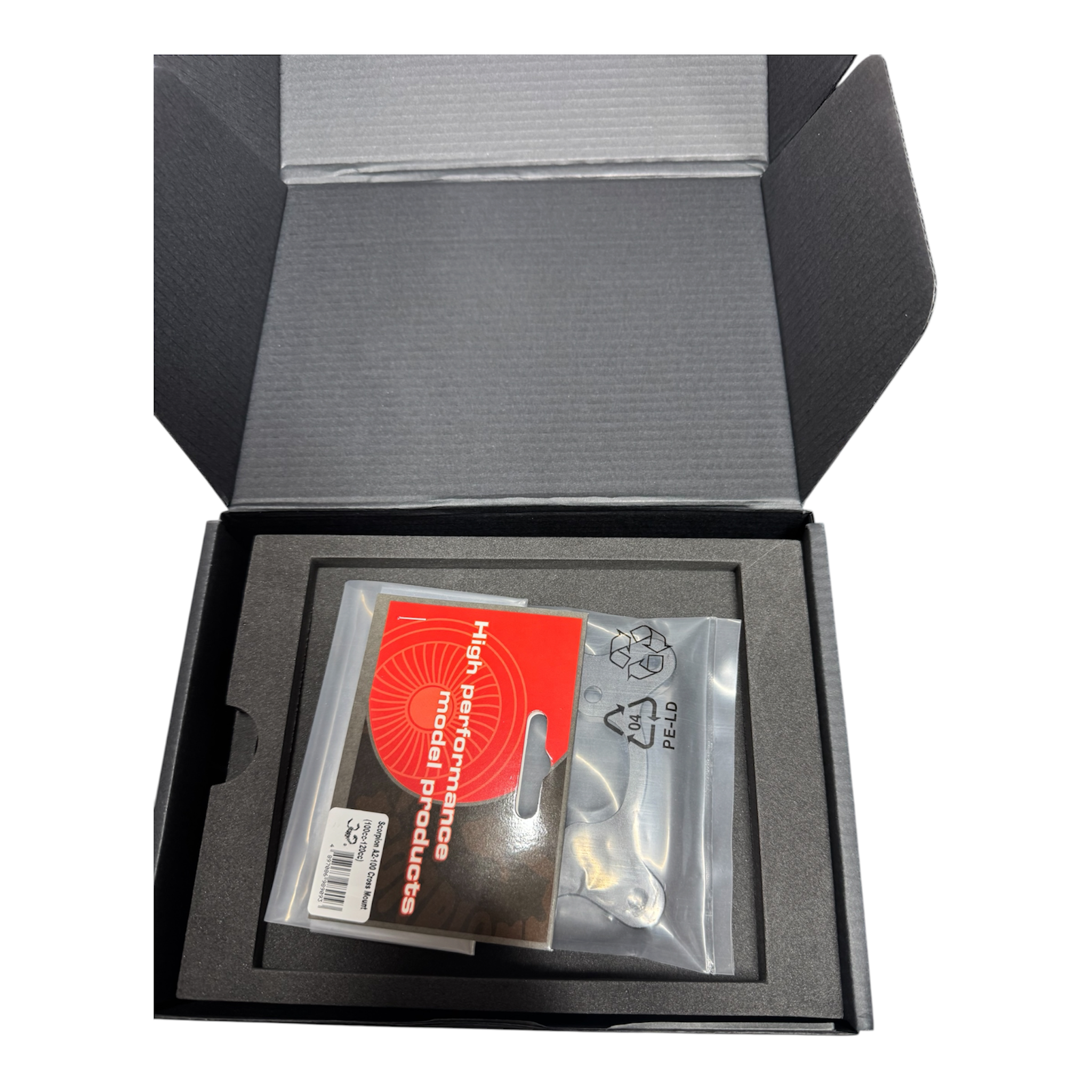

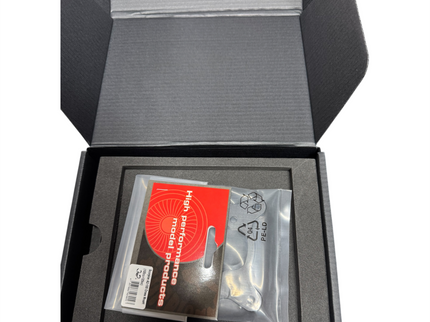

1 × Accessory Hardware Pack
