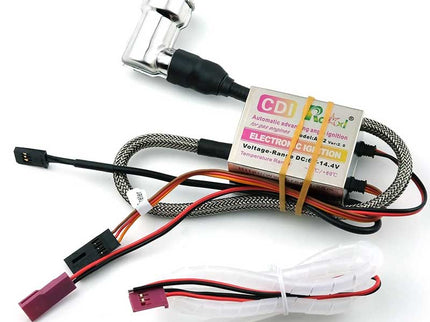

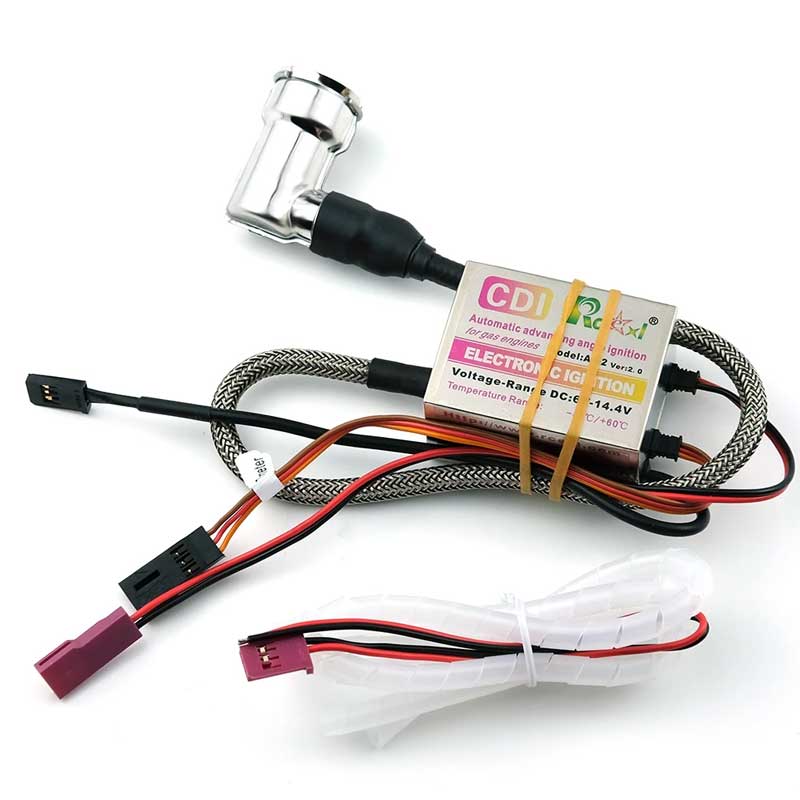

RCEXL Single Cylinder Ignition 90 Degree 14mm BPMR6A 3/4" (19mm Hex) Spark Plug Cap

Specifications:

 CDI Unit Weight:  125g

Working Voltage:  6v 6.6v 7.4v up to 14.4v

Suitable for Spark Plug:   14mm BPMR6A 3/4" (19mm Hex)

Plug Type:  Futaba Female (for Battery), Futaba Female (for Tachometer)

Recommend Timing

Please note:

• We recommend setting the timing at 30 Degree's BTDC when the magnet (LEAVING) the sensor anti-clockwise.
• The ignition unit will automatic retard to 20BTDC up on start-up at 100 RPM - 2000 RPM.
• The ignition unit will fire the plug twice for easy start.
• The ignition unit has an automatic curve up to 4000 RPM then after that it is 30BTDC (or your static timing that you set it at) we recommend 30BTDC

***BTDC Meaning:  Before Top Dead Centre
