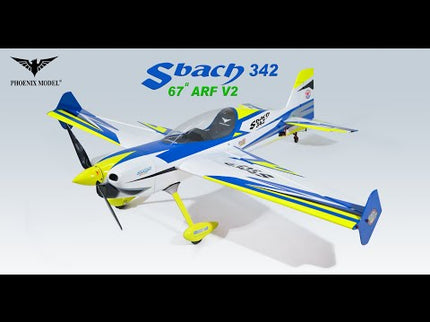

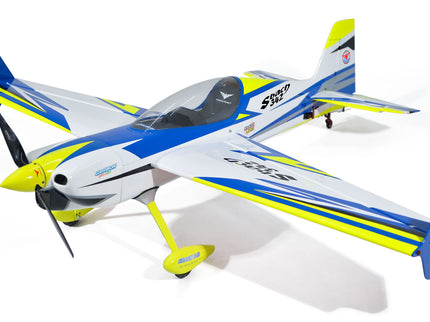

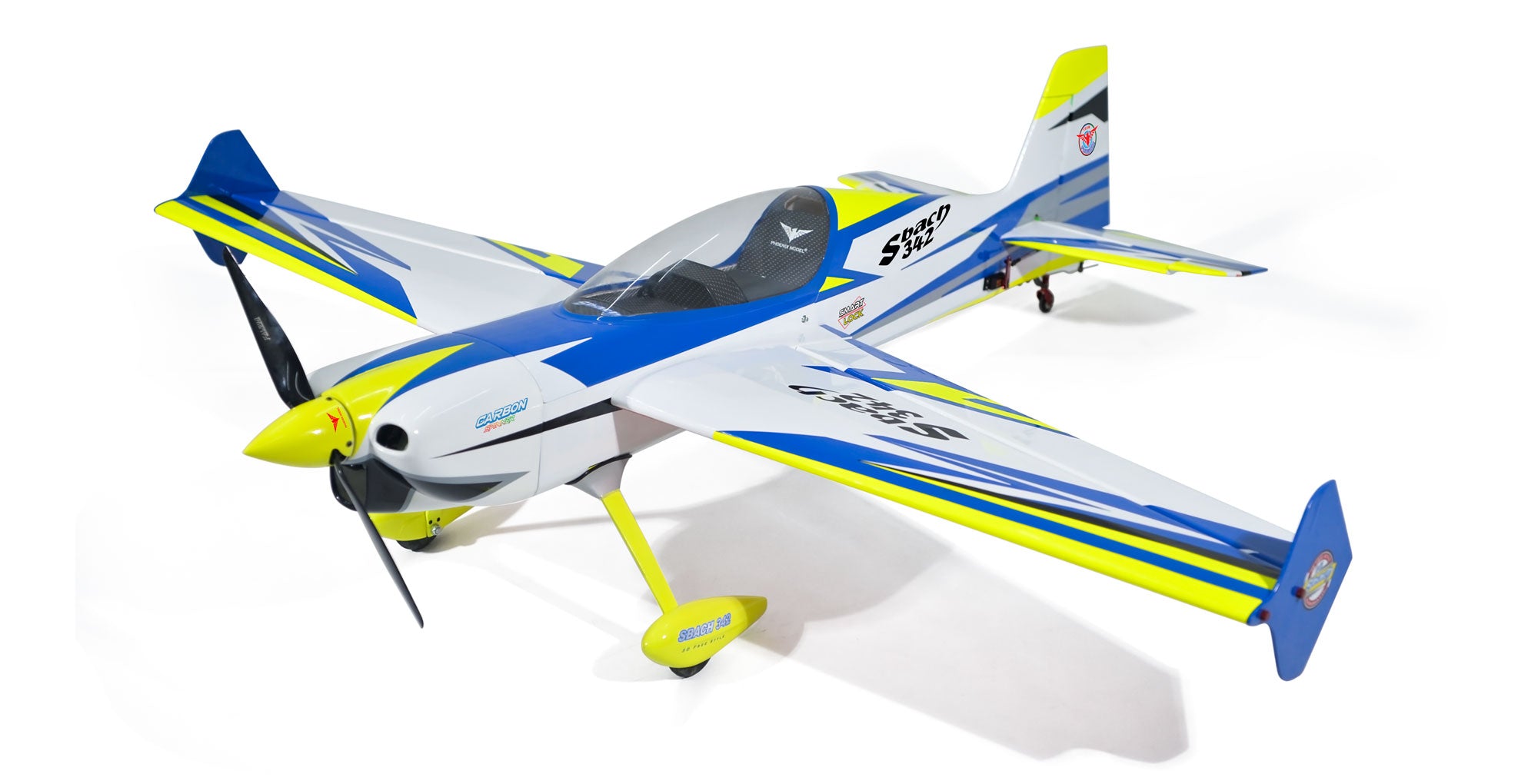

The Sbach 342 is renowned for its incredible agility and dominance in modern aerobatic flying. The Phoenix Model SBACH 342 67" ARF V2 brings this exciting aircraft to RC pilots in a larger, more powerful 67-inch format designed for precision aerobatics and extreme 3D performance.

With its 1700mm wingspan and lightweight composite-reinforced balsa construction, the SBACH 342 V2 offers a superb balance of strength, rigidity and low weight. This results in an aircraft capable of both smooth precision manoeuvres and aggressive 3D aerobatics, including harriers, torque rolls, knife-edge flight and rolling manoeuvres.

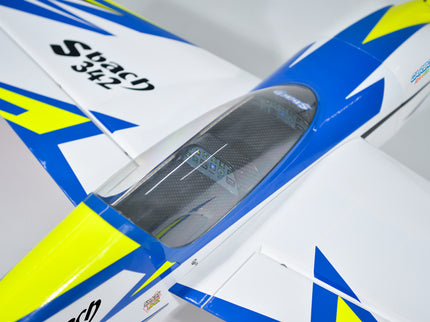

The model features plug-in wings with the Smart Lock system for rapid assembly at the flying field and easy transport. A removable canopy and removable horizontal stabiliser allow convenient installation and maintenance of electronics.

Premium components include carbon fibre landing gear and tail gear, a carbon fibre spinner, and fibreglass cowling and wheel pants, all factory-painted for a professional finish. Precision control is achieved through ball linkages and hexagonal metal pushrods, delivering smooth and accurate control response.

Powered by a high-performance 6S electric setup, the Phoenix Model SBACH 342 67" ARF V2 delivers exceptional thrust and performance, making it an ideal aircraft for experienced pilots seeking a capable and impressive large electric aerobatic model.

Key Features

✔ 67" (1700mm) wingspan high-performance aerobatic aircraft
✔ Designed for 6S electric power systems
✔ Capable of precision aerobatics and extreme 3D manoeuvres
✔ Lightweight balsa and plywood construction reinforced with composite materials
✔ Carbon fibre main landing gear and tail gear included
✔ Carbon fibre spinner included
✔ Factory-painted fibreglass cowling and wheel pants

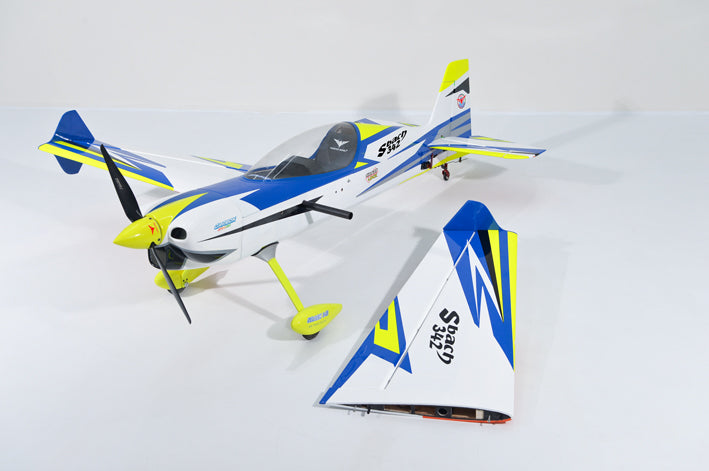

✔ Plug-in wings with Smart Lock system for fast assembly
✔ Wing Force reinforcement system for improved stability

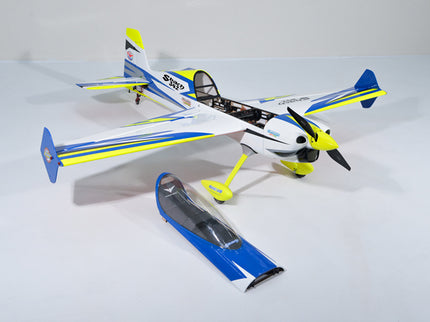

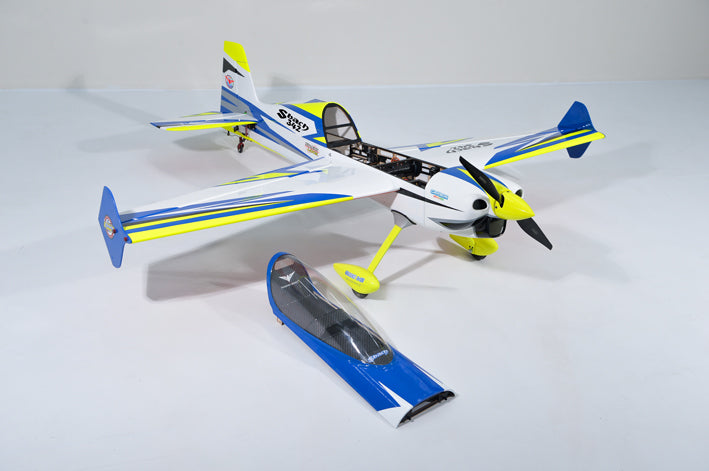

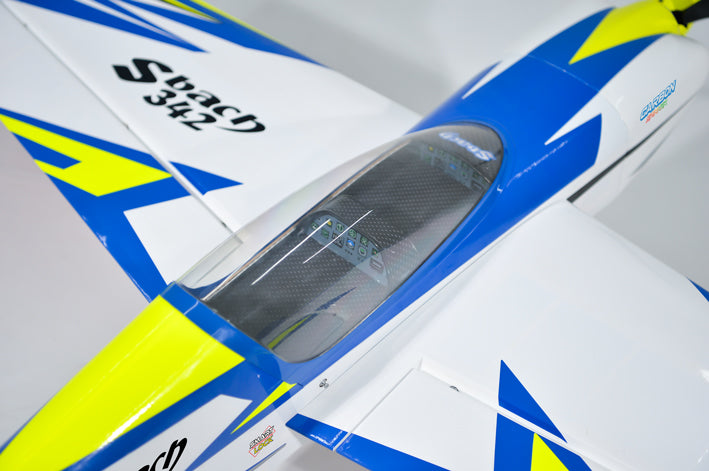

✔ Removable canopy for easy battery and electronics access

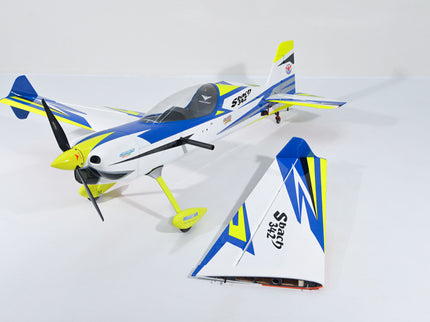

✔ Removable horizontal stabiliser for easier transport and maintenance
✔ Ball link control linkages with hexagonal metal pushrods
✔ Durable polyester covering film for long-lasting colour finish
✔ Complete high-quality hardware package included

Perfect For

• Intermediate to advanced RC pilots

• 3D aerobatic flying

• Precision aerobatic manoeuvres

• Electric-powered aerobatic aircraft

• Pilots wanting a large 67-inch 3D aerobatic model

Specifications

• Wingspan: 1700mm (67 in)

• Length: 1638mm (64.4 in)

• Flying Weight: 3900 – 4100g

• Wing Area: 56 dm²

• Centre of Gravity: 135mm back from the wing leading edge at the fuselage

• Landing Gear

  • Carbon fibre main landing gear included

  • Carbon fibre tail gear included

• Spinner: 70mm carbon fibre spinner included

Recommended Electric Power System

• Electric Motor: T-Motor AM670 or Scorpion A4225-500

• ESC: 120HV

• Battery: 6S LiPo 4000 – 5200mAh

• Propeller: 18 × 8

Recommended Gas Power System

• Gas Engine: DLE-20RA

• Propeller: 16 × 8

Recommended Glow Power System

• Glow Engine: OS Max 120AX

• Propeller: 16 × 8

Servo Requirements

• 2 × Aileron servos – high torque 30–40kg (standard size 20 × 40mm)

• 1 × Elevator servo – high torque 20–22kg (medium size 18 × 36mm)

• 1 × Rudder servo – high torque 20–22kg (medium size 18 × 36mm)

Control Throws

• Elevator

  • Low Rate: 8–10° (10–25% expo)

  • 3D Rate: 45–50° (55–65% expo)

• Aileron

  • Low Rate: 15–20° (40–45% expo)

  • High Rate: 38–40° (60–75% expo)

• Rudder

  • Low Rate: 20° (40–50% expo)

  • High Rate: 45–50° (60–80% expo)

Box Dimensions
1359 × 470 × 263mm

Product Summary

The Phoenix Model SBACH 342 67" ARF V2 is a powerful large-scale electric 3D aerobatic RC aircraft designed for pilots who want extreme manoeuvrability and precision. With carbon fibre landing gear, composite-reinforced construction and a high-performance 6S power system, it offers outstanding aerobatic capability and impressive presence in the air.
