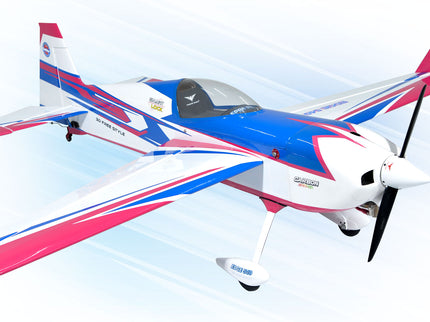

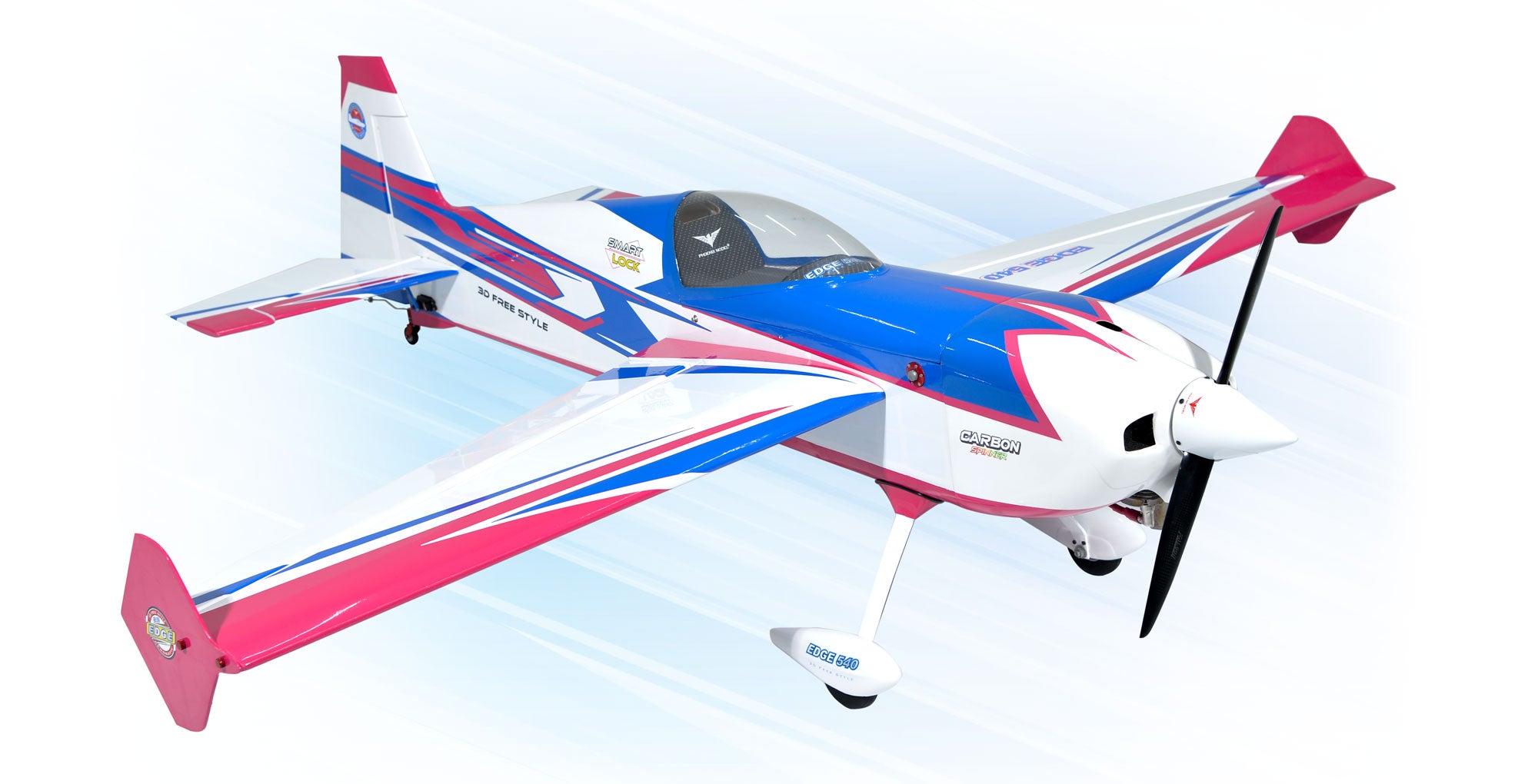

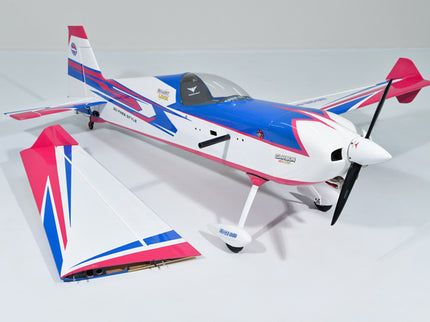

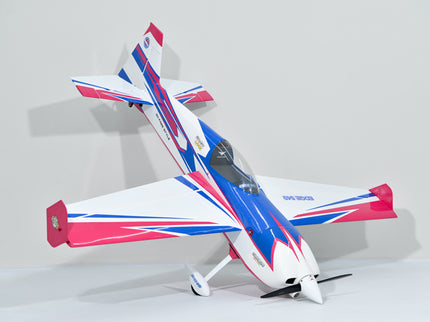

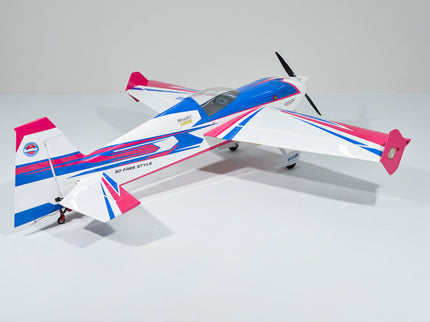

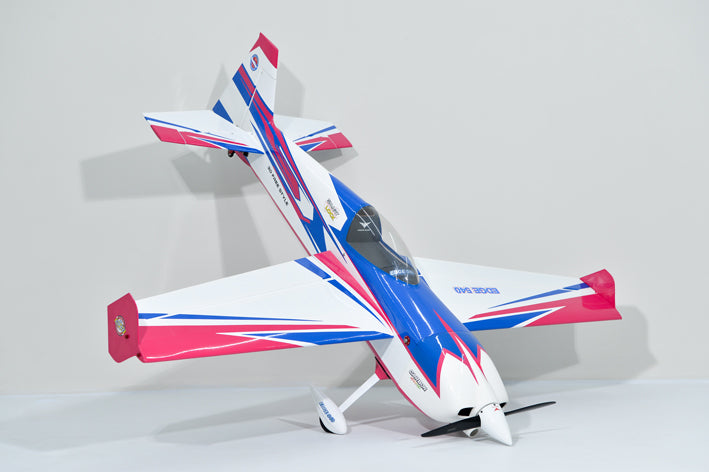

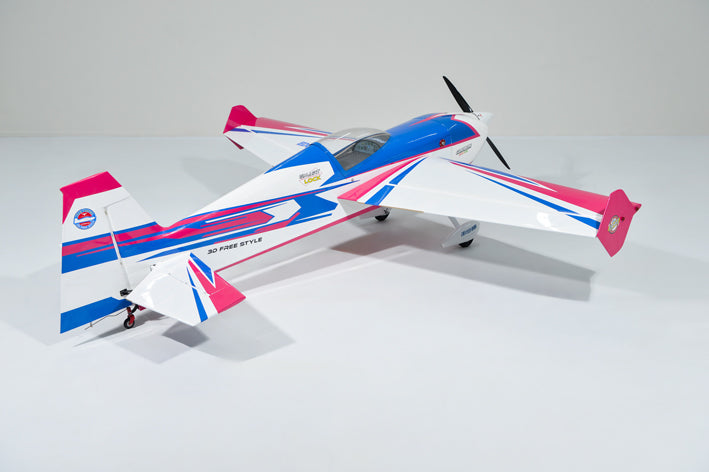

The Phoenix Model EDGE 540 74" ARF V2 (PH244) is a high-performance aerobatic RC aircraft designed for pilots who want extreme 3D capability combined with precise aerobatic control. Inspired by the legendary full-scale Edge 540, this 74-inch model delivers outstanding power-to-weight performance and excellent stability across the entire flight envelope.

Constructed from premium balsa and plywood reinforced with composite materials, the EDGE 540 achieves a strong yet lightweight airframe ideal for aggressive aerobatics. The model is finished in durable genuine polyester covering film, providing vibrant colours and long-lasting durability.

The ARF kit includes factory-painted carbon fibre landing gear, spinner, and fibreglass components, giving the model a professional finish straight out of the box. A Smart Lock plug-in wing system allows quick assembly and easy transport, while the removable canopy provides simple access for battery changes or radio setup.

Designed for flexibility, the EDGE 540 74" supports both petrol and electric power systems, allowing pilots to configure the aircraft with either a 35–38cc petrol engine or a high-performance electric setup.

With powerful control surfaces, precise handling, and excellent structural design, the Phoenix Model EDGE 540 is ideal for pilots who enjoy high-energy aerobatics, hovering, torque rolls, and precision manoeuvres.

Key Features

• Capable of precision aerobatics and extreme 3D performance

• Designed for both petrol and electric power setups

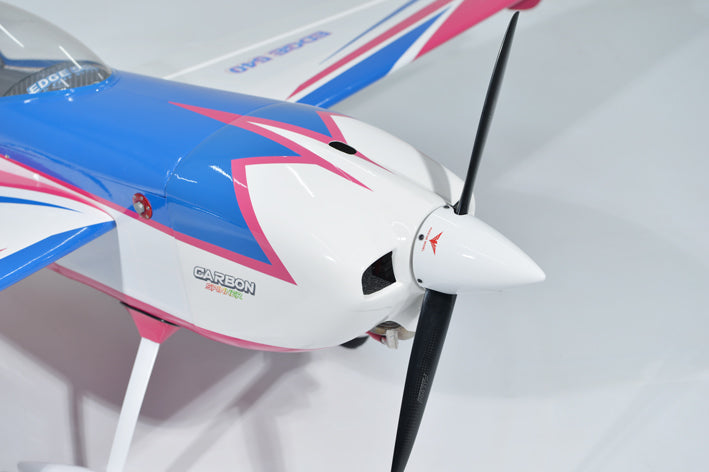

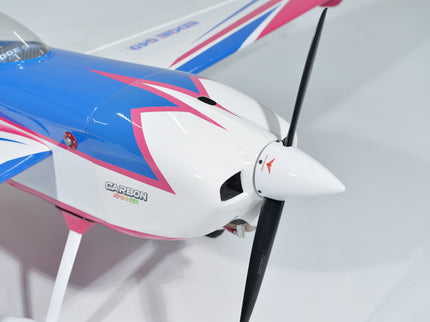

• Factory-painted carbon fibre 86mm spinner included

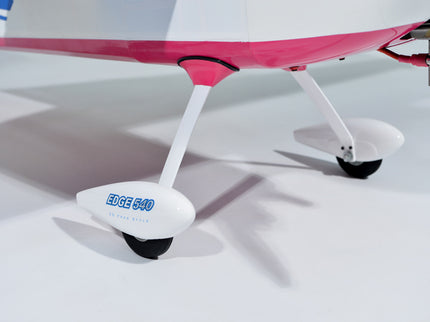

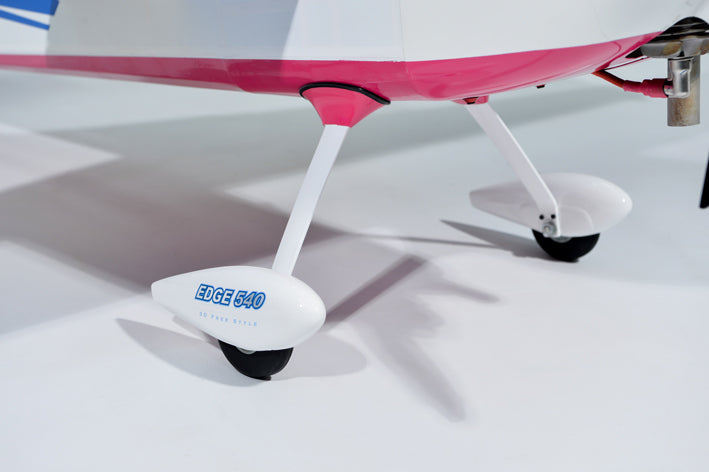

• Carbon fibre main landing gear and tail gear included

• Factory-painted fibreglass cowling and wheel pants

• Factory-painted fibreglass control horns

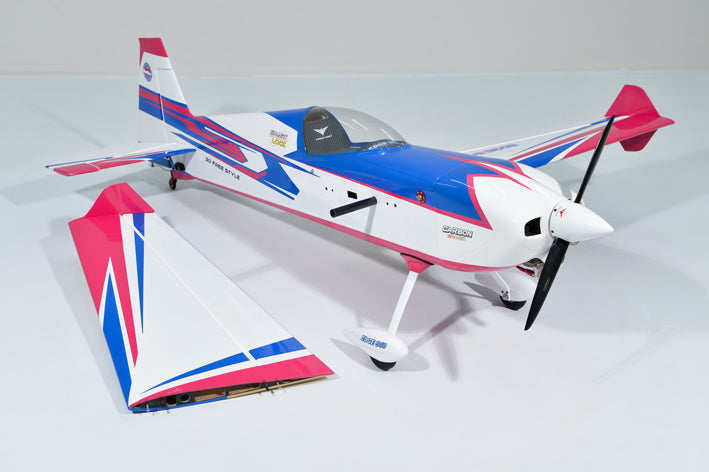

• Plug-in wings with Smart Lock system for quick assembly and transport

• Wing Force system included for improved precision and stability

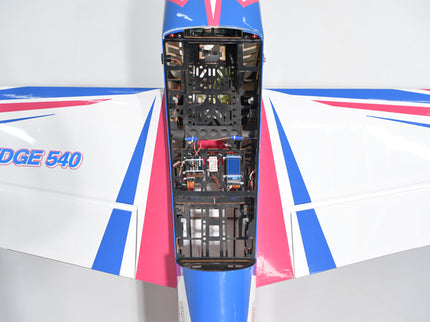

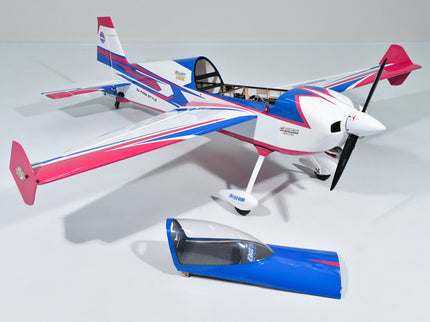

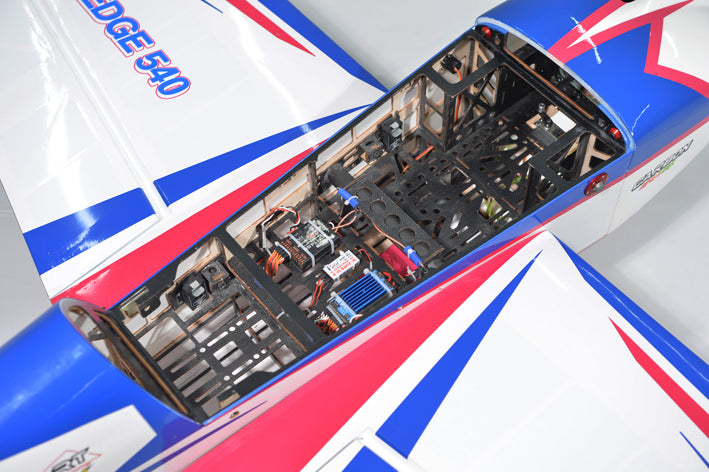

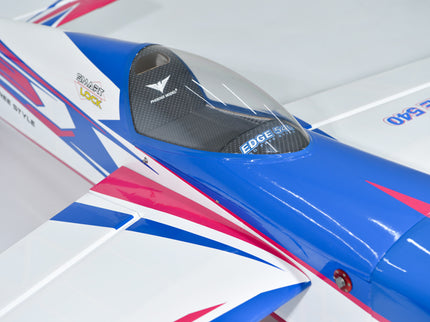

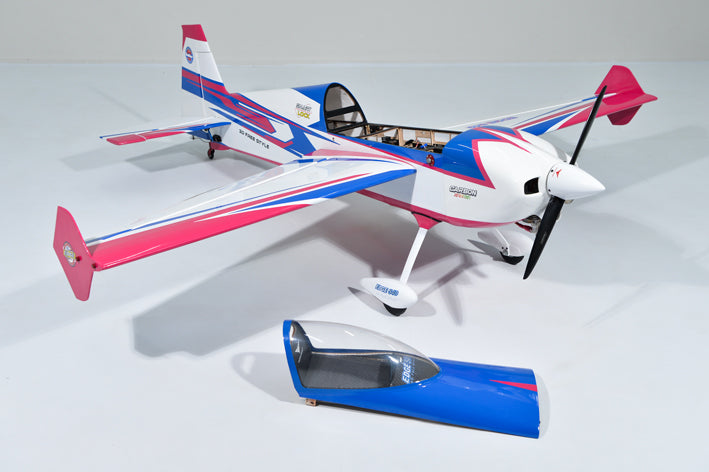

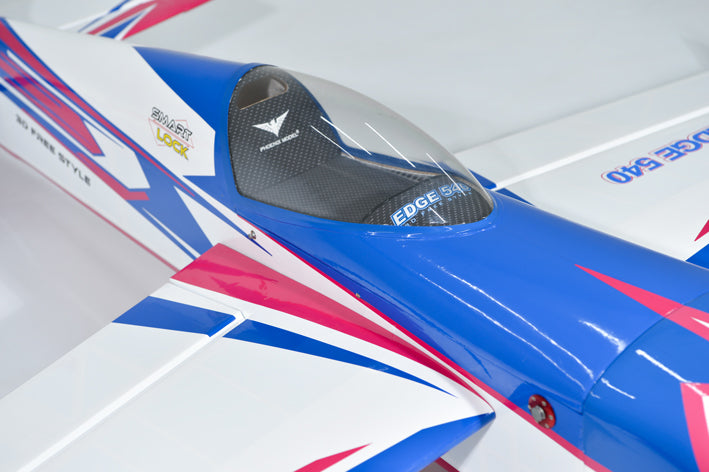

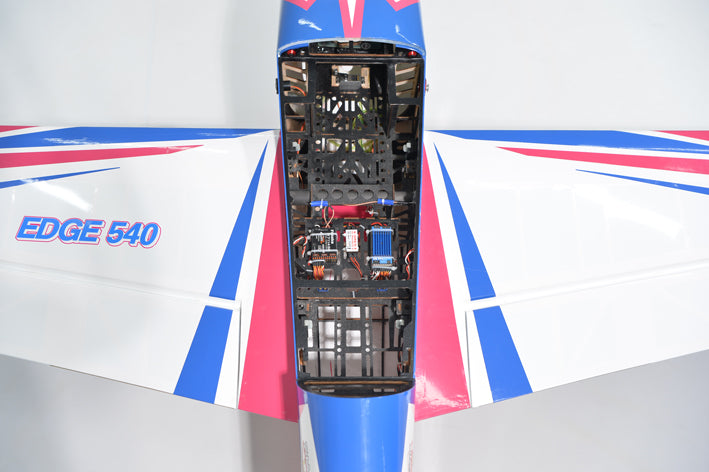

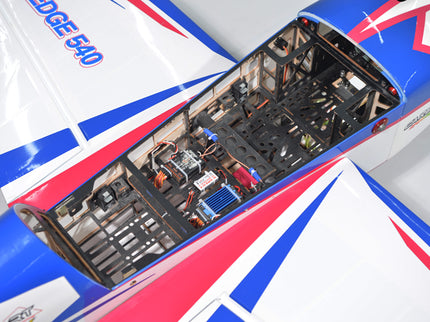

• Removable canopy for easy battery changes and radio setup

• Removable horizontal stabiliser for easier transport

• High-quality balsa and plywood construction with composite reinforcement

• Durable genuine polyester covering film for long-lasting colours

• All high-quality hardware included

Perfect For

• Intermediate to advanced RC pilots

• Extreme 3D aerobatic flying

• Precision aerobatic manoeuvres

• Pilots wanting gas or electric power flexibility

• Large-scale sport aerobatic flying

Product Summary

The Phoenix Model EDGE 540 74" ARF V2 is a large-scale aerobatic RC aircraft engineered for both precision and extreme 3D flight. Featuring a lightweight reinforced airframe, carbon fibre landing gear, and support for both petrol and electric power systems, it offers exceptional performance, durability, and versatility for serious RC pilots.

Specifications

• Wingspan: 1887mm (74 in)

• Length: 1800mm (70.8 in)

• Wing Area: 66 dm²

• Flying Weight: 5500–5700g

• Centre of Gravity: 120mm (4.7 in) back from the leading edge at the fuselage

• Landing Gear

  • Carbon fibre main landing gear (included)

  • Carbon fibre tail gear (included)

  • Carbon fibre spinner 86mm (included)

• Petrol Power Setup

  • Engine: DLE 35cc – Propeller 20x8 carbon

  • Engine: GP 38cc – Propeller 20x9 carbon

  • Fuel Tank: 360ml

• Electric Power Setup

  • Motor: Scorpion A5524-205

  • ESC: 150HV

  • Battery: Two 6S 3300–3700mAh LiPo

  • Propeller: 22x10 wood/carbon electric

• Servo Requirements

  • 2 × Aileron Servos: 30–40kg (standard size 20×40mm)

  • 2 × Elevator Servos: 16–22kg (medium size 18×36mm)

  • 1 × Rudder Servo: 16–22kg (medium size 18×36mm)

  • 1 × Throttle Servo: 12kg (gas power)

Recommended Control Throws

• Elevator

  • Low Rate: 8–10° / 10–25% expo

  • 3D Rate: 45–50° / 55–65% expo

• Aileron

  • Low Rate: 15–20° / 40–45% expo

  • High Rate: 38–40° / 60–75% expo

• Rudder

  • Low Rate: 20° / 40–50% expo

  • High Rate: 45–50° / 60–80% expo

Box Dimensions
1509 × 615 × 288 mm (L × W × H)
