XBus compatible Diversity 8channel DMSS receiver w/Hybrid output port available
All output terminal to share both PWM & XBus.
XT60 connector equipped for 16AWG power cable out put from receiver voltage input.

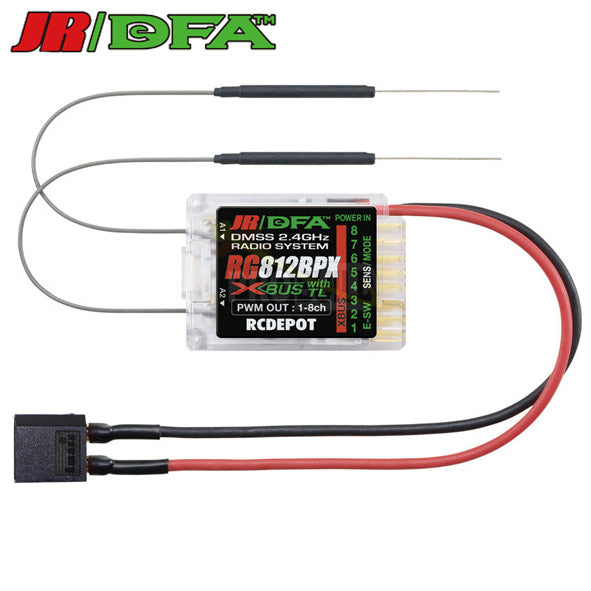

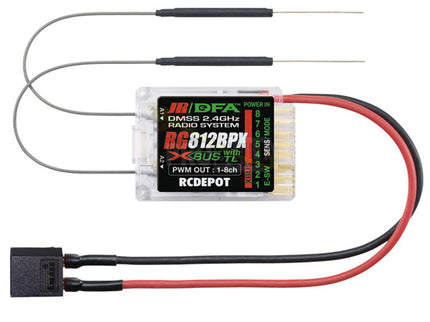

DMSS 2.4GHz 8ch Power Receiver "RG812BPX" with E switch & XBus

Dimension :14 x 31 x 42.5㎜
Weight : 15g
Receiving System : 8channel DMSS System with XBus
PWM Output ch : 1ch - 8ch
Operating Voltage : 4.5-8.5V
Bidirectional communication : Xbus compatible
Telemetry Module integrated
Comply with E-switch
Capabel to adopt one additonal remote antenna as an option.
Fullrange receiver
Full range telemetry capability.
