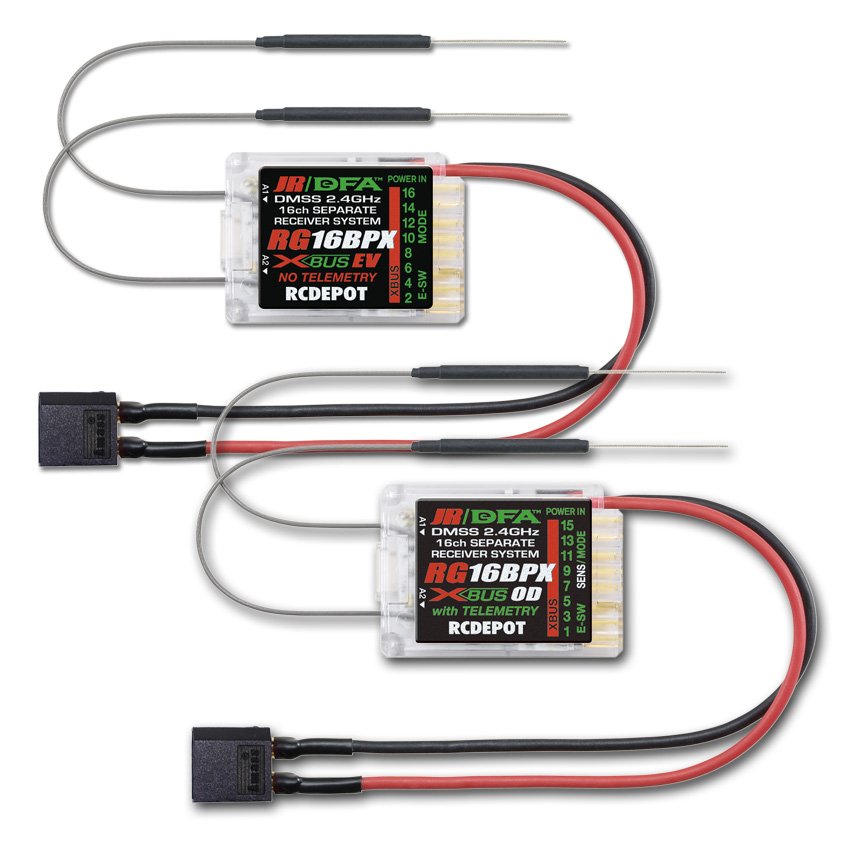

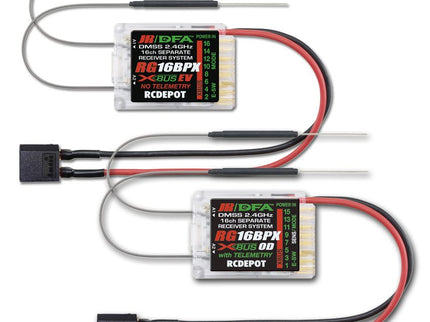

DMSS 2.4GHz 16ch separate receiver system with E-Swich DMSS/Xbus

This 16ch separate receiver system.

XBus compatible Diversity 16channel DMSS receiver w/Hybrid output port available
All output terminal to share both PWM & XBus.
XT60 connector equipped for 16AWG power cable out put from receiver voltage input.


• Dimension :14 x 31 x 42.5㎜ (par piece)
• Weight : 15g (par piece)
• Receiving System : 16 channel DMSS System with XBus (as a pair)
• PWM Output ch : OD/1.3.5.7.9.11.13.15ch ・EV/2.4.6.8.10.12.14.16ch
• Operating Voltage : 4.5-8.5V
• Bidirectional communication : Xbus compatible
• Telemetry Module integrated
• Comply with E-switch
• Capabel to adopt one additonal remote antenna as an option.
• Fullrange receiver
• Full range telemetry capability.(EV only)
