Description
JETImodel Receiver Battery Power Ion 2600 2S1P
Power-Ion accumulators are battery packs suitable to power the receiv-er
and servos in the model.
The main advantages of Power-Ion accumulators include high mechanical
resistance due to keeping in a metal case. The accumulators are also
characterized by a long cycle life. No balancer is needed for their
operation and in case the current is higher than 150A, short circuit
protection is activated. Overcharge protection is activated if the
charging voltage is higher than 5V per cell.
The accumula-tors are
functional even at very low or very high temperatures (-10 - +60°C).
Each pack is provided with one two-wire cable with the JR connector for
Each pack is provided with one two-wire cable with the JR connector for
charging and with one two-wire cable with the MPX connector for connection
to the model. Both cables are of the same length.

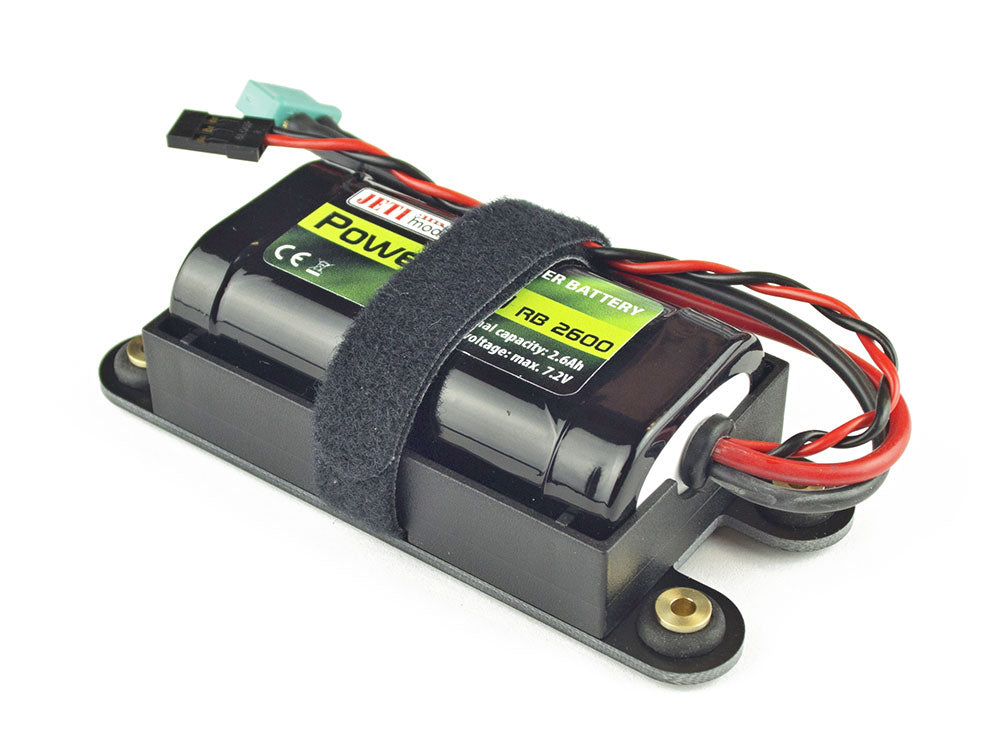

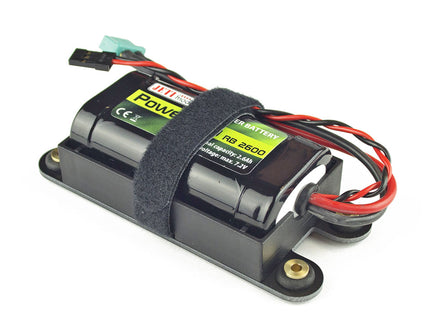

The accumulators are supplied in a plastic case and are fastened to it by
Velcro. The case itself is screwed to a model using anti-vibration rubber
grommets, see the picture below. Pay attention to correct placing of the
brass washer. Its wider part should be in contact with the assembly board
to which the battery case is mounted to avoid extruding the material.
technical data:
| Weight [g] | 136 |
| Dimensions [mm] | 104 x 47 x 32 |
| Sustained current [A] | 20 |
| Peak current (max 30s) [A] | 40 |
| Cell type | LiIon |
| Capacity [mAh] | 2600 |
| Rated voltage [V] | 7.2 |
| Max. cell voltage [V] | 4.2 |
| Max. battery voltage [V] | 8.4 |
JETImodel Receiver Battery Power Ion 2600 2S1P
£35.99Incl. VAT
Description
JETImodel Receiver Battery Power Ion 2600 2S1P
Power-Ion accumulators are battery packs suitable to power the receiv-er
and servos in the model.
The main advantages of Power-Ion accumulators include high mechanical
resistance due to keeping in a metal case. The accumulators are also
characterized by a long cycle life. No balancer is needed for their
operation and in case the current is higher than 150A, short circuit
protection is activated. Overcharge protection is activated if the
charging voltage is higher than 5V per cell.
The accumula-tors are
functional even at very low or very high temperatures (-10 - +60°C).
Each pack is provided with one two-wire cable with the JR connector for
Each pack is provided with one two-wire cable with the JR connector for
charging and with one two-wire cable with the MPX connector for connection
to the model. Both cables are of the same length.
The accumulators are supplied in a plastic case and are fastened to it by
Velcro. The case itself is screwed to a model using anti-vibration rubber
grommets, see the picture below. Pay attention to correct placing of the
brass washer. Its wider part should be in contact with the assembly board
to which the battery case is mounted to avoid extruding the material.
technical data:
| Weight [g] | 136 |
| Dimensions [mm] | 104 x 47 x 32 |
| Sustained current [A] | 20 |
| Peak current (max 30s) [A] | 40 |
| Cell type | LiIon |
| Capacity [mAh] | 2600 |
| Rated voltage [V] | 7.2 |
| Max. cell voltage [V] | 4.2 |
| Max. battery voltage [V] | 8.4 |
