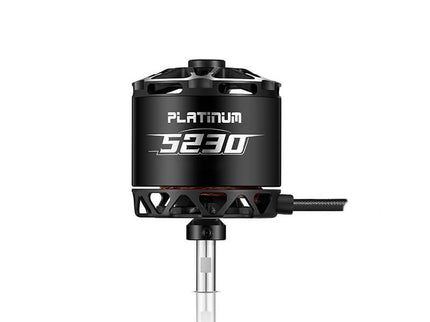

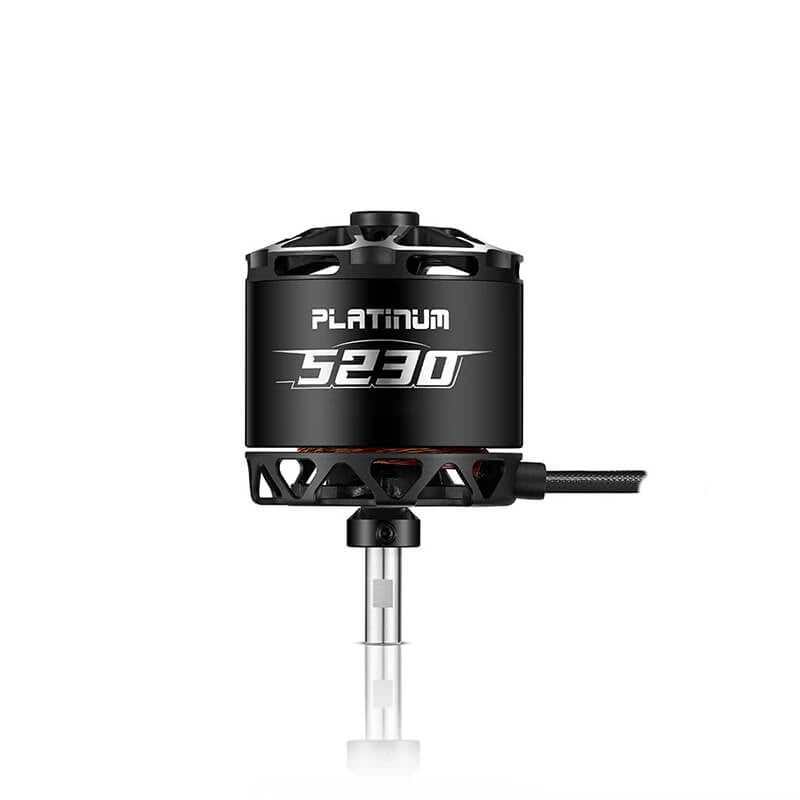

The Hobbywing Platinum 5230SL 190KV Fixed Wing Motor is engineered for high-performance fixed-wing aircraft, making it an excellent choice for 74" models or 35cc aircraft. With a 190KV rating, it provides the perfect blend of power and efficiency for large-scale models. The motor boasts a maximum power output of 4985W, offering a max thrust of 14.99kg, ensuring a smooth and powerful flight experience.

This motor features a high-quality design, including high-standard silicon steel sheets, 180°C high-temperature resistance coating, and enamelled wire for optimal heat dissipation and durability. Its dynamic balance is ≤10mg, guaranteeing stable and smooth operation. With a recommended ESC of PLATINUM 130A V4 or 180A V5 and compatible propellers, this motor is ideal for hobbyists who demand high performance in their fixed-wing aircraft.

Specifications:

• Motor Size: Φ60.2 * 93.5mm
• Stator Size: Φ51.7 * T30
• KV: 190
• Max Power: 4985W/42s
• Max Thrust: 14.99kg
• Battery (LiPo): LiPo-10~12S
• No-load Current: 3.0A/44.4V
• Max Current: 112.5A/42s
• Motor Weight (With Wire): 582g
• Recommended ESC: PLATINUM 130A V4, 180A V5
• Recommended Propellers: 10S: 20x10E, 22x10E, 22x12E / 12S: 20x8E, 20x10E, 22x10E
