The FrSky TWIN TW SR12 Stabilised Receiver is an advanced RC receiver combining FrSky's dual active 2.4GHz TWIN protocol with an integrated ADV stabilisation system, comprehensive telemetry and 12 configurable channel ports. Designed for demanding RC aircraft applications, the TW SR12 delivers flexible control options, enhanced signal resilience and sophisticated flight stabilisation features.

Unlike conventional receivers that rely on fixed output configurations, the TW SR12 allows each channel port to be assigned as PWM, SBUS, FBUS or S.Port. This flexibility simplifies installation and supports modern RC systems, including compatible XACT servos and ADV sensors. FBUS connectivity can combine control signals and telemetry over a single connection, helping reduce wiring complexity.

The integrated ADV Stabiliser takes flight assistance beyond conventional gyro stabilisation. It supports multiple flight modes, including Stabilisation, Auto-Level, Hover and Knife-Edge for suitable aircraft configurations. Advanced mode provides additional programmable stabilisation channels, configurable output pins, stabilisation file sharing and adjustable parameters.

With three 2.4GHz antennas, dual XT30 power inputs, a built-in power switch function and high-precision telemetry sensors, the TW SR12 is a powerful solution for pilots seeking advanced control, stabilisation and monitoring capabilities.

Key Features

• Dual active 2.4GHz TWIN protocol for enhanced signal resilience.

• Integrated ADV stabiliser with advanced programmable flight stabilisation.

• 12 configurable channel ports supporting flexible output assignments.

• Configurable channel protocols: PWM, SBUS output, FBUS and S.Port.

• SBUS input on CP1 for signal redundancy with compatible equipment.

• SBUS output supporting 16-channel and 24-channel modes.

• Built-in high-precision telemetry sensors for altitude, vertical speed and other supported data.

• Multiple stabilisation modes, including Stabilisation, Auto-Level, Hover and Knife-Edge for suitable aircraft.

• Advanced stabilisation options, including configurable parameters and stabilisation file sharing.

• Black-Box data recording function for supported applications.

• Built-in power switch function, compatible with optional external switches.

• Dual XT30 power input connectors for power supply connectivity.

• Current overload protection support through the receiver's channel-port power design.

• Three 2.4GHz antennas for the TWIN dual-band system.

• FBUS / S.Port telemetry for compatible equipment.

• Over-The-Air (OTA) firmware updates.

• External voltage measurement via AIN, supporting 0–35V with the specified 1:10 battery voltage divider ratio.

Perfect For

• Advanced RC aircraft pilots seeking programmable stabilisation.

• Scale aircraft and aerobatic models requiring configurable flight assistance.

• Pilots using Auto-Level, Stabilisation and other supported flight modes.

• Experienced RC enthusiasts building sophisticated telemetry systems.

• Aircraft installations using compatible PWM servos, SBUS equipment or FBUS devices.

• Pilots looking for flexible channel assignments and simplified wiring.

• RC builders using compatible FrSky TWIN transmitters and TW-capable RF modules.

Product Summary

The FrSky TWIN TW SR12 is a versatile 12-channel receiver that combines dual active 2.4GHz communication with advanced stabilisation, telemetry and flexible output configuration.

Its integrated ADV stabiliser provides programmable flight assistance and multiple stabilisation modes, while the 12 configurable ports allow users to select the appropriate protocol for their connected equipment. Three antennas, SBUS redundancy support, dual XT30 power inputs and a built-in power switch function make it suitable for sophisticated RC aircraft installations.

For pilots seeking more than a conventional receiver, the TW SR12 offers an integrated control, stabilisation and telemetry solution with extensive configuration options.

Specifications

• Brand: FrSky

• Model: TWIN TW SR12

• Product type: Dual-band receiver with integrated ADV stabiliser

• Frequency: Dual 2.4GHz

• Protocol: FrSky TWIN TW

• Channel ports: 12 configurable ports

• CP1 configuration: PWM / SBUS Out / FBUS / S.Port / SBUS In

• CP2–CP12 configuration: PWM / SBUS Out / FBUS / S.Port

• SBUS output: Yes, supports 16-channel and 24-channel modes

• SBUS input: Yes, supports signal redundancy with compatible equipment

• Telemetry: FBUS / S.Port

• Stabilisation: Integrated ADV stabiliser

• Supported stabilisation modes: Stabilisation, Auto-Level, Hover and Knife-Edge, subject to aircraft configuration

• Telemetry sensors: High-precision altitude and vertical speed sensing, plus other supported data

• Black-Box function: Basic data recording

• Power switch function: Built in; optional compatible external switch

• Power connectors: Dual XT30 inputs

• Operating voltage: 3.5–12V

• Recommended power supply: 2S LiPo battery, subject to the manufacturer's voltage and installation requirements

• Operating current: ≤130mA

• Continuous current capacity: ≤20A for powering connected devices

• Instantaneous current capacity: ≤40A for powering connected devices

• External voltage measurement: 0–35V via AIN, using a 1:10 battery voltage divider ratio

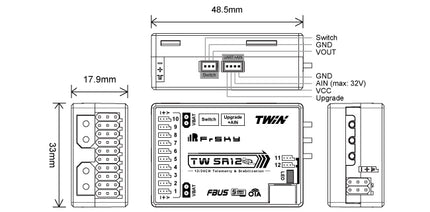

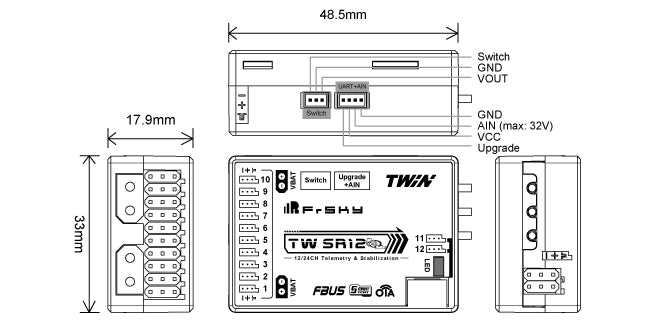

• Dimensions: 48.5 × 33 × 17.9mm (L × W × H)

• Weight: 22.5g

• Antenna configuration: Three 2.4GHz antennas

• Firmware updates: Over-The-Air (OTA)

• Compatibility: FrSky TWIN series transmitters and RF modules supporting the TW protocol

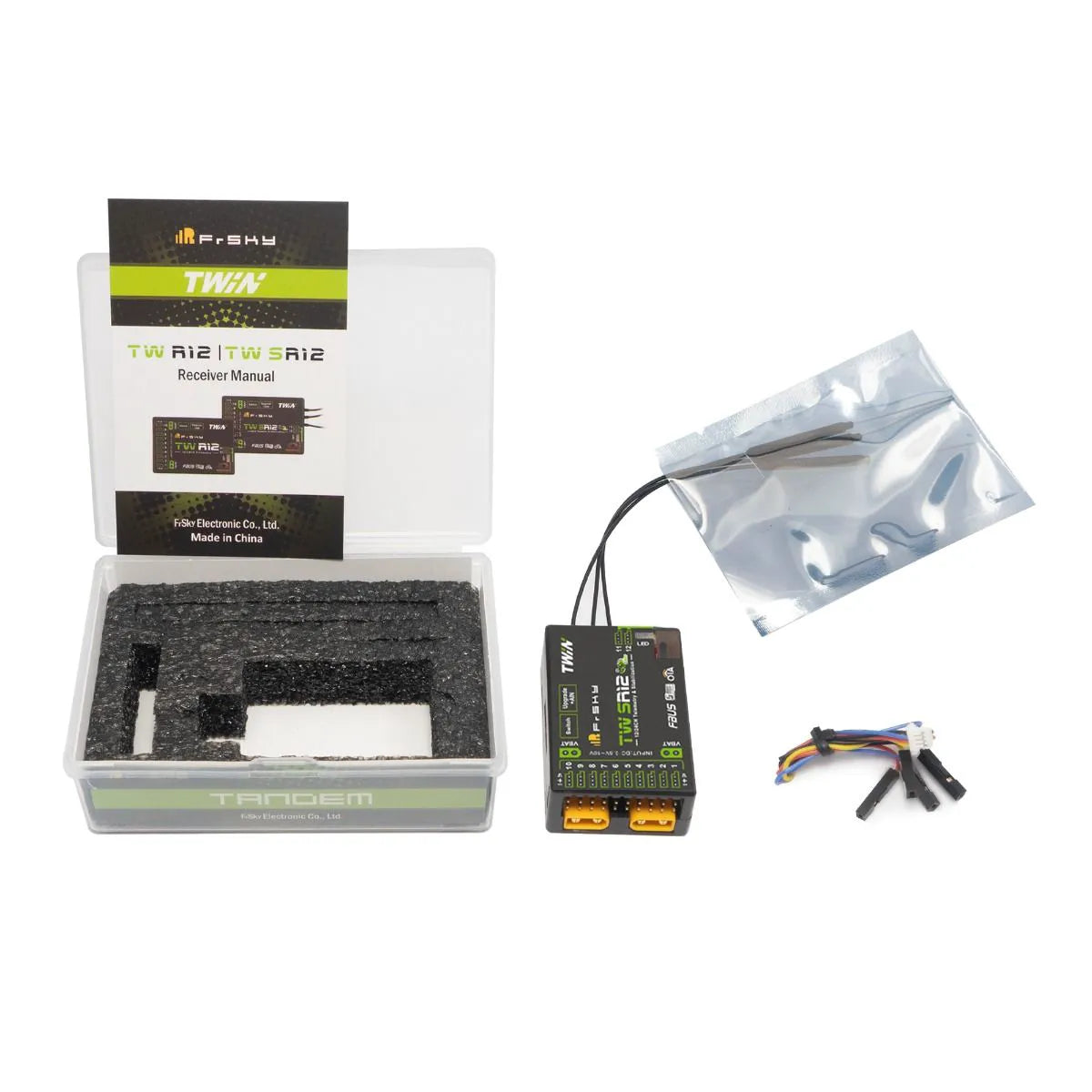

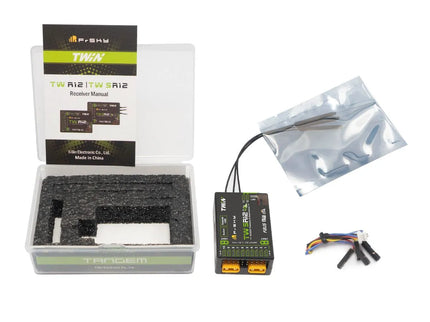

Package Contents
1 × FrSky TWIN TW SR12 receiver
