The FrSky Twin TW R10 Receiver is a high-performance 10-channel receiver built on the advanced TW protocol, featuring simultaneous dual 2.4GHz active frequency bands. Unlike traditional redundancy systems, the TW active-active design ensures both signals are continuously active, delivering superior reliability, enhanced interference resistance, and extended control range.

Designed for demanding RC applications, the TW R10 is equipped with triple 2.4GHz antennas, providing wide, multi-directional signal coverage for stable and secure communication in all environments.

A key feature of the TW R10 is its 10 fully configurable channel ports, allowing each output to be assigned as PWM, SBUS, FBUS, or S.Port. This flexibility makes it ideal for complex builds and advanced setups. With FBUS protocol support, both control signals and telemetry can be transmitted via a single cable, simplifying installation and reducing wiring complexity.

The receiver also includes SBUS In and SBUS Out functionality for redundancy and expansion, along with built-in black box data recording to capture critical flight information. Combined with OTA firmware updates, the TW R10 is a modern, versatile solution for reliable RC control.

Key Features:

• Simultaneous dual 2.4GHz active-active TW protocol

• Triple antenna design for enhanced signal coverage and stability

• 10 fully configurable channel ports (PWM / SBUS / FBUS / S.Port)

• FBUS support for combined control and telemetry via one cable

• SBUS Out (16CH / 24CH support) and SBUS In for redundancy

• Integrated Black Box data recording

• Long-range control capability (depending on RF power settings)

• Over-The-Air (OTA) firmware updates

• Lightweight and versatile design

Perfect For:

• RC aircraft and advanced model setups

• Pilots requiring reliable, interference-resistant signal performance

• Complex builds with telemetry and multiple devices

• Users of FrSky Twin protocol systems

• Models requiring flexible channel configuration

Product Summary:
The FrSky Twin TW R10 is a versatile 10-channel receiver offering dual 2.4GHz performance, flexible output configuration, and reliable long-range control. Ideal for advanced RC pilots, it combines simplicity, flexibility, and robust signal technology.

Specifications:

• Brand: FrSky

• Model: TW R10

• Frequency: Dual 2.4GHz (TW protocol)

• Channels: 10 configurable outputs

• Output Types: PWM / SBUS / FBUS / S.Port

• Operating Voltage: 3.5V – 12V (recommended 2S Li battery)

• Operating Current: ≤120mA @ 5V

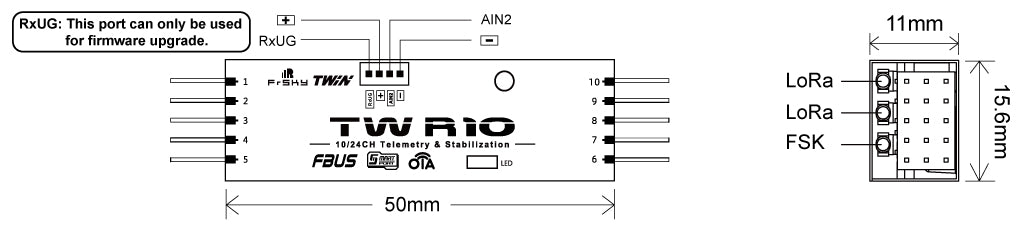

• Dimensions: 64.6 × 16.6 × 12.4mm

• Weight: 9.4g

• Antennas: Triple 2.4GHz

• Antenna Connector: IPEX1

• Telemetry: Supported (FBUS / S.Port)

• SBUS: In & Out supported

• Black Box: Yes

• Voltage Measurement: 0–35V (via AIN, 1:10 divider)

• Firmware Updates: OTA supported

• Compatibility: FrSky Twin series transmitters & TW protocol RF modules
