The FrSky TWIN TW MX is a compact dual 2.4GHz micro receiver designed for RC pilots who want the enhanced resilience, long-range capability and low latency of FrSky's TWIN TW protocol in a lightweight, space-saving package.

The TW MX uses FrSky's active-active dual 2.4GHz protocol, with both frequency bands operating simultaneously rather than relying on a conventional active-standby redundancy arrangement. This provides a highly resilient radio link and is designed for demanding RC applications where maintaining a reliable connection is important.

With its small 32 × 17 × 4mm footprint and low 3.8g weight, the TW MX is particularly well suited to models where installation space and weight are limited. It features two 2.4GHz antennas, four PWM output ports and an SBUS Out connection supporting 16CH or 24CH modes.

The receiver also supports FBUS and S.Port telemetry. When configured for FBUS through an ETHOS system, control and telemetry can be transmitted bidirectionally through a single connection to compatible FBUS devices, helping reduce wiring and simplify model builds.

For racing applications, the TW MX supports 4ms Race Mode with telemetry, combining ultra-low latency with the resilience of the TWIN dual 2.4GHz system.

Key Features

• FrSky TWIN TW MX dual 2.4GHz micro receiver

• Simultaneous active-active dual 2.4GHz operation

• Enhanced RF resilience for demanding RC applications

• Designed for long-range radio communication*

• Ultra-compact 3.8g design

• 4 PWM output ports

• SBUS Out supporting 16CH / 24CH modes

• FBUS and S.Port telemetry support

• 4ms Race Mode with telemetry

• Black-Box function

• Over-The-Air firmware updates

• Dual 2.4GHz antennas

• Ideal for models with limited installation space

• FBUS enables bidirectional control and telemetry through one connection

• Compatible with FrSky TWIN radios and RF modules operating in TW mode

Perfect For

• Lightweight RC aircraft

• Micro and compact models

• FPV racing aircraft

• RC racers requiring 4ms latency

• Models with limited receiver installation space

• Long-range RC applications

• FrSky TWIN radio systems

• Models using FBUS telemetry devices

• XACT servos and compatible FBUS equipment

• Builds where low weight and minimal wiring are important

Product Summary

The FrSky TWIN TW MX is a lightweight, compact dual 2.4GHz receiver offering the benefits of FrSky's TW active-active RF protocol in a micro-sized package.

With both 2.4GHz frequency bands active simultaneously, the TW MX is designed to provide a resilient and reliable radio link. Its four PWM outputs, SBUS connectivity, FBUS/S.Port telemetry and OTA firmware support make it a versatile choice for modern RC aircraft.

The addition of 4ms Race Mode with telemetry also makes the TW MX particularly suitable for racing applications where fast response and dependable RF performance are essential.

*Control range varies according to RF power settings, installation and local conditions.

Specifications

• Brand: FrSky

• Product: TWIN TW MX Receiver

• Type: Dual 2.4GHz Micro Receiver

• RF Technology: TWIN TW active-active

• Frequency: Dual 2.4GHz

• PWM Outputs: 4

• SBUS Output: 16CH / 24CH

• Telemetry: FBUS / S.Port

• Race Mode: 4ms with telemetry

• Black-Box: Yes

• OTA Firmware Updates: Yes

• Operating Voltage: 3.5–10V

• Minimum Required Voltage During Use: Above 2.8V

• Operating Current: ≤90mA @ 5V

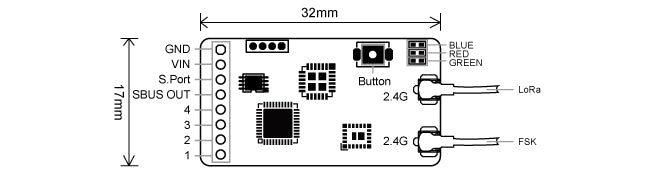

• Dimensions: 32 × 17 × 4mm (L × W × H)

• Weight: 3.8g

• Antennas: 2 × 2.4GHz

• Antenna Connector: IPEX1

• Compatibility: FrSky TWIN series radio and RF module operating in TW mode

What's in the Box
1 × FrSky TWIN TW MX Dual 2.4GHz Receiver
