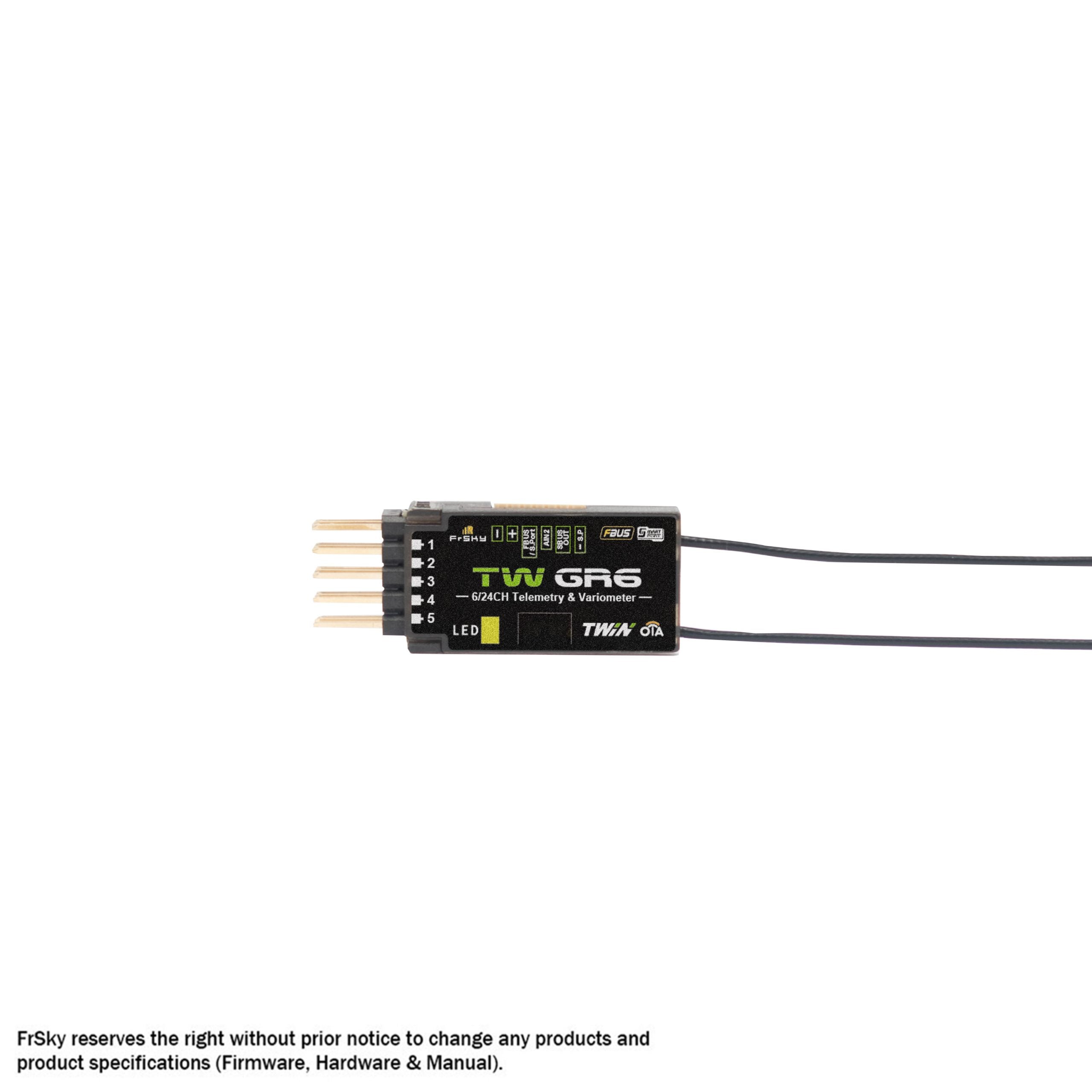

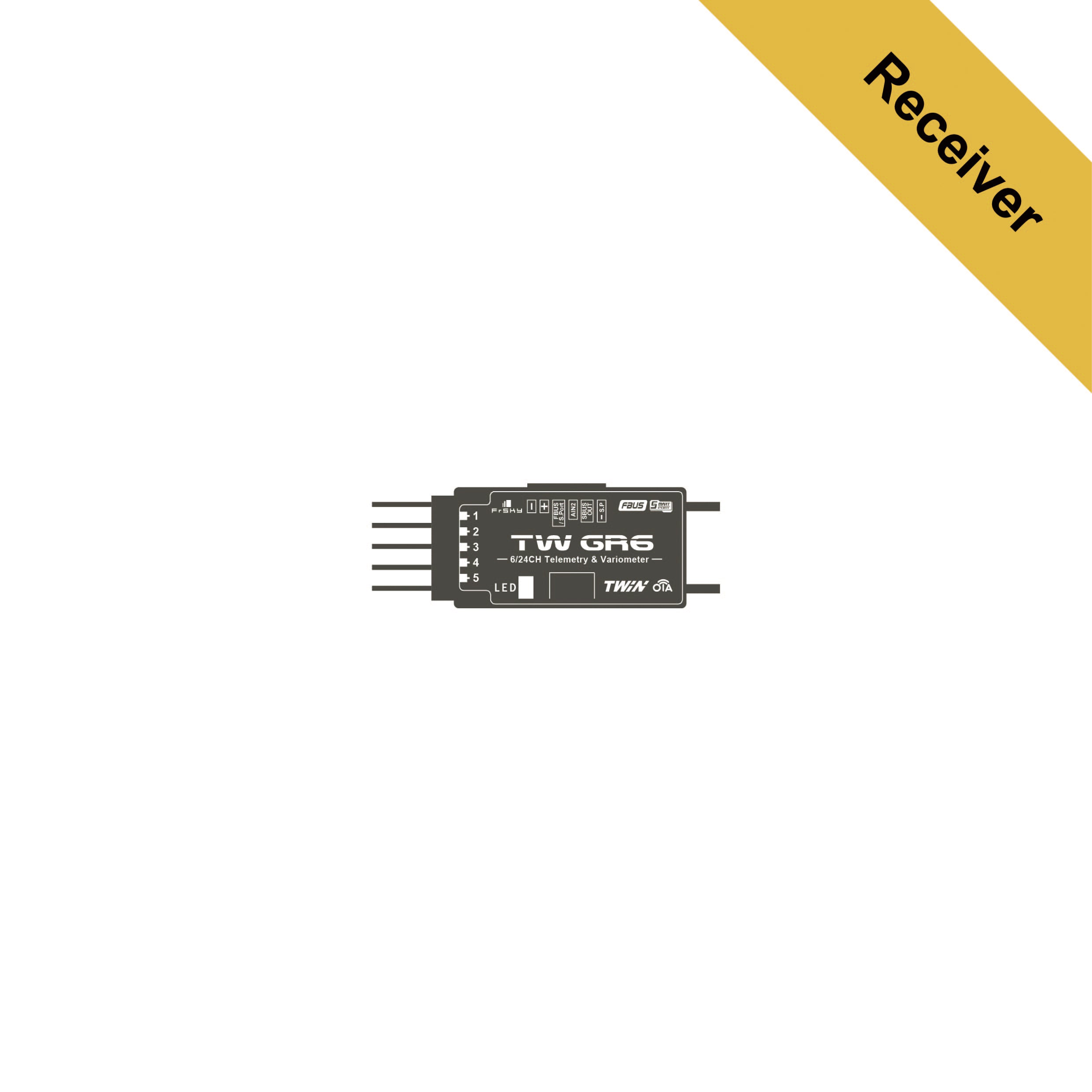

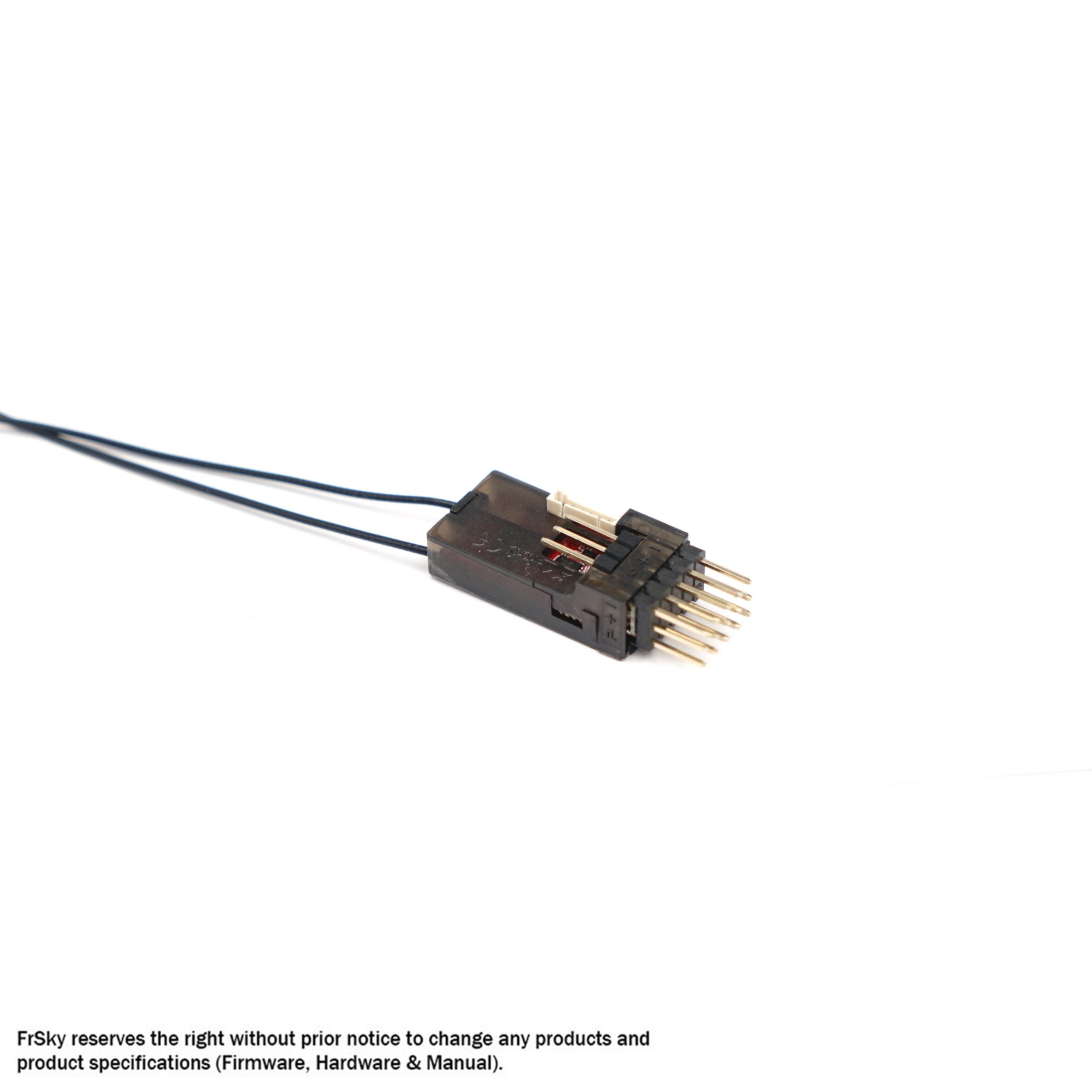

The FrSky TWIN TW GR6 is a compact dual 2.4GHz receiver with an integrated high-precision variometer, designed for pilots who want enhanced RF resilience, long-range control and accurate altitude telemetry.

The TW GR6 uses FrSky's active-active TW protocol, where both 2.4GHz frequency bands operate simultaneously. Unlike conventional active-standby redundancy systems, both RF links are active at the same time, providing a highly resilient radio connection for demanding RC applications.

The receiver features an upgraded high-precision variometer capable of measuring altitude from -700m to 10,000m with 0.1m resolution, together with vertical speed measurement up to ±10m/s. This makes the TW GR6 particularly well suited to gliders and other aircraft where accurate altitude and climb/sink information is important.

For racing applications, the receiver also supports 4ms Race Mode with telemetry, combining ultra-low latency with the resilience of the dual 2.4GHz TW system.

The TW GR6 provides 6 PWM channel ports, SBUS Out with 16CH/24CH modes, and telemetry through FBUS and S.Port. FBUS allows control and telemetry to be carried bidirectionally over a single connection, helping simplify aircraft wiring. An inverted S.Port is also provided for straightforward connection to compatible flight controllers.

Key Features

• Dual 2.4GHz TW active-active receiver technology

• Simultaneous operation of both 2.4GHz frequency bands

• High-precision integrated variometer

• Altitude measurement from -700m to 10,000m

• 0.1m altitude resolution

• Vertical speed measurement up to ±10m/s

• 4ms Race Mode with telemetry

• Long-range control capability*

• 6 high-quality PWM channel ports

• SBUS Out supporting 16CH / 24CH modes

• FBUS and S.Port telemetry support

• Inverted S.Port for easy flight controller connection

• Black-Box flight data function

• Over-The-Air firmware updates

• Dual 2.4GHz antennas

• External voltage measurement up to 36V via AIN2

• Compact 5g receiver design


Perfect For

• Glider pilots

• Electric and powered gliders

• Long-range RC aircraft

• FPV and racing applications

• Pilots requiring resilient dual-link RF communication

• 4ms low-latency racing setups

• Models using FBUS telemetry

• Flight controller installations

• Pilots using FrSky TWIN transmitters or RF modules

• Aircraft where accurate altitude and vertical speed telemetry is required

Product Summary

The FrSky TWIN TW GR6 combines dual active 2.4GHz RF technology, a high-precision variometer and versatile telemetry connectivity in a lightweight 5g receiver.

Its TW active-active protocol keeps both 2.4GHz frequency bands working simultaneously, providing enhanced resilience compared with conventional active-standby redundancy systems. The integrated variometer delivers altitude and vertical speed telemetry, while 4ms Race Mode with telemetry makes the receiver suitable for high-speed racing applications.

With 6 PWM outputs, SBUS, FBUS, S.Port, inverted S.Port, Black-Box functionality and OTA firmware updates, the TW GR6 provides a flexible and highly capable receiver solution for modern RC aircraft.

*Control range varies depending on RF power settings, installation and local conditions.

Specifications

• Brand: FrSky

• Product: TWIN TW GR6 Receiver

• Type: Dual 2.4GHz Variometer Receiver

• RF Technology: TWIN TW active-active

• Frequency: Dual 2.4GHz

• Number of PWM Channels: 6

• SBUS: 16CH / 24CH

• Telemetry: FBUS / S.Port

• Inverted S.Port: Yes

• Variometer: Integrated high-precision sensor

• Altimeter Range: -700m to 10,000m

• Altimeter Resolution: 0.1m

• Vertical Speed Range: ±10m/s

• External Voltage Measurement: 0–36V via AIN2

• Race Mode: 4ms with telemetry

• Operating Voltage: 3.5–10V

• Minimum Required Voltage During Use: Above 2.8V

• Operating Current: 60mA @ 5V

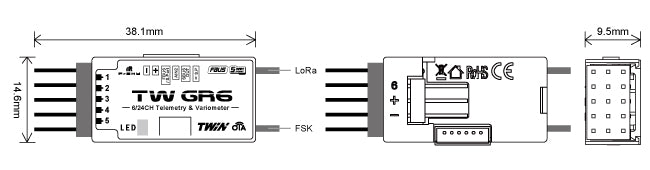

• Dimensions: 38.1 × 14.6 × 9.5mm (L × W × H)

• Weight: 5g

• Antenna Connector: IPEX4

• Antennas: 2 × 2.4GHz

• Black-Box Function: Yes

• OTA Firmware Updates: Yes

• Compatibility: FrSky TWIN series radios and RF modules operating in TW mode

What's in the Box
1 × FrSky TWIN TW GR6 Receiver
