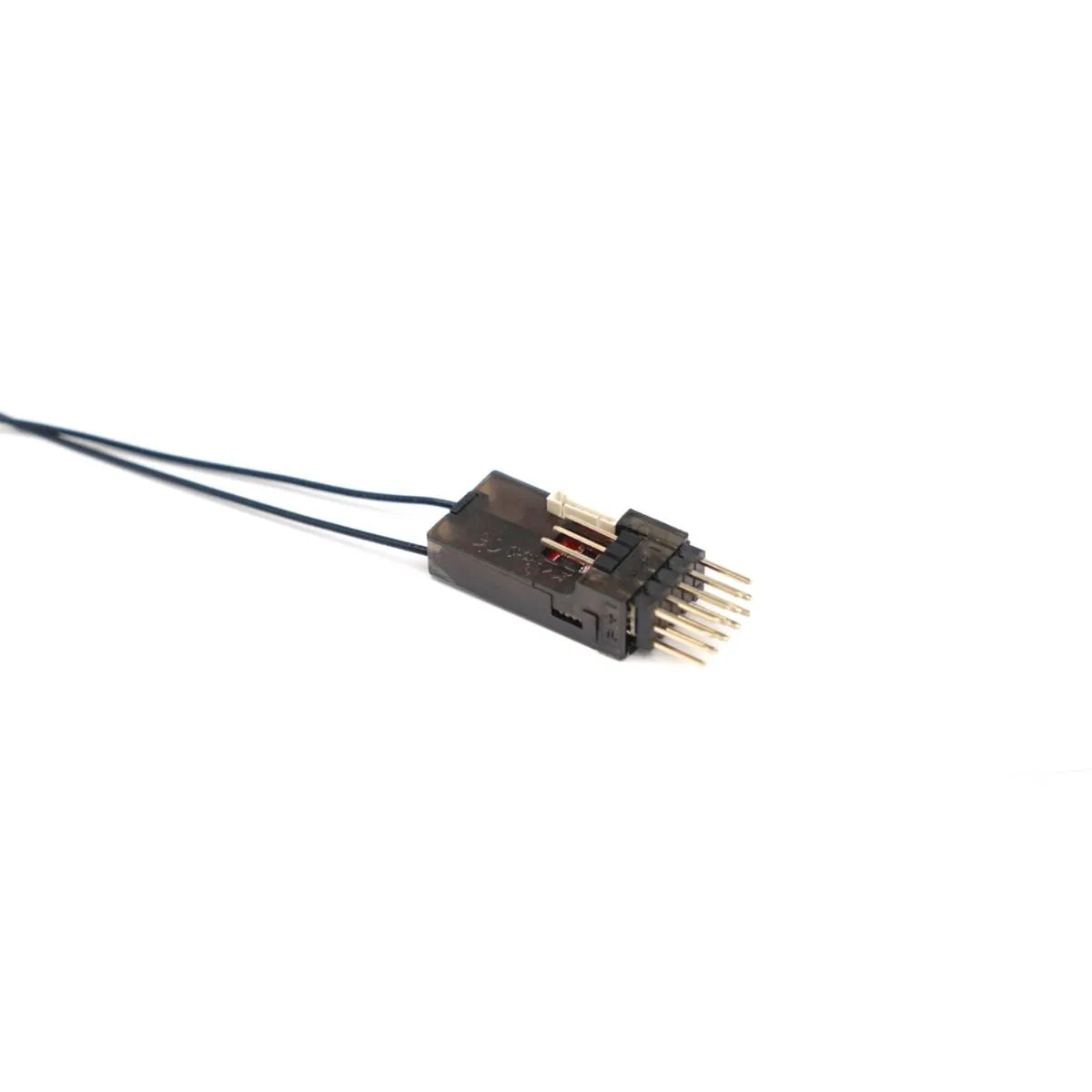

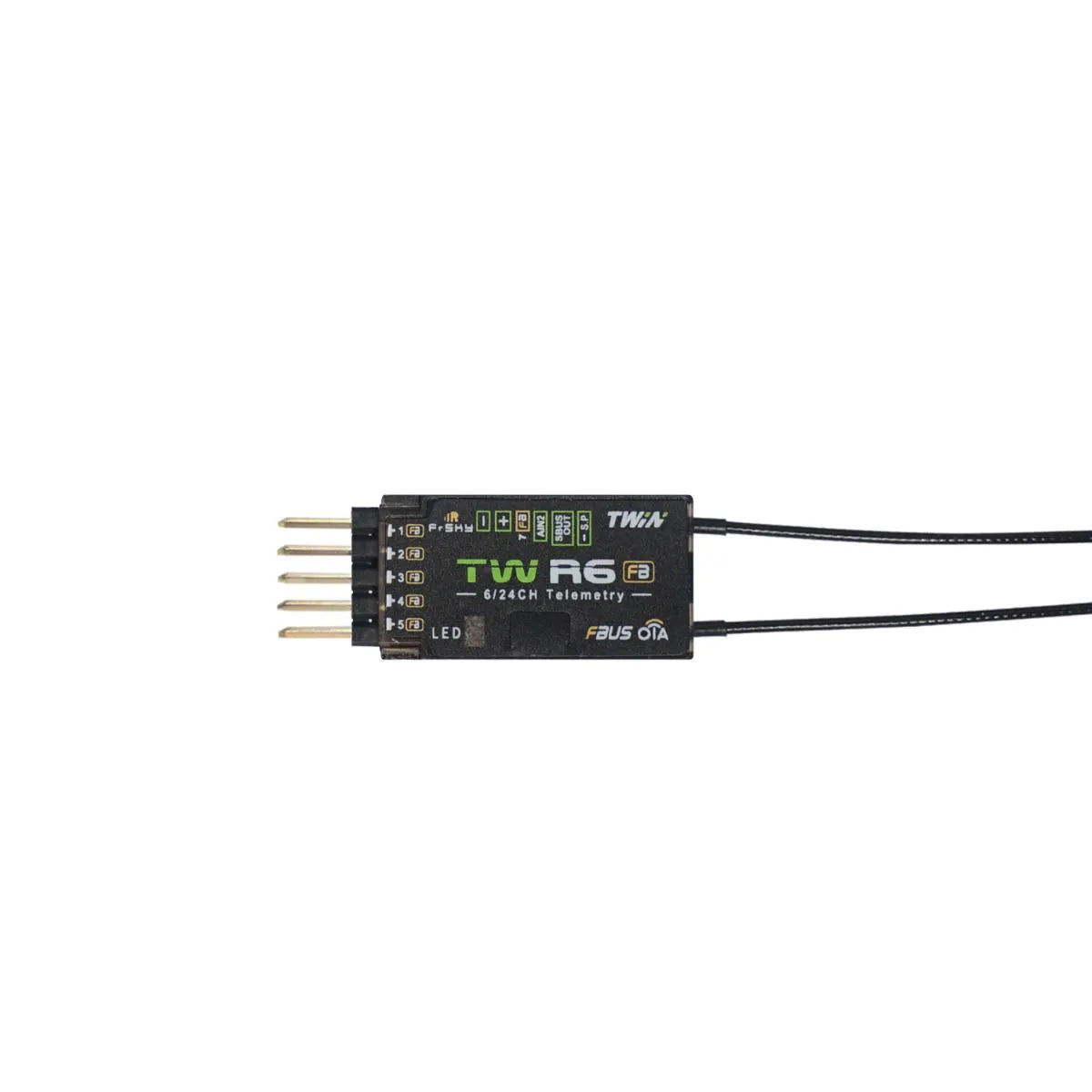

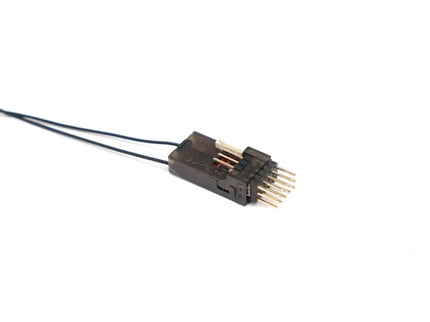

The FrSky TW R6FB Receiver (FBUS Version) is a compact, lightweight RC receiver designed for pilots seeking reliable dual-band connectivity, ultra-low latency and advanced telemetry. Using FrSky's TWIN TW protocol, it operates across two active 2.4GHz frequency bands simultaneously, providing enhanced signal resilience for demanding RC applications.

Important: The TW R6FB has no PWM servo outputs. Instead, it features seven FBUS channel ports for compatible FBUS equipment and one SBUS output supporting 16-channel and 24-channel modes. This makes it ideal for modern RC setups using compatible FBUS servos, flight controllers and other supported devices.

With 4ms race mode, FBUS/S.Port telemetry, an inverted S.Port connection and Over-The-Air (OTA) firmware updates, the TW R6FB offers advanced functionality in a receiver weighing just 5g.

Key Features

• Dual active 2.4GHz TWIN protocol for enhanced signal resilience.

• No PWM servo outputs – designed for compatible digital FBUS systems.

• Seven FBUS channel ports for compatible equipment, including supported XAct servos.

• SBUS output supporting 16-channel and 24-channel modes.

• Ultra-low-latency 4ms race mode with telemetry.
• FBUS and S.Port telemetry support.

• Inverted S.Port for convenient flight controller connectivity.

• Black-Box function.

• Over-The-Air (OTA) firmware updates.

• Dual 2.4GHz antennas with IPEX4 connectors.

• External voltage measurement of 0–36V via AIN2.

• Integrated high-precision variometer functionality.

• Lightweight 5g construction.

Perfect For

• FPV racing pilots seeking responsive control and low latency.

• RC aircraft builders using compatible FBUS servos and equipment.

• Modern digital RC installations that do not require direct PWM outputs.

• Pilots using compatible FrSky TWIN transmitters or RF modules in TW mode.

• Builds requiring SBUS connectivity to compatible flight controllers.

• Advanced RC setups benefiting from telemetry and simplified wiring.

Product Summary

The FrSky TW R6FB is a dual-band 2.4GHz receiver built for modern RC systems that use FBUS and SBUS connectivity. Its simultaneous active-frequency design, 4ms race mode and telemetry support provide a versatile solution for demanding flying applications.

Unlike conventional receivers with individual PWM servo outputs, the TW R6FB relies on seven FBUS channel ports and one SBUS output. Ensure your servos and connected equipment support the appropriate protocol before purchasing.

Specifications

• Brand: FrSky

• Model: TW R6FB

• Version: FBUS

• Receiver protocol: TWIN TW

• Frequency: Dual 2.4GHz

• PWM servo outputs: None

• FBUS ports: 7

• SBUS output: 1

• SBUS modes: 16-channel / 24-channel

• Telemetry: FBUS / S.Port

• Race mode: 4ms

• Additional functions: Black-Box function, OTA firmware updates

• Variometer altitude range: -700m to 10,000m

• Variometer altitude resolution: 0.1m

• Vertical speed measurement range: ±10m/s

• External voltage measurement: 0–36V via AIN2

• Operating voltage: 3.5–10V

• Minimum voltage note: The manufacturer specifies that the supplied voltage should exceed 2.8V during operation.

• Operating current: 60mA at 5V

• Dimensions: 38.1 × 14.6 × 9.5mm (L × W × H)

• Weight: 5g

• Antenna configuration: 2 × 2.4GHz antennas

• Antenna connector: IPEX4

• Compatibility: FrSky TWIN series transmitters and RF modules operating in TW mode

• FBUS compatibility: Requires compatible FBUS devices, such as supported XAct servos

• Firmware updates: OTA, where supported
