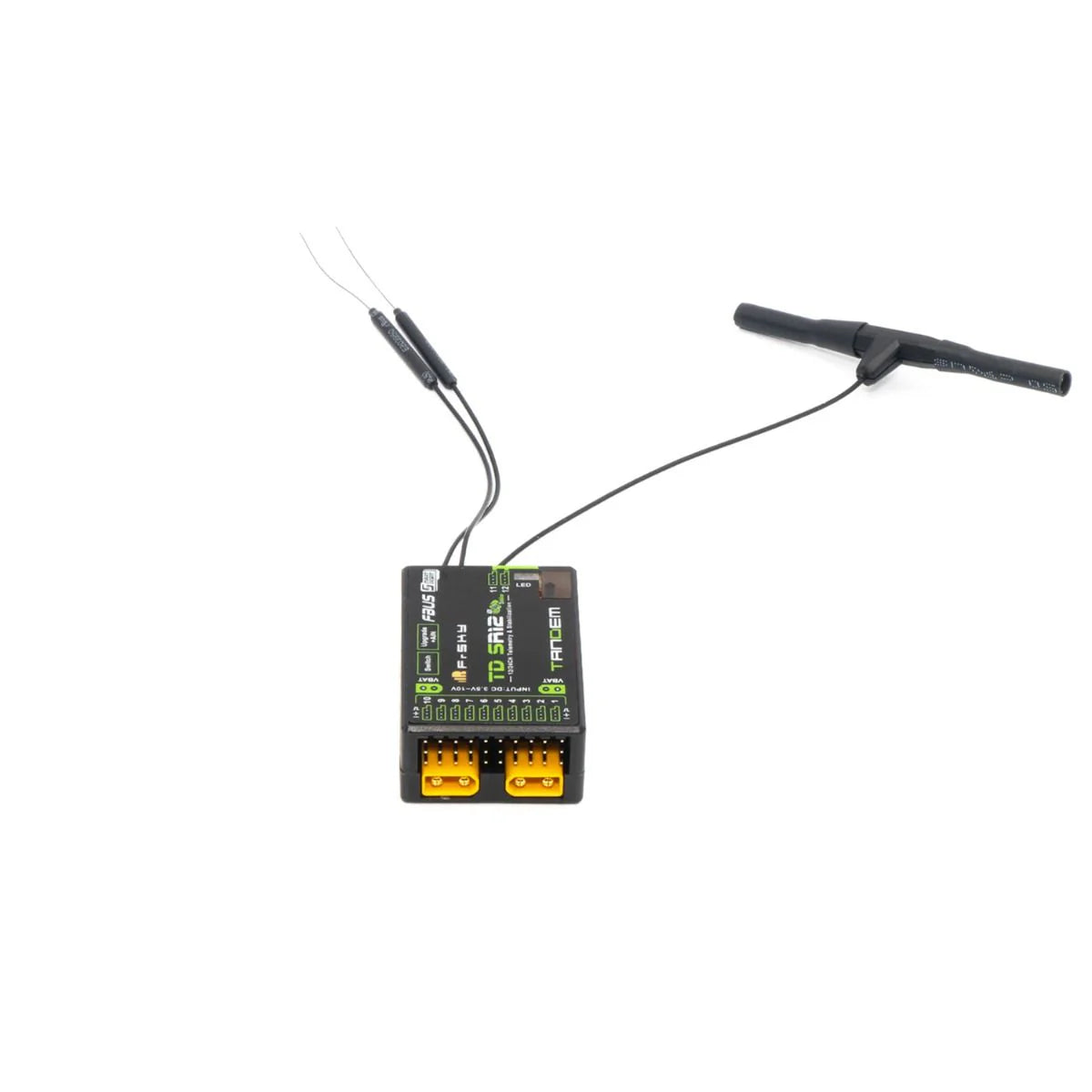

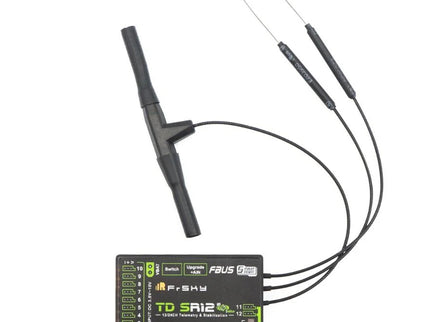

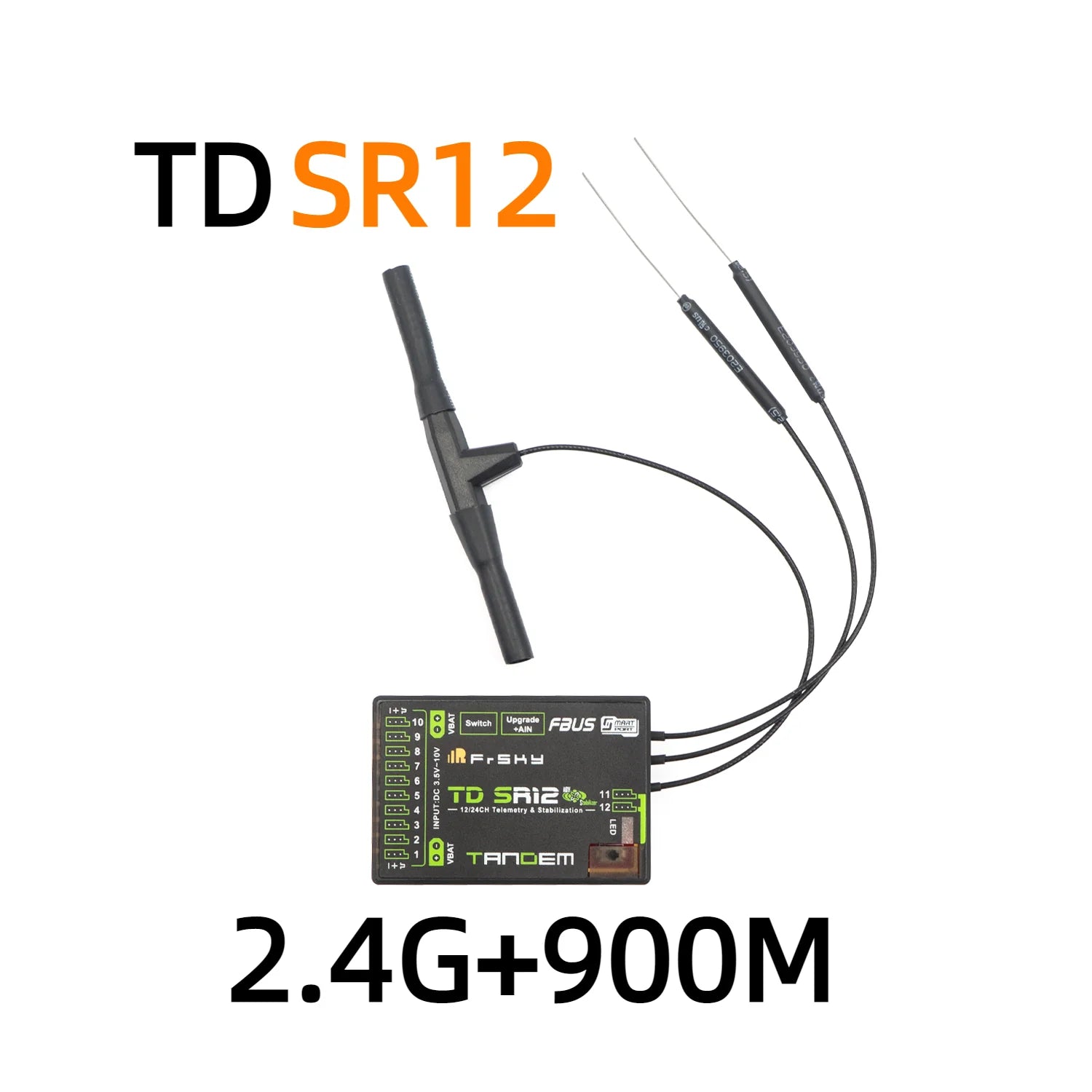

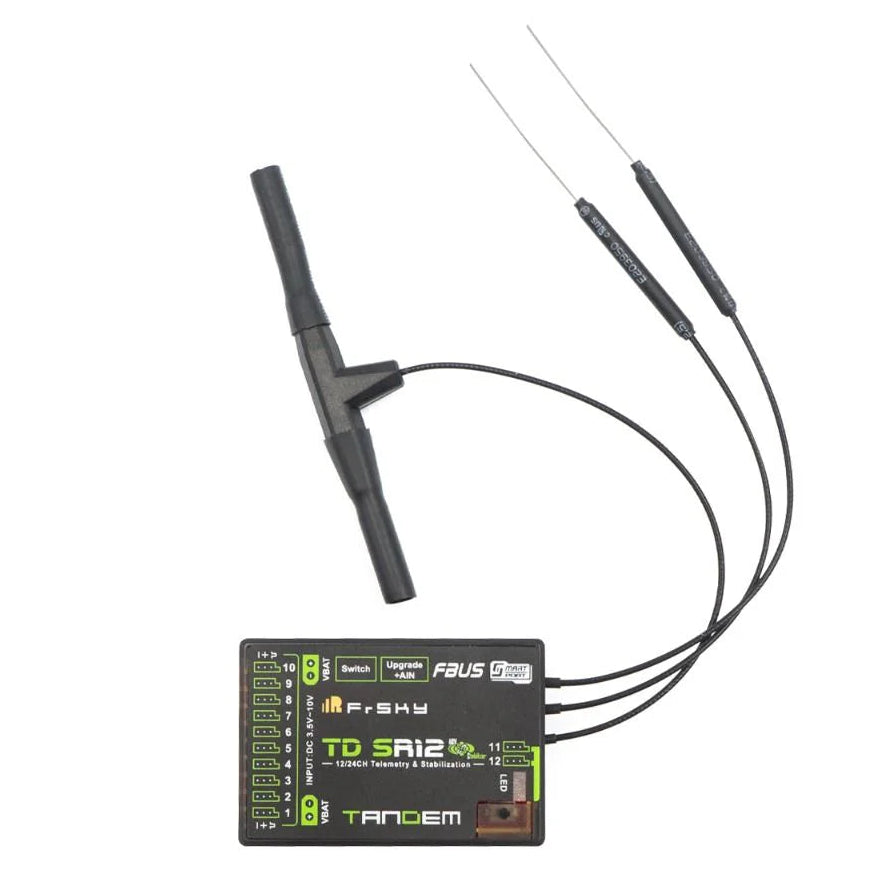

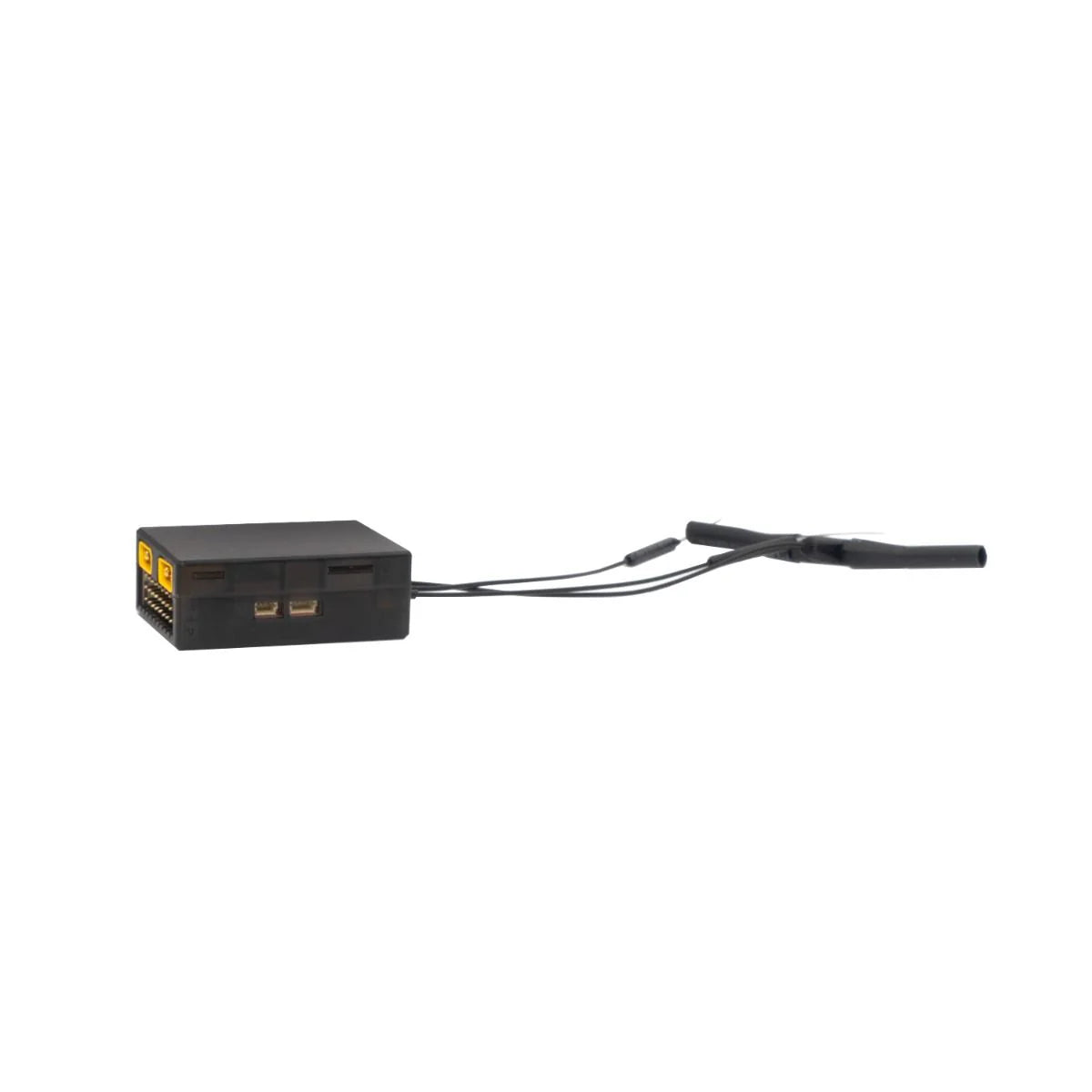

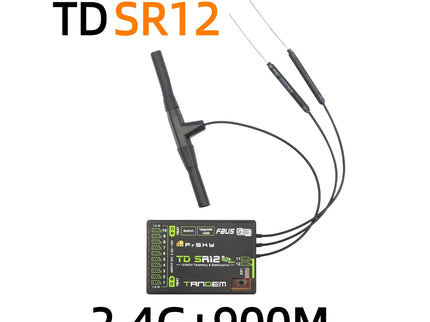

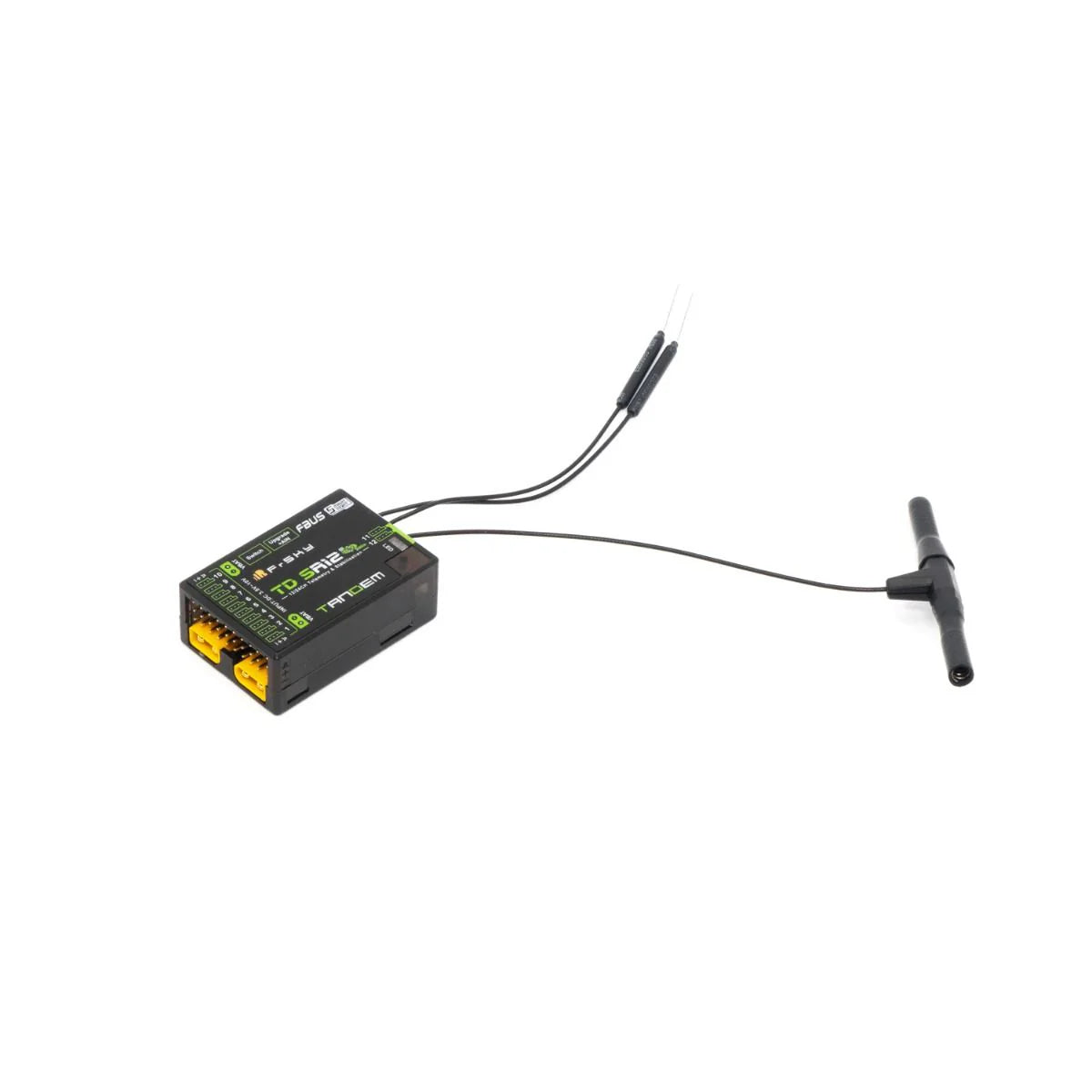

The FrSky TD SR12 Tandem Receiver is a high-performance dual-band receiver designed for advanced RC pilots who demand maximum reliability, flexibility, and control. Operating simultaneously on both 2.4GHz and 900MHz frequencies, the TD (Tandem) system delivers ultra-low latency alongside exceptional long-range capability and industry-leading resistance to interference.

Equipped with a triple antenna system (2× 2.4GHz and 1× 900MHz), the TD SR12 ensures wide, multi-directional signal coverage for robust connectivity in all flight conditions. Its dual power input system, using XT30 connectors, provides safe and efficient power delivery with automatic load balancing between power sources—ideal for high-value or large-scale models.

The receiver features 12 fully configurable channel ports, allowing each to be assigned as PWM, SBUS, FBUS, or S.Port. This flexibility, combined with FBUS capability, enables simplified wiring and seamless integration with advanced telemetry devices such as ESCs and sensors.

A standout feature is the integrated ADV Stabiliser system, offering significantly enhanced control compared to traditional gyro stabilisation. With programmable stabilised channels, multiple flight modes (including Auto-Level, Hover, and Knife-Edge), and advanced configuration options, it delivers precision and adaptability for complex aircraft setups.

Built-in telemetry sensors provide real-time data such as altitude and vertical speed, while the integrated black box records critical flight data for post-flight analysis and improved safety.

Key Features:

• Simultaneous dual-band operation (2.4GHz & 900MHz TD mode)

• Triple antenna design for superior signal coverage and reliability

• ADV stabilisation system with advanced programmable flight modes

• Built-in high-precision telemetry sensors (altitude, vertical speed, etc.)

• Dual XT30 power inputs with automatic load balancing

• 12 fully configurable channel ports (PWM / SBUS / FBUS / S.Port)

• SBUS In & Out support for redundancy and expansion

• Integrated black box data recording

• Built-in power switch function (via optional external switch panel)

• 4ms race mode with telemetry

• Over-The-Air (OTA) firmware updates

• High current handling for demanding setups

Perfect For:

• Advanced RC aircraft and large-scale models

• Pilots requiring maximum signal redundancy and reliability

• Complex builds with multiple servos and telemetry devices

• Long-range flying and high-performance applications

• FrSky Tandem system users

Product Summary:
The FrSky TD SR12 is a premium 12-channel dual-band receiver combining advanced stabilisation, flexible connectivity, and dual power redundancy. Designed for serious RC pilots, it delivers exceptional reliability, control, and flight data insight.

Specifications:

• Brand: FrSky

• Model: TD SR12

• Frequency: 900MHz & 2.4GHz (dual-band)

• Channels: 12 configurable outputs

• Output Types: PWM / SBUS / FBUS / S.Port

• Stabilisation: ADV Stabiliser (advanced programmable system)

• Telemetry: Built-in sensors (altitude, vertical speed, etc.)

• Black Box: Yes

• Operating Voltage: 3.5V – 10V (up to 12V supported; recommended 2S Li battery)

• Operating Current: ≤170mA

• Current Handling:

  • Continuous: ≤20A

  • Peak: ≤40A

• Dimensions: 48.5 × 33 × 17.9mm

• Weight: 23g

• Antennas: Triple (2 × 2.4GHz, 1 × 900MHz)

• Antenna Connector: IPEX1

• Power Input: Dual XT30 connectors

• Voltage Measurement: 0–35V (via AIN, 1:10 divider)

• Firmware Updates: OTA supported

• Compatibility: FrSky Tandem transmitters & TD protocol RF modules
