The FrSky HALL RPM Sensor ADV is a compact, high-speed rotational speed sensor designed for monitoring RPM in RC aircraft and other compatible model applications. As part of the FrSky ADVANCE (ADV) sensor range, it supports both FBUS and S.Port protocols, allowing RPM telemetry to be transmitted directly to compatible FrSky receivers and radios.

The Hall-effect sensor measures rotational speeds from 400 to 60,000 RPM, making it suitable for a wide range of applications including electric motors, engines and other rotating components.

When connected directly to a receiver's S.Port/FBUS port, the sensor can transmit RPM telemetry for display on a compatible FrSky radio. Alternatively, the sensor can be switched to PWM mode, allowing the rotation signal to be passed to a compatible device port that supports RPM calculation.

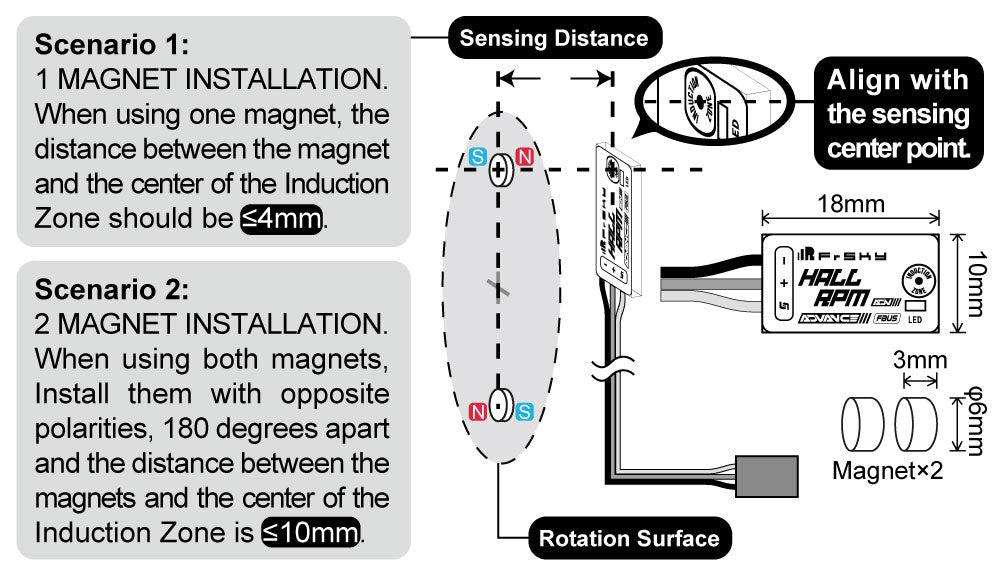

The supplied magnet is designed to work with the Hall sensor to detect rotation, while the extremely compact 2.5g sensor makes it suitable for installations where space and weight are important considerations.

Key Features

• Measures rotational speed from 400–60,000 RPM

• FrSky ADVANCE (ADV) series sensor

• Supports FBUS protocol

• Compatible with S.Port telemetry

• Can connect directly to a compatible S.Port/FBUS receiver

• PWM mode available for compatible RPM-calculation devices

• Compact and lightweight Hall-effect sensor

• Sensor weighs just 2.5g

• Includes φ6 × 3mm magnet

• Wide 3.7–8.4V operating voltage range

• Suitable for electric motors, engines and other rotating applications

Perfect For

• RC aircraft RPM telemetry

• Electric motor RPM monitoring

• Petrol and other engine-powered model aircraft

• FrSky FBUS telemetry installations

• FrSky S.Port telemetry systems

• Pilots wanting real-time rotational speed information

• Compact installations where low weight is important

• Applications requiring RPM measurement up to 60,000 RPM

Product Summary

The FrSky HALL RPM Sensor ADV provides accurate rotational speed monitoring across an impressive 400–60,000 RPM range. Using Hall-effect sensing technology and the supplied magnet, it can provide real-time RPM information through compatible FrSky telemetry systems.

The sensor can connect directly to an S.Port/FBUS-compatible receiver for telemetry transmission to a compatible radio, or it can operate in PWM mode for use with devices capable of calculating RPM from the supplied rotation signal.

At only 2.5g, the sensor is an excellent choice for lightweight and space-conscious RC aircraft installations.

Specifications

• Brand: FrSky

• Product: HALL RPM Sensor ADV

• Series: FrSky ADVANCE (ADV)

• Sensor Type: Hall RPM Sensor

• RPM Measurement Range: 400–60,000 RPM

• Voltage Range: 3.7–8.4V

• Sensor Dimensions: 18 × 10mm (L × W)

• Sensor Weight: 2.5g

• Magnet Dimensions: φ6 × 3mm

• Magnet Weight: 0.64g per block

• Protocols: FBUS / S.Port

• Output Mode: FBUS/S.Port telemetry or PWM

• Application: Rotational speed / RPM monitoring

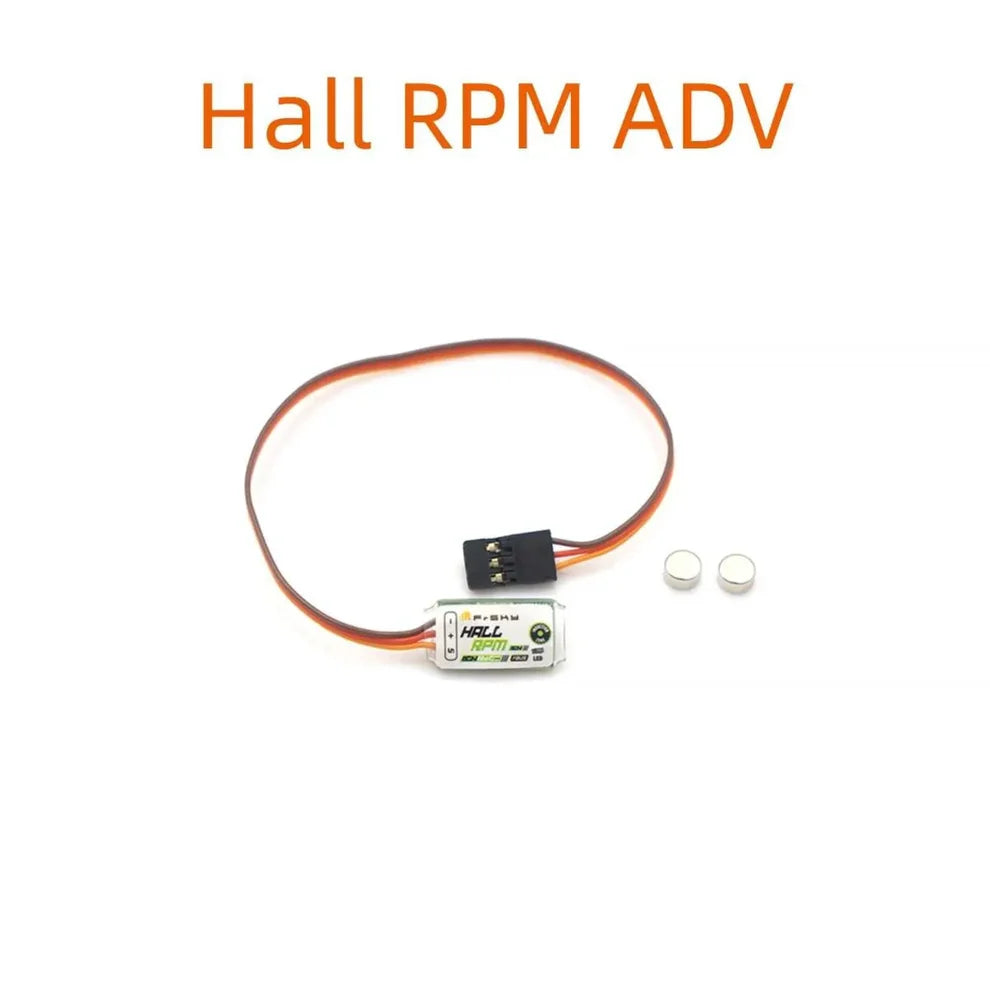

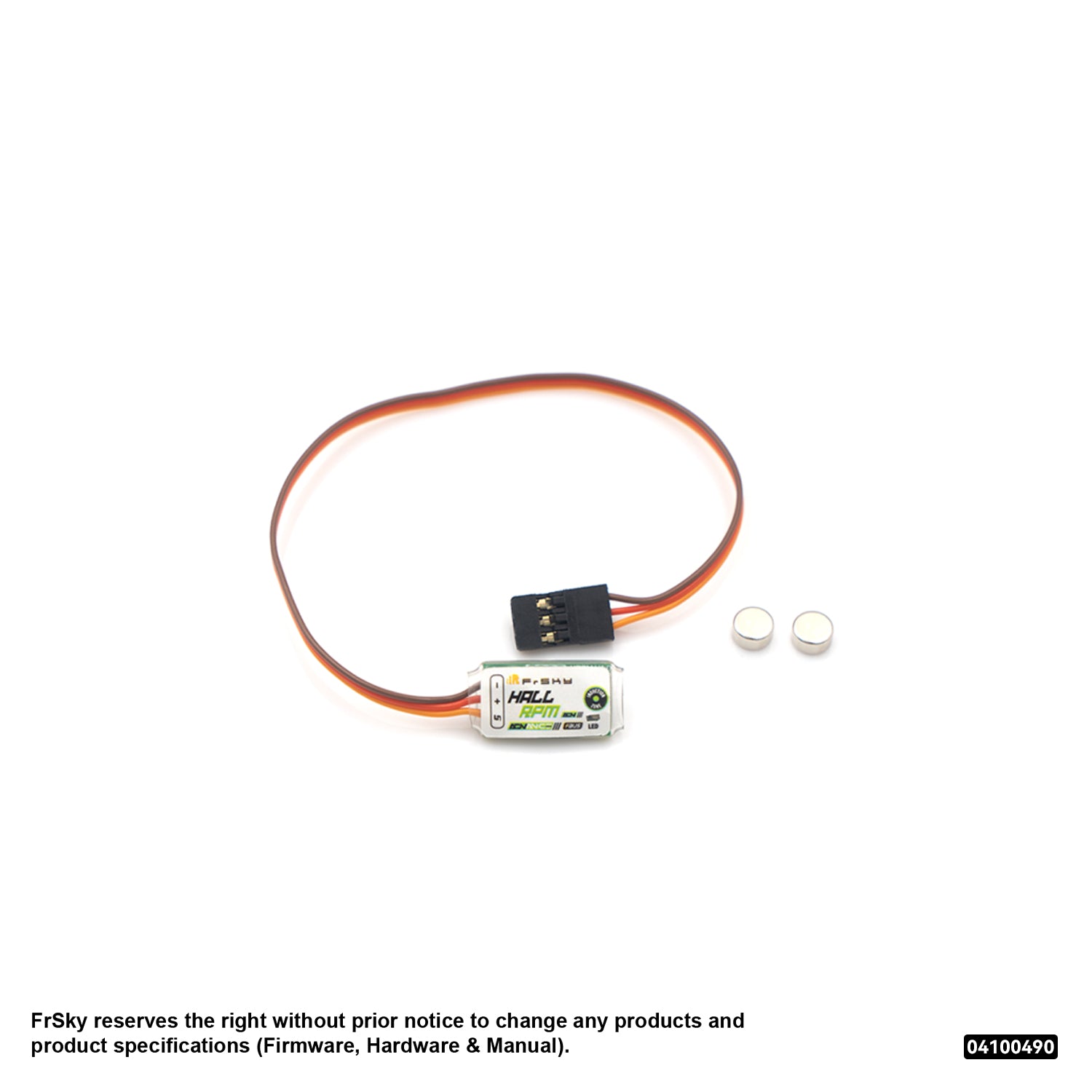

Packaging Included
1 × FrSky HALL RPM Sensor ADV
2 × Magnet
