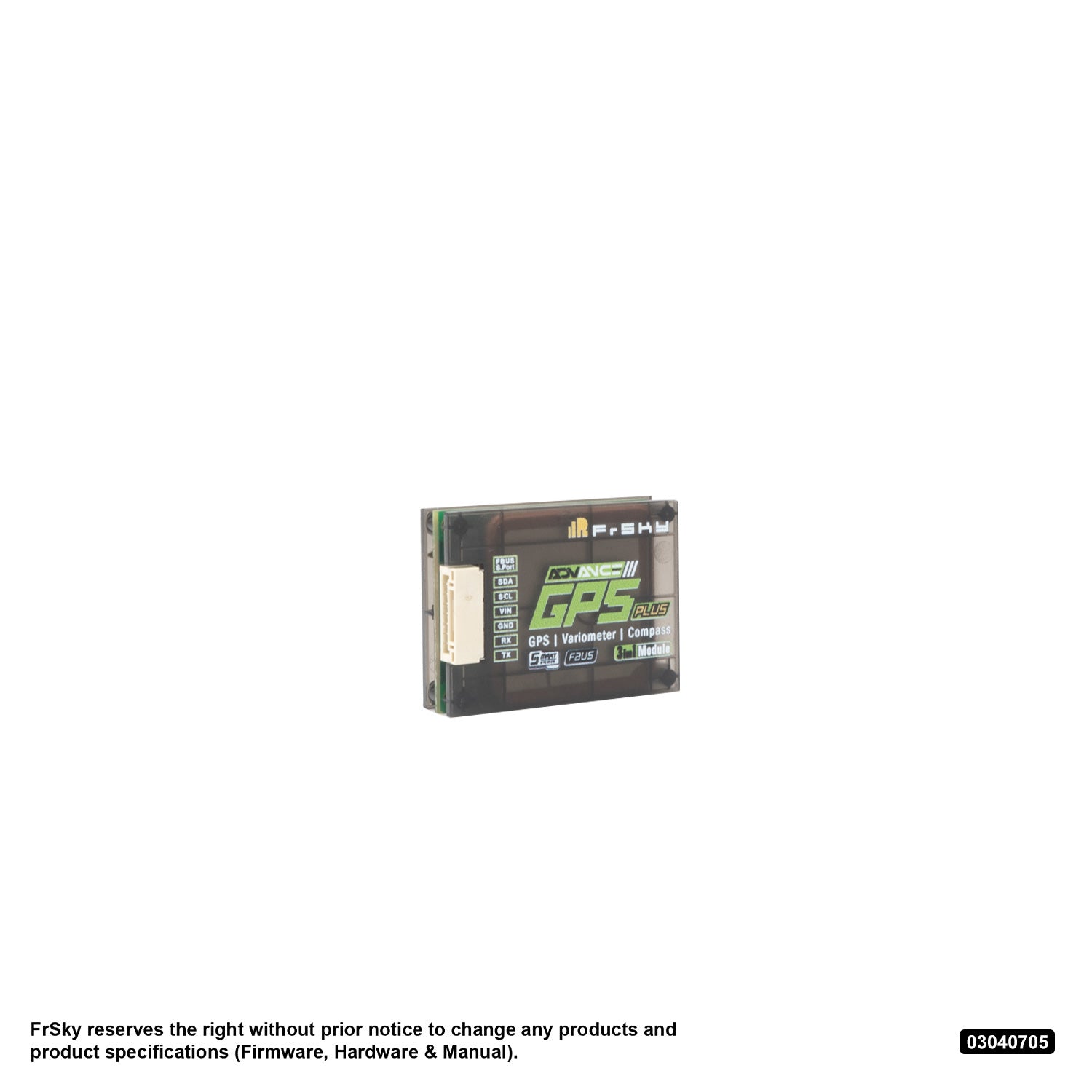

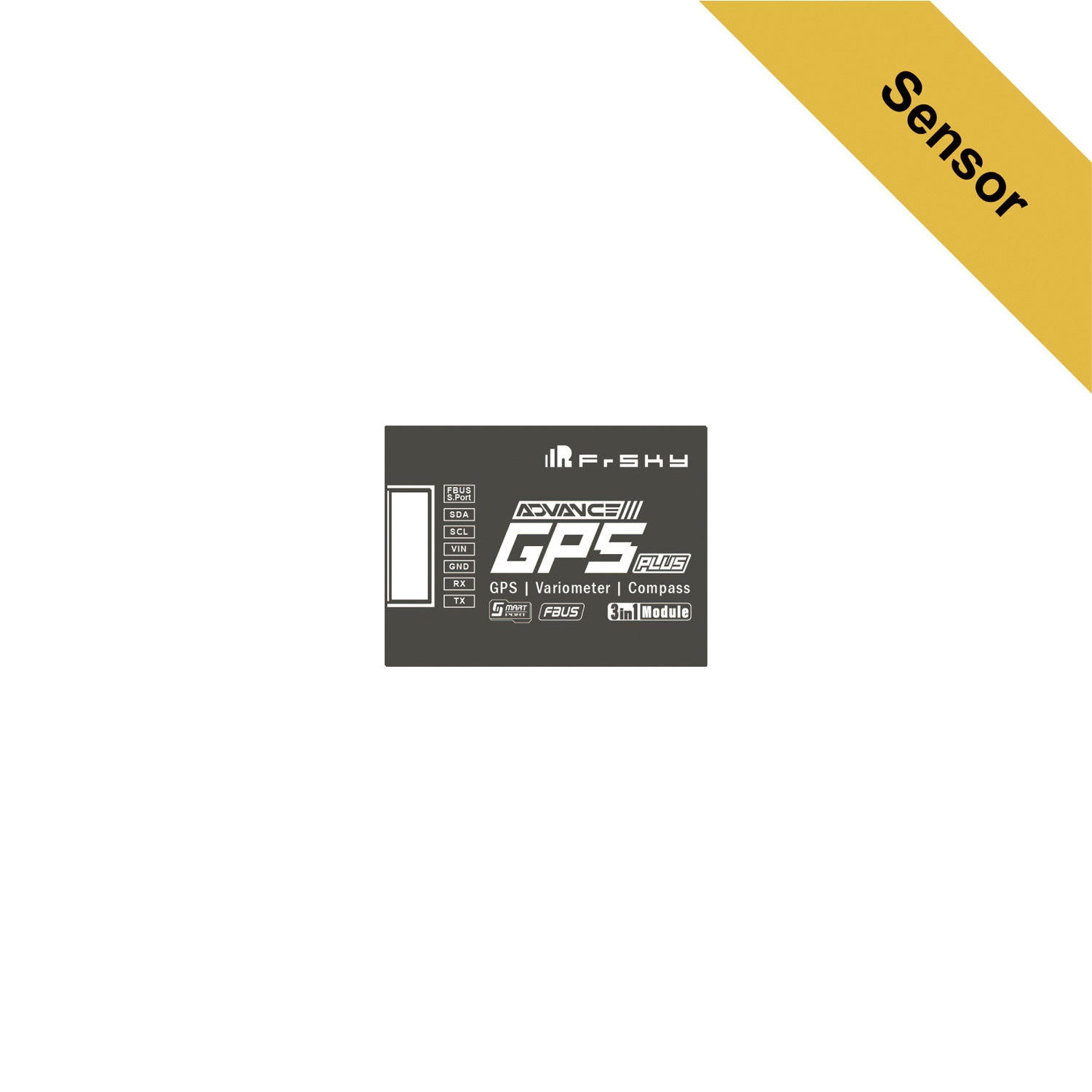

The FrSky GPS ADV Plus is an advanced GPS telemetry sensor designed for modern RC aircraft and compatible flight-control systems. Part of the FrSky ADVANCE (ADV) sensor range, it supports both FBUS and S.Port, providing real-time telemetry information including position, altitude and speed directly to compatible FrSky radio systems.

The GPS ADV Plus also provides accurate time synchronisation with GPS satellites. When used with the “Auto adjust from GPS” function in the FrSky ETHOS system, the radio and telemetry data can remain synchronised with accurate UTC time.

Unlike a standard GPS telemetry sensor, the GPS ADV Plus offers two working modes. It can operate directly as a telemetry sensor connected to a compatible receiver via S.Port/FBUS, or it can interface with a flight controller using I2C and serial ports.

Its integrated sensors, including a variometer and compass, allow a compatible flight controller to obtain real-time altitude and heading information for advanced navigation and flight-control applications.

Key Features

• FrSky ADVANCE (ADV) series GPS sensor

• Supports FBUS protocol

• Compatible with S.Port telemetry

• Provides real-time GPS position, altitude and speed data

• GPS satellite time synchronisation

• Supports ETHOS “Auto adjust from GPS” time function

• Helps synchronise telemetry data with UTC time

• Two operating modes for flexible installation

• Can connect directly to an S.Port/FBUS-compatible receiver

• Can connect to compatible flight controllers via I2C and serial interfaces

• Built-in variometer for altitude information

• Built-in compass for heading information

• 10Hz data rate

• Compact 34.9 × 26 × 9.2mm design

• Lightweight 12g construction

• Wide operating temperature range of -40°C to 85°C

Perfect For

• RC aircraft requiring GPS telemetry

• FPV and long-range model aircraft

• FrSky FBUS telemetry systems

• FrSky S.Port installations

• ETHOS radio systems

• Flight-controller-based aircraft

• Autonomous and navigation-capable model aircraft

• Applications requiring GPS position, altitude and speed data

• Aircraft requiring integrated variometer and compass information

• Pilots wanting accurate GPS-based time synchronisation

Product Summary

The FrSky GPS ADV Plus combines GPS positioning, telemetry and additional flight data capabilities in a compact ADVANCE-series sensor. It can provide position, altitude, speed and GPS time information to compatible FrSky radio systems in real time.

The GPS ADV Plus is particularly versatile thanks to its two operating modes. Used as a conventional telemetry sensor, it connects to a compatible receiver through FBUS or S.Port. Alternatively, it can interface with a suitable flight controller using I2C and serial connections, with its integrated variometer and compass providing additional altitude and heading information.

With a 10Hz data rate, approximately 2m position accuracy, and a compact 12g design, the GPS ADV Plus is well suited to advanced RC aircraft and navigation applications.

Specifications

• Brand: FrSky

• Product: GPS ADV Plus

• Series: FrSky ADVANCE (ADV)

• Sensor Type: GPS / Variometer / Compass

• Dimensions: 34.9 × 26 × 9.2mm (L × W × H)

• Weight: 12g

• Operating Voltage: DC 4–10V

• Current Draw: 60mA @ 5V

• Operating Temperature: -40°C to 85°C

• Data Rate: 10Hz

• Time to Fix: 29 seconds – cold start

• Speed Accuracy: Approx. 0.05m/s

• Position Accuracy: Approx. 2.0m CEP

• Sensitivity: -166dBm

• Antenna: Built-in soldered antenna

• Dynamic Limit: 4g

• Altitude Limit: 80,000m

• Velocity Limit: 500m/s

• GPS: Built-in

• Protocols: FBUS / S.Port

• Additional Interfaces: I2C / Serial

• Integrated Sensors: Variometer / Compass

• GPS Time Synchronisation: Yes

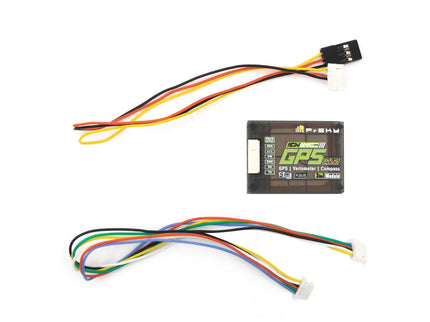

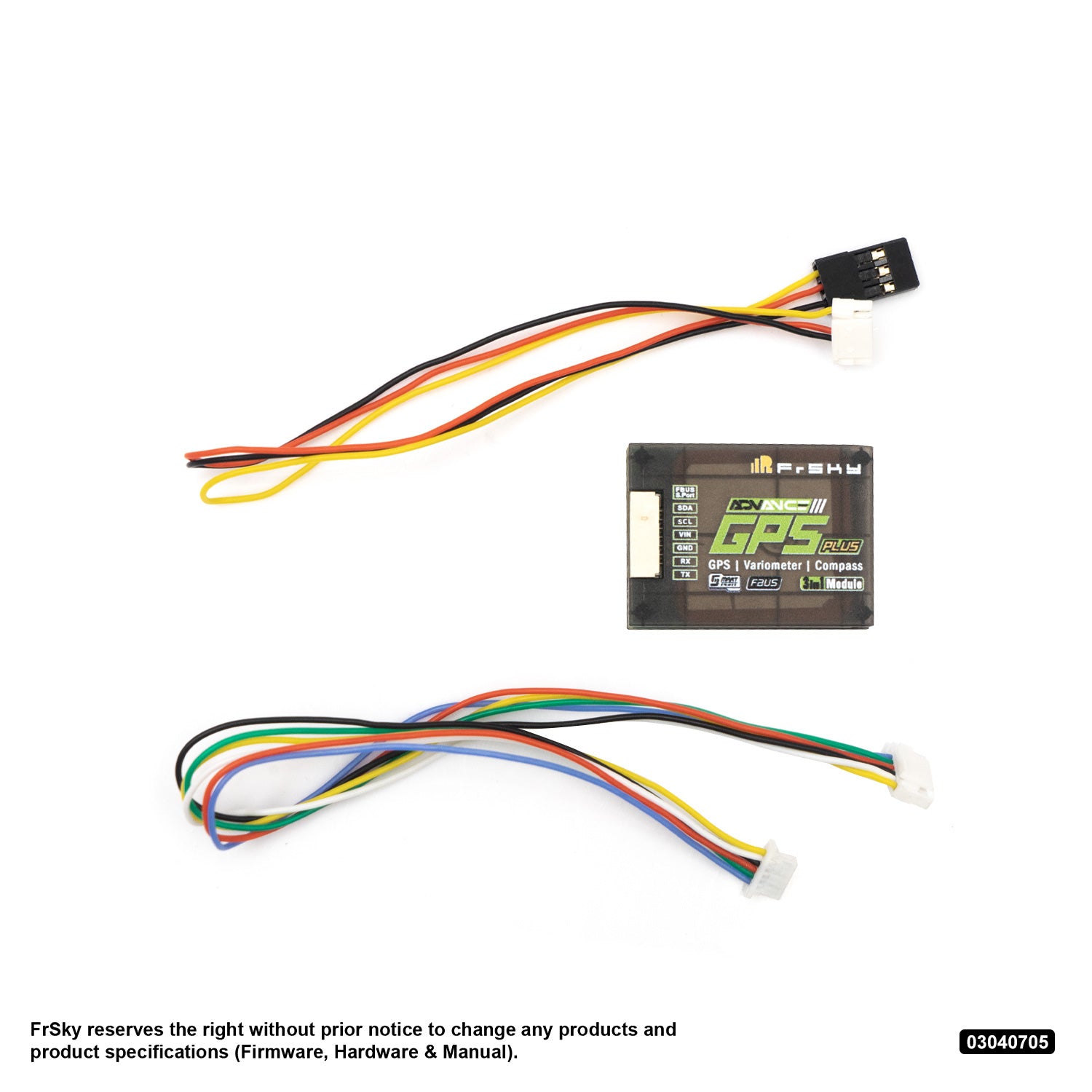

Packaging Included
1 × FrSky GPS ADV Plus
