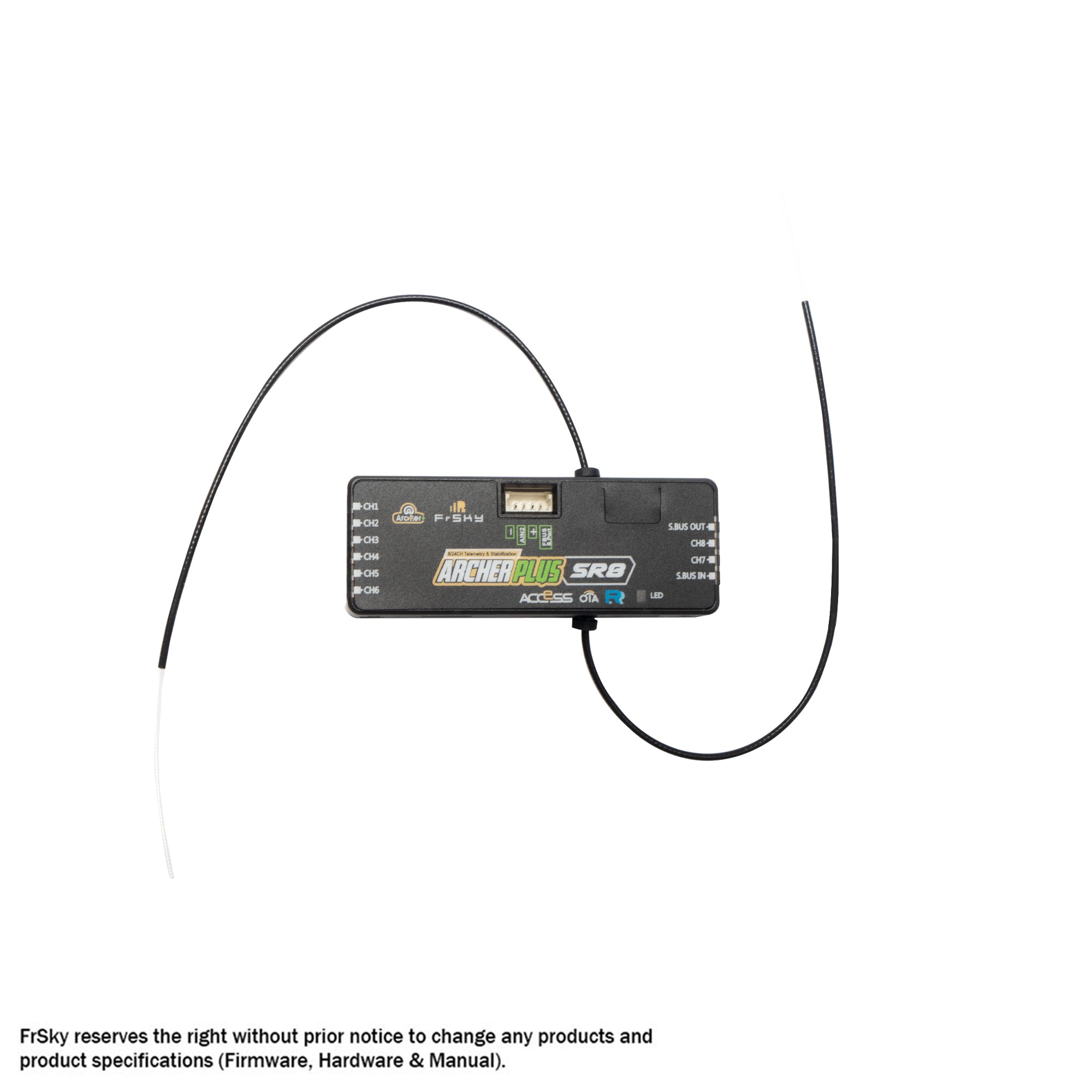

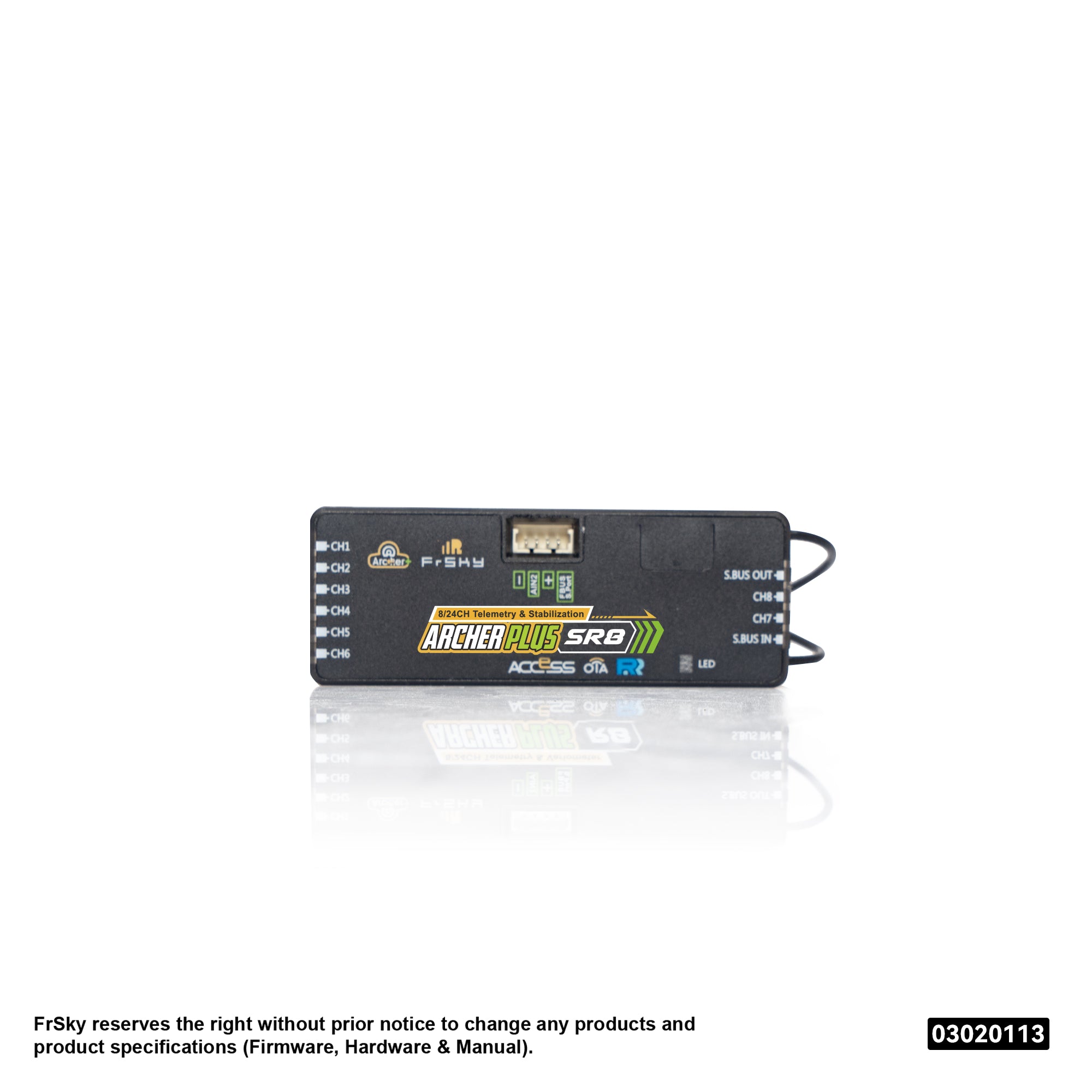

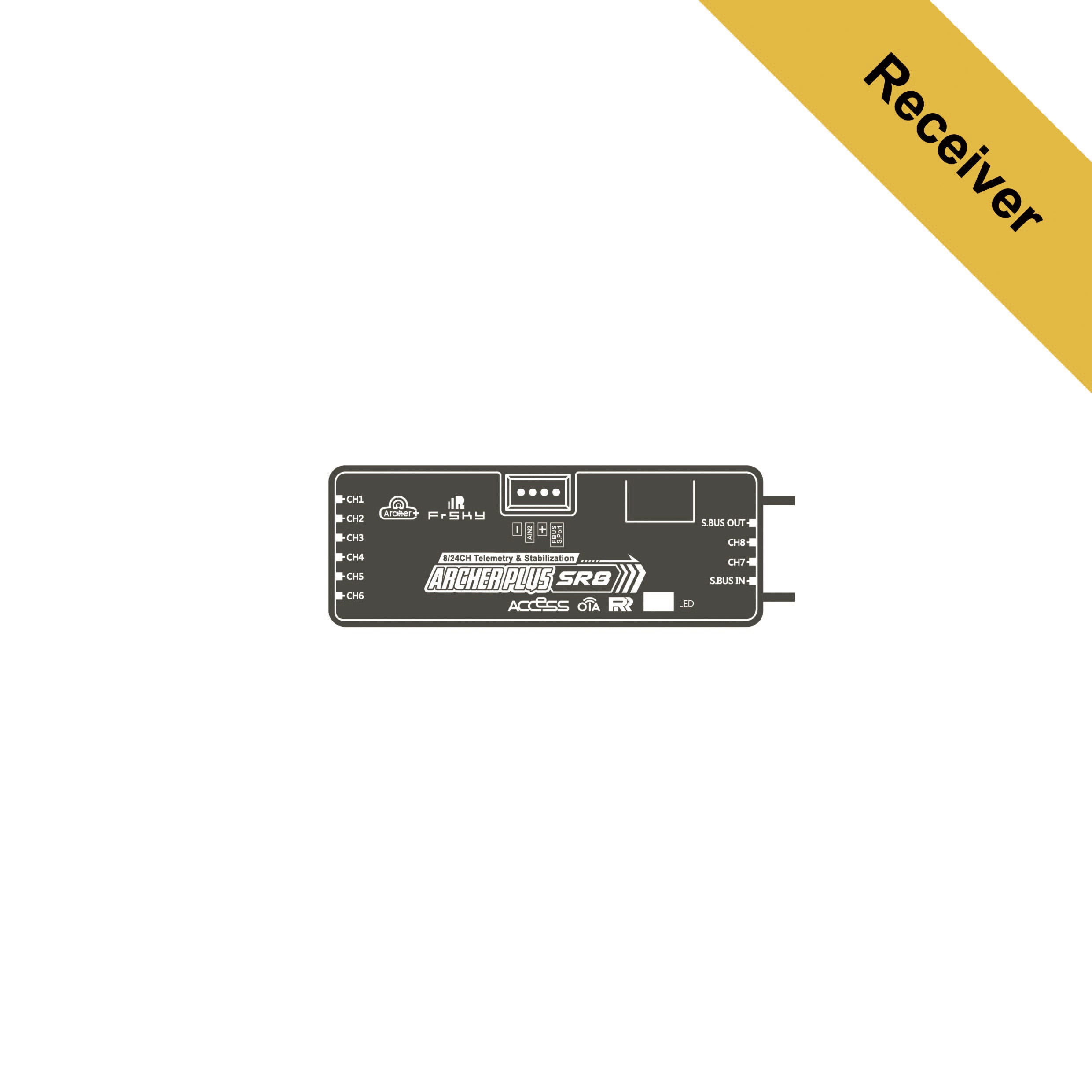

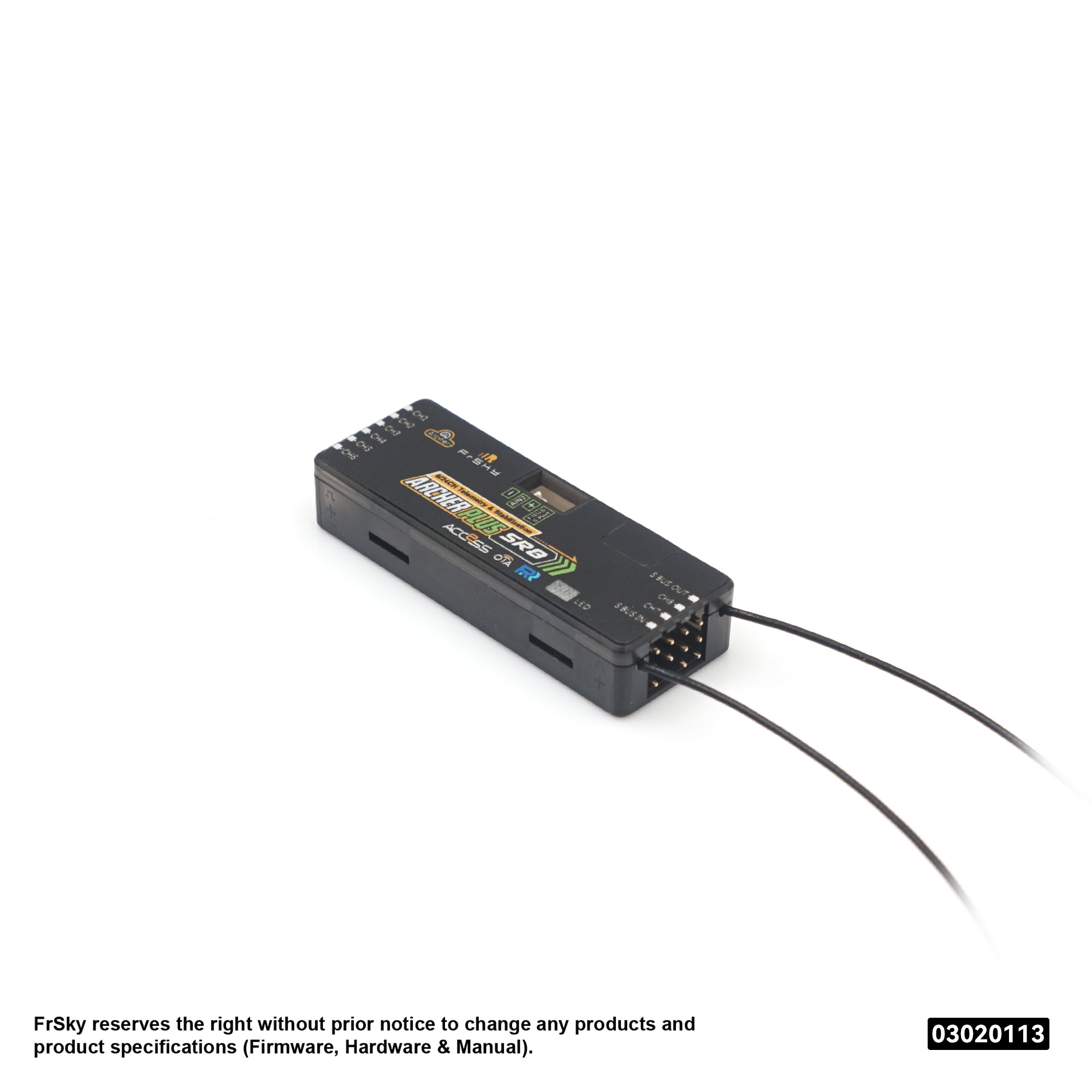

The FrSky Archer Plus SR8 is a high-performance 8-channel gyro-stabilised receiver featuring an integrated 3-axis gyroscope and 3-axis accelerometer. Designed for modern RC aircraft, it provides multiple flight modes including Auto-Level, Stabilisation and Knife-Edge, giving pilots greater control and flexibility across a wide range of flying applications.

As part of the Archer Plus series, the SR8 benefits from enhanced anti-RF-interference performance for a more reliable RF connection. It supports both FrSky ACCESS and ACCST D16 modes, with the RF protocol smart-matched during the binding process.

The SR8 supports 8 high-precision PWM channels, alongside SBUS output with selectable 16-channel or 24-channel operation. An SBUS In port allows the receiver to be used as a primary receiver in a redundant setup with a compatible secondary FrSky receiver.

With FBUS and S.Port telemetry support, the SR8 can connect with compatible telemetry devices such as XACT servos and ADV sensors, helping simplify aircraft wiring. OTA firmware updates, external voltage detection and basic Black-Box flight data recording further enhance its functionality.

Key Features

• FrSky Archer Plus SR8 gyro-stabilised receiver

• 8 high-precision PWM channel ports

• Built-in 3-axis gyroscope

• Built-in 3-axis accelerometer

• Multiple flight modes including Auto-Level, Stabilisation and Knife-Edge

• Enhanced anti-RF-interference capability

• Supports ACCESS and ACCST D16 protocols

• Smart-matched ACCESS and ACCST D16 modes

• Basic Black-Box flight data recording

• SBUS Out with 16CH / 24CH modes

• SBUS In for signal redundancy

• Full-range telemetry via S.Port or FBUS

• Compatible with XACT servos and ADV sensors via FBUS

• Over-The-Air firmware updates

• External battery/device voltage detection

• Dual detachable antennas

• Operating range greater than 2km under suitable conditions

• Compatible with FrSky ETHOS and configuration tools

Perfect For

• Fixed-wing RC aircraft

• Sport and aerobatic models

• Scale aircraft

• Models requiring electronic stabilisation

• Pilots wanting Auto-Level or Knife-Edge flight modes

• FrSky ACCESS radio systems

• FrSky ETHOS users

• Aircraft using FBUS telemetry devices

• Redundant receiver installations

• New builds and receiver upgrades

Product Summary

The FrSky Archer Plus SR8 combines an advanced 8-channel receiver with integrated 3-axis gyro and accelerometer sensors, providing versatile electronic stabilisation and multiple flight modes.

Supporting ACCESS and ACCST D16, the SR8 delivers full-range control and telemetry while its FBUS and S.Port compatibility allows connection to a wide range of FrSky telemetry equipment. With SBUS redundancy, OTA firmware updates, external voltage detection and Black-Box functionality, it is a powerful receiver for modern RC aircraft.

Some functions require compatible ACCESS and ETHOS equipment.

Specifications

• Brand: FrSky

• Product: Archer Plus SR8

• Type: Gyro-Stabilised Receiver

• Number of Channels: 8 PWM / 24 channels

• PWM Outputs: 8 high-precision PWM

• SBUS Modes: 16CH / 24CH

• Gyroscope: Built-in 3-axis

• Accelerometer: Built-in 3-axis

• Flight Modes: Auto-Level, Stabilisation, Knife-Edge and others

• Operating Voltage: 3.5–10V

• Operating Current: <65mA @ 5V

• Operating Range: >2km full range*

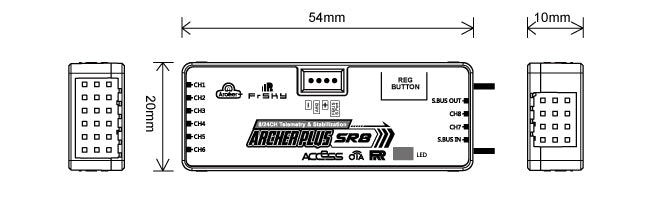

• Dimensions: 54 × 20 × 10mm (L × W × H)

• Weight: 9.8g

• External Voltage Measurement: 0–35V via AIN2

• Battery Voltage Divider Ratio: 1:10

• Antenna Connector: IPEX4

• Telemetry: S.Port / FBUS

• Firmware Updates: OTA

• Signal Redundancy: SBUS In

• Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters

*Actual range can vary depending on local conditions, installation and environmental factors.

What's in the Box
1 × FrSky Archer Plus SR8 Receiver
