The FrSky Archer Plus SR6 Mini-E is a compact, lightweight 2.4GHz RC receiver combining advanced flight stabilisation with an integrated dual 5A brushed electronic speed controller (ESC). Designed for space-conscious RC aircraft installations, it delivers six high-precision PWM outputs, enhanced resistance to RF interference and compatibility with FrSky ACCESS and ACCST D16 transmitter protocols.

Featuring a built-in 3-axis gyroscope and 3-axis accelerometer, the SR6 Mini-E supports multiple flight modes, including auto-level, stabilisation and knife-edge. Its integrated dual brushed ESC function allows compatible brushed motors to be controlled directly, helping reduce the need for separate speed controller components.

With configurable S.Port, F.Port and FBUS connectivity, OTA firmware updates in compatible ACCESS mode and telemetry support, the SR6 Mini-E offers versatile functionality in a receiver weighing just 2.8g.

Key Features

• Integrated dual 5A brushed ESC for controlling compatible brushed motors.

• Built-in 3-axis gyroscope and 3-axis accelerometer for flight stabilisation.

• Enhanced anti-RF-interference capability for improved signal stability.

• Compact and lightweight design measuring 22 × 16 × 7mm.

• Weighs just 2.8g for weight-conscious aircraft builds.

• Six high-precision PWM output channels.

• Supports up to 24 signal channels in FBUS mode.

• Smart-matched FrSky ACCESS and ACCST D16 protocols during binding.

• Configurable S.Port, F.Port and FBUS connectivity.

• OTA wireless firmware updates when used with compatible ACCESS equipment.

• Multiple flight modes, including auto-level, stabilisation and knife-edge.

• Five additional stabilisation channels for flexible channel mapping.

• Telemetry support with a stated operating range exceeding 2km under suitable conditions.

• Includes a servo connector adapter cable with 1.0mm to 1.25mm 3-pin conversion.

Perfect For

• RC aircraft pilots requiring integrated flight stabilisation and motor control.

• Compact RC aircraft where reducing component count and installation space is important.

• Suitable brushed-motor aircraft projects compatible with the receiver's dual ESC outputs.

• Pilots looking for a lightweight receiver with built-in gyro assistance.

• FrSky ACCESS and ACCST D16 transmitter users.

• RC enthusiasts seeking configurable telemetry and FBUS functionality.

Product Summary

The FrSky Archer Plus SR6 Mini-E combines a six-channel receiver, integrated flight stabilisation and dual 5A brushed ESC functionality in one compact unit. Its built-in gyroscope and accelerometer support multiple stabilisation modes, while its configurable output protocols provide flexibility for compatible RC aircraft setups.

With enhanced RF-interference resistance, OTA firmware updating and telemetry support, the SR6 Mini-E is a versatile option for pilots seeking to simplify their electronics installation without sacrificing useful control and stabilisation features.

Specifications

• Brand: FrSky

• Series: Archer Plus

• Model: SR6 Mini-E

• Product Type: 2.4GHz RC receiver with gyro stabilisation and integrated dual brushed ESC

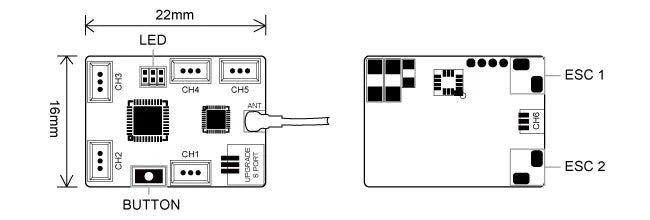

• Dimensions: 22 × 16 × 7mm (L × W × H)

• Weight: 2.8g

• PWM Output Channels: 6

• FBUS Signal Channels: Up to 24

• Operating Voltage: 3.0–8.4V (1S–2S LiPo)

• Operating Current: 65mA at 5V

• Integrated ESC: Dual 5A brushed ESC

• ESC Rating: 5A per ESC

• RF Frequency: 2.4GHz

• Operating Range: Over 2km with telemetry under suitable conditions

• Antenna Connector: IPEX1

• Supported RF Protocols: FrSky ACCESS and ACCST D16

• Output Protocols: S.Port, F.Port and FBUS

• Firmware Updates: OTA support in compatible ACCESS mode

• Gyroscope: Integrated 3-axis gyroscope

• Accelerometer: Integrated 3-axis accelerometer

• Stabilisation Modes: Auto-level, stabilisation, knife-edge and other supported modes

• Compatibility: FrSky 2.4GHz ACCESS and ACCST D16-capable transmitters

• Included Accessory: Servo connector adapter cable with 1.0mm to 1.25mm 3-pin conversion

Important compatibility notes: Some functions require a compatible ACCESS transmitter and ETHOS support. Operating range depends on local conditions and installation. Ensure the receiver voltage is appropriate for connected servos and verify brushed motor compatibility with the integrated ESC before use.
