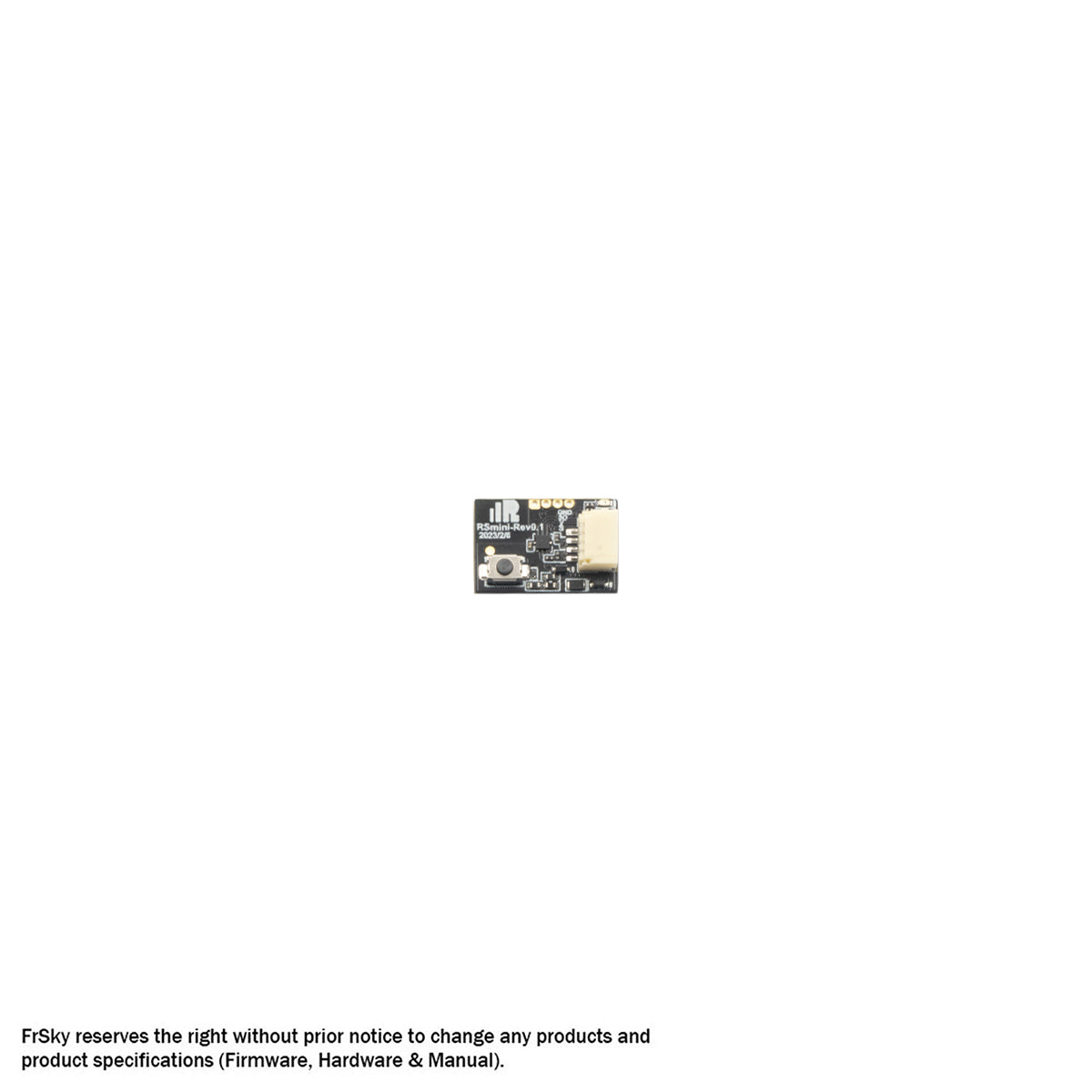

The FrSky Archer Plus RS Mini is an ultra-compact and lightweight receiver designed for model aircraft where space and weight are critical. Measuring just 16 × 11mm and weighing only 1.3g, it features an integrated PCB-type antenna that removes the need to install a traditional external antenna.

As part of the Archer Plus Series, the RS Mini benefits from enhanced RF interference resistance and supports both FrSky ACCESS and ACCST D16 protocols, with the appropriate RF protocol matched during the binding process. In ACCESS mode, it provides advanced features including OTA firmware updates, enhanced range and telemetry performance.

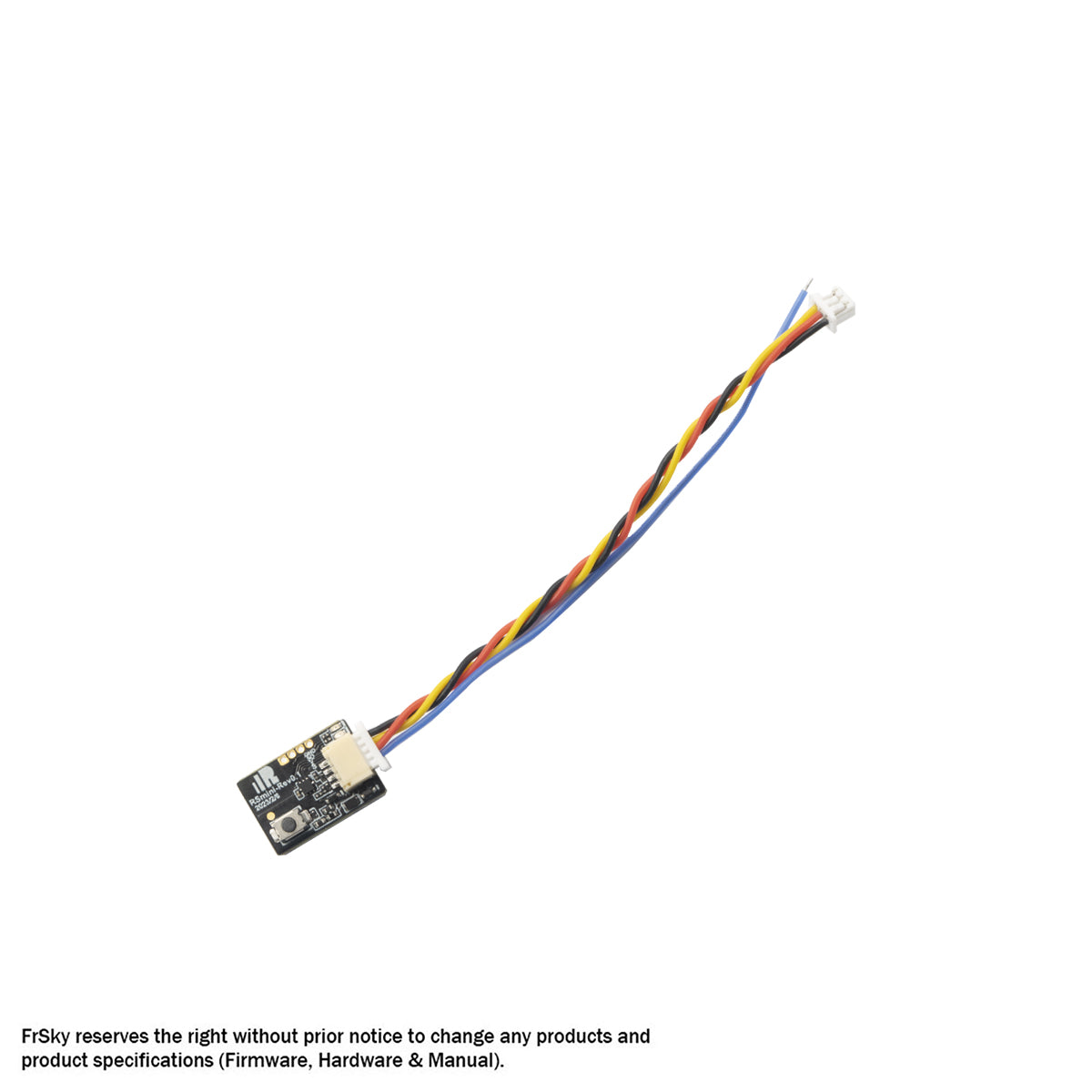

The receiver also supports configurable S.Port, F.Port and FBUS connectivity, plus SBUS Out with 16CH / 24CH support. A convenient wire connector allows external devices to be connected without soldering, helping simplify installation and model building.

Key Features

• Tiny and super-lightweight design

• Supports FrSky ACCESS and ACCST D16 modes

• Enhanced anti-RF-interference capability

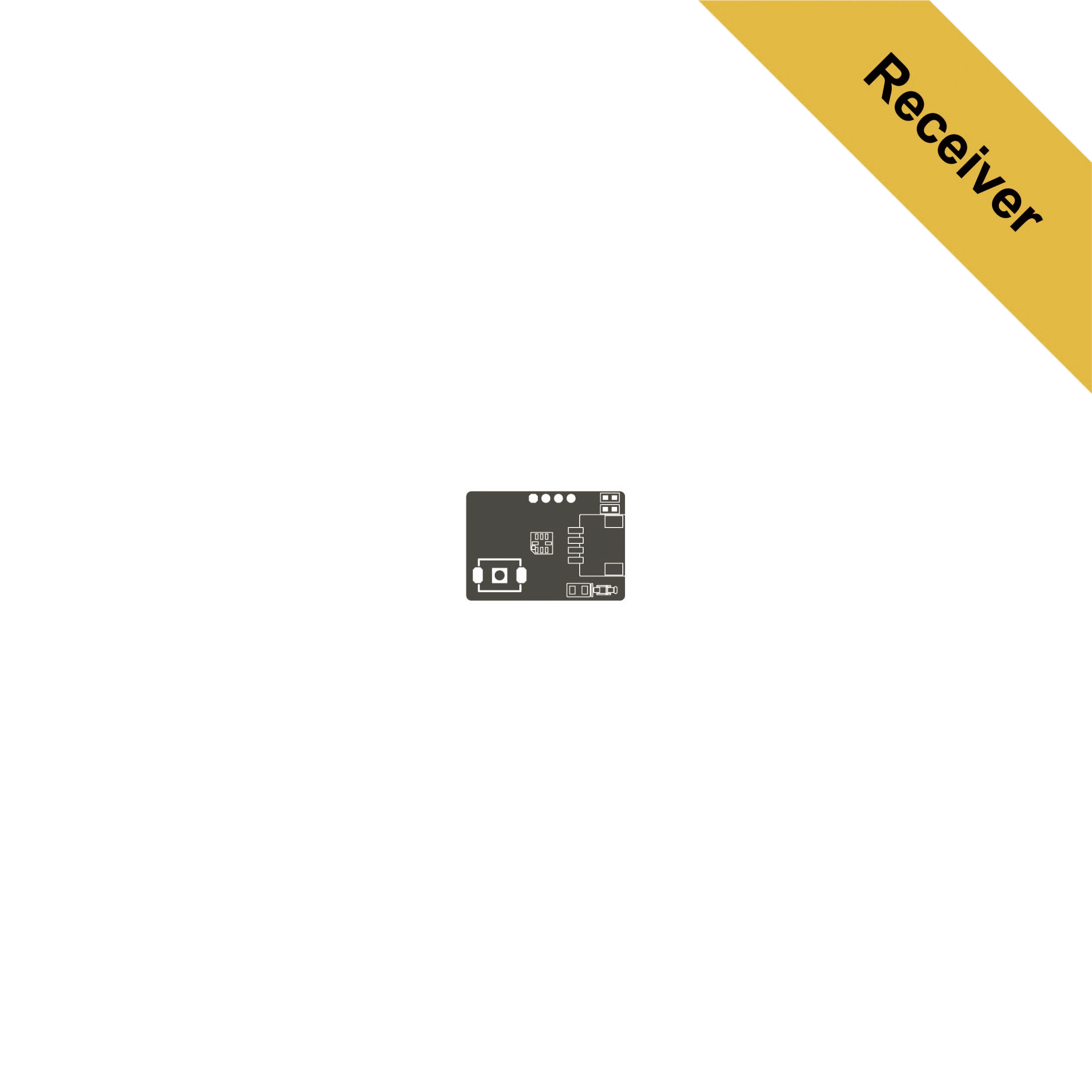

• Onboard PCB-type antenna

• S.Port / F.Port / FBUS connectivity

• S.Port / F.Port / FBUS configurable via S.Port

• SBUS Out supporting 16CH / 24CH modes

• Over-The-Air (OTA) firmware updates

• Enhanced telemetry performance in ACCESS mode

• Configurable telemetry power in RS mode

• VFR indicator support

• Convenient wire connector for solder-free installation

• Control range of ≥600m, depending on local conditions

Perfect For

• Lightweight RC aircraft

• Small model aircraft

• Indoor and compact models

• Space-constrained installations

• Pilots using FrSky ACCESS transmitters

• Pilots requiring ACCST D16 compatibility

• Builds where an onboard antenna is preferable

• Models where minimising receiver weight is important

Product Summary

The FrSky Archer Plus RS Mini combines ACCESS and ACCST D16 compatibility with an exceptionally compact 1.3g design. Its integrated PCB antenna, OTA firmware support, flexible S.Port/F.Port/FBUS connectivity and SBUS output make it an excellent choice for lightweight and space-conscious RC model installations.

Specifications

• Model: Archer Plus RS Mini

• Protocols: FrSky ACCESS / ACCST D16

• Dimensions: 16 × 11mm (L × W)

• Weight: 1.3g

• Operating voltage: 3.5–10V

• Operating current: 12mA @ 5V

• Antenna: Onboard PCB-type antenna

• Control range: ≥600m*

• Outputs / interfaces: SBUS Out, S.Port, F.Port, FBUS

• SBUS Out: 16CH / 24CH support

• Firmware updates: OTA

• Compatibility: All FrSky ACCESS / ACCST D16 transmitters

• Package contents: 1 × FrSky Archer Plus RS Mini

*Control range may vary depending on local conditions.
