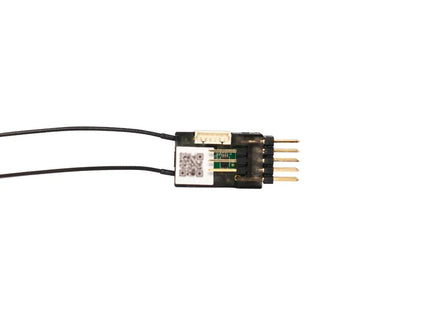

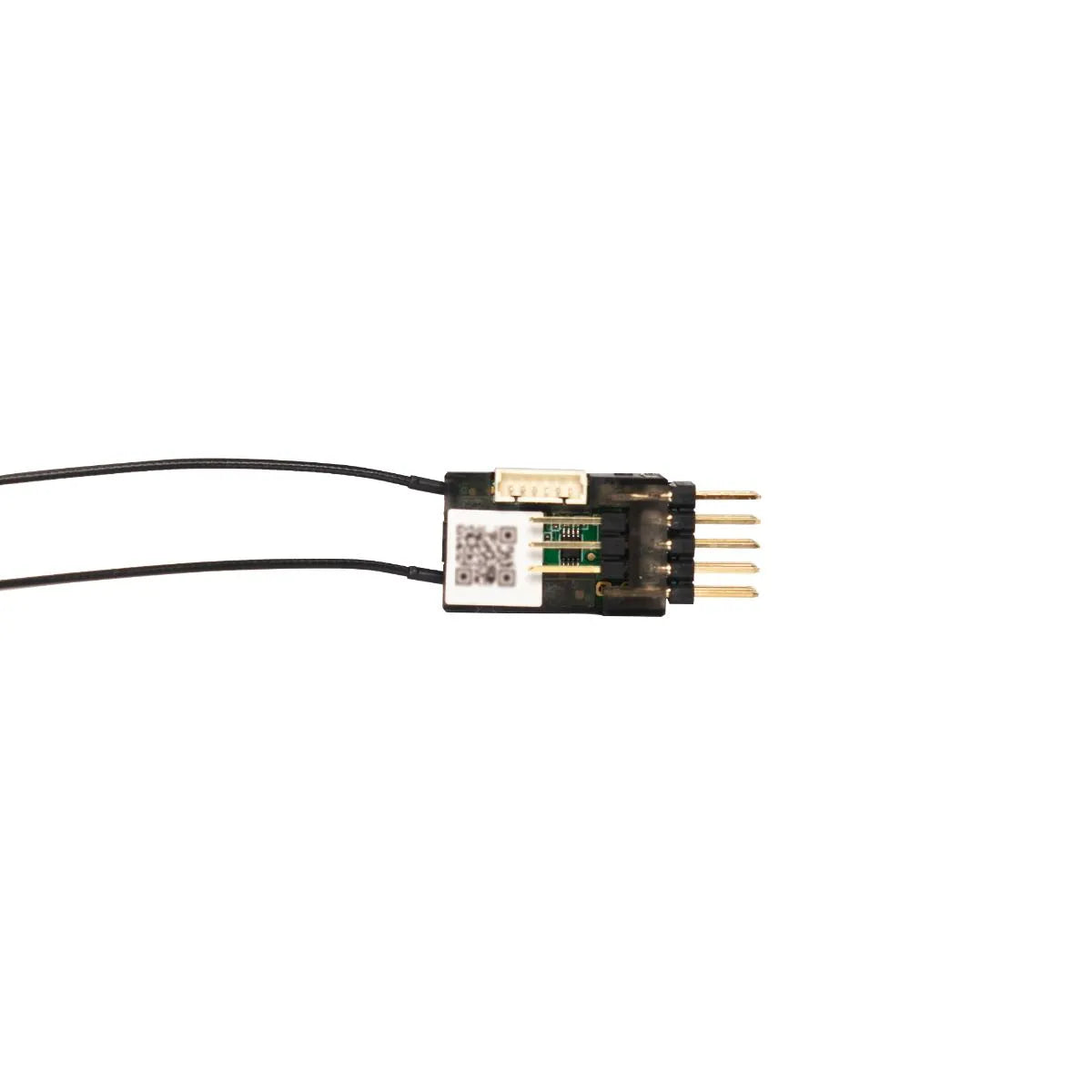

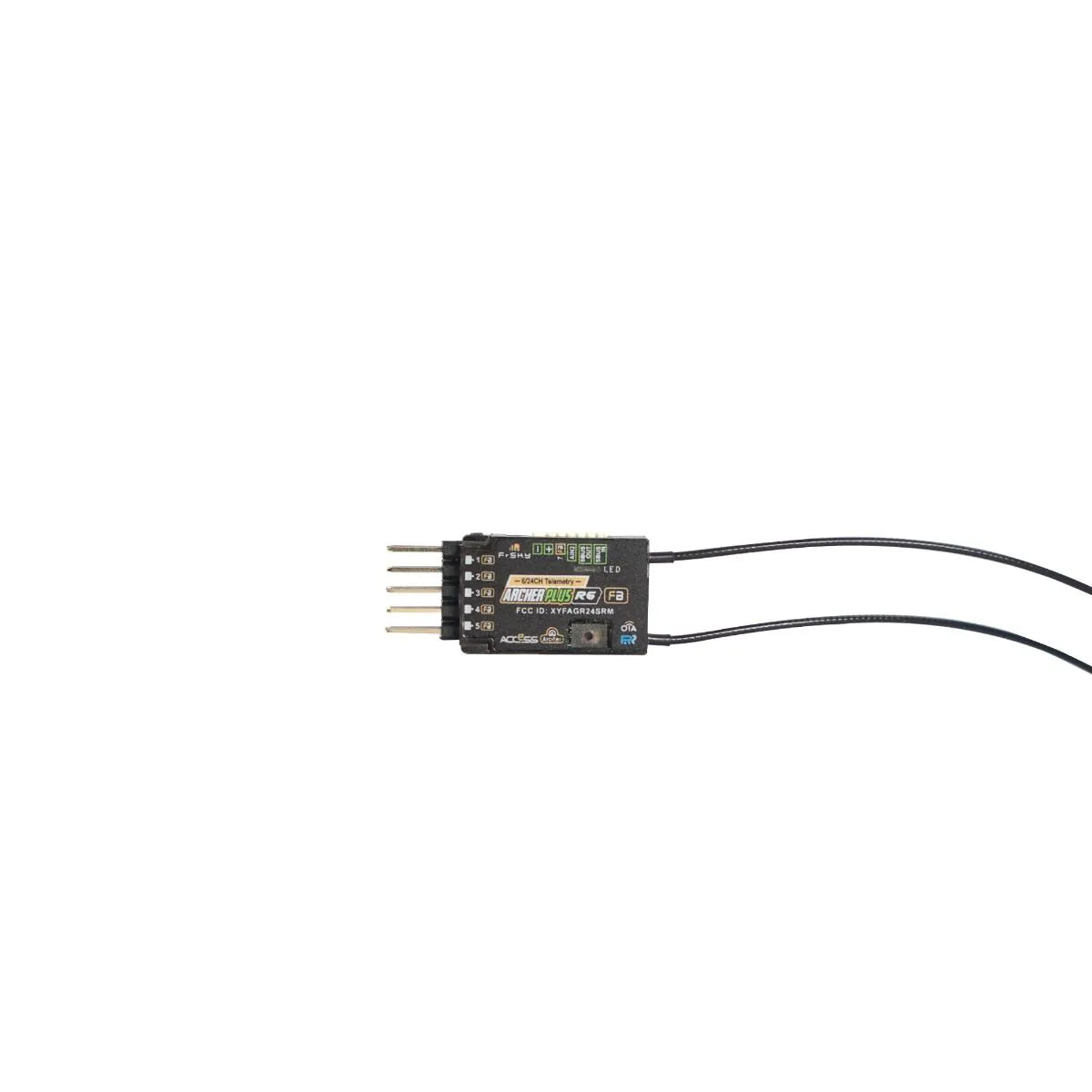

The FrSky Archer Plus R6FB 2.4GHz Receiver is a compact, lightweight receiver designed for RC glider pilots and aircraft builders using FrSky FBUS-compatible equipment. Supporting both ACCESS and ACCST D16 protocols, the R6FB combines enhanced RF interference resistance, flexible telemetry connectivity and support for redundant receiver configurations in a receiver weighing just 4.2g.

Unlike conventional receivers, the Archer Plus R6FB features seven FBUS channel ports and no PWM servo outputs. It is designed specifically for use with compatible FBUS components, such as FrSky XACT servos. Please ensure your servos and other connected equipment support FBUS before purchasing.

Its dual detachable antennas help optimise reception, while SBUS input and output provide additional flexibility for compatible redundant receiver systems and expanded channel configurations. The receiver also supports external battery or device voltage monitoring, basic black-box flight data recording and over-the-air firmware updates, subject to firmware support.

With its compact dimensions and lightweight construction, the Archer Plus R6FB is an excellent option for glider pilots looking to build a streamlined FBUS-based control system with compatible FrSky equipment.

Important compatibility notice: The R6FB does not provide conventional PWM servo outputs. It must be used with FBUS-compatible components. It is not a direct replacement for the standard Archer Plus R6 receiver when PWM servo connections are required.

Key Features

• 7 FBUS channel ports – designed for compatible FBUS servos and electronic components.

• No PWM servo outputs – intended exclusively for compatible FBUS-based control setups.

• ACCESS and ACCST D16 compatibility – supports both FrSky 2.4GHz protocols, with automatic protocol
• matching during binding on compatible transmitters.

• Enhanced RF interference resistance – improved resistance to radio-frequency interference for robust radio communication.

• Dual detachable antennas – allows flexible antenna positioning to help optimise reception.

• SBUS output – supports 16-channel and 24-channel SBUS modes.

• SBUS input for redundancy – enables use as a primary receiver in a compatible redundant receiver configuration.

• FBUS and S.Port telemetry support – supports compatible telemetry equipment and accessories.

• External voltage monitoring – measures external battery or device voltage through the AIN2 input.

• Black-box data recording – supports recording basic power- and signal-related flight data, subject to firmware support.

• Over-the-air firmware updates – supports OTA firmware updating where compatible.

• Compact and lightweight design – measures just 33 × 15 × 9.7mm and weighs 4.2g.

• Full-range radio link – manufacturer-specified operating range exceeds 2km under suitable conditions, depending on local conditions and installation.

Perfect For

• RC glider pilots using FBUS-compatible servos.

• Aircraft builders using FrSky XACT FBUS servos and compatible equipment.

• Lightweight glider installations where receiver weight and size matter.

• Pilots using compatible FrSky ACCESS or ACCST D16 transmitters.

• RC aircraft builds requiring FBUS connectivity and simplified wiring.

• Compatible installations requiring SBUS receiver redundancy.

• Advanced RC enthusiasts integrating telemetry devices and external voltage monitoring.

• Not suitable for: Setups requiring direct PWM servo outputs or conventional PWM-only servos without a compatible FBUS interface.

Product Summary

The FrSky Archer Plus R6FB is a specialist 2.4GHz receiver designed for modern FBUS-based RC aircraft installations. Supporting seven FBUS channels, ACCESS and ACCST D16 protocols, SBUS redundancy and telemetry connectivity, it provides a flexible solution for compatible glider and model aircraft builds.

Its enhanced interference resistance, dual detachable antennas and 4.2g weight make it particularly appealing to pilots seeking a compact receiver for a streamlined electronic installation.

Before ordering, confirm that your servos and connected equipment support FBUS. The R6FB has no PWM servo outputs.

Specifications

• Brand: FrSky

• Product series: Archer Plus

• Model: R6FB

• Product type: 2.4GHz FBUS receiver

• Operating frequency: 2.4GHz

• Supported protocols: ACCESS / ACCST D16

• FBUS channels: 7

• PWM servo outputs: None

• SBUS output: Supports 16CH / 24CH modes
• SBUS input: Supports signal redundancy

• Telemetry: FBUS / S.Port

• Antennas: 2 detachable antennas

• Antenna connector: IPEX4

• Operating voltage: 3.5–10V

• Operating current: Approximately 65mA at 5V

• External voltage measurement: AIN2, 0–35V

• Battery voltage divider ratio: 1:10

• Control range: Over 2km under suitable conditions

• Firmware updates: OTA, where supported

• Dimensions (L × W × H): 33 × 15 × 9.7mm

• Weight: 4.2g

• Compatibility: FrSky 2.4GHz ACCESS / ACCST D16-capable transmitters

• Required equipment: FBUS-compatible servos and devices

Compatibility note: Some functions require compatible ACCESS and ETHOS support. Check your transmitter firmware, receiver configuration and connected equipment before installation. Range varies according to local conditions, antenna placement and installation.
