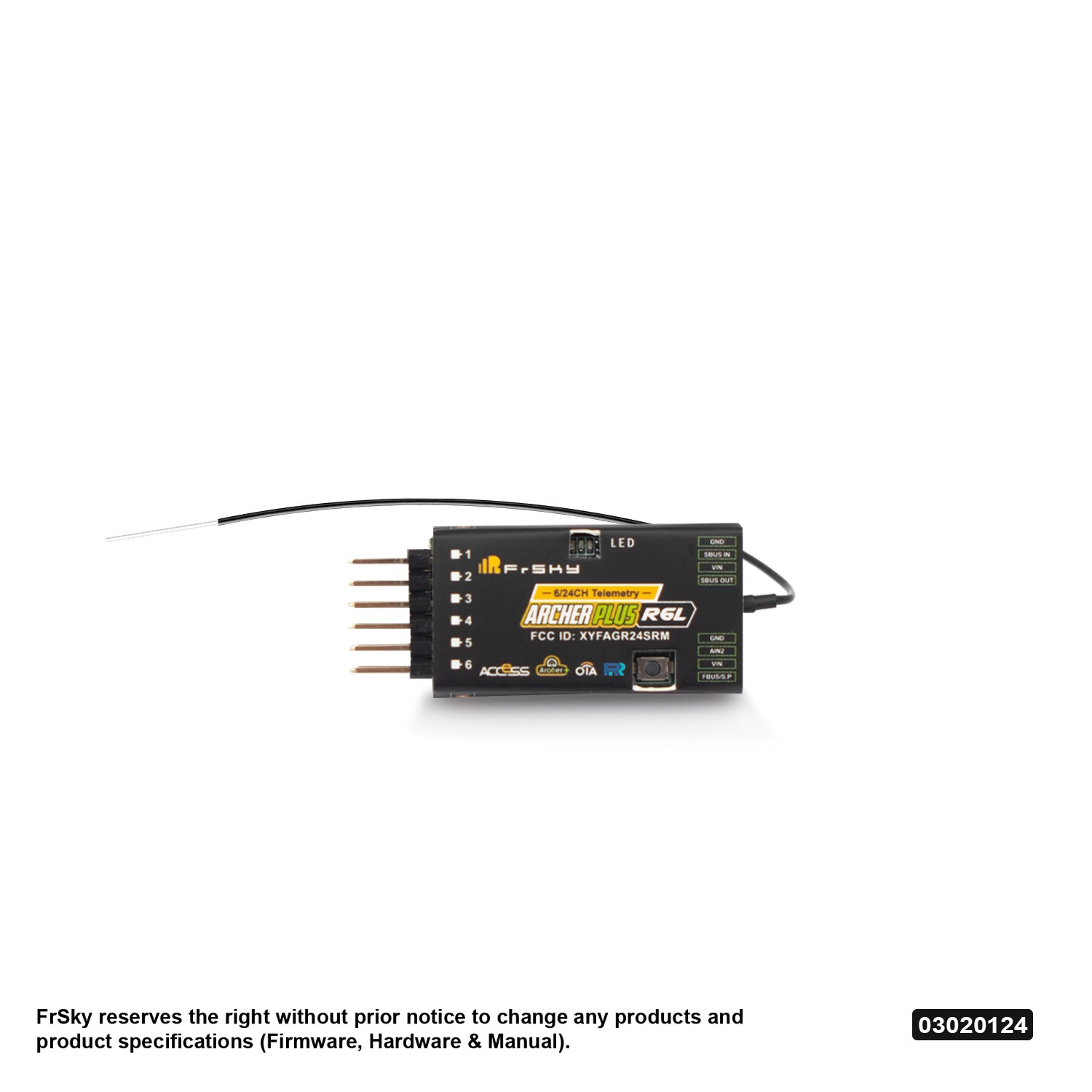

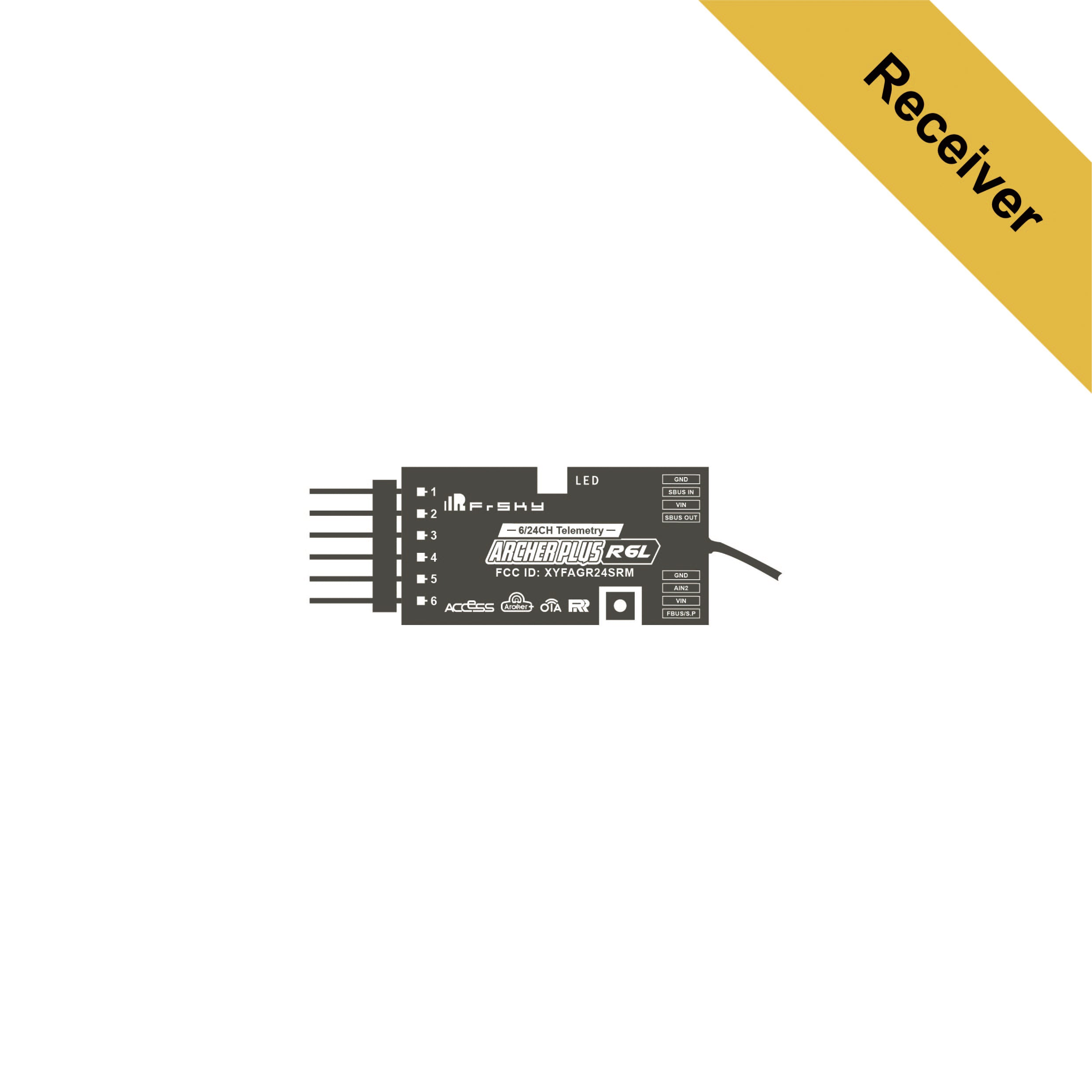

The FrSky Archer Plus R6 Lite Receiver is a compact, lightweight full-range receiver designed for pilots seeking reliable RF performance, flexible connectivity and advanced telemetry. As part of the latest Archer Plus Series, the R6 Lite features enhanced anti-RF interference technology for a stronger and more stable connection, making it ideal for fixed-wing aircraft, helicopters and other RC models.

Supporting both ACCESS and ACCST D16 protocols, the receiver automatically matches the correct RF protocol during binding for simple setup and broad transmitter compatibility. In ACCESS mode, users benefit from Over-The-Air (OTA) firmware updates, extended telemetry capabilities, configurable telemetry power and support for FBUS, F.Port and S.Port communication.

Despite its compact footprint, the Archer Plus R6 Lite offers six high-precision PWM outputs, SBUS input and output, external voltage monitoring and support for up to 24 channels when operating in FBUS mode. Combined with ETHOS integration and Lua configuration tools, it provides exceptional flexibility for modern RC systems.

Key Features

• Enhanced anti-RF interference for improved signal stability

• Compatible with ACCESS and ACCST D16 protocols

• Automatic protocol matching during binding

• 6 high-precision PWM output channels

• Supports up to 24 channels in FBUS mode

• SBUS Out with 16CH/24CH support

• SBUS In for receiver redundancy

• FBUS, F.Port and S.Port telemetry support

• Over-The-Air (OTA) firmware updates

• External battery/device voltage monitoring

• Compact lightweight design

• IPEX1 detachable antenna connector

• Compatible with ETHOS Lua configuration tools

• Full-range operation with telemetry

• Ideal for fixed-wing aircraft, helicopters and UAV applications

Perfect For

• Fixed-wing RC aircraft

• RC helicopters

• Sport and scale aircraft

• Gliders and sailplanes

• FPV aircraft

• UAV platforms

• RC enthusiasts upgrading to ACCESS

• Pilots requiring telemetry and redundancy

• Compact model installations

Product Summary

The FrSky Archer Plus R6 Lite combines compact size, lightweight construction and powerful RF performance in a versatile full-range receiver. Featuring ACCESS and ACCST compatibility, OTA firmware updates, FBUS support and enhanced anti-interference technology, it provides dependable control and advanced telemetry for a wide range of RC aircraft.

Specifications

• Model: Archer Plus R6 Lite

• Channels: 6 PWM / Up to 24 via FBUS

• Protocols: ACCESS & ACCST D16

• Operating Range: Over 2km (conditions dependent)

• Telemetry: FBUS, F.Port, S.Port

• SBUS Out: Yes (16CH/24CH)

• SBUS In: Yes (Signal Redundancy)

• OTA Firmware Updates: Yes

• Voltage Detection: External Battery / Device

• External Voltage Range: 0–35V (AIN2, 1:10 Divider)

• Operating Voltage: 3.5–10V

• Operating Current: <65mA @ 5V

• Antenna Connector: IPEX1

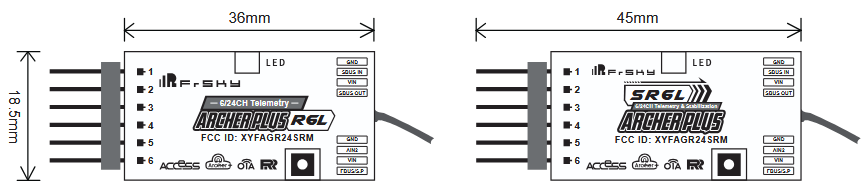

• Dimensions: 45 × 18.5 × 9mm

• Weight: 5.6g

• Compatibility: FrSky ACCESS & ACCST D16 2.4GHz Transmitters
