The FrSky Archer Plus GR6 is a compact, high-performance 6-channel PWM receiver with an integrated high-precision variometer, designed particularly for gliders and other RC aircraft where accurate altitude and vertical speed information is important.

As part of the Archer Plus series, the GR6 features enhanced anti-RF-interference performance, helping provide a more solid and reliable RF connection. It supports both FrSky ACCESS and ACCST D16 modes, with the appropriate RF protocol intelligently matched during the binding process.

The upgraded variometer provides more accurate and responsive altitude and vertical speed telemetry, along with improved vario audio feedback when used with a compatible FrSky ACCESS transmitter and ETHOS system.

The GR6 also features 6 high-precision PWM outputs, SBUS Out with selectable 16-channel or 24-channel operation, an SBUS In port for signal redundancy, external voltage detection and OTA firmware updates. With FBUS support, compatible telemetry devices such as XACT servos and ADV sensors can be connected seamlessly, helping simplify aircraft installations.

Key Features

• FrSky Archer Plus GR6 receiver

• Integrated high-precision variometer

• 6 high-precision PWM channel ports

• Supports 16-channel or 24-channel SBUS output modes

• ACCESS and ACCST D16 compatible

• Smart-matched ACCESS and ACCST D16 modes

• Enhanced anti-RF-interference capability

• Full-range telemetry support via S.Port or FBUS

• Dual detachable antennas for improved reception

• SBUS In for signal redundancy

• SBUS Out for additional channel capability

• Supports OTA firmware updates

• Basic Black-Box flight data recording

• External battery/device voltage detection

• Compact 4.3g design

• Operating range greater than 2km under suitable conditions

• Upgraded vario provides faster and more accurate altitude and vertical speed data

Perfect For

• Glider pilots

• Electric gliders

• Thermal soaring models

• Scale gliders

• RC aircraft requiring accurate altitude telemetry

• FrSky ACCESS transmitters

• Models requiring a compact 6-channel PWM receiver

• Builds using FBUS telemetry devices

• Redundant receiver installations

• Pilots using FrSky ETHOS systems

Product Summary

The FrSky Archer Plus GR6 combines a compact 6-channel PWM receiver with an upgraded high-precision variometer, making it an excellent choice for gliders and telemetry-focused RC aircraft.

With ACCESS and ACCST D16 compatibility, enhanced RF-interference resistance, dual detachable antennas, SBUS connectivity, FBUS support and an integrated variometer, the GR6 offers a versatile receiver solution for modern FrSky installations.

Its variometer measures altitude from -700m to 10,000m with 0.1m resolution and vertical speed up to ±10m/s, providing pilots with responsive altitude and climb/sink information.

Some functions require compatible ACCESS and ETHOS equipment.

Specifications

• Brand: FrSky

• Product: Archer Plus GR6 Receiver

• Receiver Type: ACCESS / ACCST D16 Variometer Receiver

• Number of Channels: 6 PWM / 24 channels

• PWM Outputs: 6 high-precision PWM

• SBUS Modes: 16CH / 24CH

• Operating Voltage: 3.5–10V

• Operating Current: <65mA @ 5V

• Operating Range: >2km full range*

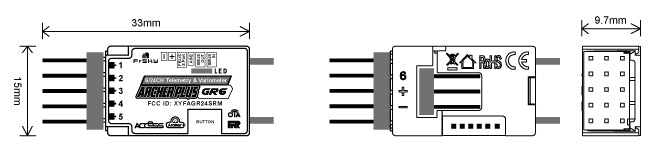

• Dimensions: 33 × 15 × 9.7mm (L × W × H)

• Weight: 4.3g

• Variometer: Integrated high-precision variometer

• Altimeter Range: -700m to 10,000m

• Altimeter Resolution: 0.1m

• Vertical Speed Range: ±10m/s

• External Voltage Measurement: 0–35V via AIN2

• Battery Voltage Divider Ratio: 1:10

• Antenna Connector: IPEX4

• Telemetry: S.Port / FBUS

• Firmware Updates: OTA

• Signal Redundancy: SBUS In

• Voltage Detection: External battery/device voltage

• Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters


*Actual range can vary depending on local conditions, installation and environmental factors.

What's in the Box
1 × FrSky Archer Plus GR6 Receiver
