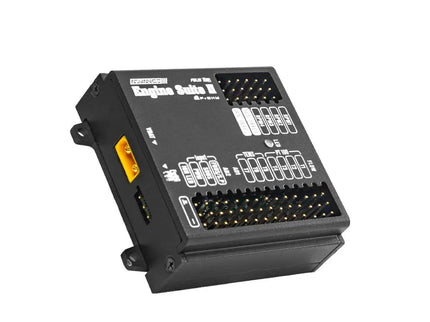

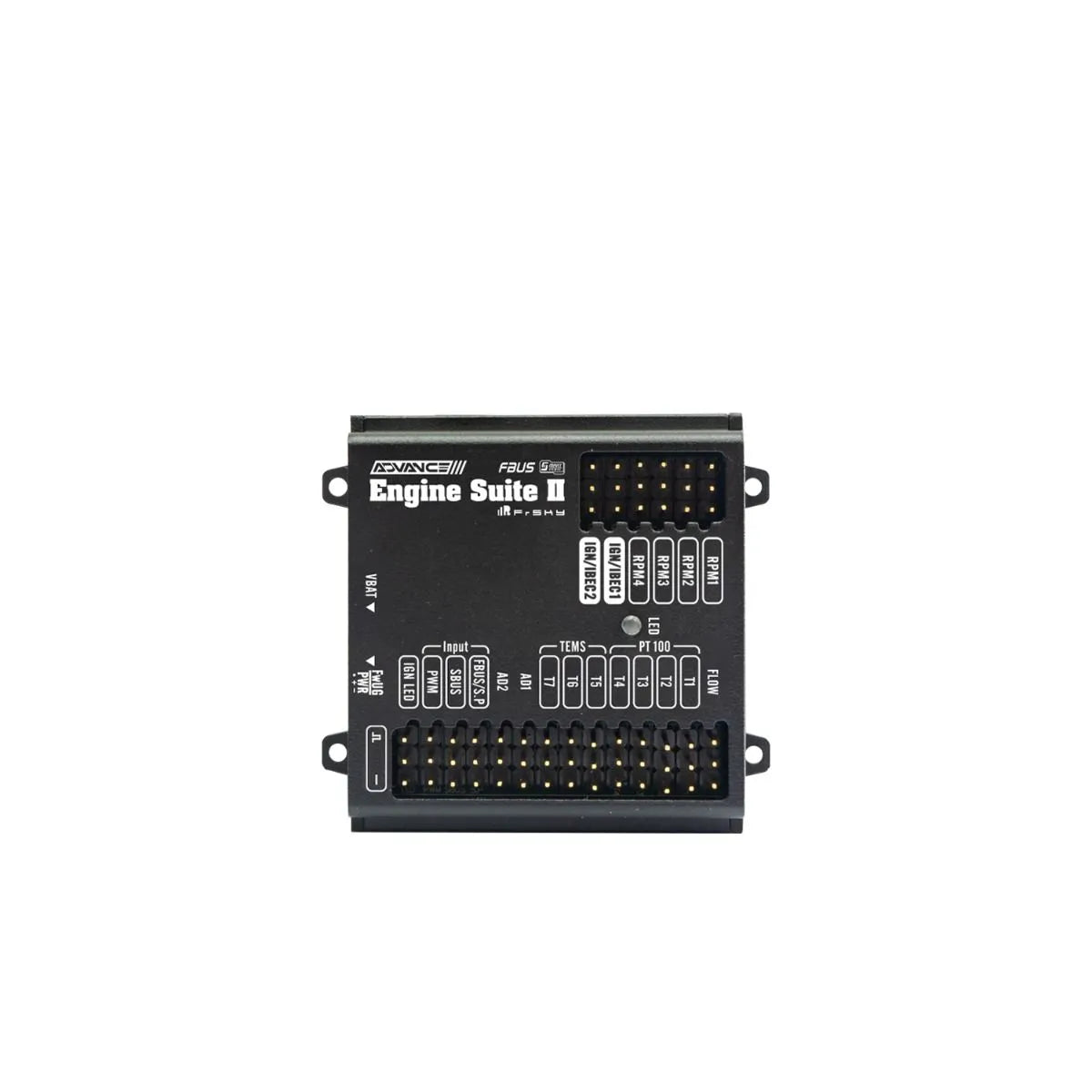

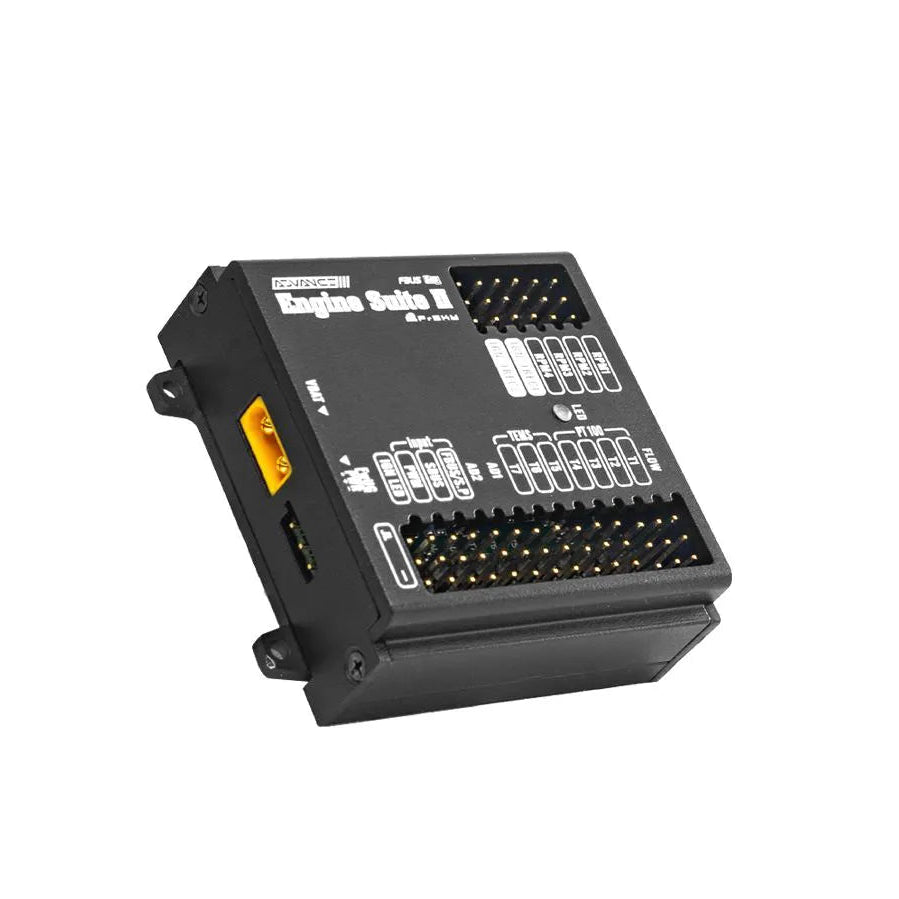

The FrSky Advanced Engine Suite II (AES II) is a multifunctional engine management and telemetry module designed for RC aircraft equipped with petrol, petrol-electric or other compatible engines. It brings ignition management, RPM, temperature, flow and analogue monitoring together in one compact unit, while providing real-time telemetry through compatible FrSky receiver and transmitter systems.

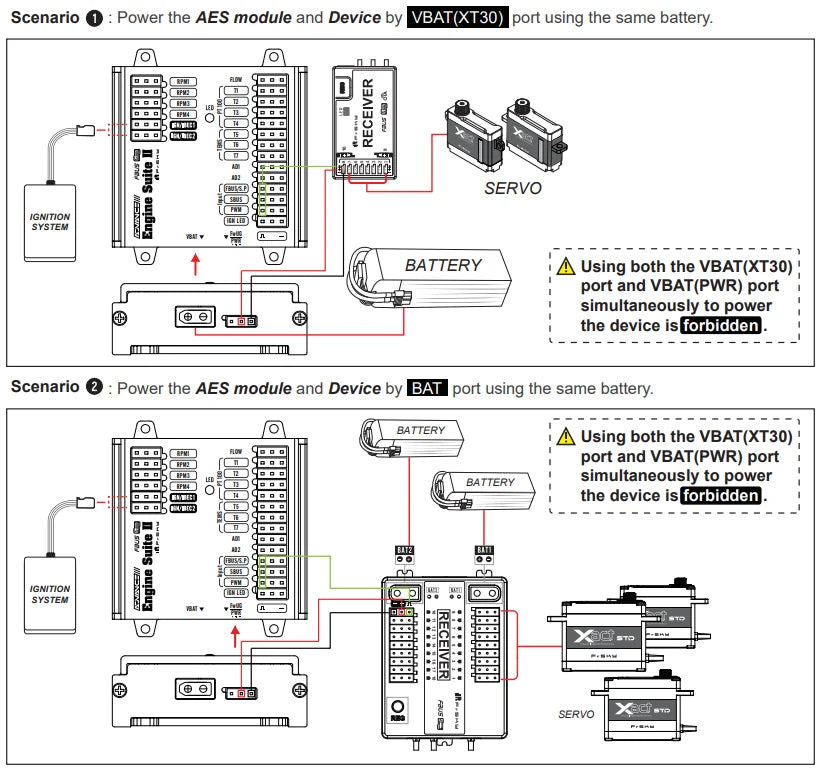

The AES II features an Ignition Battery Eliminator Design, allowing the same battery connected through the VBAT (XT30/PWR) port to power the connected devices without requiring a separate battery for the ignition control unit. It also incorporates an anti-interference solution to help reduce potential issues between the ignition and receiver systems.

With four RPM sensor ports, seven temperature sensor ports, two AD ports and one flowmeter port, the AES II provides extensive monitoring options for sophisticated engine-powered aircraft. Compatible telemetry data can be monitored in real time through FBUS/S.Port, helping pilots keep track of important aircraft operating parameters directly from their transmitter.

Key Features

• Multifunctional engine management and telemetry module

• Ignition Battery Eliminator Design – no independent ignition battery required

• Anti-interference capability between ignition and receiver systems

• Two power ports for an ignition kill switch unit

• Four RPM sensor ports

• Seven temperature sensor ports – four PT100 and three TEMS

• Two AD device ports

• One flowmeter sensor port

• FBUS/S.Port signal input with automatic recognition

• Supports SBUS and PWM signal input

• Real-time telemetry monitoring through compatible FrSky systems

• Real-time configuration via S.Port using an ETHOS radio or FBUS-capable receiver

• Dedicated IGN LED port for ignition status indication

• Receiver power/FWUG port

• XT30 battery input connector

• Compact 50 × 46.4 × 18mm design

Perfect For

• RC petrol and engine-powered aircraft

• Large-scale and advanced model aircraft

• Pilots requiring comprehensive engine telemetry

• FrSky FBUS and S.Port installations

• Aircraft requiring RPM and temperature monitoring

• Installations requiring fuel-flow monitoring

• Advanced engine-management setups

• Pilots looking to simplify ignition power requirements

Product Summary

The FrSky Advanced Engine Suite II (AES II) provides a comprehensive solution for managing and monitoring engine-powered RC aircraft. Its integrated ignition power system removes the need for an independent ignition battery, while dedicated interfaces for RPM, temperature, flow and analogue sensors provide extensive telemetry capabilities.

With support for FBUS, S.Port, SBUS and PWM, the AES II offers flexible integration with compatible FrSky equipment. Real-time telemetry allows pilots to monitor important aircraft operating information directly from their transmitter, making it a valuable addition to advanced engine-powered models.

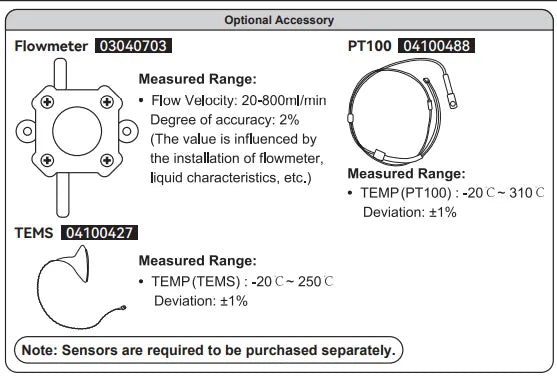

Please note: Sensors are not included and must be purchased separately. Compatible sensor options include the PT100 Temperature Sensor (04100488), TEMS Temperature Sensor (04100427) and Flowmeter (03040703).

Specifications

• Brand: FrSky

• Product: Advanced Engine Suite II (AES II)

• Product Type: Engine Management & Telemetry Module

• Dimensions: 50 × 46.4 × 18mm (L × W × H)

• Weight: 53.5g

• Battery Voltage Input Range: 4.5–13V

• Battery Input Connector: XT30

• IGN Voltage Output Range: 4.5–13V

• IGN Output: Synchronous with VBAT input voltage settings

• Operating Current: 20mA @ 5V

• RPM1/RPM2 Signal Voltage: 3–12V

• RPM3/RPM4 Signal Voltage: 0–3.3V

• RPM Driven Current Requirement: >5mA

• Flow Port Signal Voltage: 3.3V

• AD1/AD2 Signal Voltage: 0–3.3V

• RPM Sensor Ports: 4

• Temperature Sensor Ports: 7

• PT100 Temperature Ports: 4

• TEMS Temperature Ports: 3

• AD Device Ports: 2

• Flowmeter Ports: 1

• Ignition Kill Switch Power Ports: 2

• Receiver/FWUG Port: 1

• IGN LED Port: 1

• Battery Input Port: 1 × XT30

• Supported Signal Inputs: FBUS/S.Port, SBUS, PWM

• Configuration: Real-time configuration via S.Port using compatible ETHOS radios or FBUS-capable receivers

Packaging Included

1 × FrSky Advanced Engine Suite II (AES II)
Sensors are not included and are available separately.
