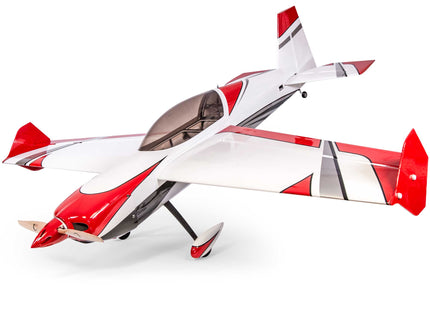

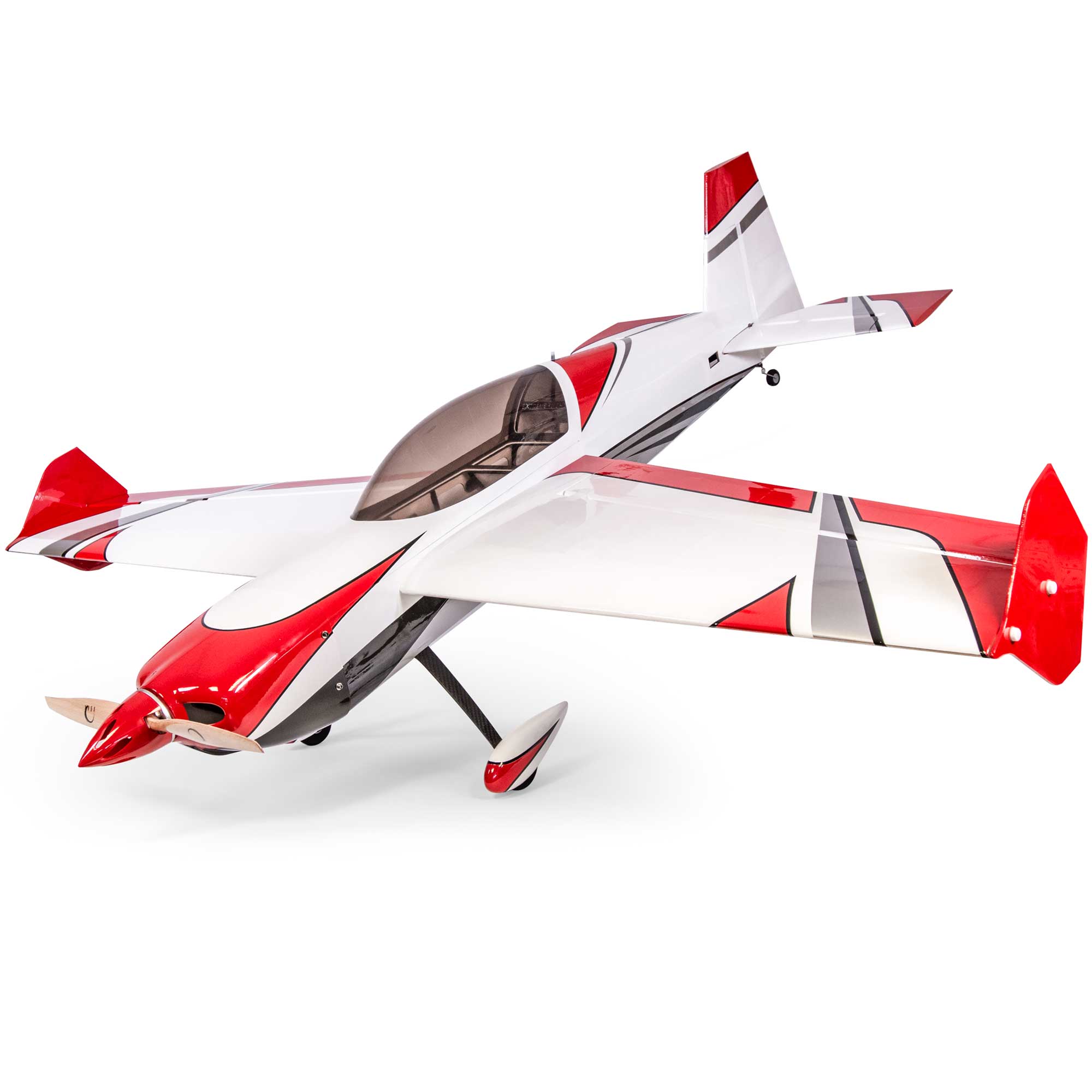

The Extreme Flight 60” Edge 540T-EXP V2 brings a modern evolution to one of the most popular and proven 3D training airframes ever produced. Long celebrated as the perfect aircraft for learning the fundamentals of 3D flight, the Edge 540T is forgiving for novice pilots, yet fully capable of delivering precision, XA, and extreme manoeuvres as your skills advance.

Built using carbon fibre and G10 composite reinforcement in key stress areas such as the landing gear mount and fuselage longerons, the V2 Edge is exceptionally strong and twist-free while remaining lightweight. Pre-hinged and sealed ailerons and elevator reduce build time and improve surface accuracy, while the removable wings attach via a carbon tube and CNC quick-latch system for transport convenience.

Optional Side Force Generators (SFGs) further increase yaw stability and add visual presence in the air. Finished with an expertly painted fibreglass cowl and wheel pants, the Edge 540T-EXP V2 is available in two striking Ultracote/Oracover colour schemes and includes a 63 mm Cyclone spinner to complete the look.

Pair it with the T-Motor AM600 combo and AM116 ESC, or the XPWR 22cc system, for explosive vertical performance and crisp throttle response.

Key Features:

✅ Updated V2 structure – lighter, stiffer, and more durable
✅ Carbon & G10 reinforcements for incredible strength
✅ Pre-hinged and sealed control surfaces – smooth, slop-free actuation
✅ CNC quick-latch wings for easy assembly and transport
✅ Optional SFGs included – enhanced yaw stability for 3D flight
✅ Composite-reinforced fuselage and carbon wing tube
✅ Expertly finished fibreglass cowl and pants
✅ 63 mm colour-matched Cyclone spinner included
✅ Perfect with T-Motor AM600 or XPWR 22cc power systems
✅ High-visibility Red or Blue Ultracote/Oracover schemes

Perfect For:

• Pilots progressing into 3D and XA aerobatics

• Experienced flyers seeking a balanced 60-inch performer

• Those wanting a strong yet forgiving airframe with premium construction

• Anyone looking for ballistic 6S power performance with exceptional build quality

Product Summary:

The Extreme Flight 60” Edge 540T-EXP V2 continues the tradition of combining light weight, strength, and legendary flight manners. From low and slow harriers to aggressive XA tumbles, this Edge handles it all with precision. Composite reinforcement, CNC latch assembly, and Side Force Generators make it a true all-rounder — equally suited to 3D training or competition-level flying.

Available now from Probuild Aircraft, the official UK distributor for Extreme Flight models.

Why Buy from Probuild Aircraft:

✅ Official UK Extreme Flight Stockist – 100% Genuine Products
✅ Decades of Aerobatic RC Experience
✅ Fast UK & International Shipping
✅ Trusted by Display & Competition Pilots

Specifications:

• Wingspan: 60 in (1524 mm)

• Length: 58–58.5 in (1473–1486 mm)

• Wing Area: 735–750 sq in

• Weight: 5–6 lb

• Battery: 6S 3300–4000 mAh LiPo

• Spinner: 63 mm EF Cyclone (included)

• Centre of Gravity:

  • On the wing tube for precision flight

  • ½ in behind for 3D flight

Control Throws (degrees):

Elevator:

• Low Rate: 8–10° (15–20 % expo)

• 3D Rate: 45–50° (60–65 % expo)

• XA Rate: 60° + (65–70 % expo)

Aileron:

• Low Rate: 15–20° (40–45 % expo)

• High Rate: 38–40° (70–75 % expo)

Rudder:

• Low Rate: 20° (40–45 % expo)

• High Rate: 45–50° (80–90 % expo)

Recommended Power System:

• Motor: T-Motor AM600 / XPWR 22cc

• ESC: T-Motor AM116A / Airboss 80

• Prop: T-Motor 16×8 / Xoar 16×7–16×8 Wood Electric

• Battery: 6S 3300–4000 mAh LiPo

• Servos: 4 × Mini Metal Gear (Savox SV-1261MG / EF Theta 988 / MKS HV-9767 / HV-747)

• Servo Arms: 4 × EF 1.25” Lightweight Arms

• Extensions: 2 × 6” (ailerons), 1 × 18” (rudder), 1 × 24” (elevator)

Colour Schemes:

 Blue Scheme (Oracover / Ultracote):

• Cub Yellow #30 / #HANU884

• Bright Yellow #33 / #HANU872

• Deep Blue #HANU873 (RAL 5010)

• White #10 / #HANU870

• Midnight Blue #HANU885

• Silver #91 / #HANU881

 Red Scheme (Oracover / Ultracote):

• Ferrari Red #23 / True Red #HANU866 (RAL 3000)

• White #10 / #HANU870 (RAL 9010)

• Pearl Charcoal #77 / #HANU846

• Silver #91 / #HANU881

• Black #71 / #HANU874
