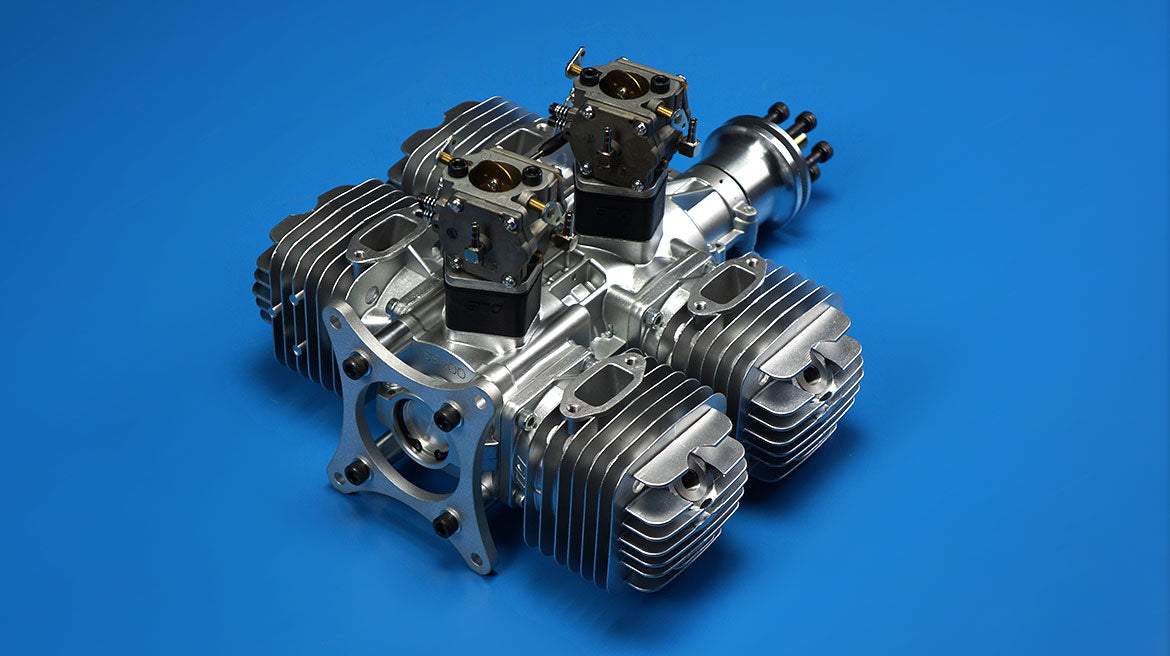

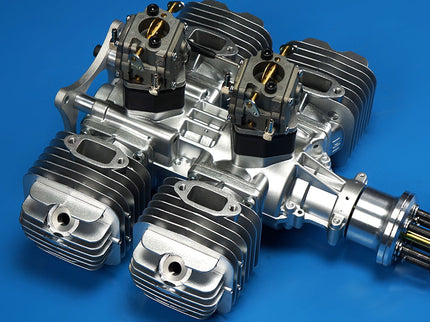

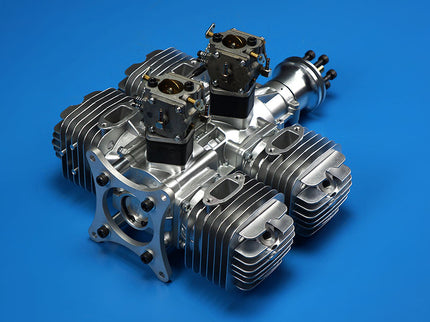

Big Power for Big Aircraft

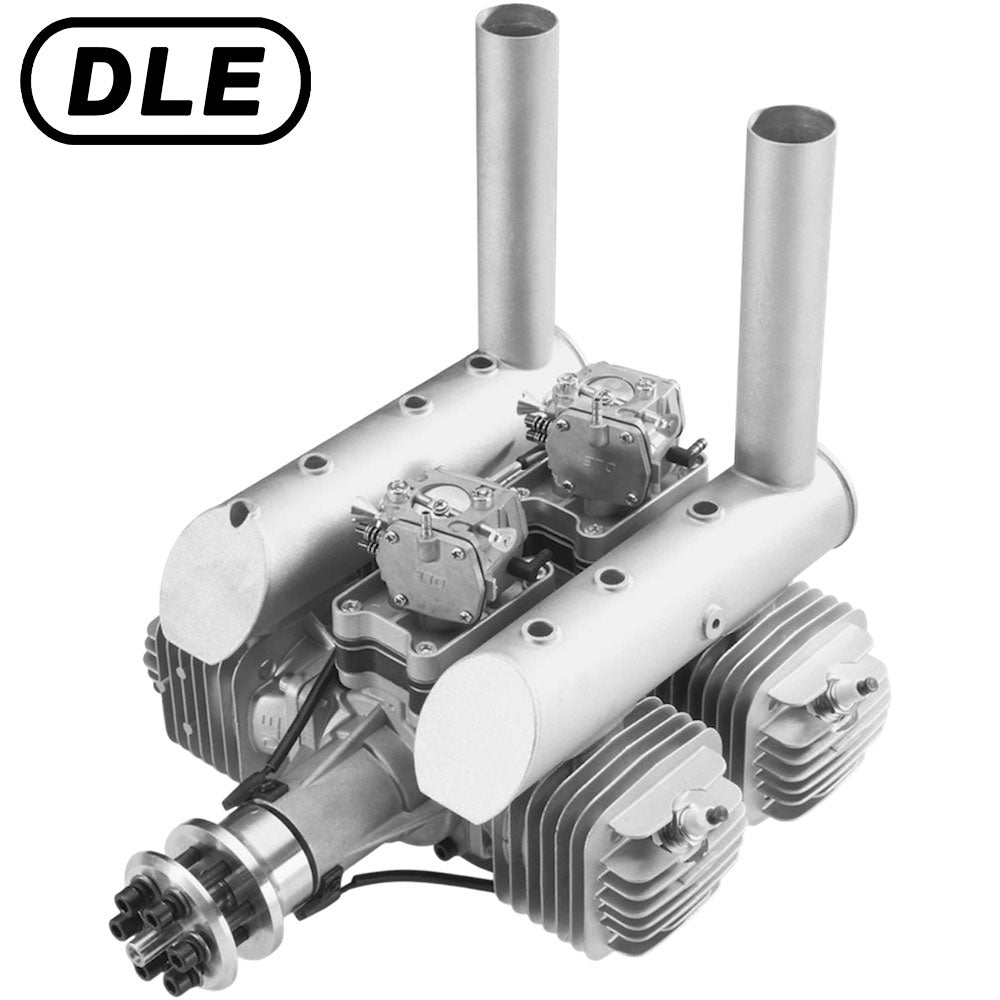

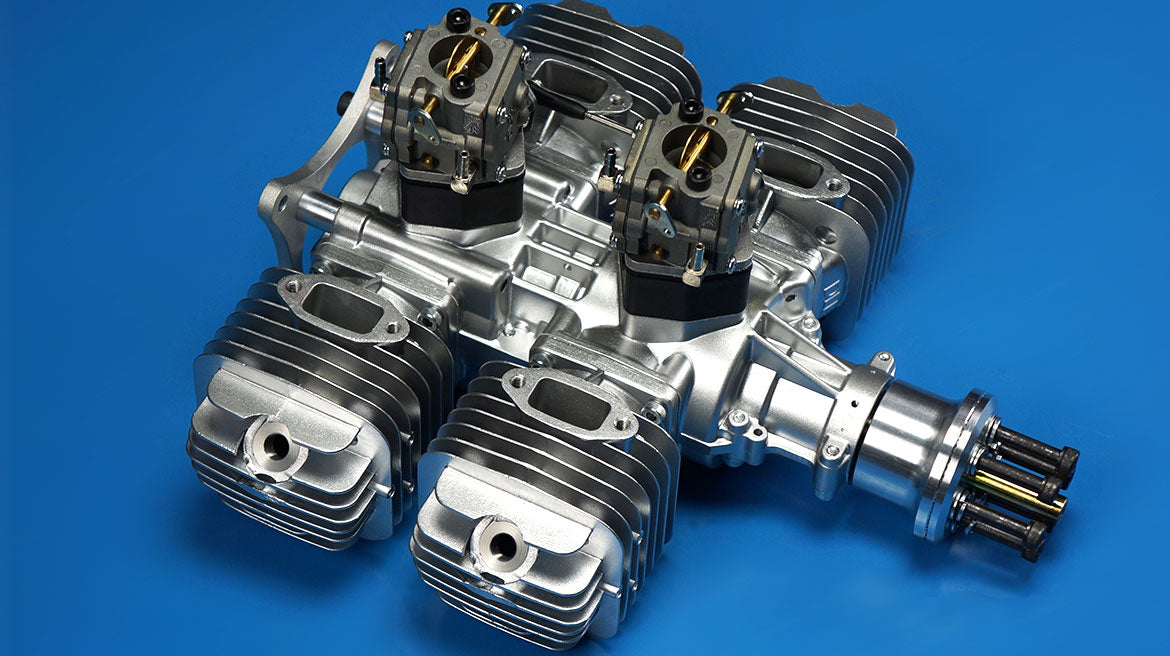

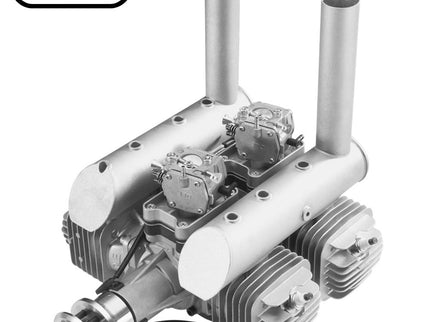

At 21.5 horsepower, the DLE-222 has more than enough power to push your plane through the air. And with an all-up weight of just over twelve pounds, it has the power-to-weight balance to make the most of it. Dual carbs help you fine tune it, sealed bearings keep it running smoothly and two mufflers keep it down to a dull roar. And for all you get — including mufflers, standoffs and a 6-bolt prop hug — the value-to-price ratio is impressive, too.

Specifications:
Stock Number: DLEG0222
Displacement: 13.6 cu in (222.5 cc)
Bore: 1.77 in (45 mm)
Stroke: 1.38 in (35 mm)
Weight: 12.37 lb (5.61 kg)
RPM Range: 1,000-7,500
Output: 21.5 hp @ 7,500 rpm

Requires: Gasoline, oil, two ignition batteries & propeller

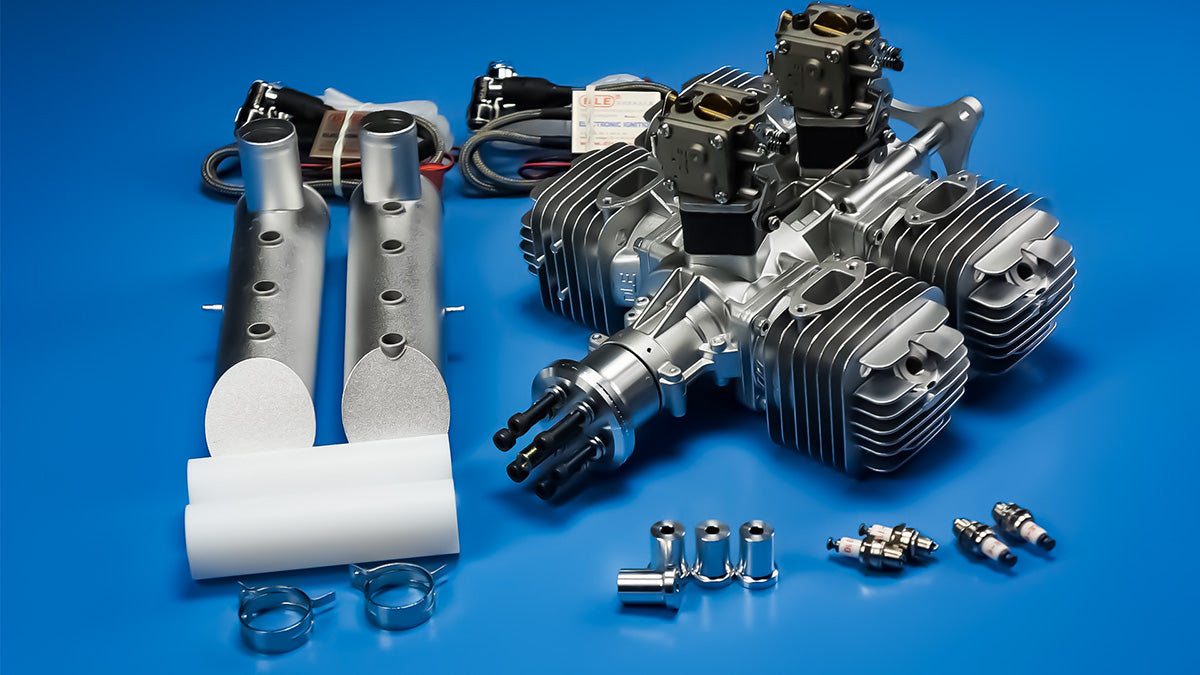

Includes: Dual electronic ignition, mufflers, spark plugs, gaskets, bolts, machined aluminium standoffs & throttle arm extension
Suggested Propellers: 32x10, 32x12 & 34x10

Technical Data:
Ignition Battery: two 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo Packs (LiPo or LiFe use requires voltage regulator.)
Compression Ratio: 7.6:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
