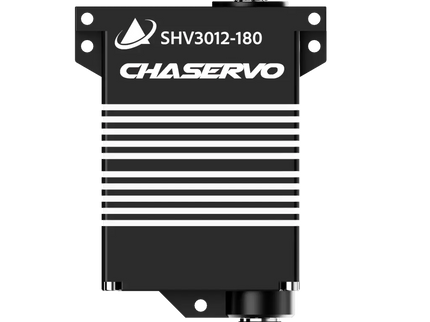

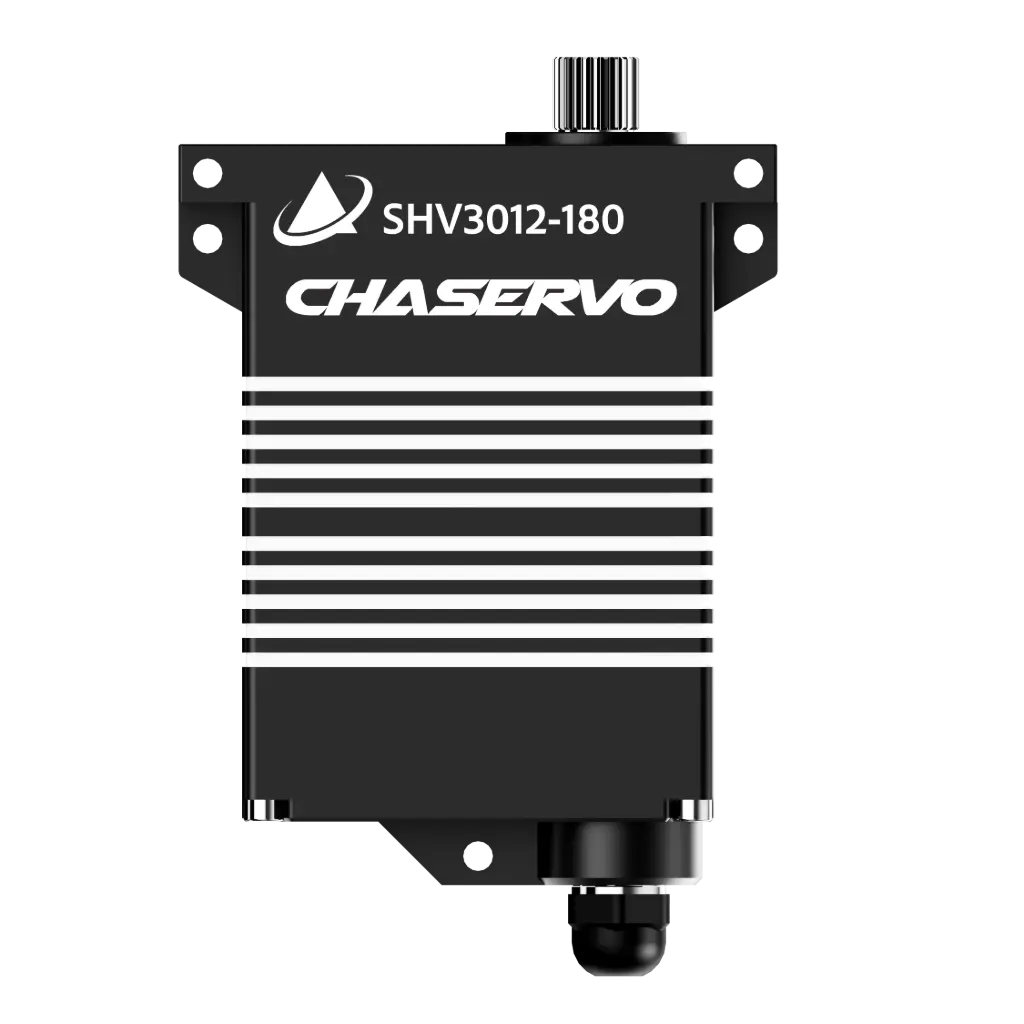

The CHASERVO SHV3012-180 is a high-performance industrial-grade servo designed for extreme torque applications, delivering outstanding precision, strength, and reliability. Featuring a powerful 4-pole brushless motor, hardened steel gears, a fully aluminium case, and a contactless Hall-sensor position system, this servo is engineered for heavy-duty RC aircraft, robotics, UAVs, industrial mechanisms, and specialised remote-control systems.

With up to 280kg·cm of holding torque at 13V, lightning-fast response times, and exceptional build quality, the SHV3012-180 offers unmatched performance where strength, accuracy, and durability are critical. Fully programmable and built with six ball bearings for smooth, robust operation, this servo is made for the most demanding environments.

Key Features

• Extremely powerful industrial servo with up to 280kg·cm torque

• 4-pole brushless motor for high efficiency and long lifespan

• Contactless Hall-sensor system for ultra-precise positioning

• Fully programmable for tailored performance

• Aluminium case for maximum strength and heat dissipation

• Hardened steel gear set for durability under heavy load

• Wide voltage range (8.4V–13.0V) for flexible applications

• Fast response: 0.19 sec/60° at 13V

• 6× ball bearings for smooth, stable movement

Perfect For

• Large-scale RC aircraft

• Industrial robotics & automation

• UAV and drone control surfaces

• Heavy-duty steering systems

• Engineering projects requiring extreme torque

• Remote machinery, mechanisms & actuators

Product Summary

A professional-grade industrial servo delivering immense torque, ultra-precise control, and superior durability—ideal for advanced RC, robotics, UAV, and industrial applications. Built to handle the toughest demands with ease.

Specifications

Servo Data

• Dimensions: 65 × 30 × 95 mm

• Weight: 480 g

• Output Shaft Spline: 25T, 12 mm

• Rated Voltage: DC 12V

• Voltage Range: DC 8.4V – 13.0V

• Ball Bearings: 6

• Position Sensor: Contactless Hall Sensor

• Motor: 4-Pole Brushless

• Working Frequency: 1520 µs / 333 Hz

• Pulse Range: 500 µs – 2500 µs

• Programmable: Yes

Materials

• Case: Aluminium

• Gears: Hardened Steel

Holding Torque

• @ 8.4V: 210 kg·cm

• @ 12V: 270 kg·cm

• @ 13V: 280 kg·cm

No-Load Speed

• @ 8.4V: 0.30 sec/60°

• @ 12V: 0.20 sec/60°

• @ 13V: 0.19 sec/60°

Max Current

• @ 8.4V: 6.8 A

• @ 12V: 8.85 A

• @ 13V: 9.8 A
