Description
Extremely thin. Extremely precise.

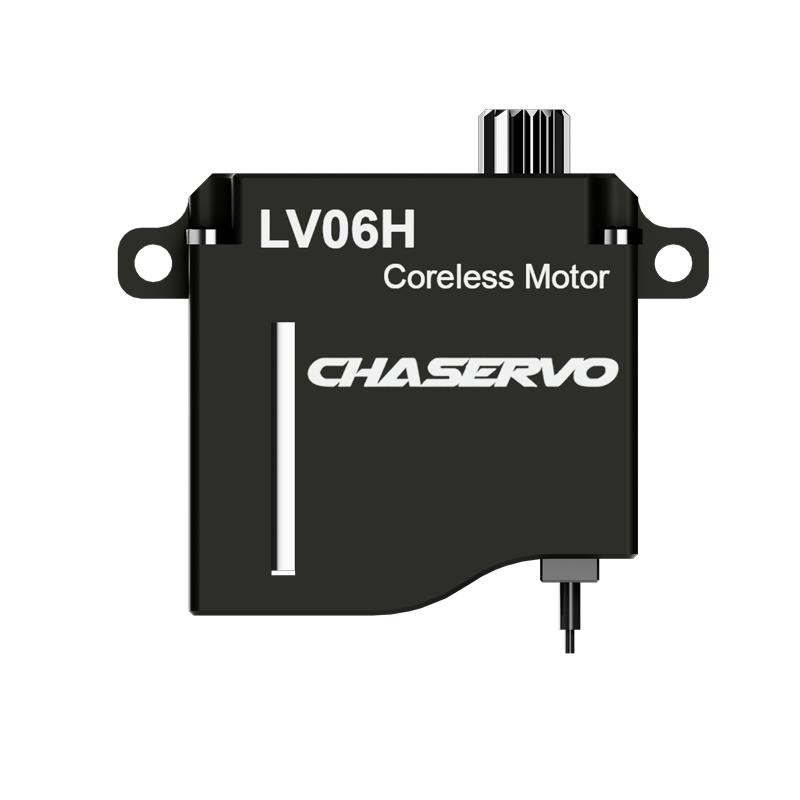

The Chaservo LV06-Series is a versatile 6mm low-voltage servo that is available in three different
versions for standard or horizontal installation as well as a neutral version.
With its particularly flat and compact design, this micro-sub fits seamlessly into thin surfaces. The
solid workmanship and the coreless motor also ensure a wide range of applications. Micro servos
are ideal for applications that require a small size and must be used in confined spaces. They are
used in model airplanes, micro RC cars, drones, robots and many other small applications.
The Chaservo LV06-Series is a versatile 6mm low-voltage servo that is available in three different
versions for standard or horizontal installation as well as a neutral version.
With its particularly flat and compact design, this micro-sub fits seamlessly into thin surfaces. The
solid workmanship and the coreless motor also ensure a wide range of applications. Micro servos
are ideal for applications that require a small size and must be used in confined spaces. They are
used in model airplanes, micro RC cars, drones, robots and many other small applications.
Specifications
Dimensions: 0.75 x 0.24 x 0.73 in (19 x 6 x 18.5 mm)
Weight: 0.21 oz (6.1 g)
Rated Voltage: DC 4.2V
Voltage Range: DC 3.3 – 5.0V
Output Shaft Spline: 15T, 4mm
Position sensor: Potentiometer
Motor: Coreless DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/20KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: Aluminium
Gear Set Material: Metal gear
Holding Torque
Holding Torque @ 3.3V: 13.88 oz·in (1.0 kg·cm)
Holding Torque @ 4.2V: 20.13 oz·in (1.45 kg·cm)
Holding Torque @ 5.0V: 26.38 oz·in (1.9 kg·cm)
No-load Speed
No-load Speed @ 3.3V: 0.077sec/60°
No-load Speed @ 4.2V: 0.066sec/60°
No-load Speed @ 5.0V: 0.055sec/60°
Max Current
Max Current @ 3.3V: 0.39 A
Max Current @ 4.2V: 0.64 A
Max Current @ 5.0V: 0.79 A

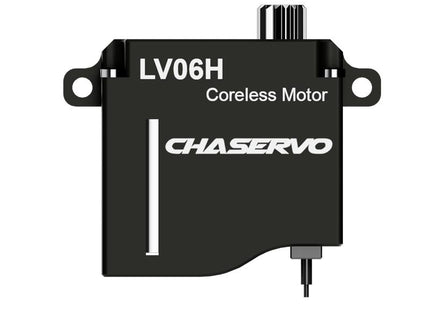

CHASERVO LV06H (1.9KG 5.0V) Servo
£52.90Incl. VAT
