Description

Slim, fast, fantastic.


Specifications

Dimensions: 23 x 7.5 x 27.5 mm
Weight: 0.42 oz (12 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.8 – 8.4V
Output Shaft Spline: 15T, 4mm
Position sensor: Potentiometer
Motor:  Coreless DC
Working Frequency: 1520µs/333KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: Aluminium
Gear Set Material: metal gears

Holding Torque
Holding Torque @ 6.0V: 4.5 kg·cm
Holding Torque @ 7.4V: 6.0 kg·cm
Holding Torque @ 8.4V: 6.5 kg·cm

No-load Speed
No-load Speed @ 6.0V: 0.13sec/60°
No-load Speed @ 7.4V: 0.10sec/60°
No-load Speed @ 8.4V: 0.09sec/60°

CAD data (vertical):
CAD data (horizontal):

Read more

Product form

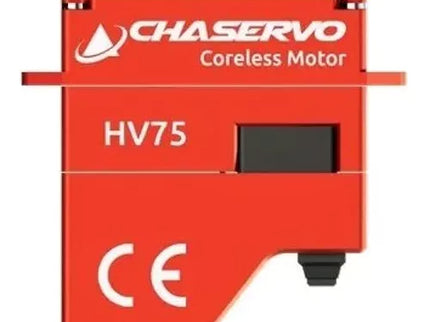

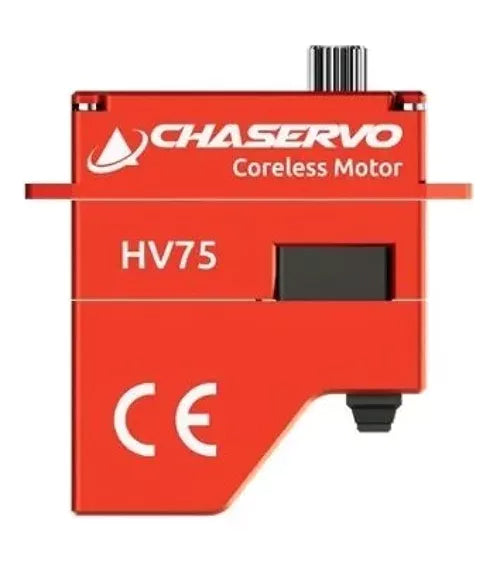

CHASERVO HV75 (6.5KG 8.4V) Servo

£54.90Incl. VAT

SKU: HV75

  • Official UK stockist

  • Fast, reliable Worldwide shipping

  • Trusted by pilots since 1993
