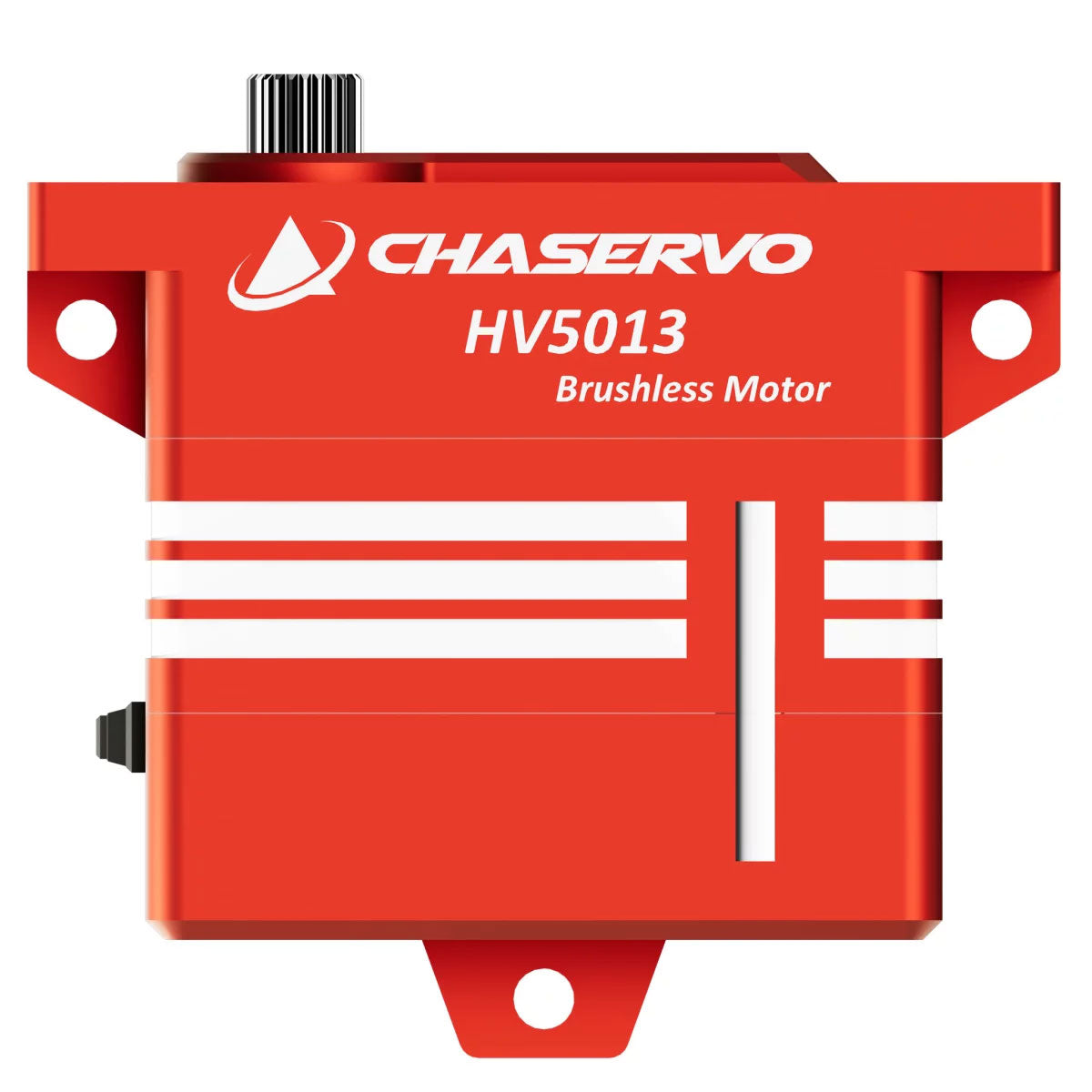

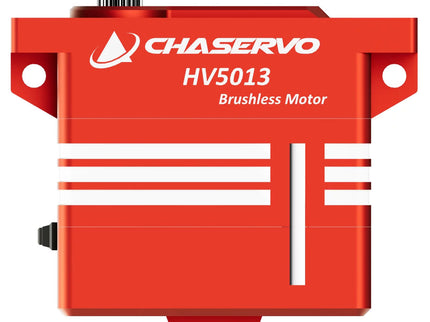

The HV5013 is the ultimate servo for anyone looking for impressive power and performance. With a holding force of an incredible 60 kg-cm at 8.4V, this servo sets new standards in terms of strength. It is one of the most powerful servos on the market and can withstand extreme loads with ease

With a stalling torque of up to 51 kg-cm, the HV5013 proves its exceptional robustness. No matter how heavy the load, this servo is not easily fazed. It is the perfect choice for demanding applications where a high load capacity is required.

But the HV5013 doesn't just impress with its impressive power. It also offers precise and reliable performance and the usual high-quality Chaservo workmanship.

Specifications

Dimensions: 1.59 x 0.67 x 1.57 in (40.5 x 17 x 40 mm)

Weight: 68 g

Rated Voltage: DC 7.4V

Voltage Range: DC 6.0 – 8.4V

Output Shaft Spline: 25T

Position sensor: Potentiometer

Motor:  4 Pole Brushless

Working Frequency: 1520µs/333KHz

Pulse Range: 900µs-2100µs

Programmable: Yes

Case Material: Aluminium

Gear Set Material: metal gears

Holding Torque
Holding Torque @ 6.0V	555.49 oz·in (40.0 kg·cm)
Holding Torque @ 7.4V	694.36 oz·in (50.0 kg·cm)
Holding Torque @ 8.4V	833.24 oz·in (60.0 kg·cm)

Output Torque
Output Torque @ 6.0V	472.17 oz·in (34.0 kg·cm)
Output Torque @ 7.4V	42.5 kg·cm
Output Torque @ 8.4V	708.26 oz·in (51.0 kg·cm)

No-load Speed
No-load Speed @ 6.0V	0.16sec/60°
No-load Speed @ 7.4V	0.13sec/60°
No-load Speed @ 8.4V	0.11sec/60°

max. Current
max. Current @ 6.0V	8.5A
max. Current @ 7.4V	10.3A
max. Current @ 8.4V	11.8A
