Description
Compact and powerful

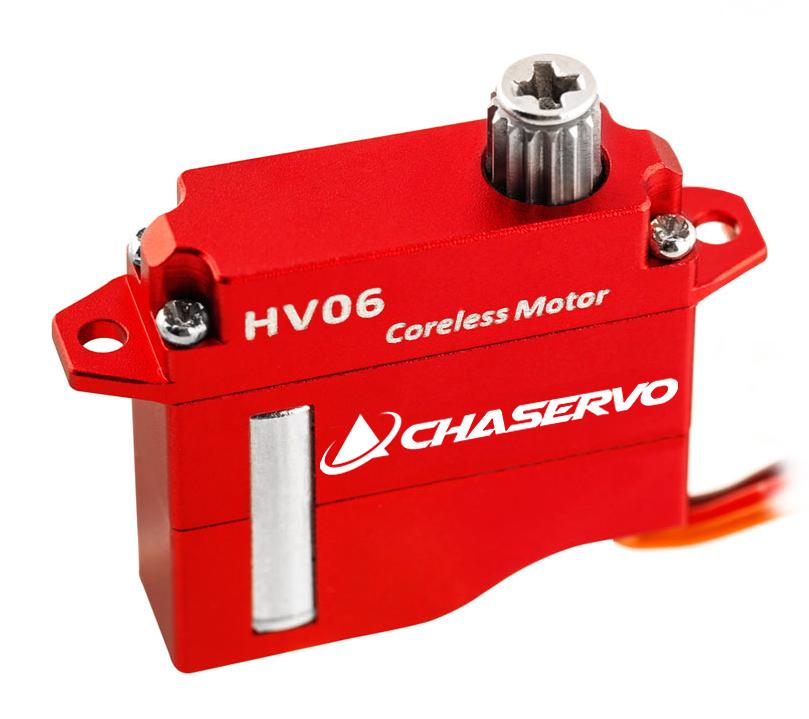

The Chaservo HV06 is a powerful 6mm HV servo that is characterized by its small size and
high performance. It is ideal for a variety of modeling applications, including RC vehicles,
airplanes, boats and other models that require high performance and precision in a small
package.
The Chaservo HV06 is made of high-quality materials and has a robust design. The hardened
steel gearbox is wear-resistant and ensures a long service life.
The holding force of up to 2.2 kg at 8.4 V makes it possible to move even heavy loads
effortlessly. The turning speed of 0.06 seconds at 8.4 V is also very good.
The Chaservo HV06 is a powerful 6mm HV servo that is characterized by its small size and
high performance. It is ideal for a variety of modeling applications, including RC vehicles,
airplanes, boats and other models that require high performance and precision in a small
package.
The Chaservo HV06 is made of high-quality materials and has a robust design. The hardened
steel gearbox is wear-resistant and ensures a long service life.
The holding force of up to 2.2 kg at 8.4 V makes it possible to move even heavy loads
effortlessly. The turning speed of 0.06 seconds at 8.4 V is also very good.
Specifications
Dimensions: 0.75 x 0.24 x 0.73 in (19 x 6 x 18.5 mm)
Weight: 0.21 oz (6.1 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 3.3 – 9.0V
Output Shaft Spline: 15T, 4mm
Position sensor: Potentiometer
Motor: Coreless DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/20KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: Aluminium
Gear Set Material: Metal gear
Holding Torque
Holding Torque @ 6.0V: 22.91 oz·in (1.65 kg·cm)
Holding Torque @ 7.4V: 30.55 oz·in (2.2 kg·cm)
Holding Torque @ 8.4V: 36.80 oz·in (2.65 kg·cm)
No-load Speed
No-load Speed @ 6.0V: 0.07sec/60°
No-load Speed @ 7.4V: 0.06sec/60°
No-load Speed @ 8.4V: 0.05sec/60°
Max Current
Max Current @ 6.0V: 0.61 A
Max Current @ 7.4V: 0.63 A
Max Current @ 8.4V: 0.67 A

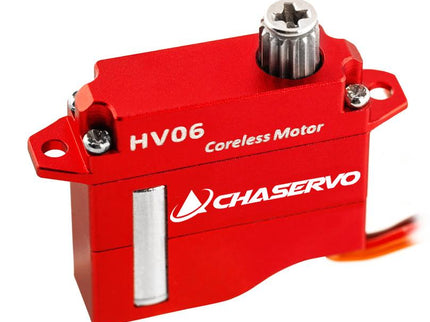

CHASERVO HV06 (2.2KG 8.4V) Servo
£52.90Incl. VAT
