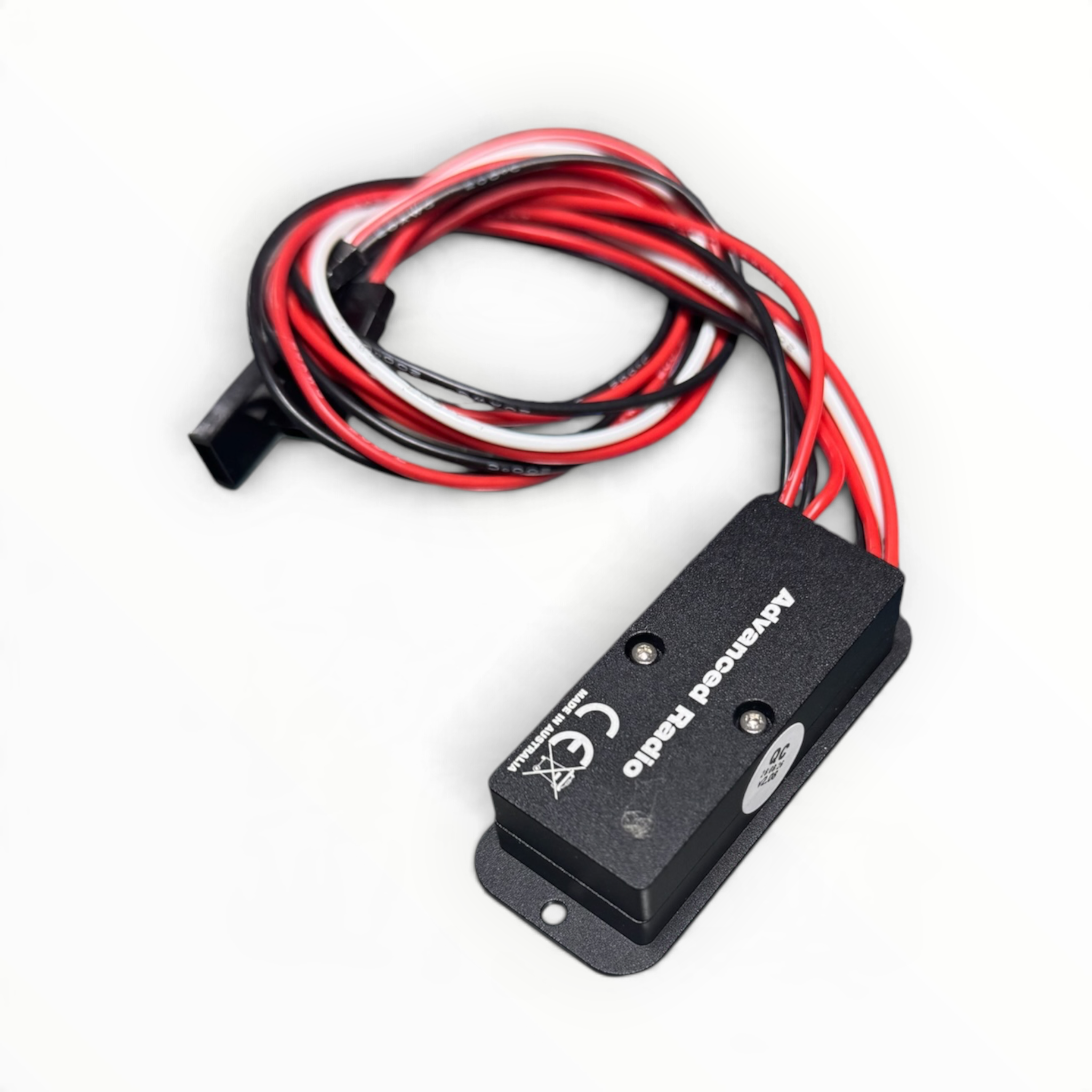

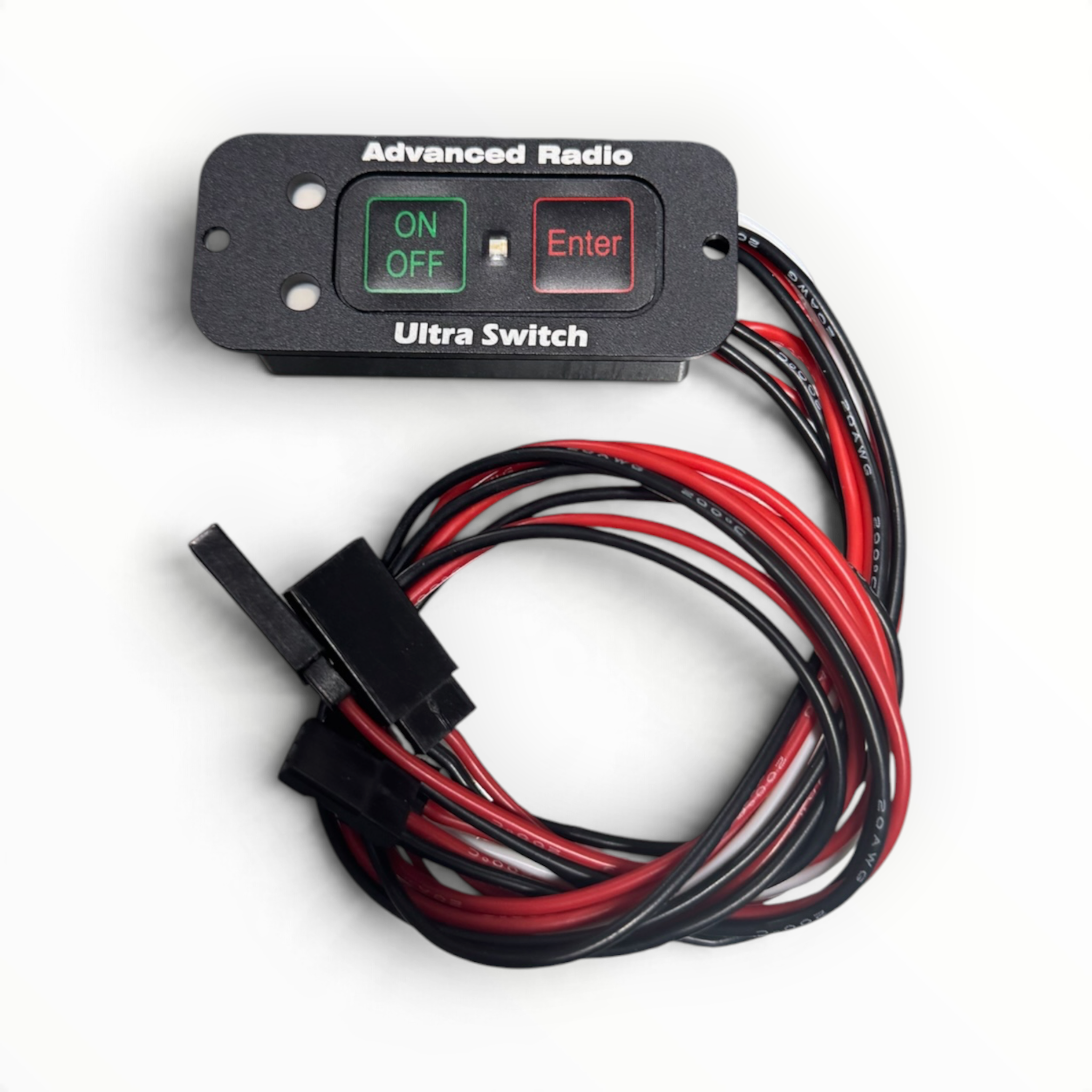

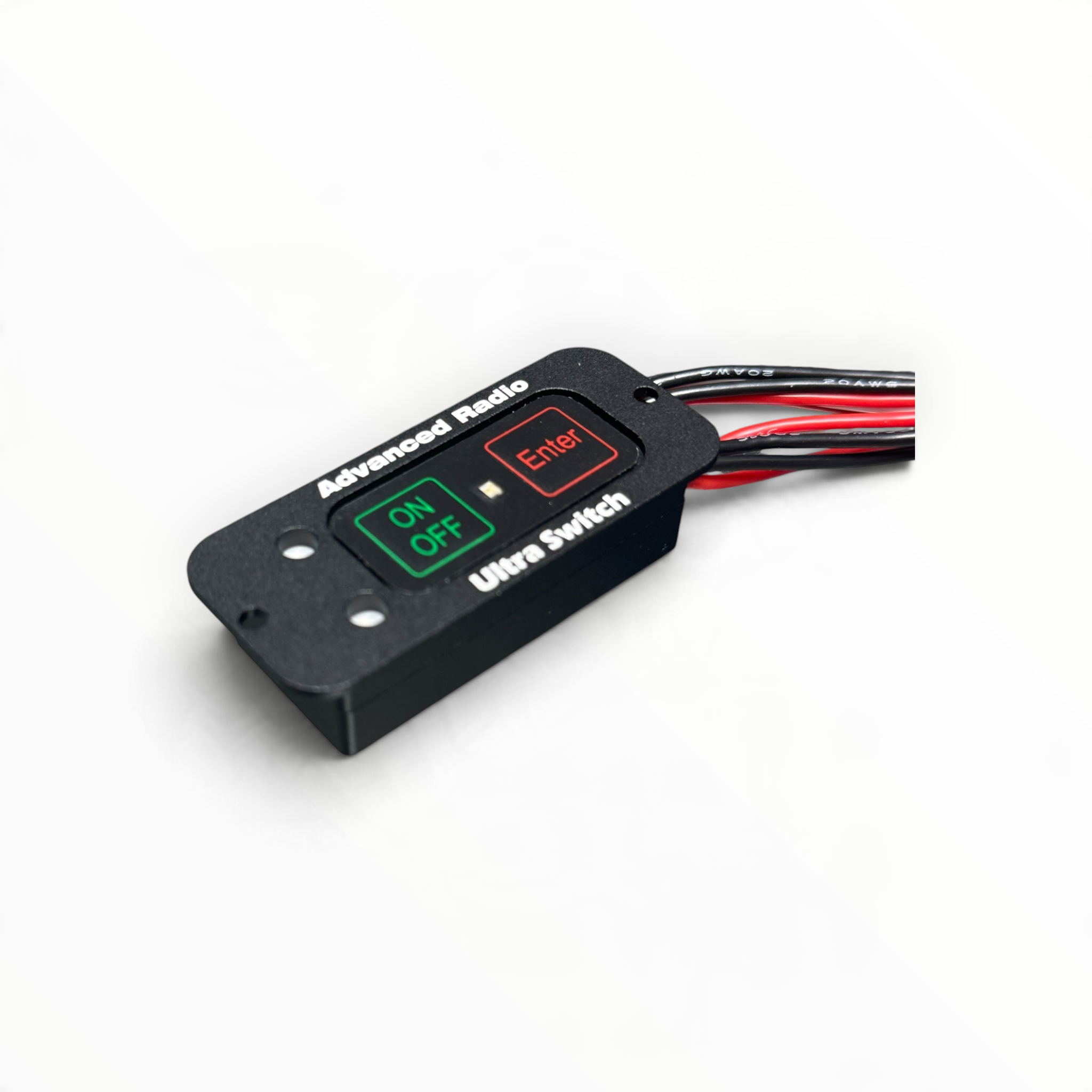

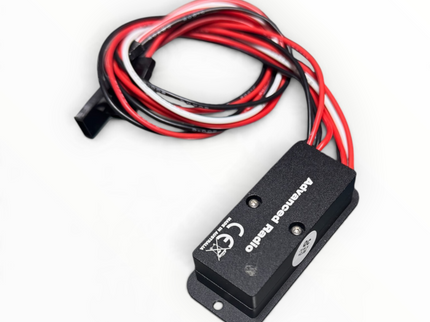

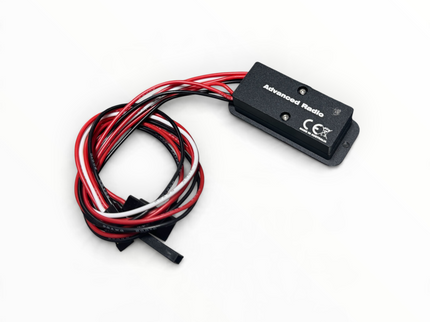

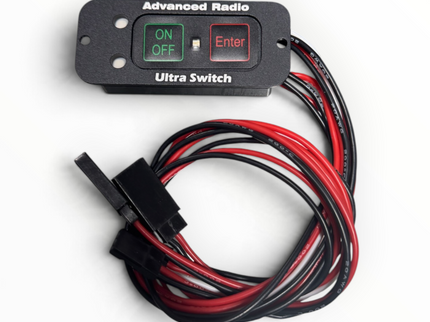

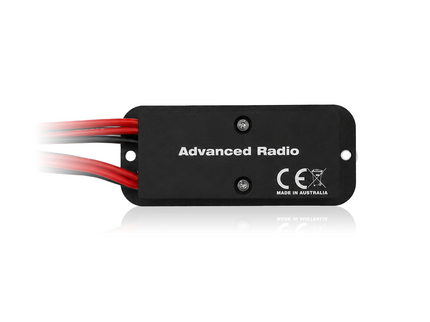

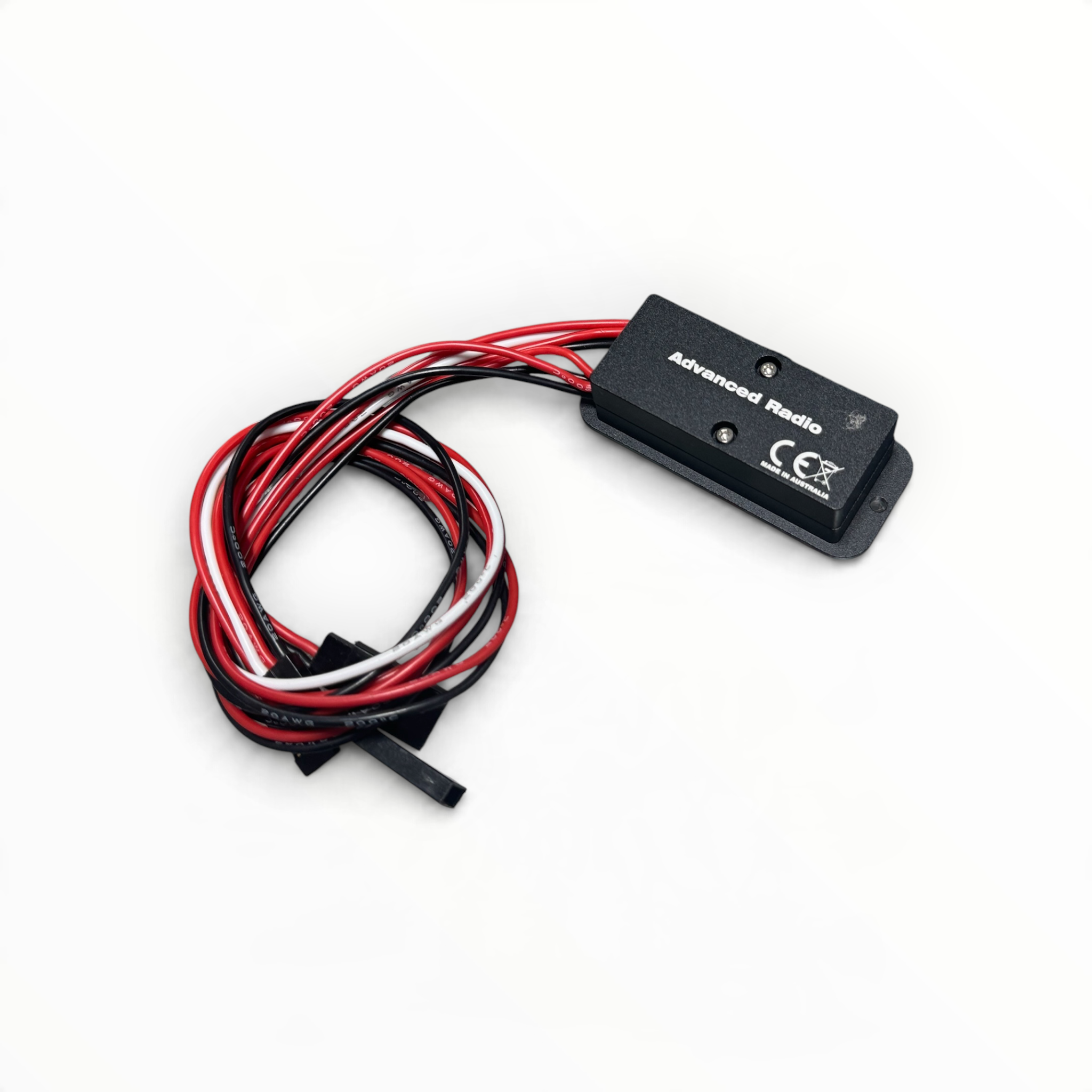

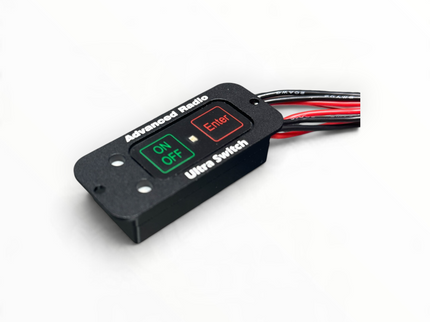

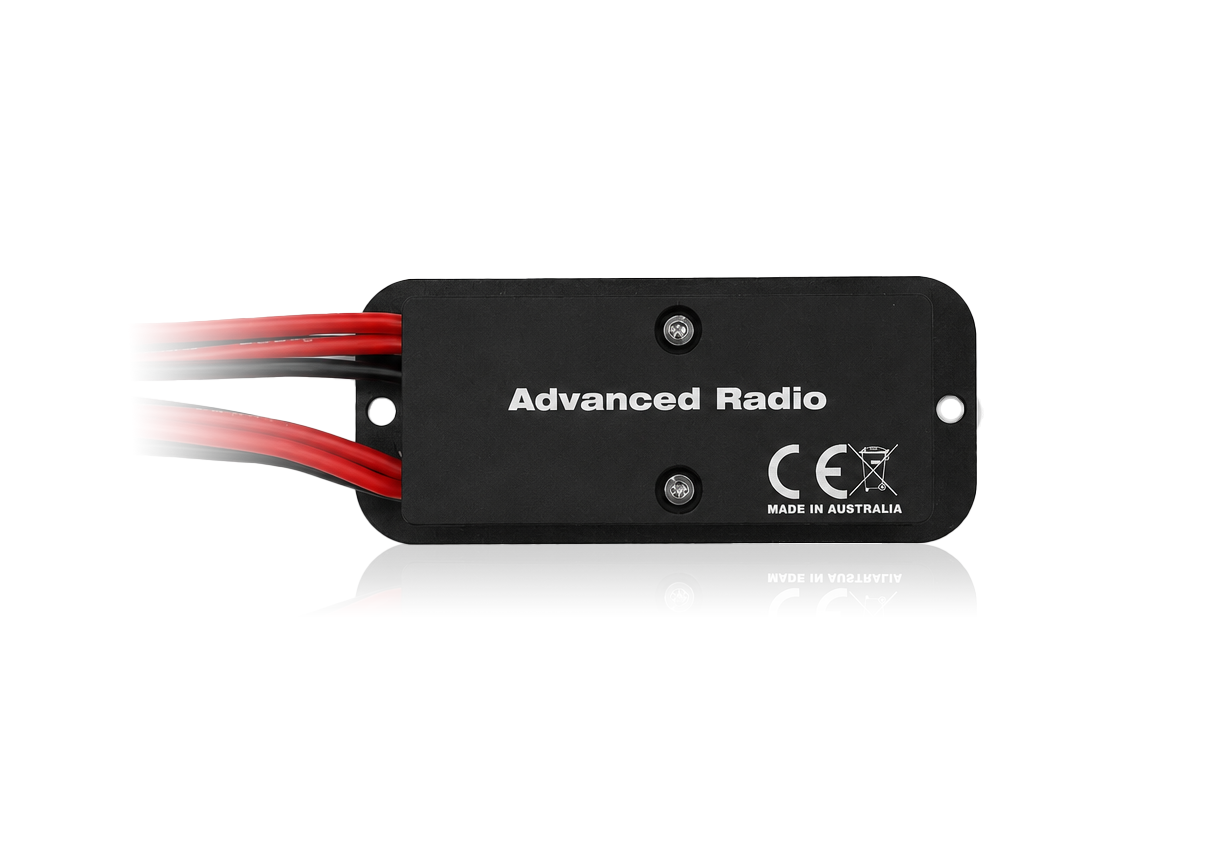

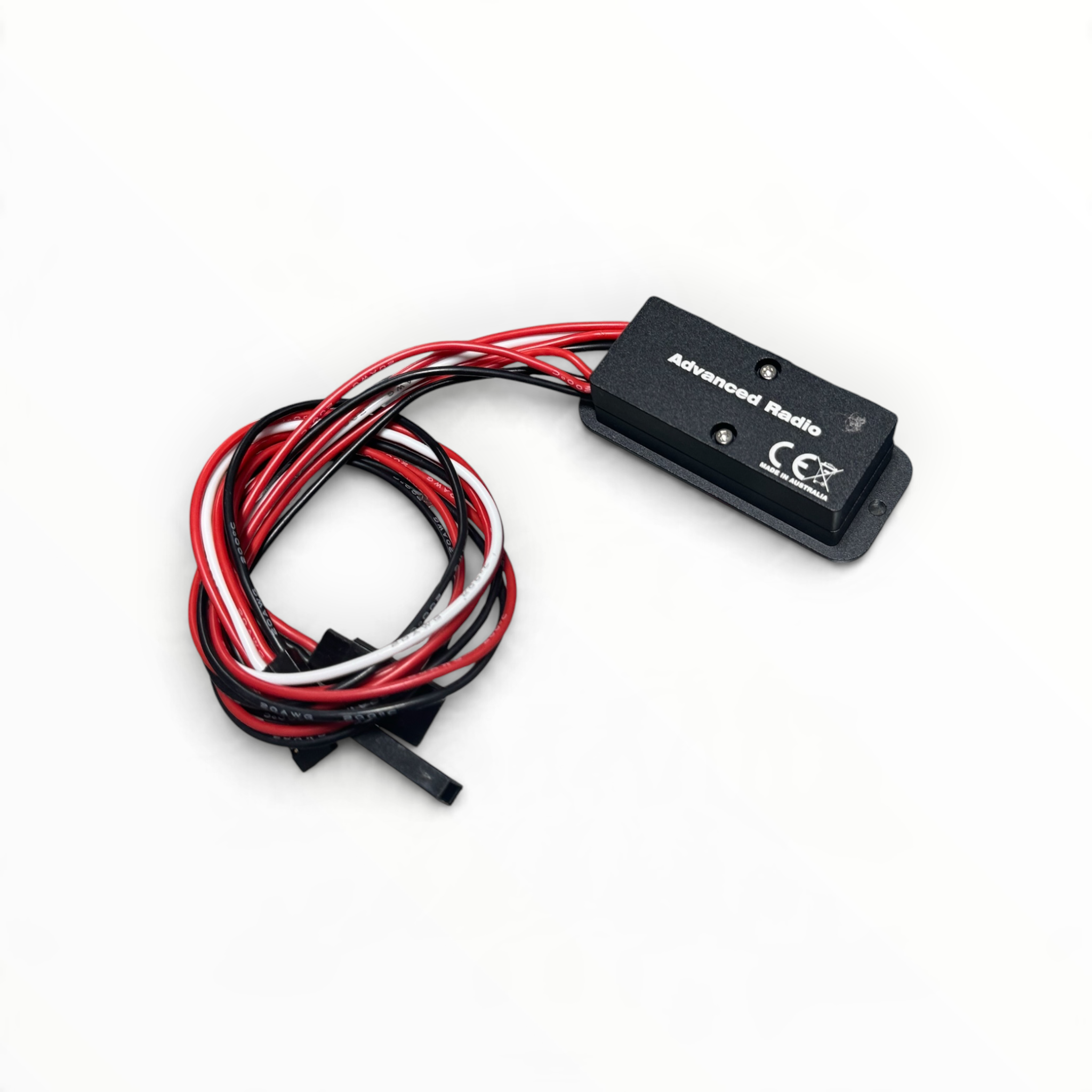

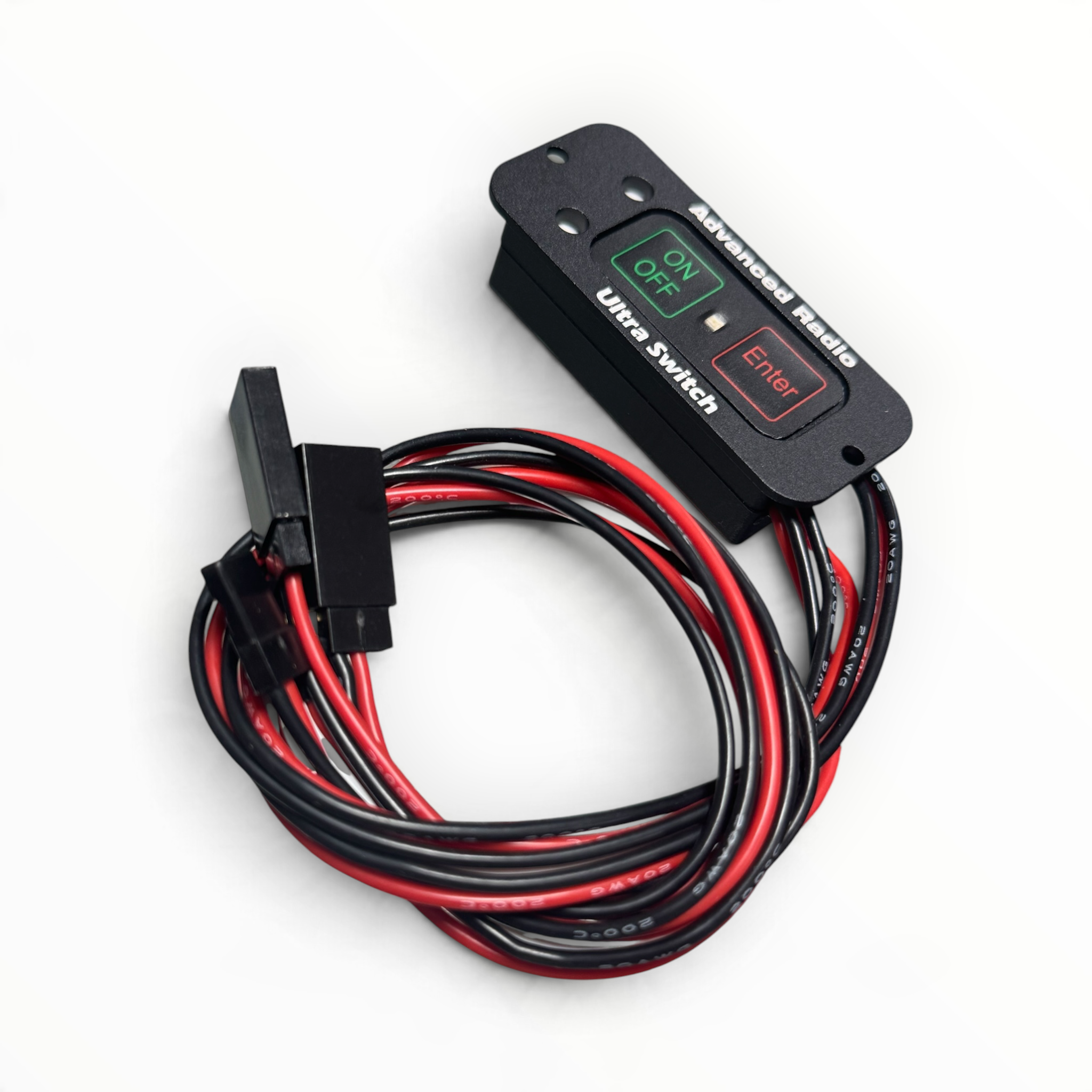

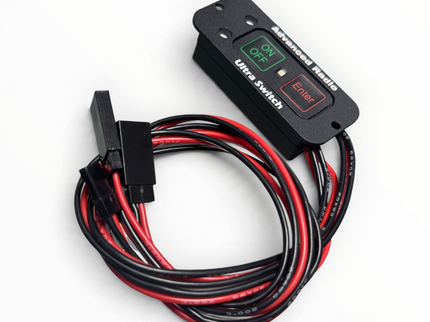

The Advanced Radio AR Ultra Switch is a lightweight, high-current power-management system designed for almost any RC aircraft. It combines dual battery inputs, active load sharing, two regulated power outputs and automatic telemetry detection into one ready-to-install unit.

Designed to provide additional power-system resilience, the Ultra Switch automatically transfers the full load to the remaining battery if one battery fails or becomes disconnected. This helps keep the radio and onboard electronics operating without requiring manual intervention.

Both power outputs deliver the same selected voltage, with selectable settings of 6.0V, 6.6V, 7.4V or unregulated 8.4V, allowing the system to be matched to a wide range of RC aircraft electronics and servos.

Automatic telemetry discovery removes the need to manually select a telemetry protocol. Where supported, pilots can monitor both battery voltages, current consumption and consumed capacity directly from their transmitter.

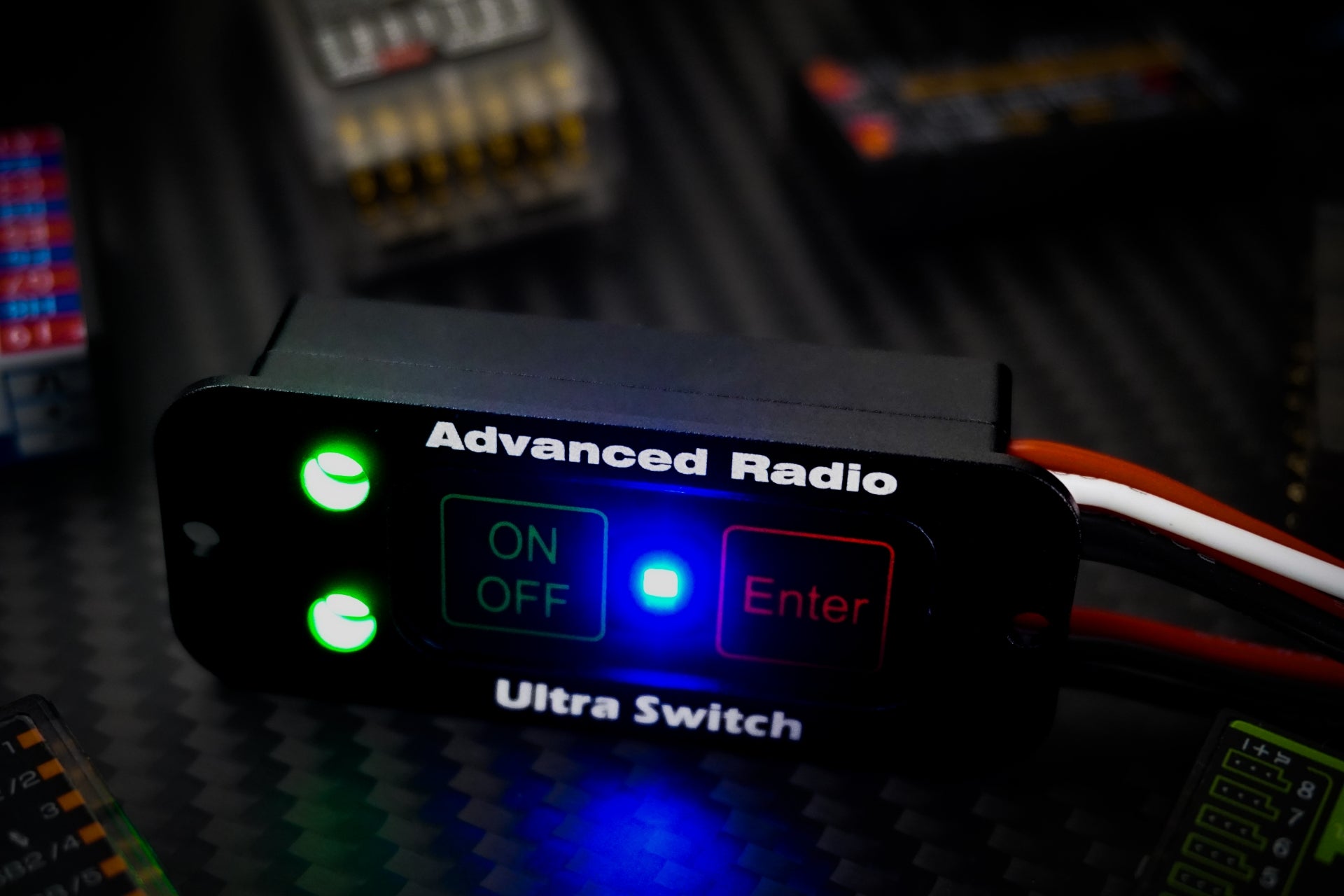

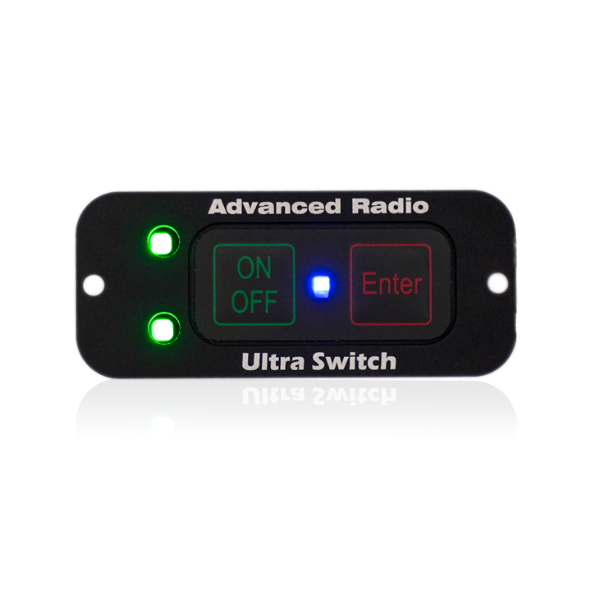

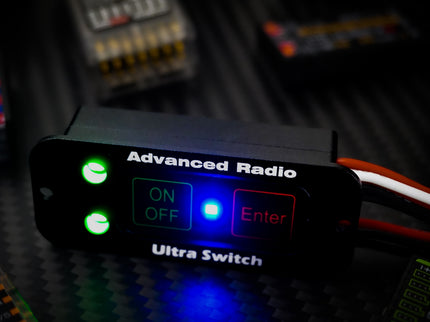

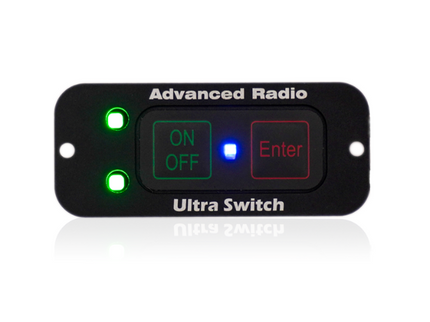

The AR Ultra Switch also features dual multicolour battery-status LEDs, a blue power indicator and a deliberate two-button shutdown sequence designed to help prevent accidental power-off during operation.

Designed and made in Australia.

Key Features

• Two battery inputs with active load sharing

• Automatically transfers the full load to the remaining battery if one battery fails or disconnects

• Two power outputs regulated to the same selected voltage

• Selectable 6.0V, 6.6V, 7.4V or unregulated 8.4V output

• Recommended for up to 10A continuous current when operating unregulated

• Tested at 20A for three minutes

• Tested at 40A for 20-second bursts

• Automatic telemetry protocol discovery

• Monitors both battery voltages, current draw and consumed capacity where supported

• Dual multicolour LEDs for battery monitoring

• Blue LED power-status indicator

• Two-button shutdown sequence helps reduce accidental switch-off

• JR-style connectors fitted and ready to use

• Suitable for a wide range of RC aircraft

• Designed and made in Australia

Perfect For

• Large-scale RC aircraft

• Sport and aerobatic aircraft

• Scale aircraft

• Electric aircraft

• Gliders

• High-performance RC models

• Aircraft using dual battery power systems

• Models requiring regulated receiver and servo power

• Installations where battery redundancy and telemetry monitoring are important

Product Summary

The AR Ultra Switch provides a compact and dependable way to manage dual battery power in an RC aircraft. Its active load-sharing system automatically uses the remaining battery if one power source fails or is disconnected, helping maintain power to the onboard radio system.

With dual power outputs, four selectable output options, automatic telemetry detection and high-current capability, the Ultra Switch is a versatile power-management solution for demanding RC installations.

Specifications

• Brand: Advanced Radio (AR)

• Product: Ultra Switch

• Product Type: Dual Battery Power Management System

• Battery Inputs: 2

• Power Outputs: 2

• Output Voltage Options: 6.0V / 6.6V / 7.4V / Unregulated 8.4V

• Load Sharing: Active

• Continuous Current Recommendation: Up to 10A when operating unregulated

• Tested Current: 20A for 3 minutes

• Burst Current: 40A for 20 seconds

• Telemetry: Automatic protocol discovery

• Telemetry Monitoring: Battery voltage, current draw and consumed capacity where
• supported

• Battery Indicators: Dual multicolour LEDs

• Power Indicator: Blue LED

• Connectors: JR-style connectors

• Shutdown: Two-button deliberate shutdown sequence

• Country of Design & Manufacture: Australia

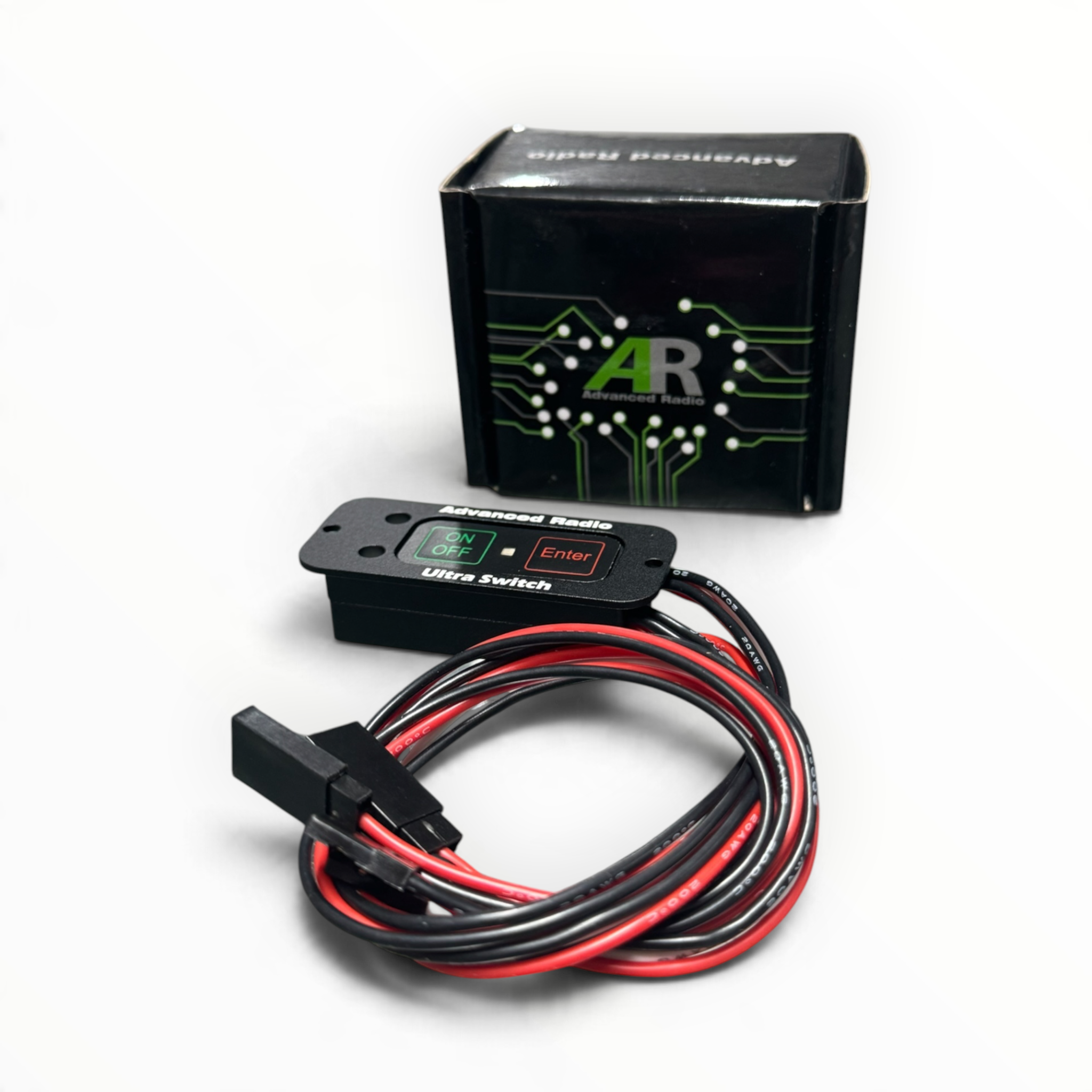

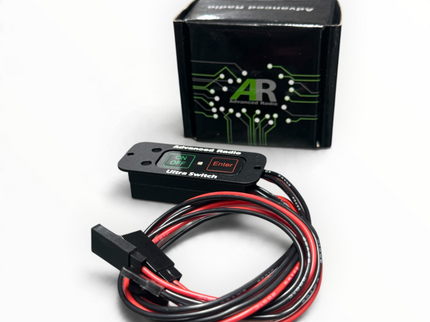

What's in the Box
1 × AR Ultra Switch
JR-style connectors fitted
