Description
Welcome the ILS-03 Light system from Advanced Radio. The newest and most feature packed scale lighting system available today. The Advanced Radio ILS-03 was developed in consultation with many world known scale RC pilots.
Super Bright Lights
The Advanced Radio ILS-03 LED lights are so bright you will see them 100’s meters/yards away in bright sunny conditions. These lights are so bright that you get the best scale look in the air and on the ground.
Simple to use design
Our designers have worked hard to make using the ILS-03 Lighting system simple and easy-to-use. With 2 rotary dials you can easily choose over 2500 different pattern combinations. Just rotate, set and forget.
Built in simulation LEDs
The Advanced Radio ILS-03 comes with simulation LED built into the main unit so you can try 1000’s of combinations to simulate the desired lighting effect before plugging into your main lights. Hours of fun.
6 lighting channels on 10 physical outputs.
ILS-03 offers 6 separate lighting channels for example: left/right NAV or front/rear strobe etc.
Channel 1 – Strobe1/Beacon1 with 14 lighting patterns.
Channel 2 – Strobe2/Beacon2 with 16 lighting patterns.
Channel 3 – Strobe3/Navigation channel with 16 lighting patterns.
Channel 4 – Landing lights with on/off control.
Channel 5 – Afterburner1/Auxilliary1.
Channel 6 – Afterburner2/Auxilliary2.
Advanced Switching option
Switching the ILS-03 lighting module on and off is simple. Just plug a signal wire from your receiver and use one of your transmitter’s 3 stage switches or slider as the master control. The 3 stage switch is assigned as follows:
1) Switch off (Master Switch) = All lights OFF.
2) Switch position 1 = Strobes and NAV lights ON. Landing lights OFF.
3) Switch position 2 = Strobes and NAV lights ON. Landing lights ON.
ILS-03 lighting system comes with the following Strobe/Beacon Patterns.
| SW Position | Switch1/Strobe1 | Switch2/Strobe2 | Strobe3/NAV |
| 0 | Short Flash | Short Flash | Short Flash |
| 1 | Long Flash | Short Flash Opp Phase | Short Flash Opp Phase |
| 2 | Double Short Flash | Long Flash | Long Flash |
| 3 | Double Long Flash | Long Flash Opp Phase | Long Flash Opp Phase |
| 4 | Short Short Long Flash | Double Short Flash | Double Short Flash |
| 5 | Long Long Short Flash | Double Short Flash Opp Phase | Double Short Flash Opp Phase |
| 6 | Short Long Short Flash | Double Long Flash | Double Long Flash |
| 7 | Long Short Long Flash | Double Long Flash Opp Phase | Double Long Flash Opp Phase |
| 8 | Rotating Beacon | Short Long Short Flash | Short Long Short Flash |
| 9 | Double R.B. | Long Short Long Flash | Long Short Long Flash |
| A | Learn Nav On Switch Position | Short Short Long Flash | Short Short Long Flash |
| B* | Learn Landing On Switch Position | Long Long Short Flash | Long Long Short Flash |
| C* | Copy Strobe 2 to Nav | Rotating Beacon | Rotating Beacon |
| D* | Learn After Burner ON Throttle PWM | Rotating Beacon Opp Phase | Rotating Beacon Opp Phase |
| E* | Switch Between Guns and Afterburner effect | Switched On | Switched On |
| F* | Factory Reset | Beacon Flash | Beacon Flash |
With this amount of flexibility you are guaranteed to have the right lighting scheme for your model.
Click Here to view the ILS-03 quick start guide
Specifications:
- Super Bright long life 12V LED Bulbs - visible up to a mile/kilometre away in bright sunny conditions.
- 6 separate lighting channels.
- For turbine models - dual afterburner port for dual colour afterburner ring. (Afterburner ring sold separately)
- For non turbine models dual AUX ports for additional light features.
- Master Control to turn lights on and off with via your transmitter.
- Separate switchable landing lights.
- Over 2500 different Strobe combinations on 3 channels.
- Battery Input: 6volts – 12volts. (Recommended 1100ma minimum capacity)
- Dimensions: 70mm x 40mm 20mm (2.75 x 1.57 x 0.78 inches).

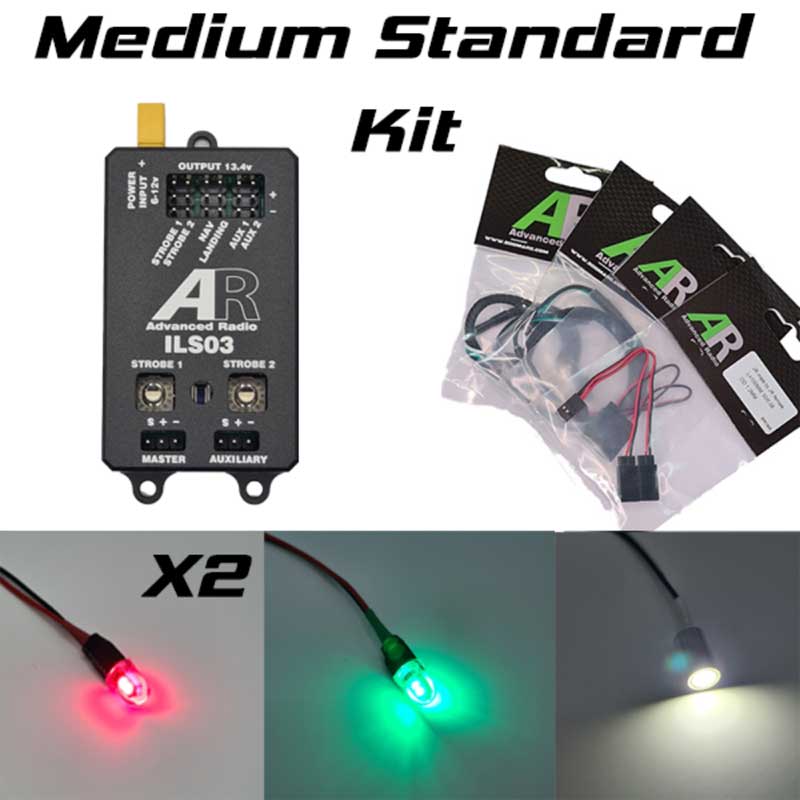

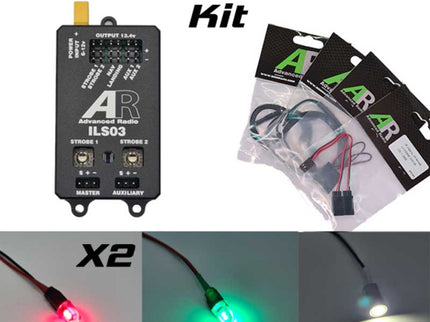

AR ILS-03 Std Medium Sized Globe Kit
