Description

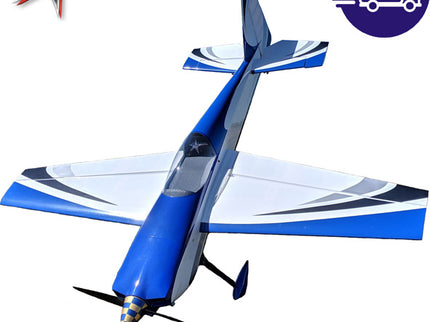

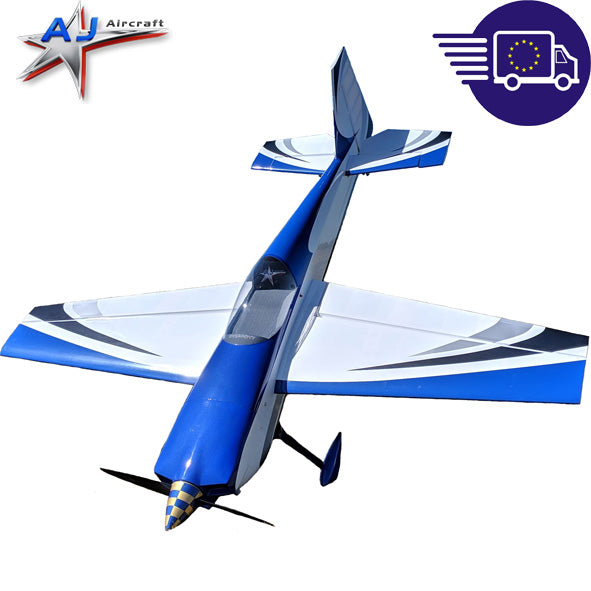

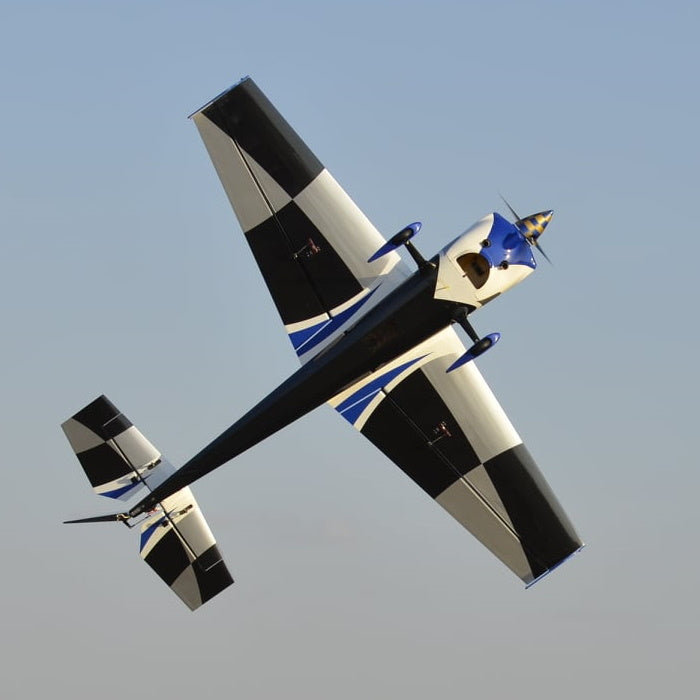

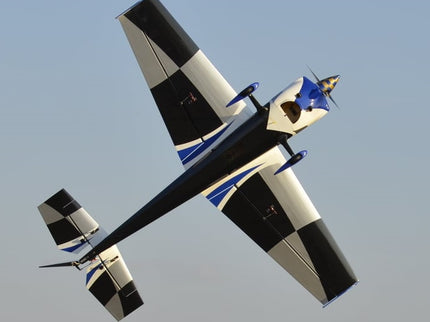

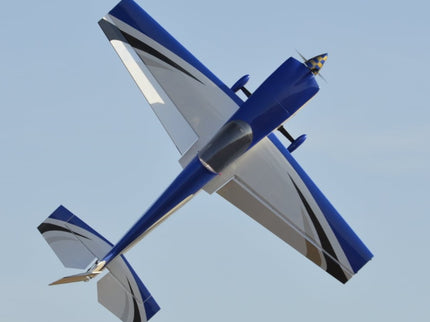

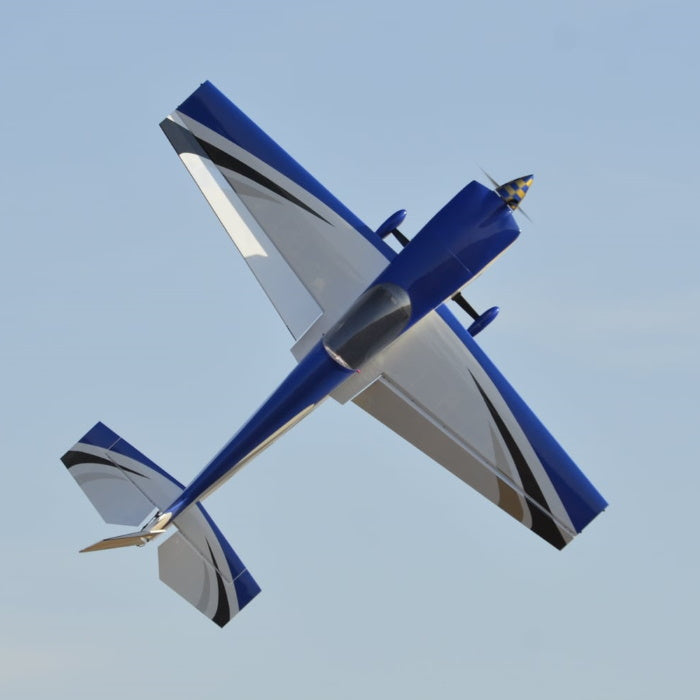

AJ Aircraft 92" Laser Z200 – Blue
The AJ Aircraft 92" Laser Z200 is engineered for the serious RC pilot who demands rugged durability and outstanding performance. Featuring Carbon-Kevlar plywood construction, a quick-release canopy and wing system, and dual stabilizer locations, the Laser Z200 offers a broad flight envelope with outstanding control and precision.
Built for both gas (60-70cc) and electric power setups, this versatile airframe is ready for high-torque servos and aggressive 3D manoeuvres.
Airframe Specifications:
Wingspan: 92"
Length: 88"
Height: 27"
Wing Area: 1640 sq. in.
AUW (dry): 18–19 lbs

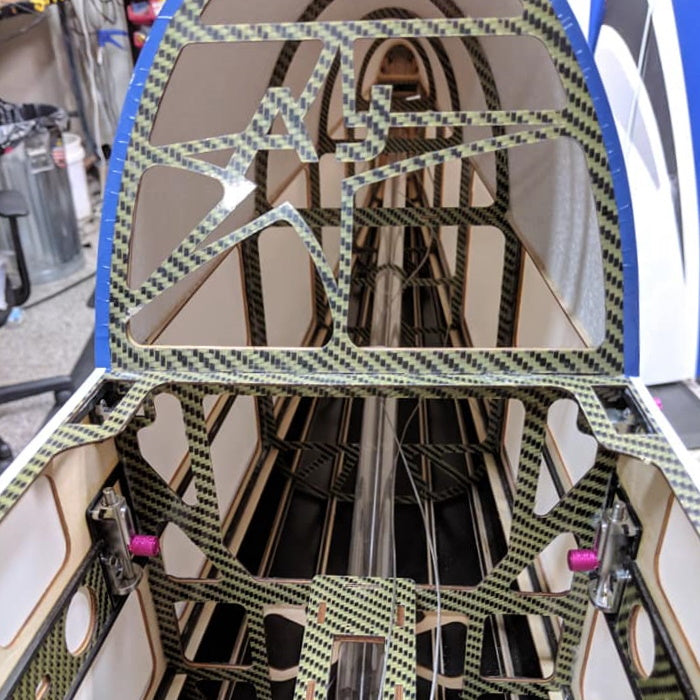

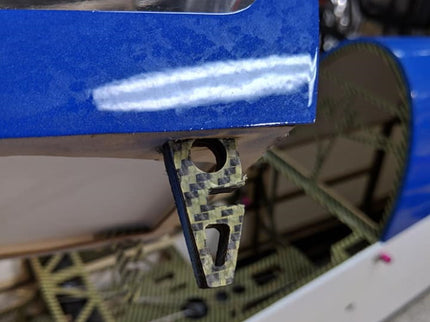

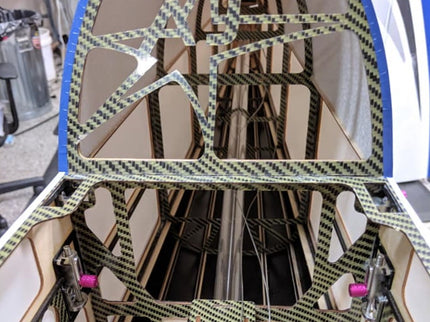

Construction: Carbon-Kevlar reinforced firewall, landing gear mounts, and structure
Covering: Genuine Ultracote in Blue or Green colour schemes
Landing Gear: Carbon fibre main gear, heavy-duty foam wheels with aluminium hubs
Wing Tube: Carbon fibre
Control Surfaces: Pre-hinged and glued ailerons and elevators

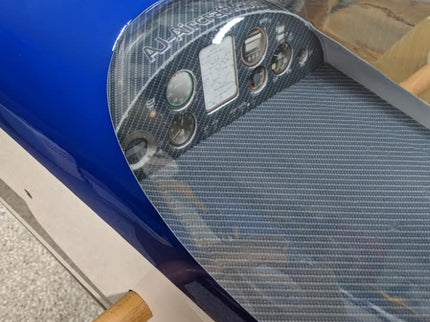

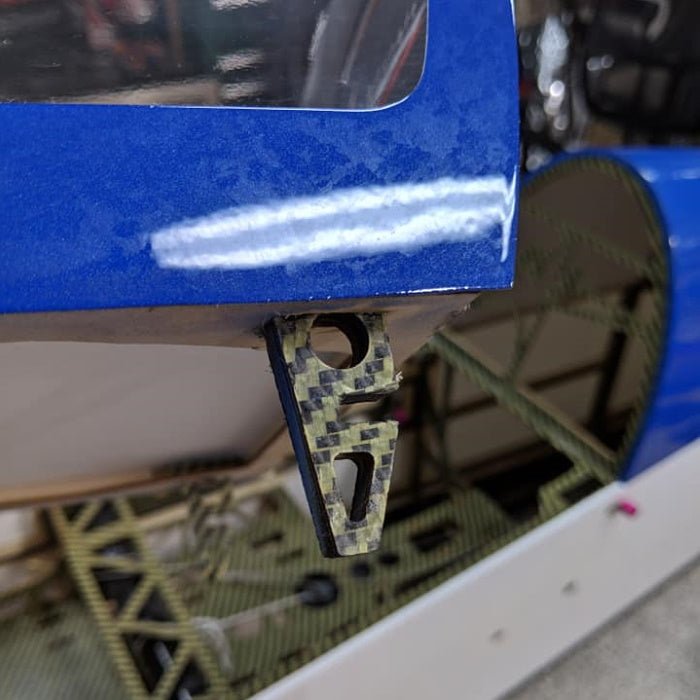

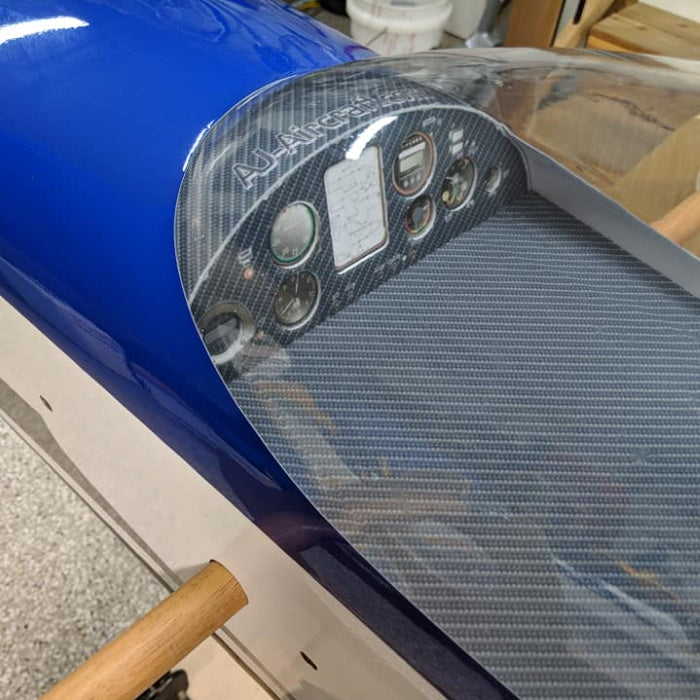

Extras: Quick-release canopy and wing system, full canister tunnel, pull-pull rudder wires, hardware bag, cockpit details included
Recommended Gas Setup:

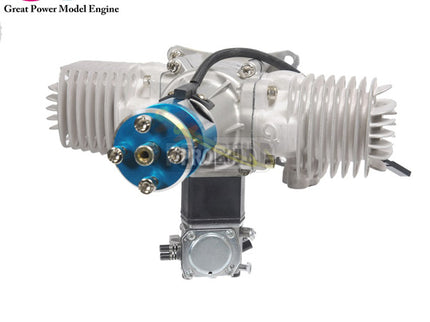

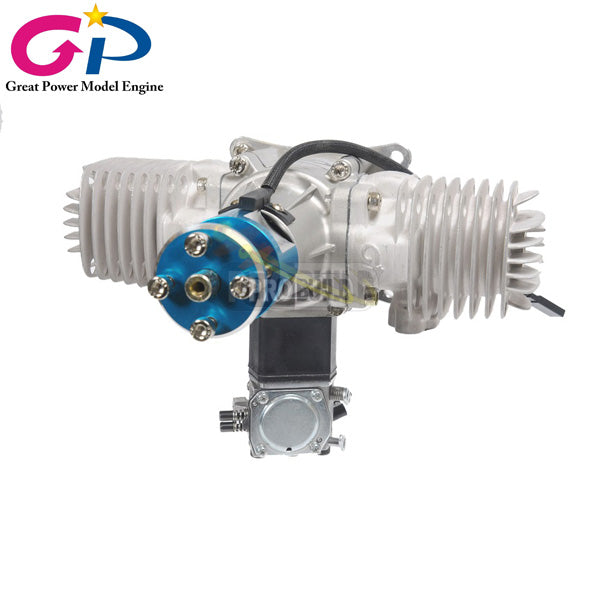

Engine: DA-70cc or GP-76cc
Propeller: 24x10 (Gas)

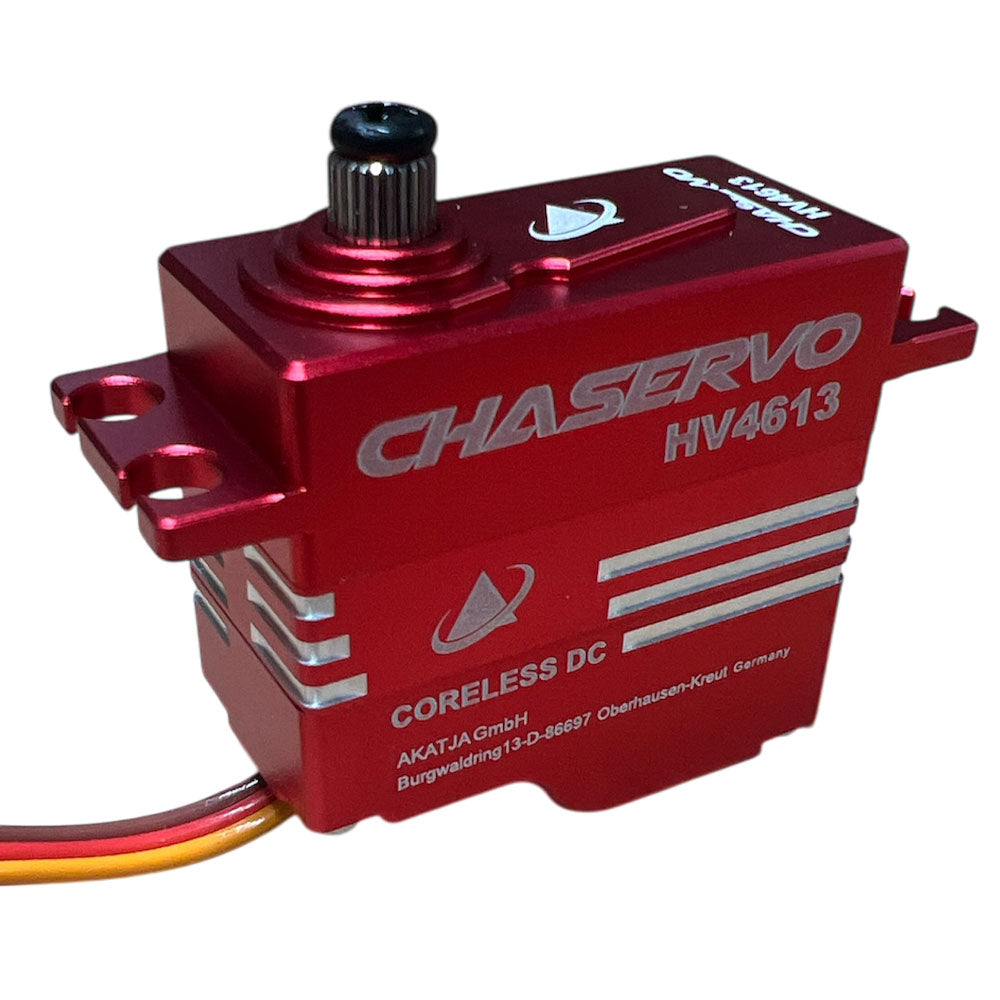

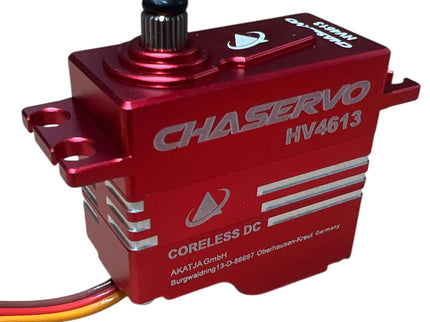

Servos: 5x Chaservo HV4613 (400 oz./in minimum)
Spinner: 82mm
-
Extensions Needed:
2x 6" aileron
2x 48" elevator
1x 12" ESC (or throttle/ignition for gas)
Recommended Electric Setup:

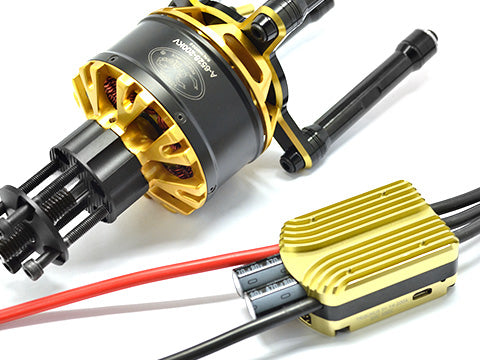

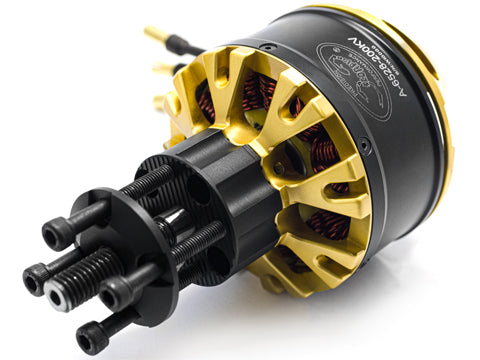

Motor & ESC: Scorpion A-6528 PNP Combo
Propeller: 24x10 Falcon E-Carbon
Batteries: 2x 6S 5200–6500mAh LiPos
Spinner: 82mm
Servos: 5x Chaservo HV4613 (400 oz./in minimum)
-
Extensions Needed:
2x 6" aileron
2x 48" elevator
1x 12" ESC
Radio & Control Throws:
Channels: 7 (includes throttle servo for gas)
Recommended CG: 7" behind the leading edge at the wing root (±1")
Control Throws:
-
Ailerons:
Low: 15° (30% Expo)
Mid: 35° (40% Expo)
High: 45° (50% Expo)
-
Elevator:
Low: 15° (30% Expo)
Mid: 35° (50% Expo)
High: 45° (60% Expo)
-
Rudder:
Low: 15° (30% Expo)
Mid: 35° (40% Expo)
High: Max (50% Expo)
Additional Items Needed:
-
Servo Arms:
2x ef 1.5" servo arms for ailerons
2x ef 2" servo arms for elevators
1x kuza 3.50" double servo arm for pull-pull rudder
-
Servo Extensions:
2x MXP single wire servo connectors
2x 48" elevator extensions
1x 12" ESC extension (electric)
1x 12" throttle servo & ignition extension (gas)
Spinner: 4.5" recommended
Fuel Tank: AJ Aircraft Gas Tank - 24oz (700ml) (for gas setups)
Shipping Info:
This product ships in two separate boxes due to size.
