Description
NEW GENERATION 1.2: Featuring redesigned elevators, stabs and rudder!
The 411:
- Wing Span - 103"
- Length - 100"
- Height - 27"
- Wing Area -
- AUW (dry) - 26-27 lbs.
- Gas Power - 100cc to 120cc
- Radio - 9 channel with 8 high torque servos (400 oz./in minimum) Savox 2290 recommended & 1 throttle servo jx 6210 recomended
- IMAC Legal!
Recommended CG Range and Control Throws
- The center of gravity (CG) range for the 103" AJ Slick 540 is located 1-1/2" in front of the wing tube (+/- 1/2")
- Aileron Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Elevator Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Rudder Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - Max Throw (50% Exp)
What's in the box:
- NEW - Carbon-Kevlar plywood construction!
- NEW - Carbon-Kevlar reinforced landing gear mount!
- NEW - Carbon-Kevlar reinforced firewall!
- NEW - Durable, lightweight one piece cowl design!
- NEW - Canopy complete with cockpit!
- Pre-hinged, glued and sealed ailerons & elevators
- High-quality embroidered cloth wing bags & stab bags
- 5" carbon fiber spinner pre-cut for two blade prop
- Carbon fiber main landing gear
- Carbon fiber main wing tube
- Dual carbon fiber stab tubes
- Removable horizontal stabs & rudder
- G10 fiberglass control horns
- Aluminum standoffs for gas engines
- Full-length canister tunnel
- Canister muffler mounts
- Heavy duty foam wheels with aluminum hubs
- Heavy duty steel axles
- Heavy duty pre-drilled wheel pants
- Pre-drilled & rubber lined landing gear cuffs
- Firewall drilling templates for common engines
- Pre-run rudder pull-pull wires
- High quality ball links & turnbuckles for all connections
- Extra hardware bag for spares
- Velcro for fuel tank or battery restraint
- All airframe components covered in genuine Ultracote (White HANU870, True Red HANU866, Midnight Blue HANU885, Cub Yellow HANU884)
NOTE: This product is shipped in two separate boxes.
AJ flies this airframe with the following equipment:
- Engine - Desert Aircraft 120cc twin cylinder gas engine
- Exhaust - (2) x KS3086 Canister Mufflers with 90mm Drop Header
- Propeller - Falcon 28x10
- Servos
- (8) x Futaba S9177SV Servos (S.Bus2) for all surfaces
- (1) x Futaba 9670SV for throttle
- Gas Tank - (1) x AJ Aircraft single 34oz (1000ml)
- Ignition Kill - Powerbox Spark Switch 5.9v
- Engine Baffle - AJ Aircraft 103" AJ Slick 540 Baffle Set
- Servo Extensions
- (4) x 6" extensions for receiver to ailerons
- (2) x 6" extensions for inner aileron
- (2) x 24" extensions for outer ailerons
- (1) x 24" extension for throttle servo
- (1) x 24" extension for ignition kill
- (2) x 36" extensions for push-pull rudder (only needed for push/pull setup)
- (2) x 60" extensions for elevators
- Aluminum Servo Arms
- (4) x 1.75" single arms for ailerons
- (2) x 1.75" single arms for elevators
- (2) x 1.75" single arms for rudder (only needed for push/pull setup)
- (1) x 3.50" double arm for rudder

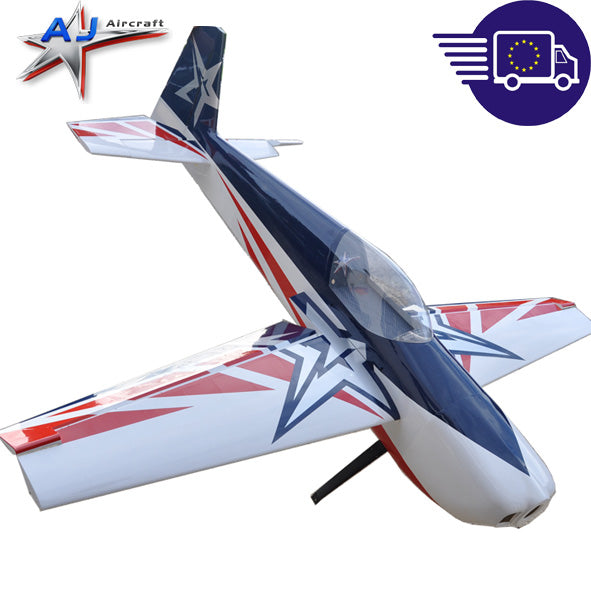

AJ Aircraft 103" AJ Slick 540 - Generation 1.2 Red/Blue
