Expand the versatility of your compatible FrSky transmitter with this 4-in-1 multiprotocol TX module for radios equipped with a Lite external module bay. The module combines four RF chips — CC2500, NRF24L01+, A7105 and CYRF6936 — into a single compact unit, providing support for a wide range of 2.4GHz radio-control protocols.

Compatible with the Multi-module project, the module uses an ARM microcontroller and supports available protocols through serial mode. Model protocol selection and binding can be managed directly through the transmitter's Model Settings menu when the transmitter firmware supports the module. Telemetry integration is also supported on compatible telemetry-capable transmitters.

Supported protocol families include Futaba S-FHSS, Walkera DEVO, Spektrum DSM2/DSMX, Flysky, FrSky, WLToys, Hubsan, HiSky, Esky and Assan, giving pilots the flexibility to operate a wide range of compatible models from one transmitter.

Important Notice
Before using this module with a FrSky ETHOS radio, download the required LUA script and place it in the appropriate Scripts folder on the transmitter's SD card. The transmitter firmware should also be updated to the latest available version where required.

Key Features

• 4-in-1 multiprotocol transmitter module

• Designed for FrSky radios with a Lite external module bay

• Integrates CC2500, NRF24L01+, A7105 and CYRF6936 RF chips

• Supports a wide range of 2.4GHz RC protocols

• Compatible with the Multi-module project

• ARM Cortex-M microcontroller

• Serial communication mode

• No transmitter hardware modification required for serial operation

• Protocol selection and binding through compatible transmitter Model Settings

• Telemetry integration on compatible transmitters

• RF output power up to +22dBm

• Compact solution for controlling models using different radio protocols

Supported Protocol Examples

• Futaba S-FHSS

• Walkera DEVO

• Spektrum DSM2

• Spektrum DSMX

• Flysky

• FrSky

• WLToys

• Hubsan

• HiSky

• Esky

• Assan

Perfect For

• FrSky transmitters with a Lite external module bay

• Pilots who operate models using different radio systems

• ETHOS radio users wanting additional multiprotocol capability

• Hobbyists with mixed-brand RC model collections

• Pilots looking for a single transmitter solution for multiple 2.4GHz protocols

Product Summary

The 4-in-1 Multiprotocol TX Module provides compatible FrSky Lite-module-bay transmitters with access to a broad selection of 2.4GHz RC protocols. With four integrated RF chips, ARM processing, serial communication and telemetry support, it offers a flexible way to control models using different radio systems without modifying the transmitter hardware.

Specifications

• Module type: 4-in-1 Multiprotocol TX Module

• Compatible transmitter interface: FrSky Lite external module bay

• RF chips: CC2500, NRF24L01+, A7105, CYRF6936

• Operating voltage: 5–9V

• Operating current: ≤180mA

• Operating frequency: 2.4GHz ISM band

• RF power: +22dBm

• MCU: ARM Cortex-M

• MCU memory: 128K ROM / 20K RAM

• Weight: 32g

• Communication: Serial protocol

• Telemetry: Supported on compatible transmitters

• Firmware: Compatible with the Multi-module project

LUA Script Notice
For use with FrSky ETHOS radios, the required LUA script must be downloaded and placed in the transmitter's SD card Scripts folder. The transmitter should also be running the latest compatible firmware.

Package Included

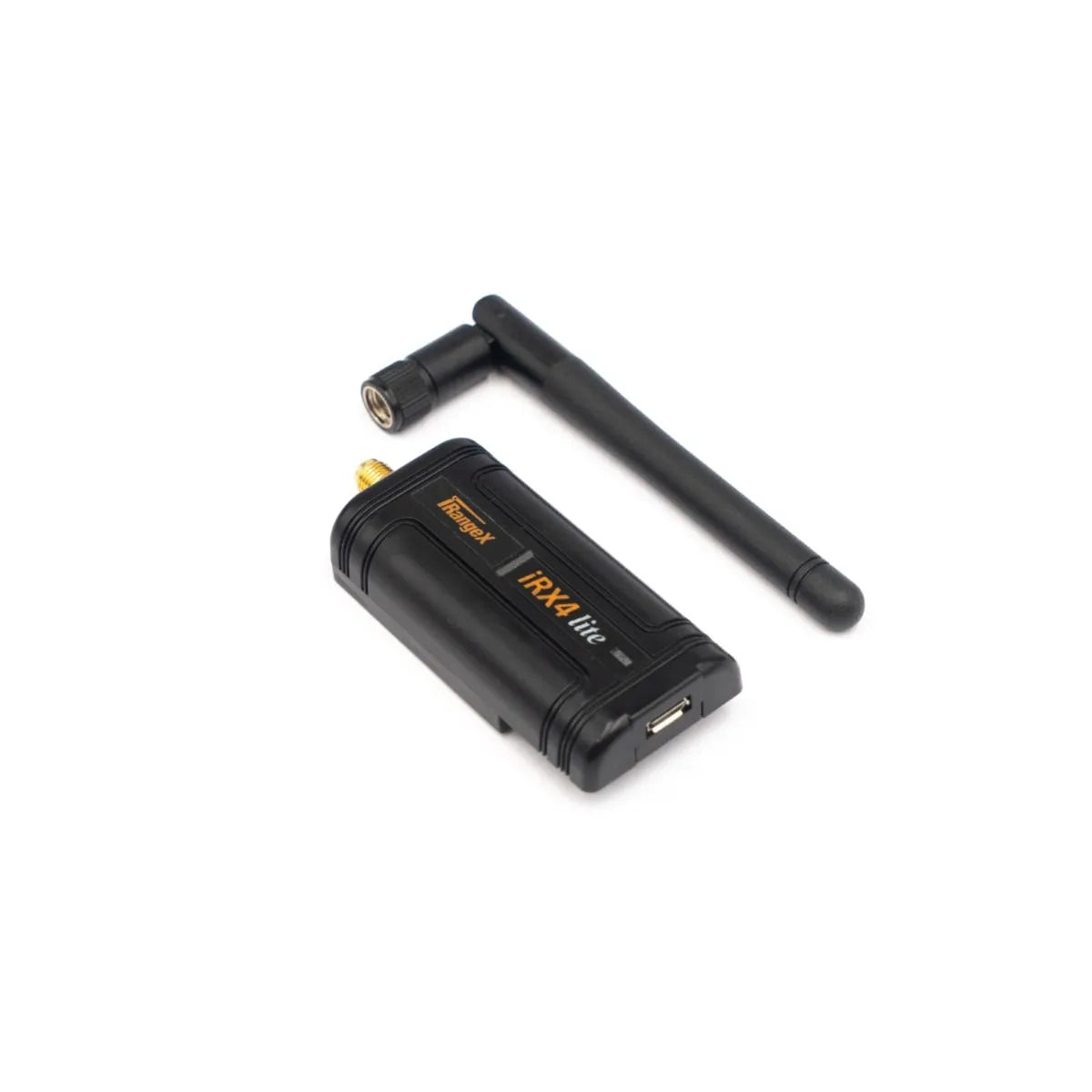

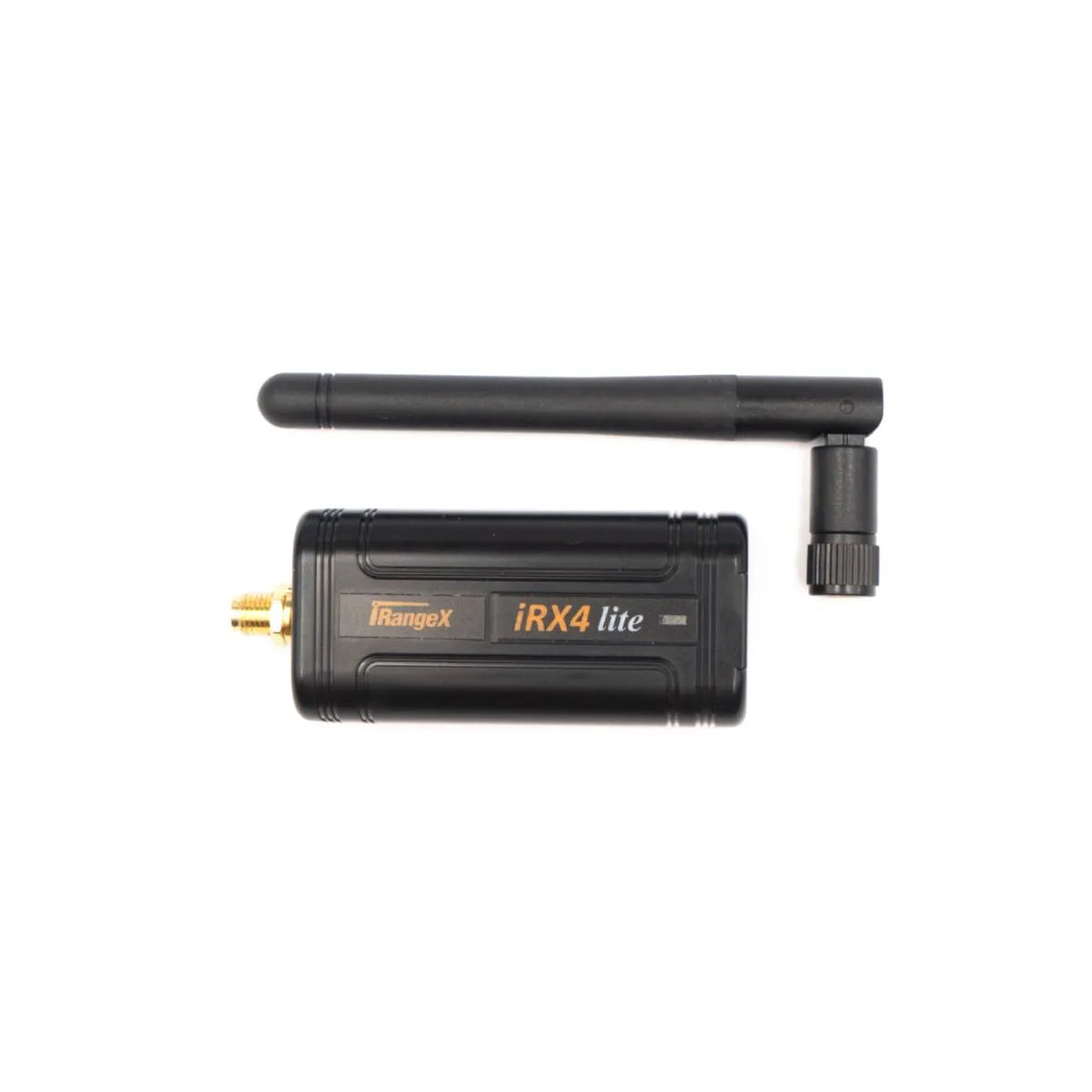

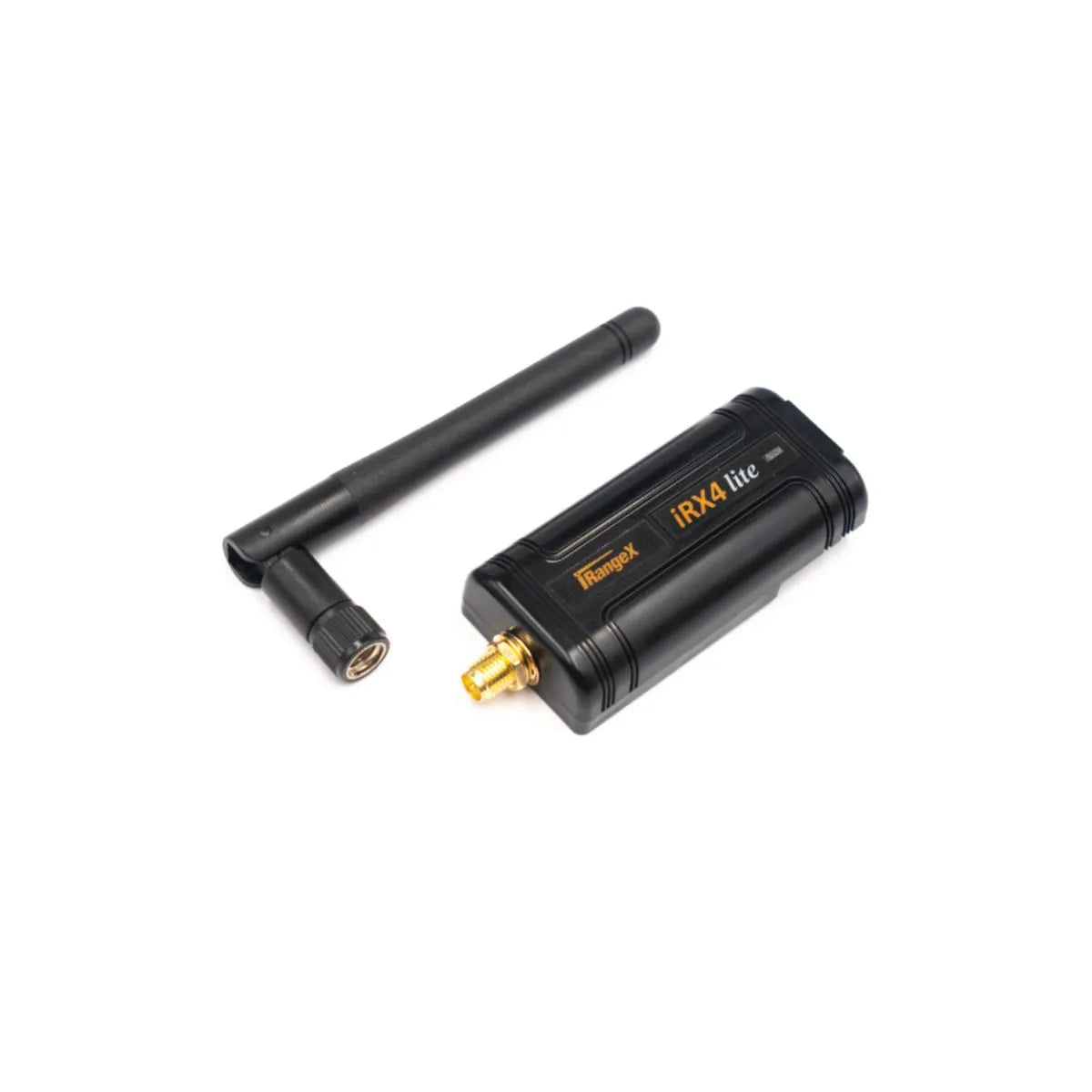

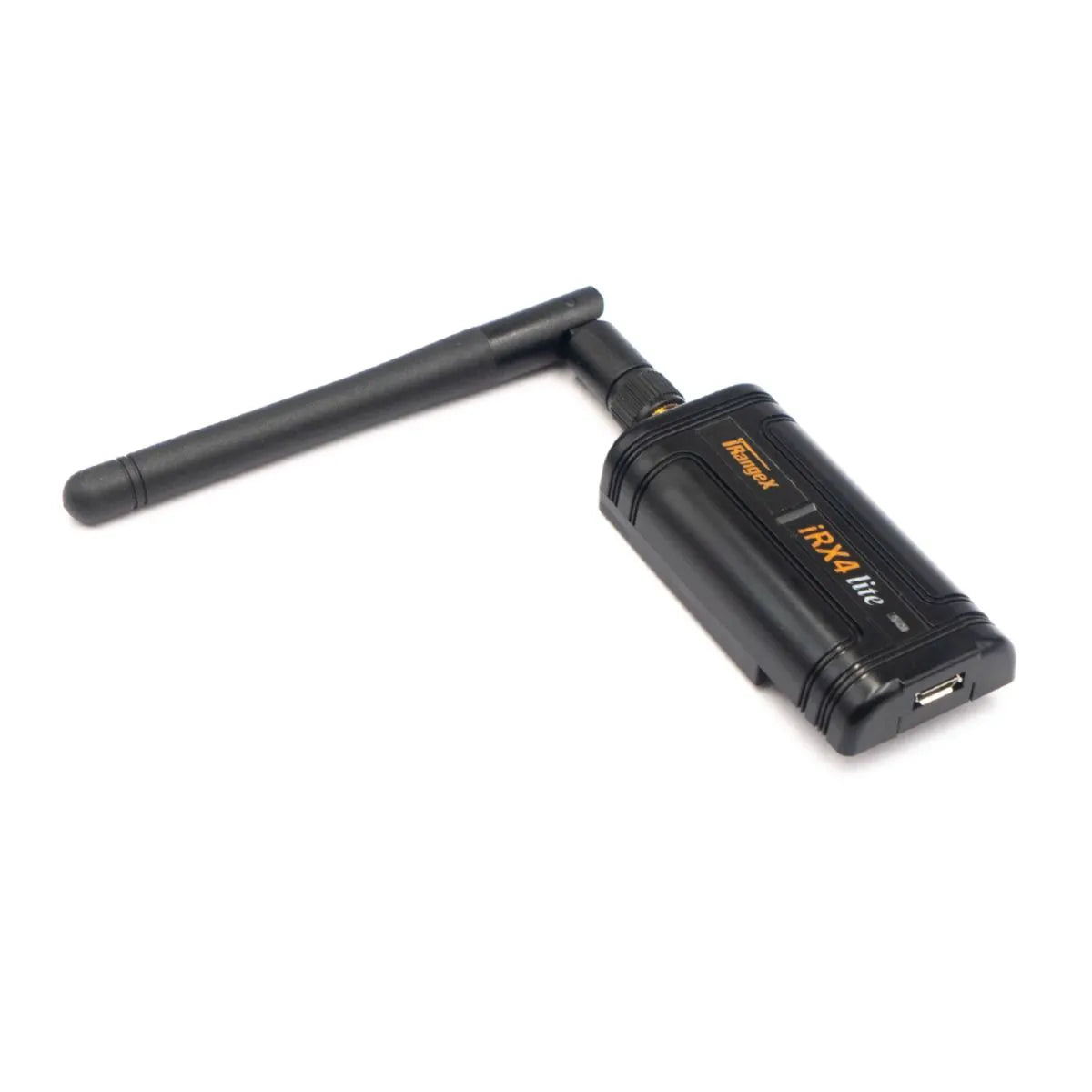

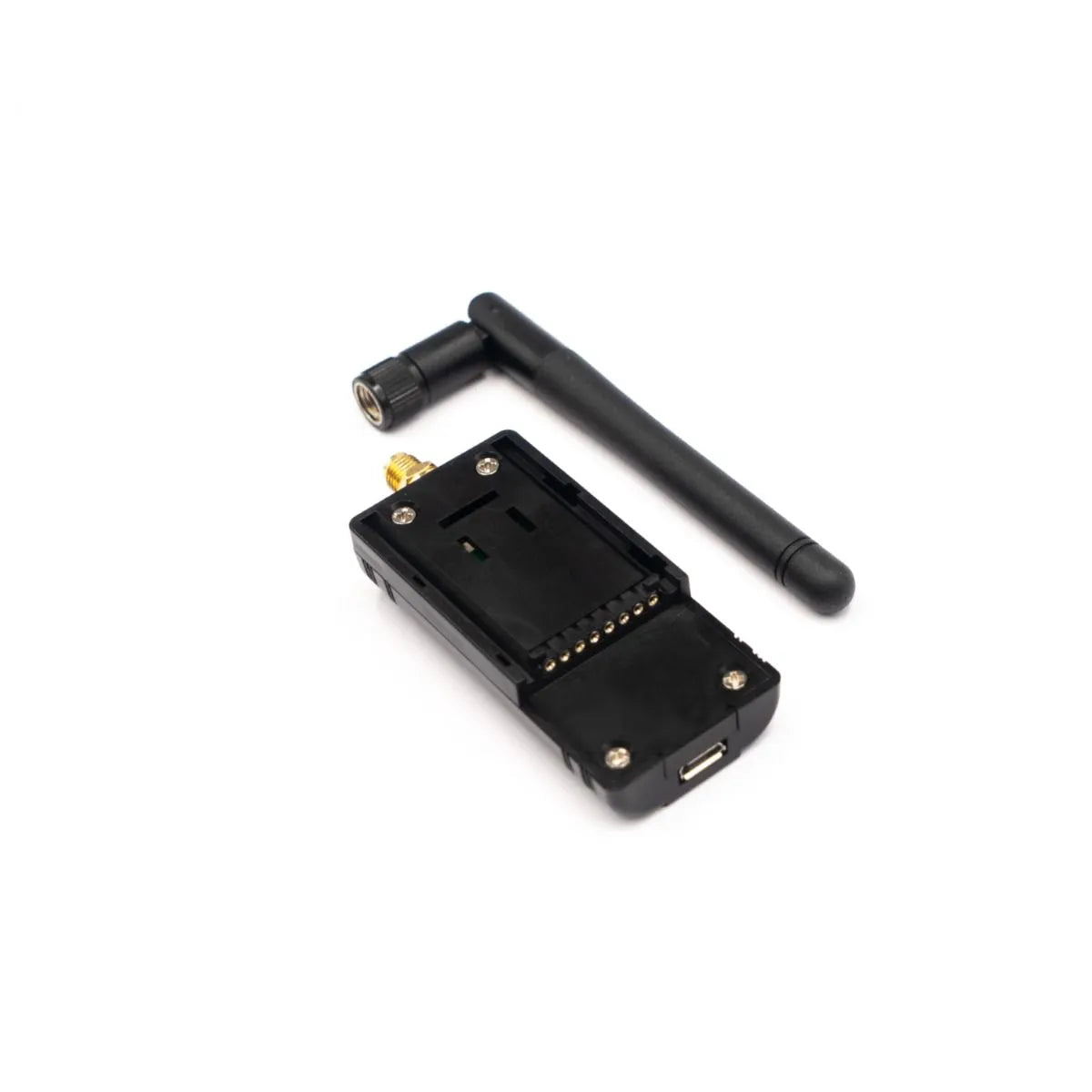

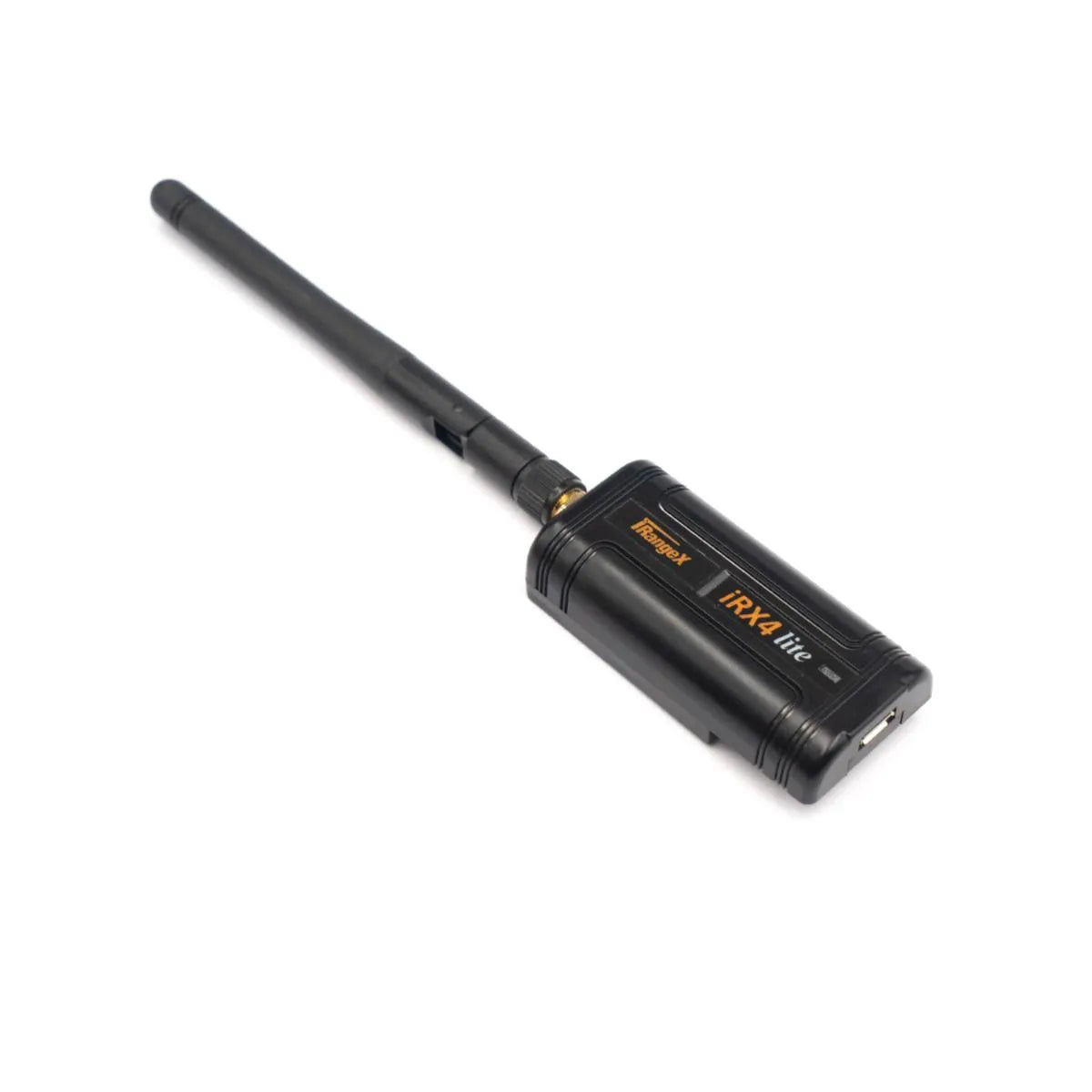

• 1 × IRX4 LITE TX Module
