Description

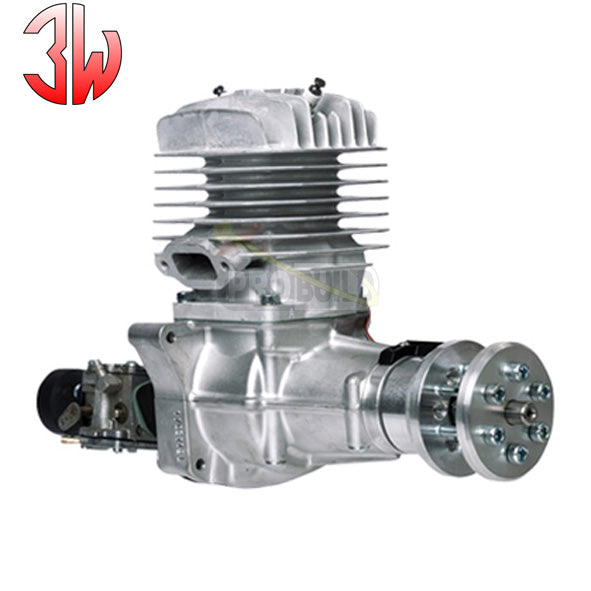

3W-85Xi TS




A good choice for : Aerobatic models, Scale models or airplane models for towing Sailplanes. The crankshaft with its 3 ball bearings convinces with soft running characteristics. With a suitable 3W-muffler system a power out put is possible which is close to competitor engines with 100ccm capacity. Due to the weight to power ratio the engine is suitable for a wide range of models. Characteristics are its long life, power and reliability.

TS ‚ÄìVersion ( Twin Spark , 2 spark plugs per cylinder ) convinces with a low idle and softer running characteristic.  All boxer engines with this set up have a better reliability. In case 1 ignition will fail the 2nd. ignition - which operates autonomously ‚Äì allows the engine to run further with reduced RPM ( 200 ‚Äì 300).

The micro processor controlled igniton allows to easy start  the engine. The programmed timing curve is laid out for the engines and guarantees a good running characteristic in all RPM ‚Äì ranges. An out put signal to monitor RPM is standard as well as a LED showing the status of the ignition. The voltage range of the standard ignition : 4,8V ‚Äì 8,4V ( 2 cell LIPO battery ). Operating Voltage : 6,0 V.


Shipment Includes:


  • Engine

  • Ignition

  • Spark Plugs

  • Prop washer

  • Prop screws

  • Carburetor arm

  • Engine manual

  • Exhaust Gaskets

  • Intake Manifold


Techn. specifications


Cylinder capacity

5.11 cu in

Power

9.40 HP

Power Rating

6.91 KW

Bore Diameter

2.00 inch

Stroke

1.61 inch

Speed range

1100 - 8500 rpm

Weight

5.28 lbs, incl. Ignition

Crankshaft

bearings

Oil / Gasoline Ratio

1 : 50 / 2% Mix

IIS - Ignition

4,8 - 7,4 V

Propeller 2-bladed

26x10; 26x12; 28x10

Propeller 3-bladed

22x12; 23x12; 24x10




Product form

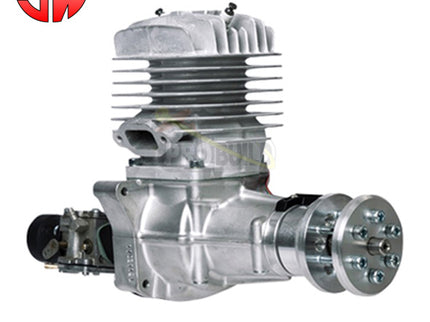

3W-85Xi TS Single Cylinder Petrol Engine

£1,144.00Incl. VAT

SKU: 10.001.020

  • Official UK stockist

  • Fast, reliable Worldwide shipping

  • Trusted by pilots since 1993
