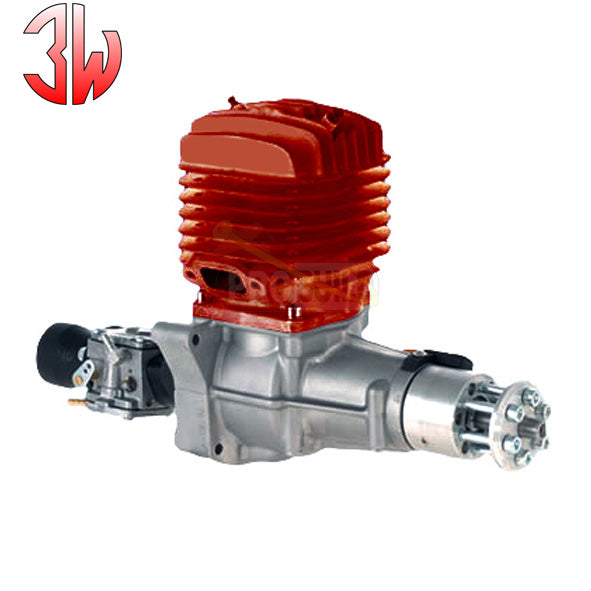

3W-85Xi TS CS

A good choice for : Aerobatic models, Scale models or airplane models for towing Sailplanes. The crankshaft with its 3 ball bearings convinces with soft running characteristics. With a suitable 3W-muffler system a power out put is possible which is close to competitor engines with 100ccm capacity. Due to the weight to power ratio the engine is suitable for a wide range of models. Characteristics are its long life, power and reliability.

TS ‚ÄìVersion ( Twin Spark , 2 spark plugs per cylinder ) convinces with a low idle and softer running characteristic.  All boxer engines with this set up have a better reliability. In case 1 ignition will fail the 2^nd. ignition - which operates autonomously ‚Äì allows the engine to run further with reduced RPM ( 200 ‚Äì 300).

3W-CS-Serie ( Competition Series ) is characterized by better performance, throttle response and more power and torque. Selected parts are used for these engines. This results in a higher performance level. Transfer ports of the cylinder and crankcase are modified as well as the exhaust port.

The micro processor controlled igniton allows to easy start  the engine. The programmed timing curve is laid out for the engines and guarantees a good running characteristic in all RPM ‚Äì ranges. An out put signal to monitor RPM is standard as well as a LED showing the status of the ignition. The voltage range of the standard ignition : 4,8V ‚Äì 8,4V ( 2 cell LIPO battery ). Operating Voltage : 6,0 V.

Techn. specifications
