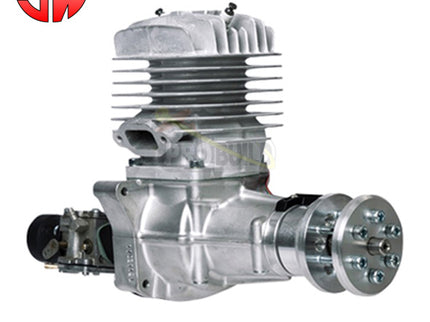

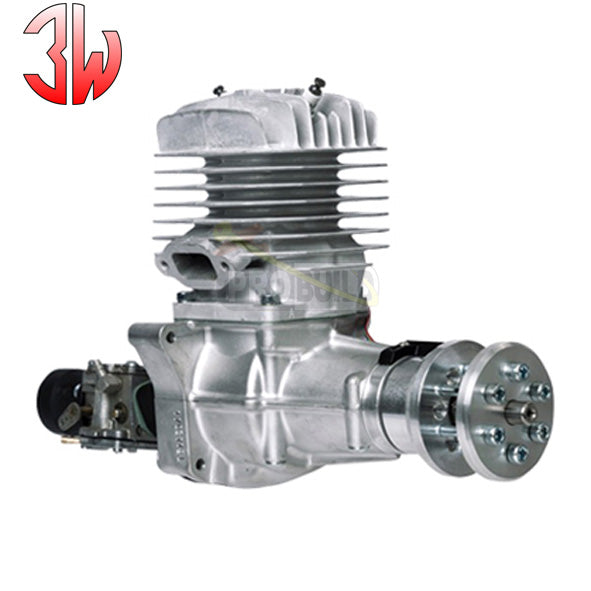

3W-80Xi TS

A good choice for : Aerobatic models,  Scale models or airplane models for towing Sailplanes. The crankshaft with its 3 ball bearings convinces with soft running characteristics. With a suitable 3W-muffler system a power out put is possible which is close to competitor engines with 100ccm capacity. The vibration level is low for such a single cylinder engine and will be a good choice for aerobatic models in the 10kg weight class. The engine can be used for a wide range of models. Characteristics are its long life, power and reliability.

TS ‚ÄìVersion ( Twin Spark , 2 spark plugs per cylinder ) convinces with a low idle and softer running characteristic.  All boxer engines with this set up have a better reliability. In case 1 ignition will fail the 2^nd. ignition - which operates autonomously ‚Äì allows the engine to run further with reduced RPM ( 200 ‚Äì 300).

The micro processor controlled igniton allows to easy start  the engine. The programmed timing curve is laid out for the engines and guarantees a good running characteristic in all RPM ‚Äì ranges. An out put signal to monitor RPM is standard as well as a LED showing the status of the ignition. The voltage range of the standard ignition : 4,8V ‚Äì 8,4V ( 2 cell LIPO battery ). Operating Voltage : 6,0 V.

Techn. specifications
