Description

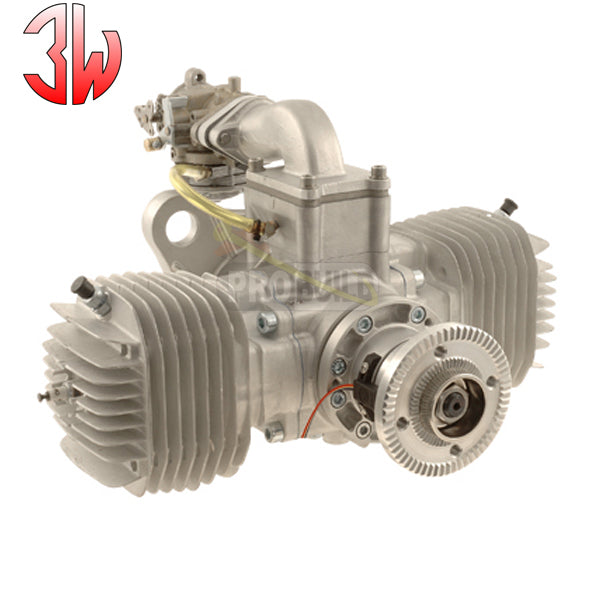

3W-342iB2F

The strong crankshaft, ball bearings and needle bearings insure a long life time. This engine was developed having in mind mainly to be used in the industry. The rear out put shaft is a standard feature  and allows to fit alternators, electric starters and starter / alternator units. The manually operated compression release valves are standard as well and allows an easy starting of the engine. The ¬Ω‚Äù square end of the propeller disc supports  the use of an external electric starter.

The micro processor controlled igniton allows to easy start  the engine. The programmed timing curve is laid out for the engines and guarantees a good running characteristic in all RPM ‚Äì ranges. An out put signal to monitor RPM is standard as well as a LED showing the status of the ignition. The voltage range of the standard ignition : 4,8V ‚Äì 8,4V ( 2 cell LIPO battery ). Operating Voltage : 6,0 V.





Cylinder capacity

20.86 cu in

Power

31.50 HP

Power Rating

23.16 KW

Bore Diameter

2.60 inch

Stroke

1.97 inch

Speed range

1200 - 6500 rpm

Weight

18.91 lbs, incl. Ignition

Crankshaft

3 bearings

Oil / Gasoline Ratio

1 : 50 / 2% Mix

IIS - Ignition

4.8 - 7.4 V

Propeller 2-bladed

36 x 16; 38 x 14; 40 x 12

Propeller 3-bladed

36 x 12; 36 x 14


Shipment Includes:


  • Engine

  • Ignition

  • Spark Plugs

  • Decompressions Valves

  • Prop washer

  • Prop screws

  • Engine manual

  • Exhaust Gasket

  • Rear Output Shaft




Product form

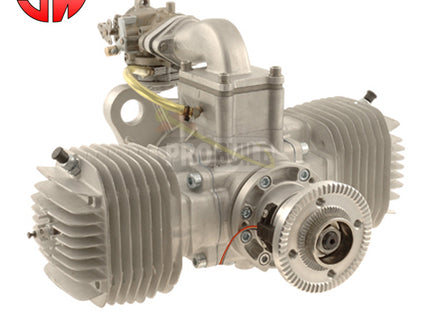

3W-342iB2F

£4,440.88Incl. VAT

SKU: 10.002.800

  • Official UK stockist

  • Fast, reliable Worldwide shipping

  • Trusted by pilots since 1993
