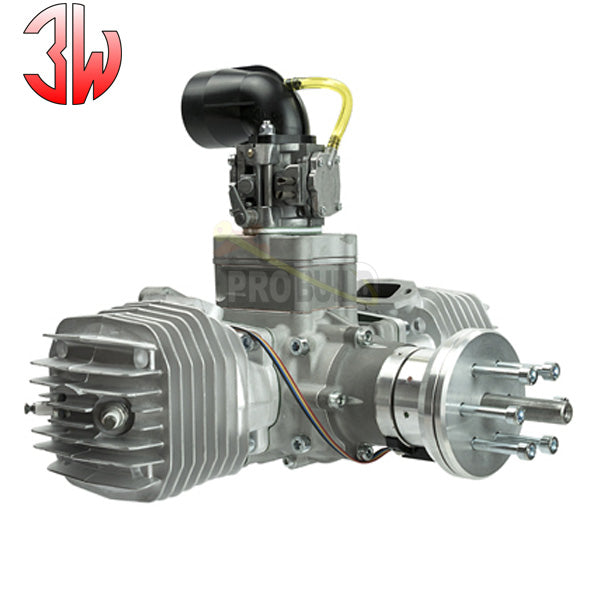

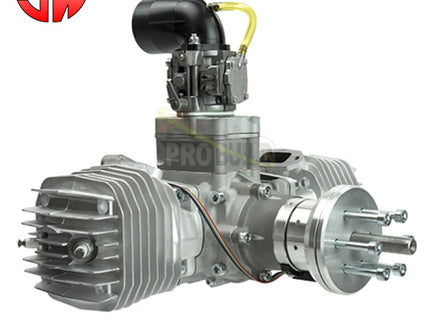

3W-210Xi B2 F TS

The robustness  of the 3W-210xiB2 leaves nothing to be desired. The generously dimensioned ball bearings and needle bearings and the strong crankshaft ensure a long life time of the engine. This makes it interesting for industrial use.

With a suitable 3W-muffler system and propeller a static thrust of 42kg  can be achived. The engine can be used for a wide range of models. Its characteristics are : power , reliability and  a long life.

TS ‚ÄìVersion ( Twin Spark , 2 spark plugs per cylinder ) convinces with a low idle and softer running characteristic.  All boxer engines with this set up have a better reliability. In case 1 ignition will fail the 2^nd. ignition - which operates autonomously ‚Äì allows the engine to run further with reduced RPM ( 200 ‚Äì 300).

The micro processor controlled igniton allows to easy start  the engine. The programmed timing curve is laid out for the engines and guarantees a good running characteristic in all RPM ‚Äì ranges. An out put signal to monitor RPM is standard as well as a LED showing the status of the ignition. The voltage range of the standard ignition : 4,8V ‚Äì 8,4V ( 2 cell LIPO battery ). Operating Voltage : 6,0 V.
