Description
Product Description
The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and 2 x single strand 1.2mm enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!
The A-6528-200kv was designed specifically for 85"-95" Acrobatic Airplanes, or other Sport / UAV airplanes requiring up to 6000w of power. This motor is equivalent to a 60cc/76cc gas engine. We call it 60/76cc because with a 23" prop it is very equivalent to a 60cc gas engine and pulls less amps and therefore could run smaller batteries for lighter overall model weight. Or with a 24" prop it pulls as hard as a 76cc gas engine, with more amps thus requiring a larger battery.
Recommended Prop Selection :
23x10E = Efficiency / 60cc performance
24x10E = Optimal / 70cc-76cc performance
24x12E / 25x8E = High Alt
Recommended ESC -: Tribunus II+ 14-200A ESC SBEC
Acrobatic Weight Range -: 8.18kg - 12.7kg (18.0lbs - 28.0lbs)
Sport / UAV (single engine) Weight Range : - 12.7kg - 36kg (28.0lbs -80lbs)
Specifications
| Motor Kv | 200 RPM / Volt |
| Weight (Motor only) | 998g (35.20 oz) |
| Weight (including mount + Prop mount accessories) | 1115g (39.33 oz) |
| Motor Body Dimensions | 78.5 mm x 67.8mm (3.09" x 2.67") |
| External Shaft Diameter | 10mm |
| Continuous Current | 95A |
| Continuous Power | 4218 Watts |
| Peak Current* | 135A |
| Peak Power* | 6000 Watts |
| Max Rated Lipo Cell** | 12s |
| Stator Diameter | 65.0 mm (2.56 in) |
| Stator Thickness | 28 mm (1.10 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 6T/7T Delta |
| Motor Wire | 2-Strand x 1.2mm |
| No-Load Current (IO/15V) | 2.02 Amps |
| Motor Internal Resistance (phase-phase) | 20 mΩ |
| Motor Inductance (phase-phase) @ 1khz | 23µH |
| *Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling* | |
| **Higher Cell Count possible with smaller prop usage** |

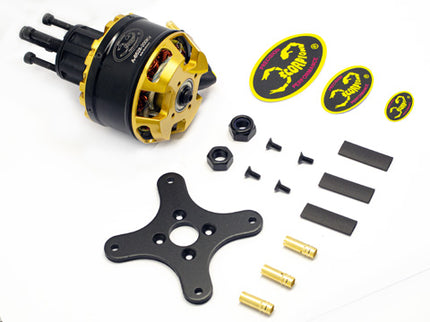

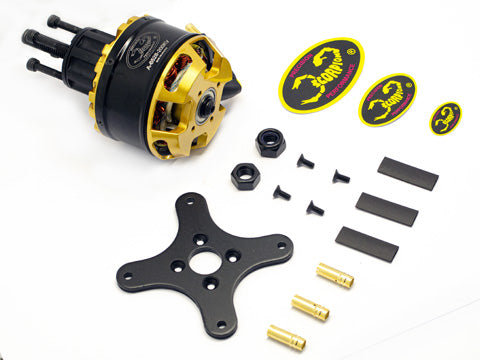

Included in the Box
1 x Scorpion A-6528 BLDC Motor
1 x A-55/65 Cross Mount (stock)
4 x M4 Cross Mount Mounting Bolts
3 x Female 6mm Connectors
3 x Heat Shrink
3 x Scorpion Stickers
2 x M10 Nuts
Weight including packaging
1490g
Full Dimension
View Scorpion A-6528-200kv Full Dimension
