Description
In combination with our new A-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 30cc-35cc sized airplanes. The A-5025 PNP Combo is the solution. This pairs our high power and high efficiency A-series motors with one of our suitably sized, pre-programmed, Tribunus ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo is ready to easily bolt on, and give you the power you need, with the efficiency you want.
Recommended Propeller : 19x10E / 20x10E / 21x8E
Recommended Battery : 12s 3300mah - 4500mah
Specifications
Total Power System Weight (Motor+ESC+Cross Mount+standoffs)
909.6g (32.08oz)
MOTOR SPECIFICATIONS :
Motor Kv
215 RPM / Volt
Weight (including cross mount + Prop mount accessories)
548.4 (19.34 oz)
Motor Body Dimensions
59.3 mm x 52.6mm (+ 18mm prop spacer) (2.33" x 2.07 (+0.70 prop spacer))
External Shaft Diameter
8mm
Continuous Current
70A
Continuous Power
3552 Watts
Peak Current*
90A
Peak Power*
4000 Watts
Max Rated Lipo Cell**
12s
Stator Diameter
50.0 mm (1.97 in)
Stator Thickness
25 mm (.984 in)
No. of Stator Arms
12
Magnet Poles
14
ESC SPECIFICATIONS :
Max Continuous Current
80 Amps
Peak Current
120Amps
Operating Voltage Range
14-52.2 Volts
BEC Output voltage***:
OFF/5.1/6.1/7.1/8.1
Max Continuous BEC Output
10 Amps @ 8.1 V
Peak BEC Output
30 Amps/1s @ 8.1 V
Size
76.7 x 36.5 x 25.4 mm (3.02 x 1.44 x 1 in)
Weight (Without Connectors)
144g (5.08oz)
Drive frequency
8kHz - 32kHz
Cable gauge
12 AWG
*Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling*
| Total Power System Weight (Motor+ESC+Cross Mount+standoffs) | 909.6g (32.08oz) |
| |
| MOTOR SPECIFICATIONS : | |
| Motor Kv | 215 RPM / Volt |
| Weight (including cross mount + Prop mount accessories) | 548.4 (19.34 oz) |
| Motor Body Dimensions | 59.3 mm x 52.6mm (+ 18mm prop spacer) (2.33" x 2.07 (+0.70 prop spacer)) |
| External Shaft Diameter | 8mm |
| Continuous Current | 70A |
| Continuous Power | 3552 Watts |
| Peak Current* | 90A |
| Peak Power* | 4000 Watts |
| Max Rated Lipo Cell** | 12s |
| Stator Diameter | 50.0 mm (1.97 in) |
| Stator Thickness | 25 mm (.984 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| |
| ESC SPECIFICATIONS : | |
| Max Continuous Current | 80 Amps |
| Peak Current | 120Amps |
| Operating Voltage Range | 14-52.2 Volts |
| BEC Output voltage***: | OFF/5.1/6.1/7.1/8.1 |
| Max Continuous BEC Output | 10 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| Size | 76.7 x 36.5 x 25.4 mm (3.02 x 1.44 x 1 in) |
| Weight (Without Connectors) | 144g (5.08oz) |
| Drive frequency | 8kHz - 32kHz |
| Cable gauge | 12 AWG |
| *Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling* | |
Performance Charts

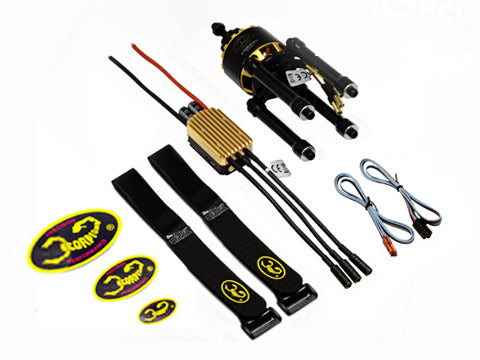

Included in the Box
1 x A-5025-215kv Motor (with stock cross mount and standoff set)
1 x Tribunus II 12 - 80A ESC SBEC
2 x (XL) Anti-Slip Lock Strap
2 x 550mm BEC Cables
1 x Hardware Mounting Pack
1 x A-5025-215kv Motor (with stock cross mount and standoff set)
1 x Tribunus II 12 - 80A ESC SBEC
2 x (XL) Anti-Slip Lock Strap
2 x 550mm BEC Cables
1 x Hardware Mounting Pack
Weight including packaging
1034g
1034g
Scorpion A-5025 PNP Combo (12s / 30cc-35cc /4000w)
£640.00Incl. VAT
