Specifications

Motor Kv	415 RPM / Volt
Weight (Motor only)	523.4g (18.46 oz)
Weight (including Prop mount accessories)	548.40g (19.344 oz)
Motor Body Dimensions	59.3 mm x 52.6mm (+ 18mm prop spacer) (2.33" x 2.07 (+0.70 prop spacer))
External Shaft Diameter	8mm
Continuous Current	108A
Continuous Power	2400 Watts
Peak Current*	155A
Peak Power*	3441 Watts
Max Rated Lipo Cell**	6s
Stator Diameter	50.0 mm (1.97 in)
Stator Thickness	25 mm (.984 in)
No. of Stator Arms	12
Magnet Poles	14
Motor Wind	5T Delta
Motor Wire	23-Strand x 0.33mm
No-Load Current (IO/20V)	2.15 Amps
Motor Internal Resistance	5.45mΩ
*Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling*
**Higher Cell Count possible with smaller prop usage**

Performance Charts

Included in the Box

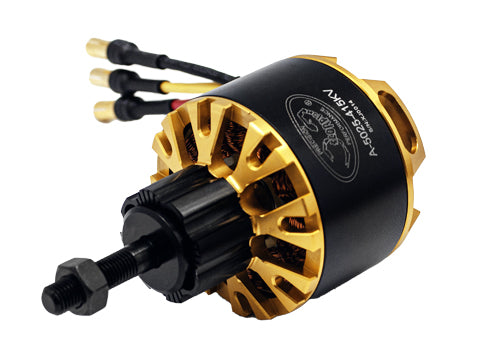

1 x A-5025 Motor
1 x Cross Mount
3 x 6mm Female Connectors
3 x Heat Shrink
1 x Hardware Accessory Bag

Weight including packaging

610g
