Description
In combination with our new A-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 90E /20cc-25cc sized airplanes commonly used in 67"-70" acorbatic airframes . The A-4225 PNP Combo is the solution. This pairs our high power and high efficiency A-series motors with one of our suitably sized, pre-programmed, Tribunus III ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo is ready to easily bolt on, and give you the power you need, with the efficiency you want.
Recommended Propeller : 17x10 / 18x8
Recommended Battery : 6s 4400mah - 5500mah

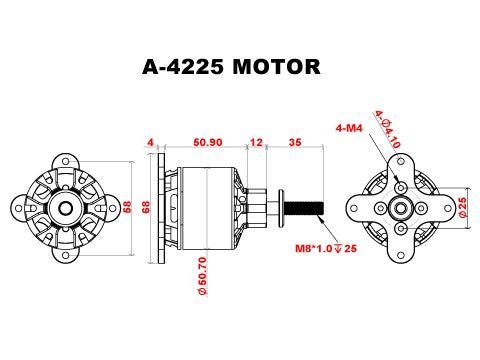

Full Dimension
Specifications
| Total Power System Weight (Motor+ESC+Cross Mount) | 544g (19.19 oz) |
| |
| MOTOR SPECIFICATIONS : | |
| Motor Kv | 500 RPM / Volt |
| Weight (including cross mount + Prop mount accessories) | 398g ( 14.04oz) |
| Motor Body Dimensions | 50.7mm x 50.9mm (+12.0mm prop spacer) (1.99" x 2.00" (+ 0.47") ) |
| External Shaft Diameter | 8mm |
| Continuous Current | 100A |
| Continuous Power | 2220 Watts |
| Peak Current* | 140A |
| Peak Power* | 3108 Watts |
| Max Rated Lipo Cell | 6s |
| Stator Arms | 12 |
| Magnet Poles | 14 |
| |
| ESC SPECIFICATIONS : | |
| Max Continuous Current | 160 Amps |
| Peak Current | 200Amps |
| Operating Voltage Range | 11-26.1 Volts |
| BEC Output voltage***: | OFF/5.1 - 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| Size | 36.5 x 75.0 x 27.0 mm (1.44 x 2.95 x 1.06 in) |
| Mounting Tab Dimensions | 24.0x84.0mm (0.944 x 3.30in) / M3 Bolt |
| Weight (Without Connectors) | 155g (5.47 oz) |
| Drive frequency | 8kHz - 32kHz |
| Cable gauge | 12 AWG |
| |
| *Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling* | |
Performance Charts
Use Case Applications

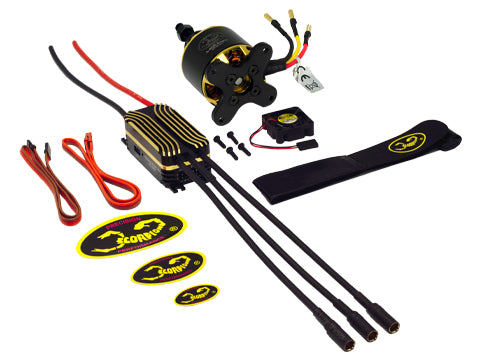

Included in the Box
1 x A-4225-500kv Motor
1 x Tribunus III 06 - 160A ESC SBEC
1 x 30mm cooling fan
1 x (L) Anti-Slip Lock Strap
2 x 550mm BEC Cables
1 x Hardware Mounting Pack
Weight including packaging
700g
Scorpion A-4225 V2 PNP Combo (6s/90E+/20cc-25cc+/3108w)
£479.99Incl. VAT
