Description

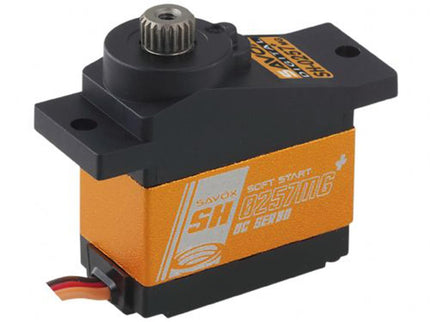

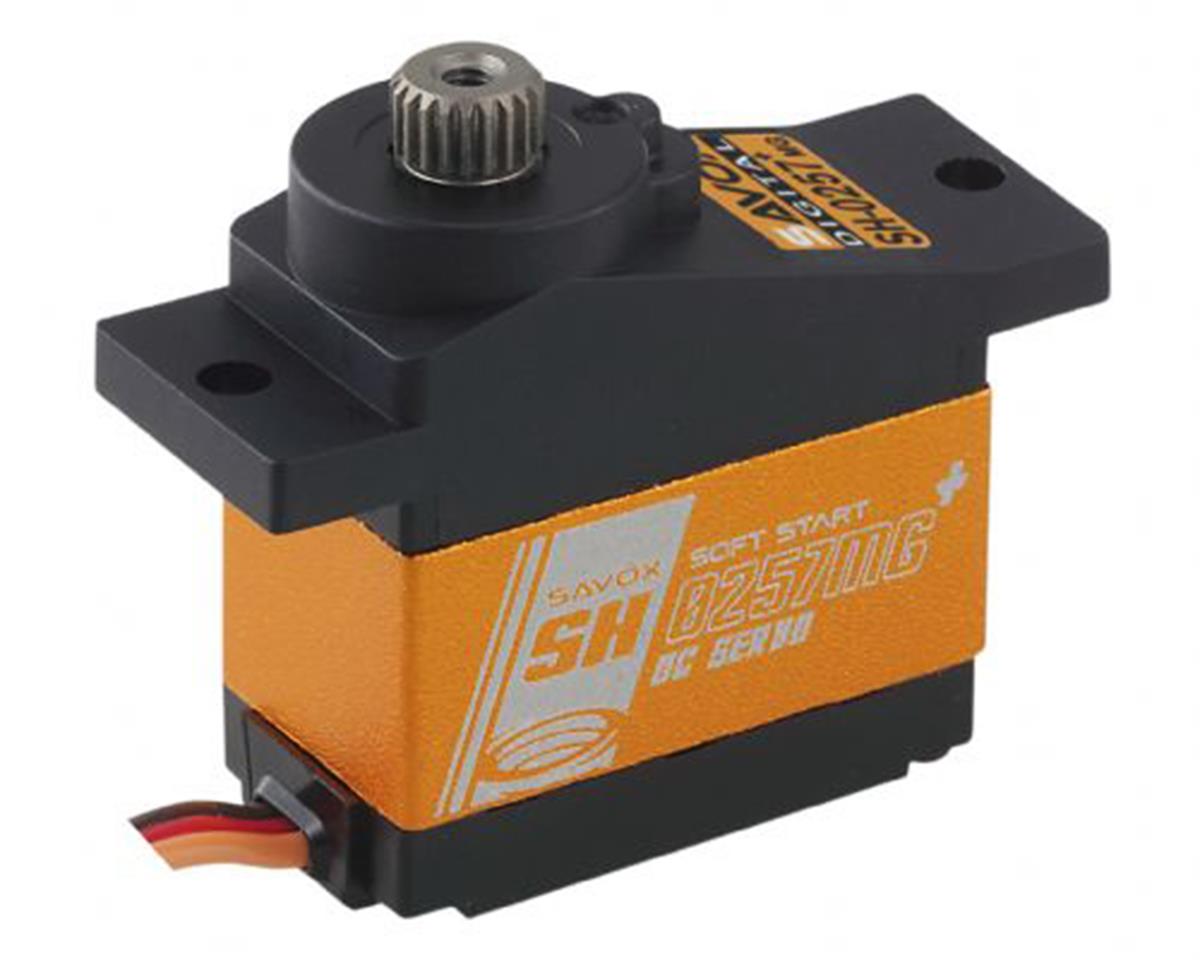

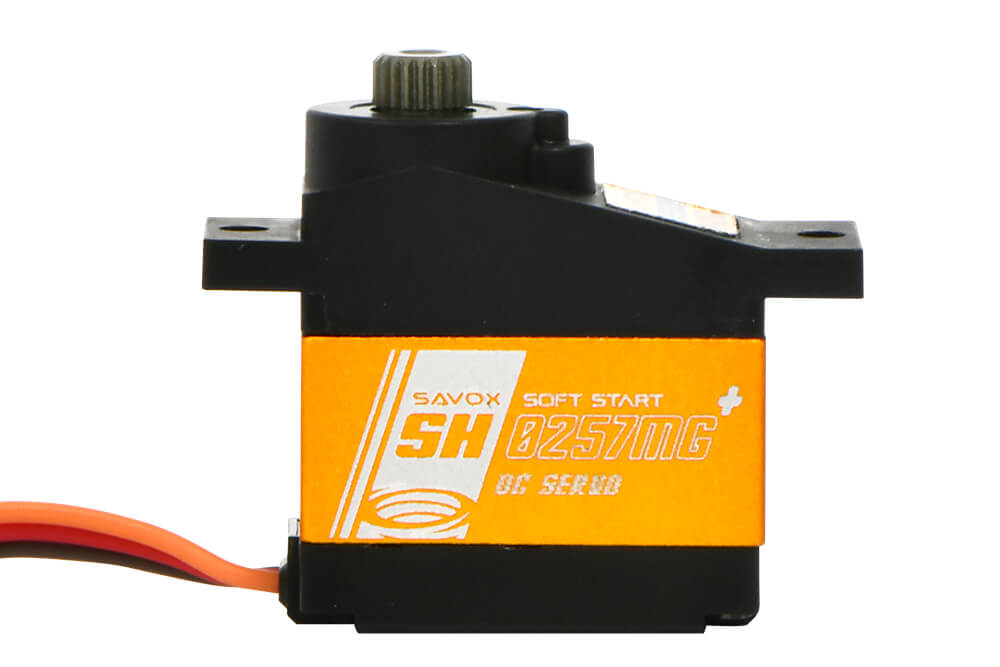

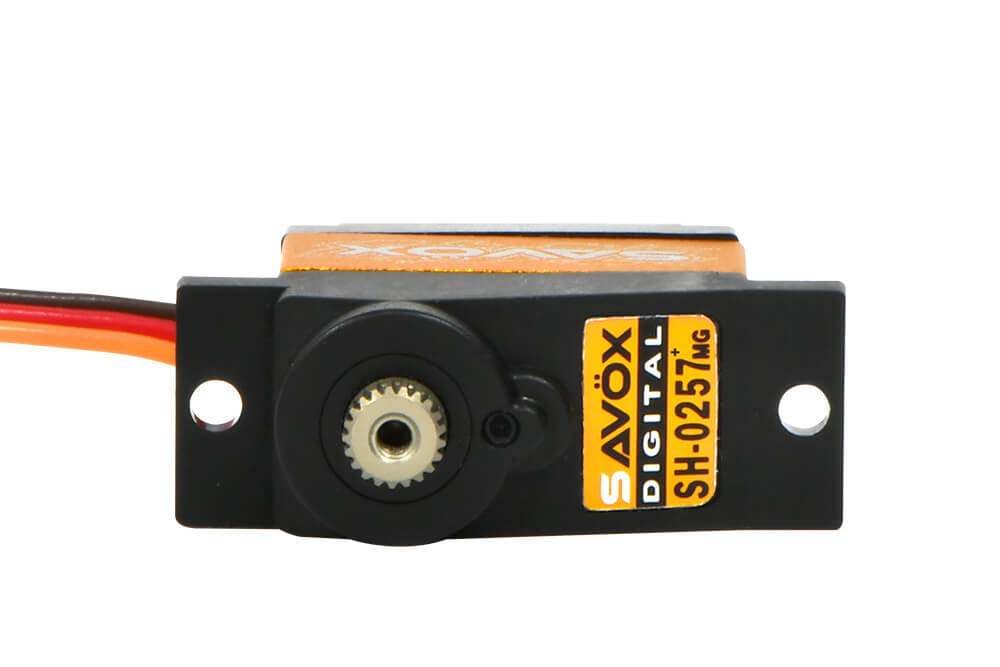

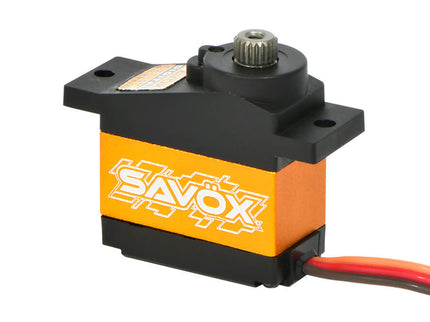

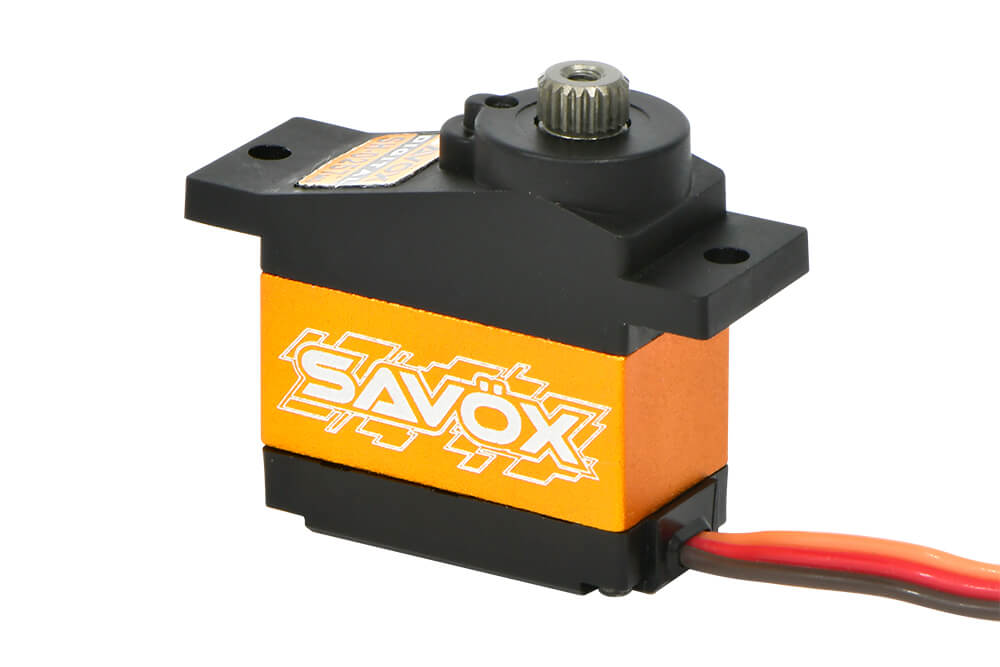

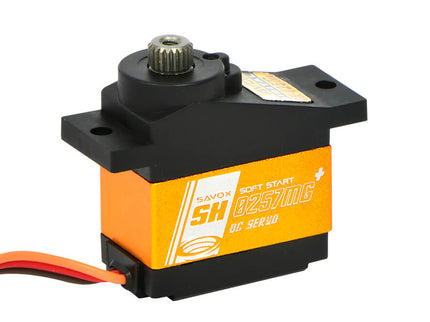

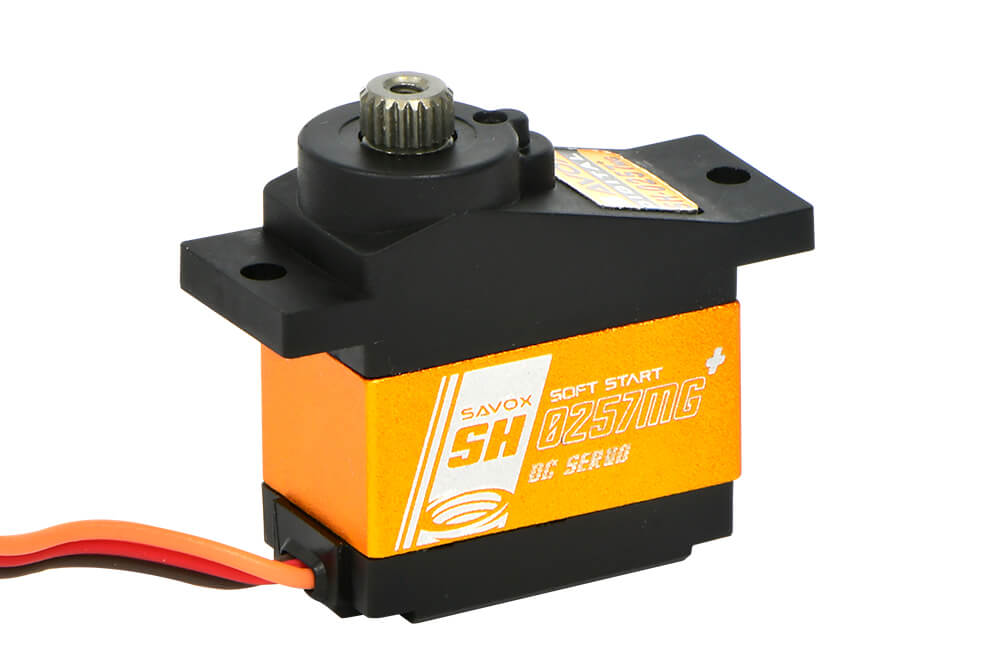

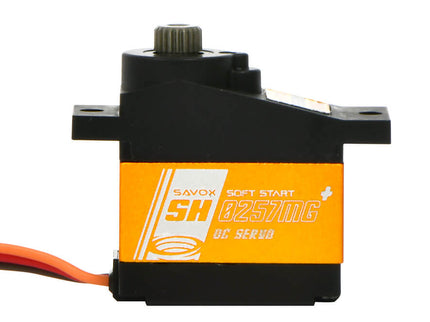

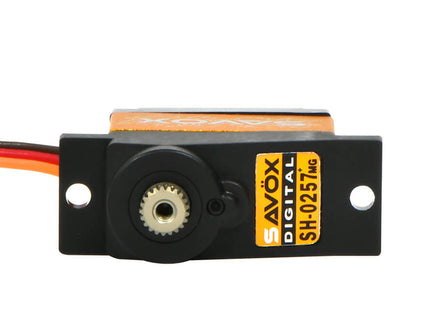

The Savox SH-0257MG+ Plus Edition Digital Micro Servo delivers impressive torque and speed in a compact, lightweight design. Producing up to 2.2kg of torque at 6.0V while maintaining a fast 0.09s transit time, this servo offers the performance of larger servos without the extra weight or size.
Designed for small aircraft and 450-size helicopters, the SH-0257MG+ features a metal gear train for durability and an aluminium middle case to improve cooling and long-term reliability. As part of the Savox “Plus” series, it also includes Soft Start Mode and Sanwa SSR compatibility, making it an excellent choice for pilots who value smooth operation and precise control.
Key Features:
✅ High torque micro servo delivering up to 2.2kg @ 6.0V
✅ Fast 0.09s speed for responsive control
✅ Metal gear train for strength and durability
✅ Aluminium middle case for improved cooling
✅ Plus Edition with Soft Start Mode
✅ Sanwa SSR compatible
✅ Compact and lightweight for small models
Perfect For:
✅ Small RC aircraft
✅ 450-size helicopters
✅ Lightweight sport and aerobatic models
✅ Applications requiring a compact, high-quality digital micro servo
Product Summary:
The Savox SH-0257MG+ combines strength, speed, and precision in a compact micro servo package. With metal gears, aluminium construction, and advanced Plus Edition features, it delivers reliable performance for pilots looking to maximise control without adding unnecessary weight.
Specifications:
Torque @ 4.8V: 1.8kg / 25.0 oz-in
Torque @ 6.0V: 2.2kg / 30.6 oz-in
Speed @ 4.8V: 0.13 sec/60°
Speed @ 6.0V: 0.09 sec/60°
Dimensions (L × W × H): 22.8 × 12.0 × 25.4 mm
Weight: 14.0g
Operating Temperature: -10°C to 50°C
Running Current (no load): 150mA @4.8V, 180mA @6.0V
Stall Current: 1000mA @4.8V, 1200mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 21 Tooth
Bearings: 1BB
Operating Travel: 90° (1000 → 2000 µs)
Maximum Travel: approx. 150° (700 → 2300 µs)
Neutral Position: 1500 µs
Pulse Width Range: 700 → 2300 µs
Refresh Rate: 240Hz
Motor Type: Brushed
