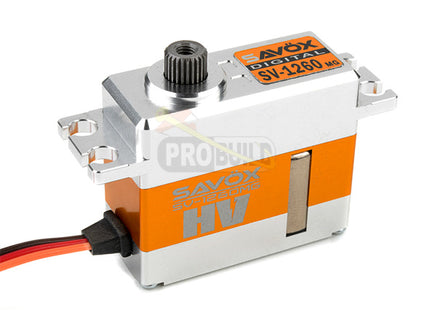

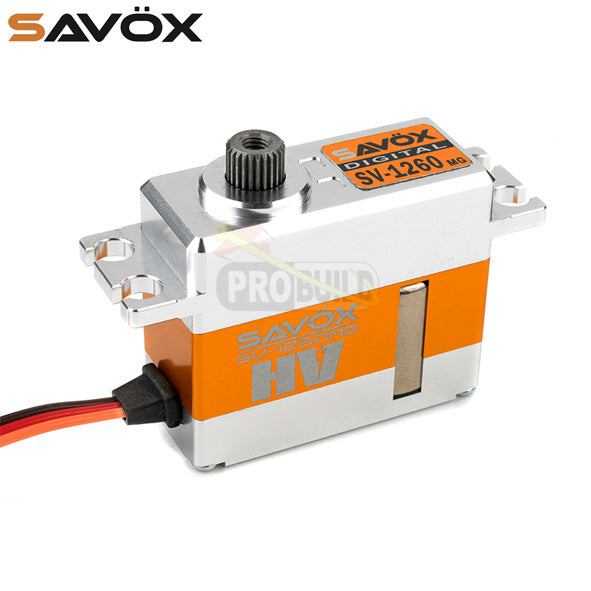

SAVOX HV DIGITAL MINI SIZE SERVO 12KG/0.055S@7.4V
The SV-1260MG is a mini-sized, digital, high voltage, metal-geared servo with an all aluminum case and metal gearset, making it one of the strongest and fastest mini servos available.

FEATURES
Metal gear train provide durability against heavy use.
Capable of HV operation.
All aluminum case provides strength and cooler operating temperatures.
SPECIFICATIONS
Torque @6v - 8.0kg/111.1oz-in
Torque @7.4v - 12.0kg/166.6oz-in
Speed @6v - 0.065 sec/60 deg
Speed @7.4v - 0.055 sec/60 deg
Dimensions L x W x H (mm): 35.0 x 15.0 x 30.7
Weight: 40.0g
TECHNICAL DETAILS
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 180mA @7.4V
Stall Current (at locked): 4000mA @6.0 V, 4700mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 250 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 165° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
